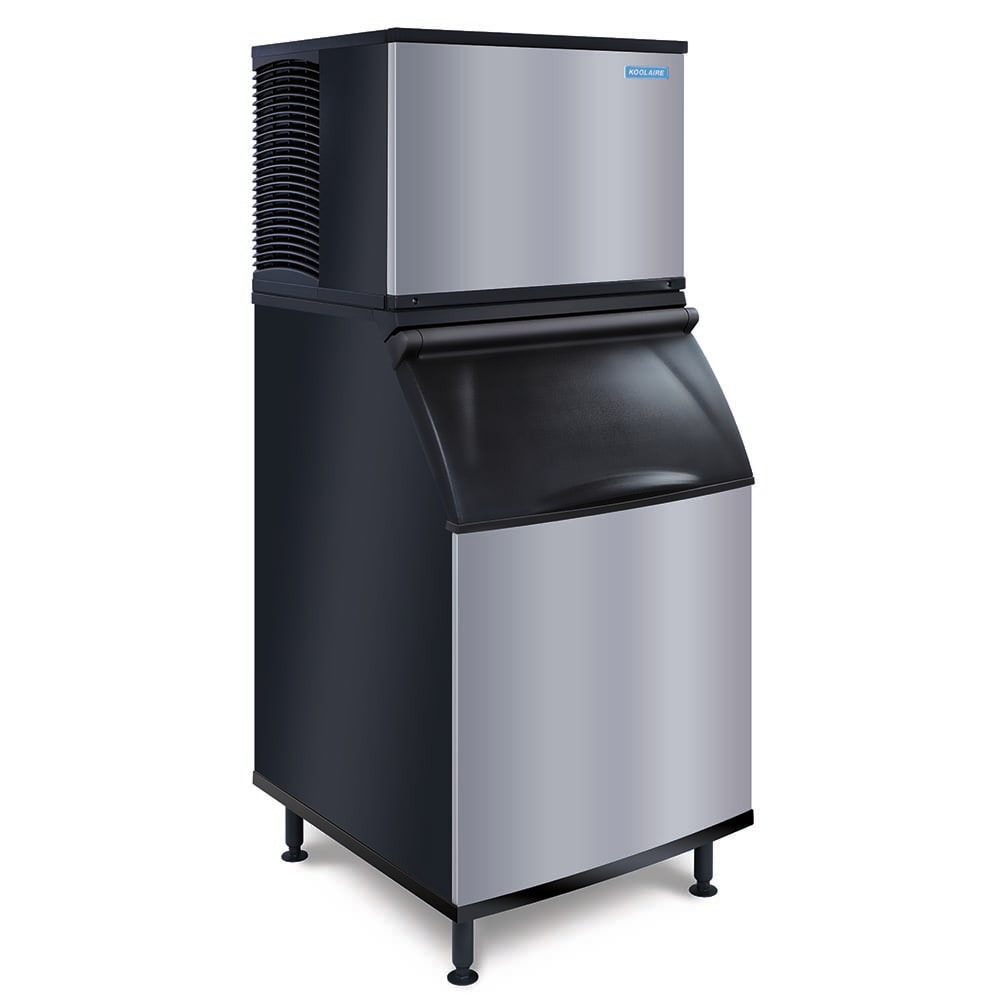

Koolaire KDP0300A/K570 342 lb KDT Series Full Cube Ice Machine w/ Bin - 532 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,203.00 /Each
Contact us for details!
Selected Ice Type: Full Cube
Koolaire KDP0300A/K570 Description
Producing as much as 333 pounds daily, the Koolaire KDP0300A/K570 ice maker with bin makes full-cube ice. These cubes are large and square, ideal for drinks in bars and restaurants. Its condenser uses fans to blow cold air over the refrigerant coils, cooling them so they can cool the evaporator plate. Through this process, water running over the plate freezes and forms ice.
The ice machine's food zone, the area with parts that encounter ice and water, has corrosion-resistant plastic components. Since these components are white, users can see when cleaning is needed, and some of the parts in this area are removable to facilitate cleaning.
With a foam-insulated door, the bin retains cold air and reduces condensation buildup, while the door has a stay-open design that simplifies scooping. An ice scoop can be stored in the holder inside the bin, keeping it out of the ice to prevent contamination. So users can clean underneath the unit, the bin's legs elevate it off the floor. This Koolaire KDP0300A/K570 ice machine head with bin has a stainless steel-like finish on the exterior, providing corrosion resistance and reducing smudging. The bin has black side panels that match the panels on the ice maker.
- 342-lb. maximum daily ice production
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Air-cooled condenser operates with a fan that blows cold air over the equipment
- Uses R290 refrigerant
- Remove 2 screws and lift-off door for food zone access
- White plastic components in the food zone resist corrosion
- Removable water shield, floats, distribution tube, pump, and trough
- Exterior is similar to stainless steel that resists corrosion and fingerprints
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 532-lb. application capacity
- Foam-insulated door reduces condensation and retains cold air
- Stay-open door design eases ice scooping
- 82-oz. scoop
- Internal scoop holder prevents handle from contaminating ice
- Stainless steel-like exterior finish
- Black panels on the sides match the ice machine head
- Legs keep the unit elevated for cleaning access
- Ice Maker
- 30 in. W x 24 in. D x 21.5 in. H
- 9.4 A, 5.9 kW
- 115 V/60 Hz/1 ph
- Bin
- 30 in. W x 34 in. D x 44 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KDP0300A/K570 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, air-cooled, self-contained condenser, 30" W x 24.5" D x 21.5" H, production capacity up to 342 lb/24 hours at 70°/50° (256 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Ice Storage Bin, with top-hinged front opening door, 532 lb ice storage application capacity, for top-mounted ice maker, includes internal scoop holder & scoop, polyethylene interior, PVC coated laminated exterior, 6" adjustable legs, NSF, AHRI
Koolaire KDP0300A/K570 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 342 |
| Access | Lift Up Door |
| Also Known As | KDT0300A/K570 |
| Bin Capacity (lb) | 532 |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 65.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | KDT Series |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 252.00 |
