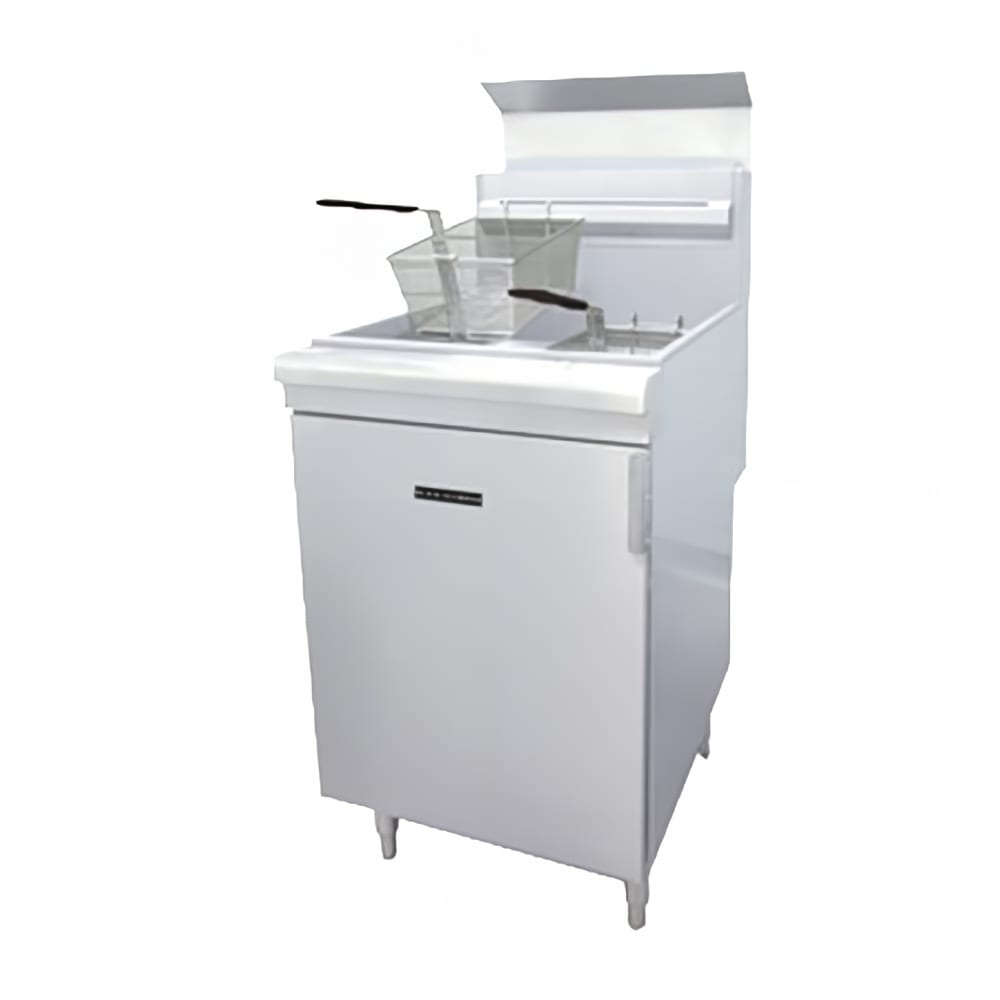

Black Diamond BDGF-150/NG Gas Fryer - (1) 70-lb Vat, Floor Model, NG

KaTom #: 693-BDGF150NG • MPN: BDGF-150 NG
quick-ship

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $1,431.36
$840.92 / Each

Black Diamond BDGF-150/NG Description

The Black Diamond BDGF-150 NG floor model fryer uses natural gas to produce heat. A standing pilot light provides a flame when heat is needed. Gas is prevented from reaching the main burner until the pilot is turned on. If temperatures exceed 450 degrees Fahrenheit or if light pilot light goes out, gas flow is shut off. A heat deflector is built into the fryer.

Long-lasting baffles are mounted in the heat exchange tubes for efficiency when it comes to heating and combustion. The frypot can hold between 65 to 70 pounds of oil. Draining the oil to replace it is simple with the front drain valve. The cooking temperature on the Black Diamond BDGF-150 NG floor model fryer can be adjusted from 200 to 400 degrees Fahrenheit. A nickel-plated tube rack holds two nickel-plated wire mesh baskets.

Product Details

  • Heated by natural gas
  • 2 nickel-plated wire mesh baskets
  • Nickel-plated tube rack
  • Drain extension
  • Heat deflector is built in
  • Standing pilot light provides a pilot flame when heat is needed
  • Gas control valve keeps gas from the main burner until the pilot is established
  • Gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator, and automatic main valve
  • Gas is shut off if temperatures exceed 450 degrees F or if the pilot flame goes out
  • 200-400 degrees F temperature range
  • 65-70 lb. oil capacity
  • Long-lasting baffles are mounted in the heat exchange tubes for heating and combustion efficiency
  • Stainless steel construction is welded and has a smooth finish for simple cleaning
  • Sides and back are made of galvanized steel for dependability and resistance to corrosion
  • 114-in. drain on the front for draining oil
  • 6-in. adjustable legs
  • 150,000 BTU
  • Overall Dimensions: 1512 in. W x 3058 in. D x 47932 in. H
  • cETLus and ETL-Sanitation listed

Black Diamond Fryer, floor standing, NG gas, 65-70 lbs. capacity, thermostatically controlled, stainless steel tank, includes (2) baskets, built-in integrated flue deflector, automatic shut off, stainless steel front & door with galvanized sides & back, adjustable legs, 150,000 BTU

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Black Diamond BDGF-150/NG Specifications

PDF Spec Sheet
Manufacturer Black Diamond
Number of Fry Pots 1
Gas Type NG
BTU per Fryer 150,000
Oil Capacity per Fryer 70 lb
Frypot Style Tube Type
Food Type Breaded
Width (in) 15
Warranty 1 year parts & labor
Baskets 2
Weight 203.00
Black Diamond BDGF-150/NG Certifications
  • ETL
