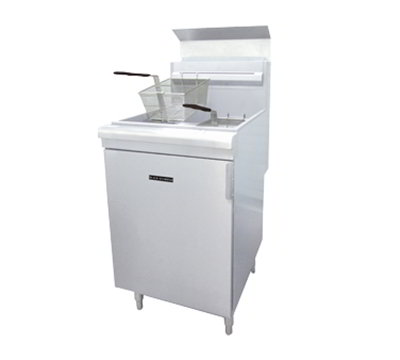

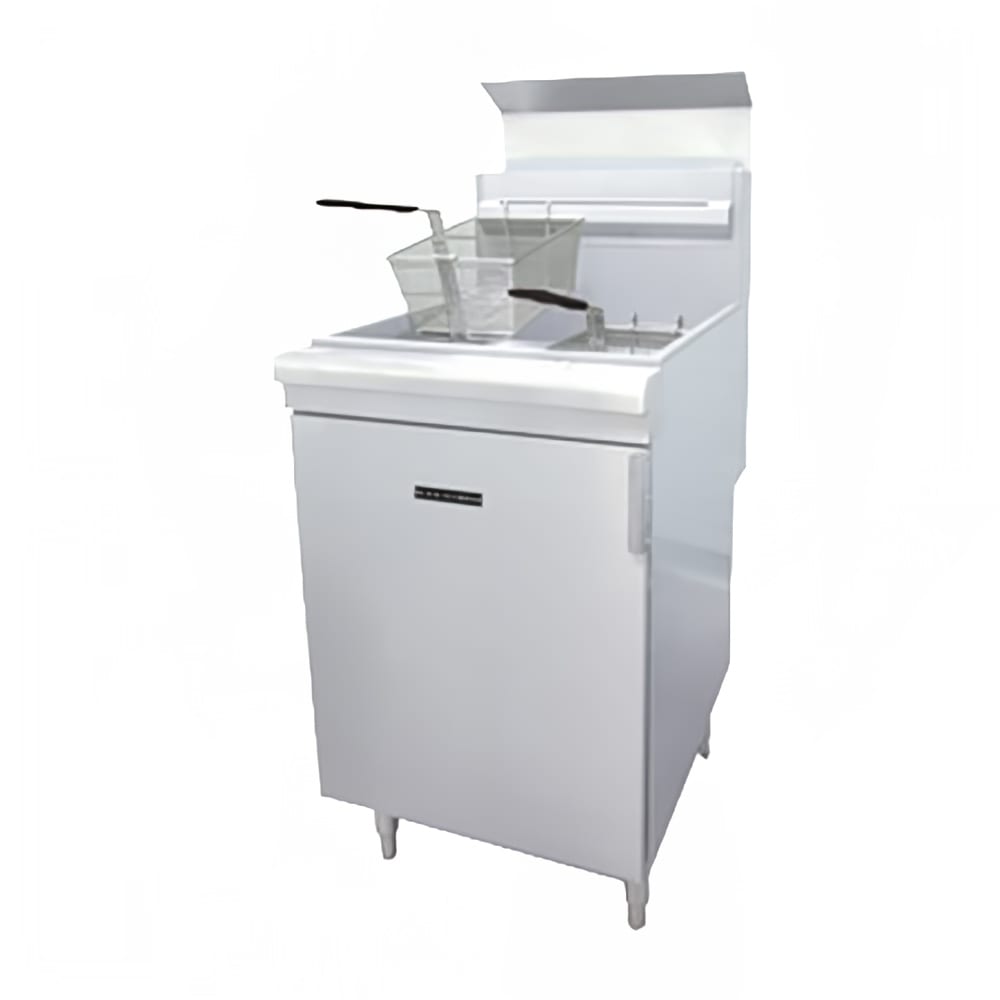

Black Diamond BDGF-150/LPG Gas Fryer - (1) 70-lb Vat, Floor Model, LP

Image may not depict product color, inclusions or accessories.

KaTom #: 693-BDGF150LP • MPN: BDGF-150

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $1,634.66
$960.36 / Each

Selected Gas Type: Liquid Propane

Image may not depict product color, inclusions or accessories.

Black Diamond BDGF-150/LPG Description

Black Diamond

The Black Diamond BDGF-150 LP floor model fryer is heated by propane gas. A standing pilot light provides a flame when heat is needed. The gas control valve keeps gas from the main burner until the pilot is established, and if the pilot goes out, it cuts off the flow of gas. Additionally, if temperatures exceed 450 degrees Fahrenheit, the flow of gas is shut off. Baffles that are mounted in the heat exchange tubes create combustion efficiency and ideal heat-to-oil transfer.

The fryer's stainless steel construction is durable, and the 6-inch legs are adjustable to accommodate uneven floors. The frypot can hold 65 to 70 pounds of oil. When you are ready to drain the oil, there is a 114 inch drain on the front of the Black Diamond BDGF-150 LP floor model fryer. The temperature range on this unit is from 200 to 400 degrees Fahrenheit. Two included nickel-plated wire mesh baskets sit on a nickel-plated tube rack.

Product Details

  • Heated by propane gas
  • Pilot flame is provided by the standing pilot light when heat is needed
  • Gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator, and automatic main valve
  • Gas control valve prevents gas from flowing to the main burner until the pilot is established and shuts off the flow of gas if the pilot flame goes out
  • Gas is shut off if temperatures exceed 450 degrees F
  • 65-70 lb. oil capacity
  • Baffles are long-lasting and mounted in the heat exchange tubes for ultimate heating and combustion efficiency
  • Sides and back are made of galvanized steel for durability and resistance to corrosion
  • 200-400 degrees F temperature range
  • 114-in. drain on the front for emptying the oil
  • 2 nickel-plated wire mesh baskets
  • Nickel-plated tube rack
  • Drain extension
  • Built-in heat deflector
  • Constructed from welded stainless steel with a smooth finish for simple cleaning
  • 6-in. adjustable legs
  • 150,000 BTU/hr. maximum heat input
  • Overall Dimensions: 1512 in. W x 3058 in. D x 47932 in. H
  • cETLus and ETL-Sanitation listed

Black Diamond Fryer, floor standing, LP gas, 65-70 lbs. capacity, thermostatically controlled, stainless steel tank, includes (2) baskets, built-in integrated flue deflector, automatic shut off, stainless steel front & door with galvanized sides & back, adjustable legs, 150,000 BTU

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Black Diamond BDGF-150/LPG Specifications

PDF Spec Sheet
Manufacturer Black Diamond
Number of Fry Pots 1
Gas Type LP
BTU per Fryer 150,000
Oil Capacity per Fryer 70 lb
Frypot Style Tube Type
Food Type Breaded
Width (in) 15
Warranty 1 year parts & labor
Baskets 2
Weight 203.00
Black Diamond BDGF-150/LPG Certifications
  • ETL
