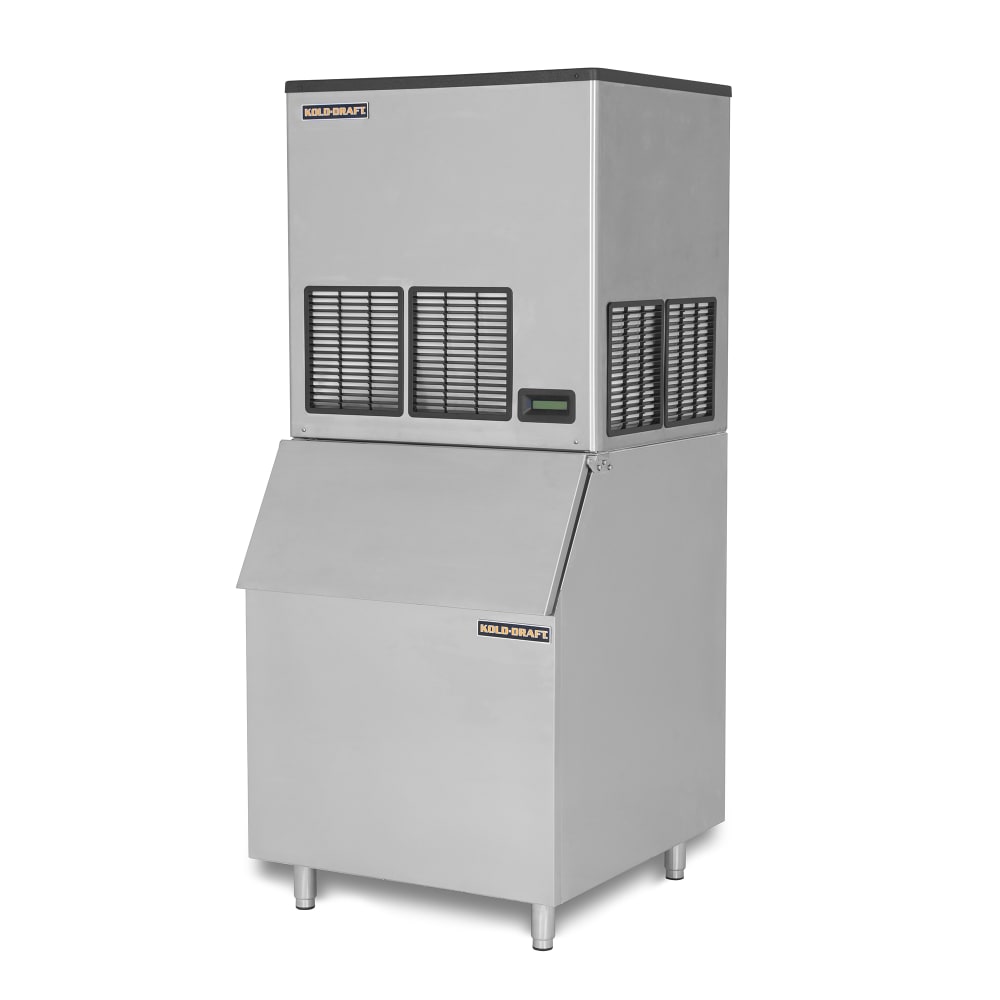

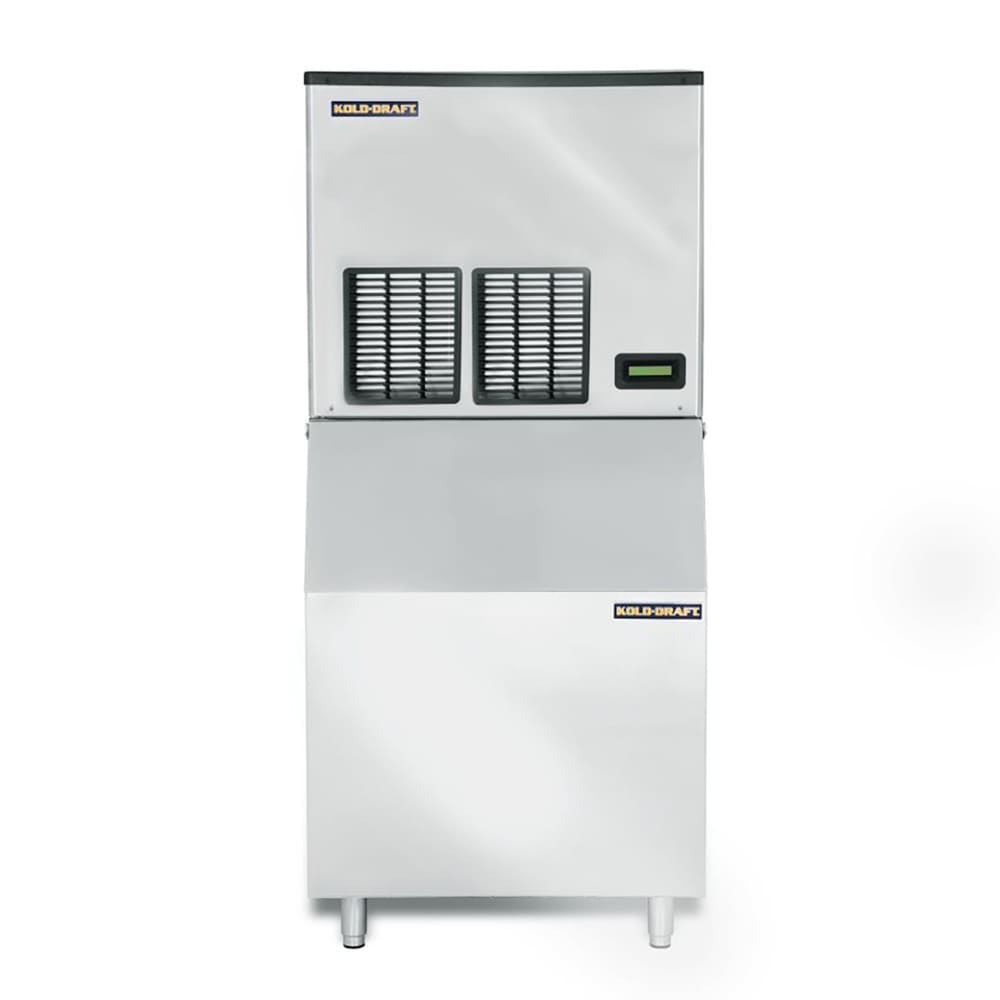

Kold-Draft GTX561LC/KDB400 543 lb Full Cube Ice Machine w/ Bin - 400 lb Storage, Water Cooled, 115v
Typically ships in 1 - 3 Business Days
$8,619.60 /Each
Call us for pricing
Selected Compressor Type: Water Cooled
Kold-Draft GTX561LC/KDB400 Description
Built with a stainless steel frame, the Kold-Draft GTX561LC/KDB400 modular ice machine with storage bin is designed for commercial use. This unit produces up to 543 lbs. of full-cube ice per day, ensuring a steady supply for beverage service, food preservation, and cocktail preparation. The plastic top and louvers protect internal components, while the water-cooled, self-contained condenser regulates operating temperatures and reduces heat buildup. The included storage bin holds 400 lbs. of ice to support high-demand environments.
The Kold-Draft GTX561LC/KDB400 ice machine features a thermostatic expansion valve for optimized refrigerant flow. Its stackable design increases ice output, while the polyethylene interior liner simplifies cleaning. The LED display provides real-time monitoring of system performance and ice production. A sloped front bin and top-hinged door improve access, and six-inch legs elevate the unit for airflow and stability. Compatible with GT series ice makers, this unit integrates into various commercial setups.
- 543-lb. full-cube ice production per day
- Water-cooled, self-contained condenser
- Stainless steel frame
- Plastic top and louvers
- Full-dice size ice
- Thermostatic expansion valve
- R-404a refrigerant
- Stackable design
- LED display
- Polyethylene interior liner
- Sloped front
- 6-in. legs
- 400-lb. ice storage capacity
- 30 1⁄4-in. width
- Polyethylene interior liner
- Sloped front
- Top-hinged door
- Compatible with GT series ice makers
- Includes ice scoop
- Overall dimensions: 30 14 in. W x 34 in. D x 67 710 in. H
- 115 V/60 Hz/1 ph
- 19.3 A
- Produces up to 543 lbs. of ice at 70 degrees F air and 50 degrees F water temperature
*Image may not depict product color, inclusions or accessories.
*Free shipping on Kold-Draft GTX561LC/KDB400 within the 48 contiguous states.
From The Manufacturer
Ice Maker, cube-style, water-cooled self-contained condenser, production capacity up to 543 lbs/24 hours at 70°/50° (477 lbs at 90°/70°), LED display, stainless steel frame, plastic top, plastic louvers, full-dice size ice, stackable, 115v/60/1-ph, 19.3 amps, cETLus, Made in USA
Ice Storage Bin, 30" W, sloped front, top-hinged door, 400 lb ice storage capacity, stainless steel exterior, polyethylene interior liner, 6" legs (for GT series ice makers)
Kold-Draft GTX561LC/KDB400 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Kold-Draft |
| 24 Hr. Production (lb) | 543 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 400 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 67.7 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.75 |
| Width (in) | 30.25 |
| Weight | 360.00 |
