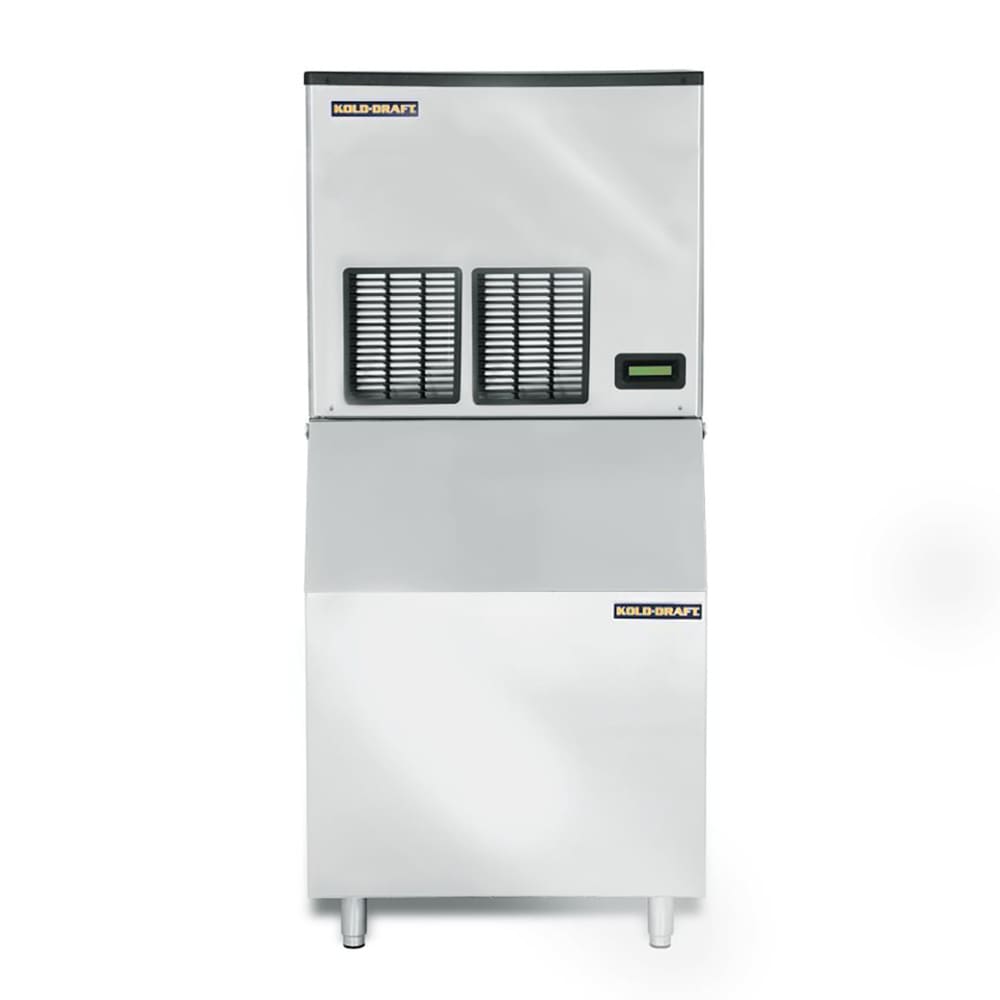

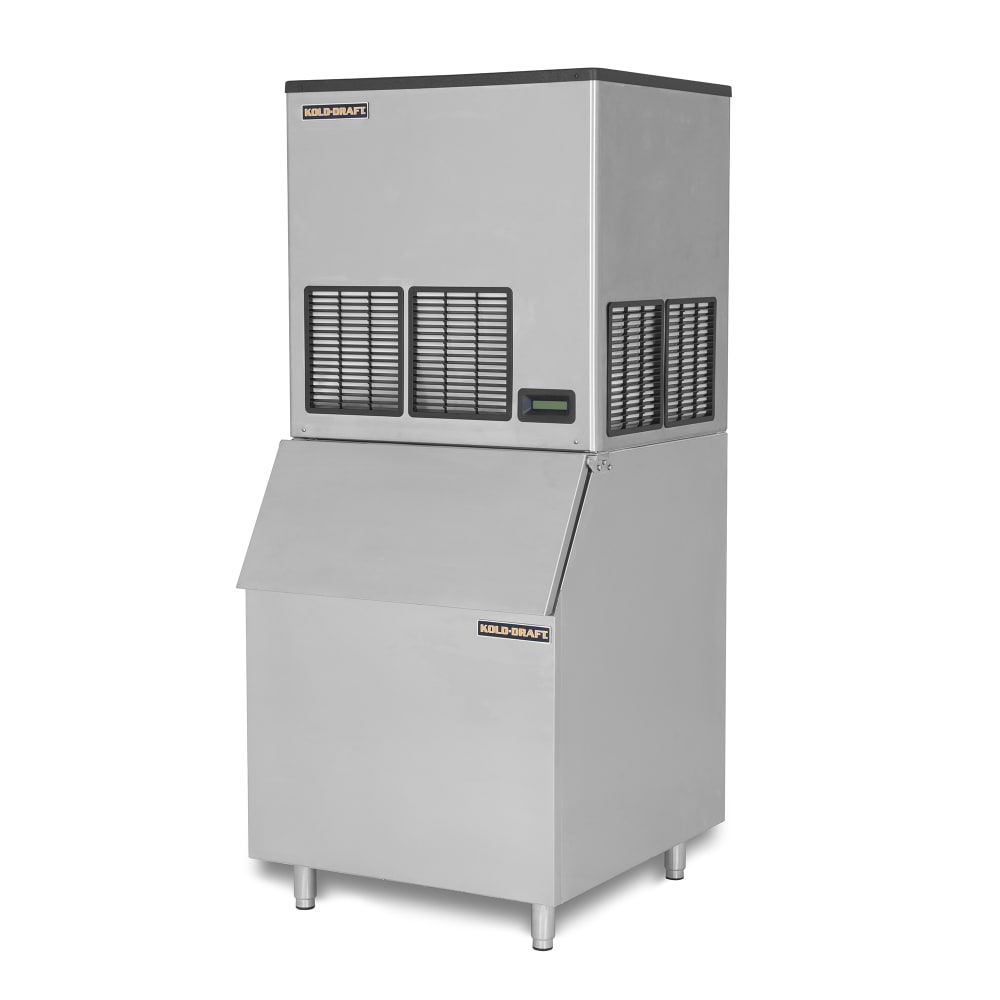

Kold-Draft GTX561AC/KDB400 525 lb Full Cube Ice Machine w/ Bin - 400 lb Storage, Air Cooled, 115v

The Kold-Draft GTX561AC/KDB400 ice machine is meant for use in high-traffic spaces, as its efficient design can make 525 pounds of full-dice ice in an hour. This ice maker is completely air cooled, meaning it doesn’t require water lines for operation and is simple to install. The unit’s plastic louvers protect the refrigeration system inside from dirt and other debris. It’s nontoxic and uses R404A hydrocarbon refrigerant; meanwhile, the thermostatic expansion valve regulates refrigerant’s flow.

The Kold-Draft GTX561AC/KDB400 commercial ice maker is stackable and fits atop a 400-pound ice storage bin. Its top-hinged door provides access inside for stocking or removing ice cubes. The polyethylene interior liner upkeeps the ice’s quality, while the exterior body is made of stainless steel for durability, corrosion resistance, and simplified cleaning. The ice maker and bin stay upright with the support of 6-inch legs, making the unit is easy to clean under when needed.

Ice Maker

• Can produce 525 lbs. in 24 hours
• Air-cooled, self-contained condenser
• Thermostatic expansion valve
• R404A refrigerant
• Full-dice size ice
• Plastic louvers and top
• Incoming air temperature: 45-110 degrees F
• Incoming water temperature: 45-90 degrees F
• 20 PSIG potable water pressure

Bin Details

• 400-lb. capacity
• Sloped front
• Top-hinged door
• Polyethylene interior liner
• 6-in. legs

Dimensions & Utilities

• Ice maker: 30¹/₁₀ in. W x 25⁷/₁₀ in. D x 30⁷/₁₀ in. H
• Bin: 30¹/₄ in. W x 34 in. D x 37 in. H
• 20.2 A
• 115 V/60 Hz/1 ph

From The Manufacturer

Ice Maker, cube-style, air-cooled self-contained condenser, production capacity up to 525 lbs/24 hours at 70°/50° (424 lbs at 90°/70°), LED display, stainless steel frame, plastic top, plastic louvers, full-dice size ice, stackable, 115v/60/1-ph, 20.2 amps, cETLus, Made in USA; Ice Storage Bin, 30" W, sloped front, top-hinged door, 400 lb ice storage capacity, stainless steel exterior, polyethylene interior liner, 6" legs

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts for Compressor & Evaporator
