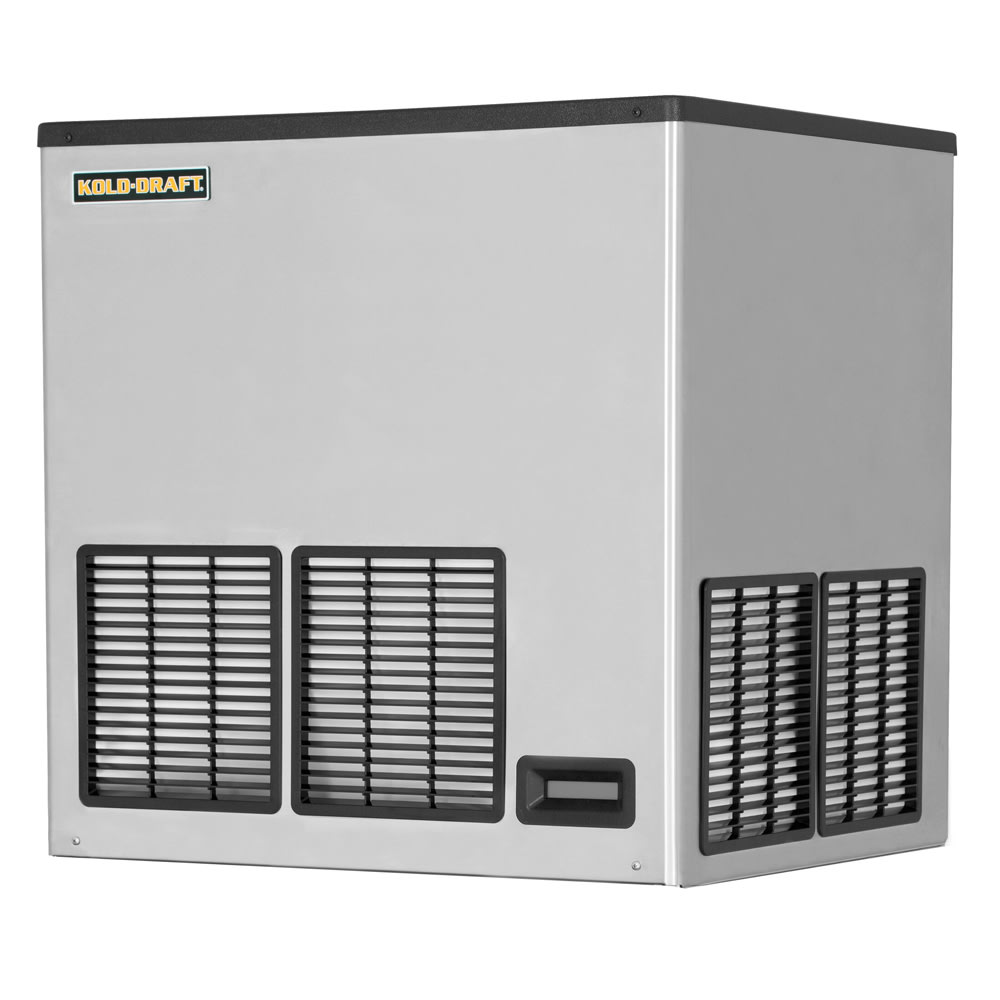

Kold-Draft GTX561LC 30" X-SERIES Full Cube Ice Machine Head - 543 lb/24 hr, Water Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 657-GTX561LC • MPN: GTX561LC
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $6,421.00
$3,928.97 / Each

Image may not depict product color, inclusions or accessories.

Kold-Draft GTX561LC Description

Kold-Draft

Each day, the Kold-Draft GTX561LC ice machine head can make 543 pounds of full-cube ice, which is large and melts slowly in drinks. This ice is formed in the unit when water freezes on the evaporator plate. The plate gets cool when refrigerant is cooled by water that flows over the condenser coils.

Constructed of stainless steel, the exterior of the Kold-Draft GTX561LC ice machine head is resistant to corrosion, dents, and scratches. There are plastic pieces on the unit that also resist corrosion. On the exterior, an LED display shows the operator unit information. The interior has coved corners that minimize debris trapping by eliminating crevices.

Product Details

  • 543-lb. maximum daily ice production
  • Water cooled with water flowing over the condensing coils to cool the refrigerant and freeze water on the evaporator plate
  • Full-cube ice size: 1.25 in. x 1.25 in. x 1.25 in.
  • LED display
  • Exterior is constructed of stainless steel that is heavy duty and rust resistant
  • Top panel and louver are constructed of plastic that resists corrosion
  • Coved corners simplify cleaning by eliminating crevices
  • Uses R404A refrigerant
  • Stacks with other X-series ice machine heads
  • 6,500 average BTU; 8,750 peak BTU
  • Required ambient air temperature: 45-110 degrees F
  • Required incoming water temperature: 45-90 degrees F
  • Required water pressure: 20-100 PSIG
  • Requires 4-in. clearance on the left, 8-in. clearances on the right and back, and 6-in. clearance on top
  • Ice bin is sold separately
  • cETLus listed component
  • Made in the U.S.

Plumbing

  • 12-in. FPT condenser outlet
  • 38-in. FPT condenser inlet
  • 34-in. FPT potable water inlet
  • 34-in. I.D. flex tubing cuber drain
  • 34-in. FPT bin drain

Dimensions and Utilities

  • 30.1 in. W x 25.7 in. D x 30.7 in. H
  • 13 A, 4.8 kW
  • 115 V/60 Hz/1 ph

Our article on ice makers breaks down the features of ice machine heads, full-cube ice, and water-cooled condensers.

Ice Maker, cube-style, water-cooled self-contained condenser, production capacity up to 543 lbs/24 hours at 70°/50° (477 lbs at 90°/70°), LED display, stainless steel frame, plastic top, plastic louvers, full-dice size ice, stackable, 115v/60/1-ph, 13.0 amps, cETLus, Made in USA

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Kold-Draft GTX561LC Specifications

PDF Spec Sheet
Manufacturer Kold-Draft
Ice Type Full Cube
Warranty 3-yr parts & labor; 5-yr compressor & evaporator
Voltage 115
Hertz 60
Phase 1
Product Type Ice Makers & Bins
Recommended Bins KDB230, KDB400, HD201, HD204, HD207, HDX201, HDX204
Depth (in) 25.7
Width (in) 30.1
Product Ice Machine Head
24 Hr. Production (lbs) 543
Height (in) 30.7
Compressor Type Water Cooled
Made in USA Yes
Series X-SERIES
Cold Water (in) 3/4
Indirect Waste Size (in) 3/4
Amps 13
Production Range (per day) 100-999 lb
Width (in) Range 30-39
Weight 218.00
