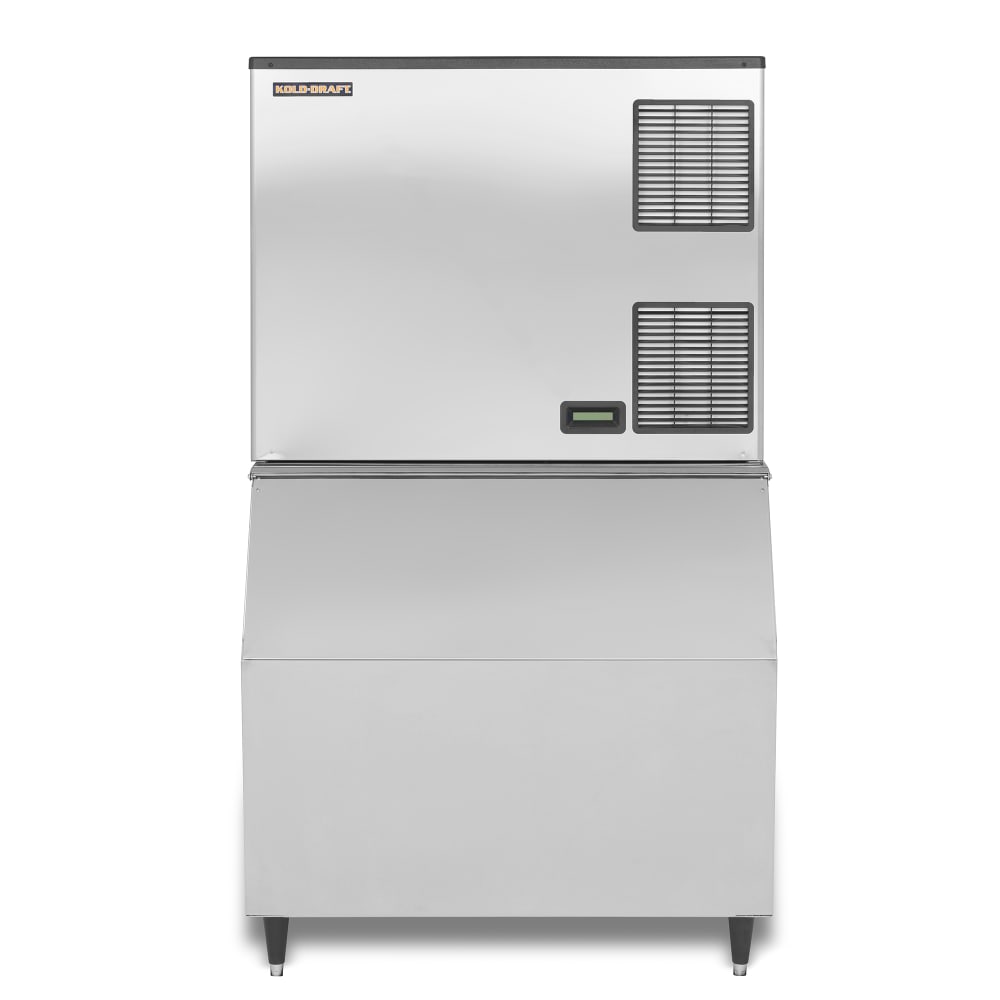

Kold-Draft GBX1064AC/KDB650 1075 lb Full Cube Ice Machine w/ Bin - 660 lb Storage, Air Cooled, 208-230v
$14,286.60 /Each
Call us for pricing
Selected Compressor Type: Air Cooled
Kold-Draft GBX1064AC/KDB650 Description
The Kold-Draft GBX1064AC/KDB650 ice machine is an air-cooled unit with a self-contained condenser, producing up to 1,075 pounds of full-dice ice per day at 70/50-degree conditions. Designed for high-volume environments, it features an LED display for system monitoring and a thermostatic expansion valve to optimize ice formation. Its 300-series stainless steel frame enhances durability, while plastic louvers direct airflow for cooling efficiency. This model is stackable, allowing for increased ice production when needed.
Paired with a Kold-Draft KDB650 ice bin, the Kold-Draft GBX1064AC/KDB650 ice machine provides 660 pounds of ice storage to support peak demand. The sloped front design and top-hinged door allow for quick access and controlled ice retrieval. A polyethylene interior liner enhances sanitation and protects against wear, while the stainless steel exterior resists corrosion. Measuring 42 5⁄16 inches wide by 35 inches deep by 74 11⁄16 inches high, this model maximizes storage while maintaining a compact footprint.
- Ice maker and bin combination
- 1,075-lb. ice production per 24 hours at 70/50-degree conditions
- Produces full-dice ice
- Air-cooled, self-contained condenser
- Stackable design
- LED display
- Thermostatic expansion valve
- 300-series stainless steel frame
- Plastic top and plastic louvers
- R-404A refrigerant
- 660-lb. ice storage capacity
- Sloped front
- Top-hinged door
- Stainless steel exterior
- Polyethylene interior liner
- Overall dimensions: 42 5⁄16 in. W x 35 in. D x 74 11⁄16 in. H
- 4.9 kW
- 208-230V/60Hz/1ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Kold-Draft GBX1064AC/KDB650 within the 48 contiguous states.
From The Manufacturer
Ice Maker, cube-style, air-cooled self-contained condenser, production capacity up to 1075 lbs/24 hours at 70°/50° (860 lbs at 90°/70°), LED display, stainless steel frame, plastic top, plastic louvers, full-dice size ice, stackable, 208-230v/60/1-ph, 13.8 amps, cETLus, Made in USA
Ice Storage Bin, 42" W, sloped front, top-hinged door, 660 lb ice storage capacity, stainless steel exterior, polyethylene interior liner, 6" legs (for GB series ice makers)
Kold-Draft GBX1064AC/KDB650 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Kold-Draft |
| 24 Hr. Production (lb) | 1075 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 660 |
| Compressor Type | Air Cooled |
| Depth (in) | 35 |
| Height (in) | 74.7 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.75 |
| Width (in) | 42.3 |
| Weight | 550.00 |
