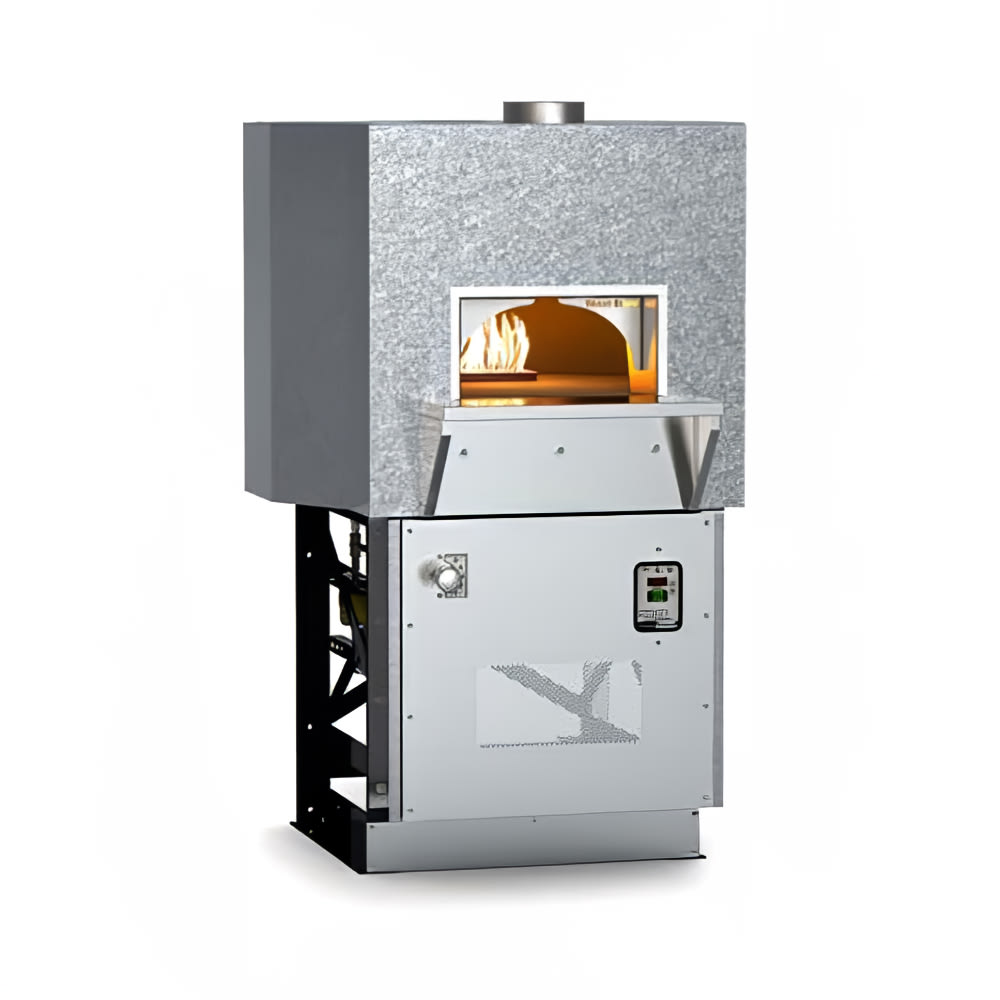

Wood Stone MTCHUCKANUT4 Stone Hearth Oven - Cast-Ceramic/Steel
Custom Pricing
Made to Order
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Wood Stone MTCHUCKANUT4 Description
When paired with a customized facade, the Wood Stone MTCHUCKANUT4 (WS-MS-4) Mt. Chuckanut 4' stone hearth oven can be incorporated into the front of house for pizzerias and restaurants. For lasting durability, the exterior of its 491⁄2-inch-wide by 583⁄4-inch-deep by 801⁄4-inch-tall body is made of galvanized steel, while its interior is built with a tensioned steel exoskeleton that encases the perimeter of the 4-inch-thick dome and 4-inch-thick hearth. Both the dome and hearth are wrapped in spun ceramic fiber insulation to minimize energy loss, and these ceramic components evenly distribute heat and retain temperatures. The oven rests on an open, black-painted steel stand that positions it at a comfortable working height. Because it ships fully assembled, setup is streamlined.
The Wood Stone MTCHUCKANUT4 (WS-MS-4) pizza oven has a radiant flame located in the back of the cooking chamber and an infrared burner positioned beneath the oven deck that radiates and conducts heat throughout the oven. This double-burner design accommodates high-production capacities, recovers heat quickly, and has a corresponding thermostatic control so staff can make temperature adjustments as menus change. Pizzas can be inserted into and removed from the door's 193⁄4-inch-wide by 10-inch-high opening. The hearth's 37-inch-diameter oven floor provides 7 square feet of cooking surface and can cook (10) 8-inch pizzas, six 10-inch pizzas, or four 12-inch pizzas at a time.
Product Details
- Part of the Mountain Series
- Capacity: (8-10) 8-in. pizzas, (5-6) 10-in. pizzas, (4) 12-in. pizzas, or (1-2) 16-in. pizzas
- 7-sq.-ft. cooking surface
- 37-in.-diameter oven floor
- Dual-burner configuration
- Adjustable radiant flame near back of cooking chamber
- Thermostatically controlled under-deck infrared burner
- 4-in.-thick cast-ceramic hearth
- 4-in.-thick dome
- Spun ceramic fiber insulation
- Tensioned steel exoskeleton around perimeter of dome and hearth
- Galvanized steel oven body
- Open, black-painted steel stand
- Stainless steel service panel included
- Ovens ordered without a hood include a 10-in. ID flue adapter
- Requires 1-in. side clearance, 6-in. top clearance, and 6-in. door clearance
- Ships fully assembled
- Tech startup included
Dimensions & Utilities
- Door opening: 193⁄4 in. W x 10 in. H
- Overall: 491⁄2 in. W x 583⁄4 in. D x 801⁄4 in. H
- 1.1 A
- 120 V/50/60 Hz/1 ph
- 3⁄4-in. FNPT gas inlet
Product Features
*Wood Stone MTCHUCKANUT4 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Stone hearth oven , 20-in. wide x 10-in. high door opening, 7 sq. ft. cooking surface, 4-in. thick cast-ceramic cooking floor with 4 in. of rigid insulation and 4 in. thick cast dome, tensioned steel exoskeleton, galvanized steel exterior, heavy duty angle iron stand, 120v
*Image may not depict product color, inclusions or accessories.
Wood Stone MTCHUCKANUT4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Wood Stone |
| Compartment Width (in) | 20 |
| Design | Flat Exterior |
| Gas Type | LP |
| Gas Type | NG |
| Hearth Material | Ceramic |
| Heat | Gas |
| No. of Compartments | 1 |
| Product | Wood-Fired Pizza Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Mt. Chuckanut |
| Special Features | Dual Burner |
| Warranty | 1-year Against Defects in Material & Workmanship |
| Weight | 2400.00 |
