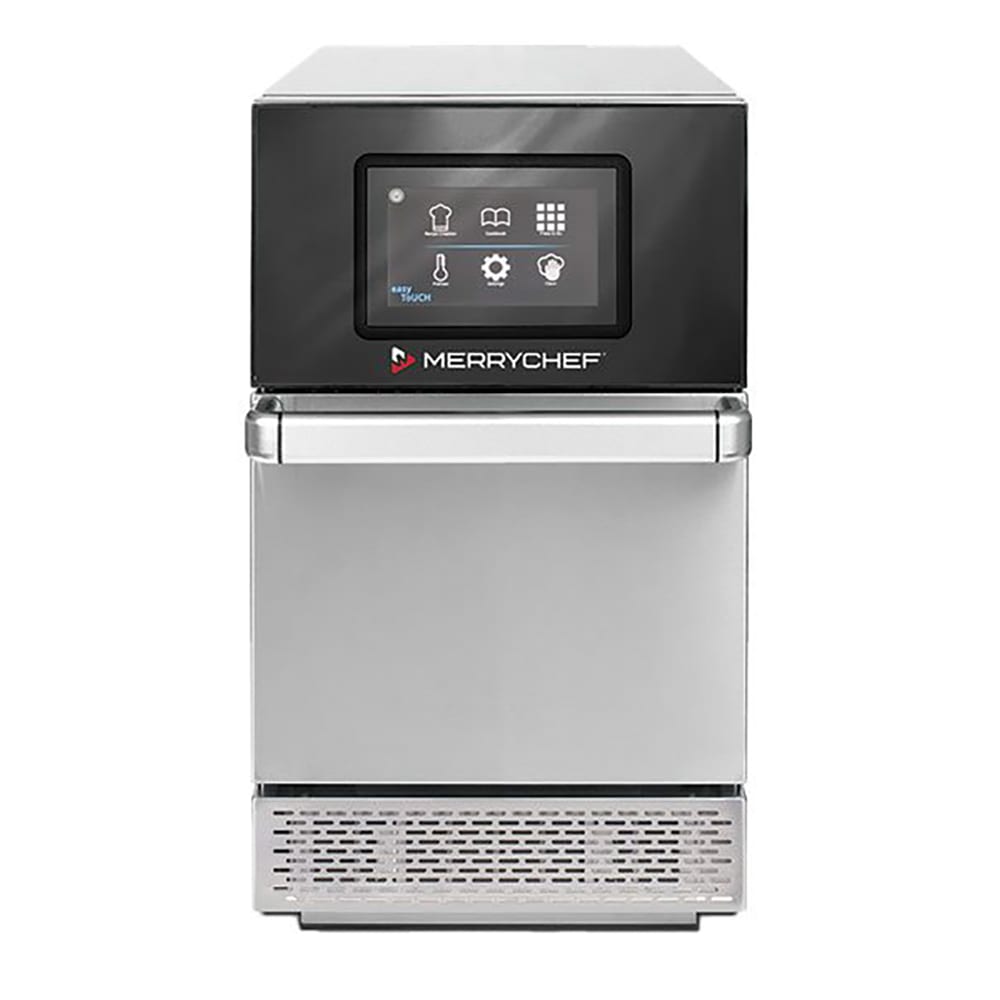

Merrychef CONNEX12HPNEMA6-30PSS Merrychef conneX® 12 High Power Microwave Convection/Impingement Oven - 208-240v/1ph, Silver

KaTom #: 624-CONNEX12N630PSS • MPN: CONNEX12HIGHPOWERSTAINLESSSTEEL
  • 624-CONNEX12N630PSS Primary Thumbnail Image
  • 624-CONNEX12N630PSS Multiple Thumbnail Image #1
  • 624-CONNEX12N630PSS Multiple Thumbnail Image #2
  • 624-CONNEX12N630PSS Multiple Thumbnail Image #3

IN STOCK: Ships in 1 Business Day

Less Than 5 in Stock, Order Soon!

Free Shipping Item

Retail Price: $26,894.00

$11,564.00 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

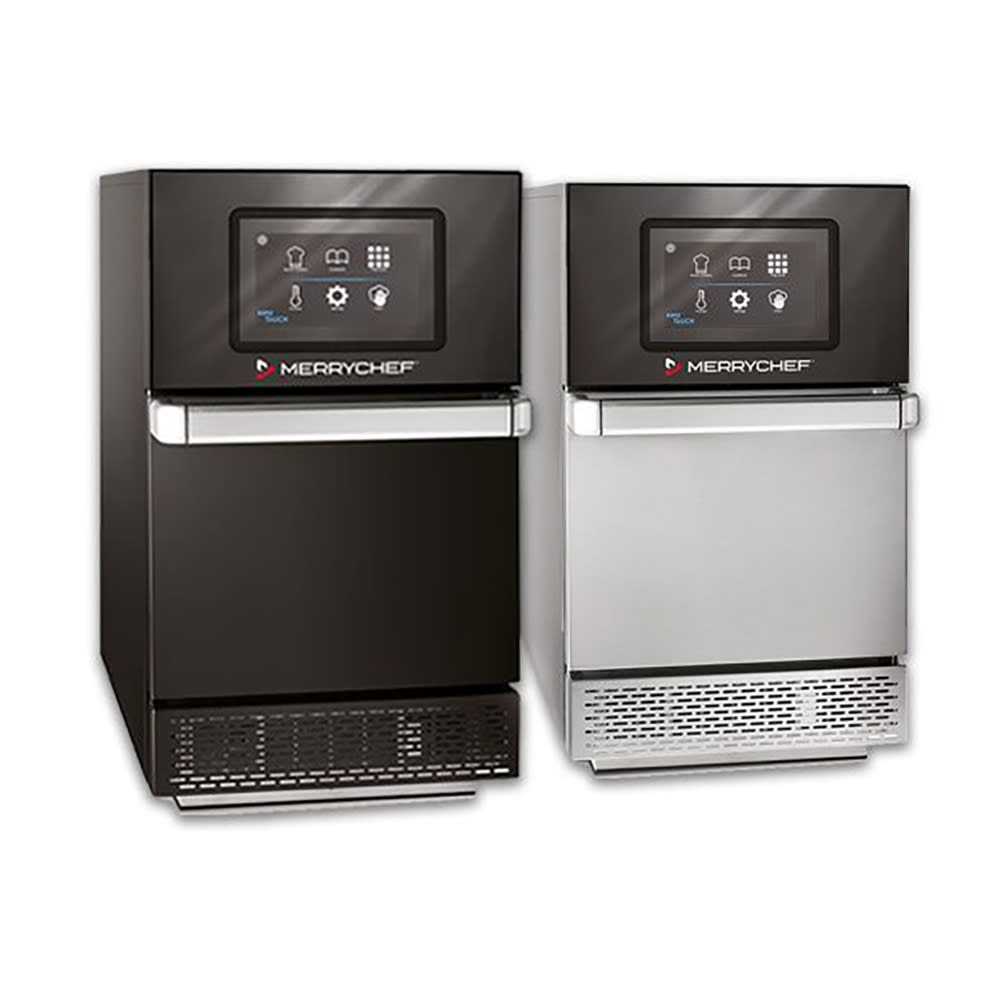

Selected Color: Stainless Steel

Stainless Steel
Black
Kyle Cates User Image
Ask a Foodservice Equipment Specialist

Merrychef CONNEX12HPNEMA6-30PSS Description

The high-powered Merrychef CONNEX12HIGHPOWERSTAINLESSSTEEL microwave convection/impingement oven performs 20 times faster than standard cooking methods. This unit utilizes a three-in-one heating technique that includes microwave, convection, and tuned impingement. Microwave and convection are adjustable through the front-facing control panel. Microwave settings operate between 5 and 100 percent, while temperature settings for convection heat are manageable between 212 and 527 degrees Fahrenheit. The unit’s catalytic converters provide ventless operation, and the front-facing air filtration prevents overheating. The stainless steel body remains cool to the touch using patented air-cooled technology.

The Merrychef CONNEX12HIGHPOWERSTAINLESSSTEEL high-power convection and impingement oven’s touchscreen full-service display provides Recipe creation, Press & Go, Cookbook, Cleaning, Temperature Change, and Settings menus. Recipe creation allows users to input their own processes, while cookbook and Press & Go provide 100 pre-saved recipes for quick operation. Each cooking profile can be programmed with cooking times, microwave power settings, and pictorial/written instructions. For operation through a tablet or smartphone, this unit has Wi-Fi and ethernet that connect to the KitchenConnect cloud for menu updates. A USB memory stick enables simple data transfer.

  • conneX® series
  • Place on 23 5⁄8-in. worktop
  • 7-in. touch screen
  • Catalytic converters for ventless design
  • Solid, bottom-mounted door with handle
  • Stainless steel finish
  • Stainless steel cavity and casework
  • Sealed, rounded edges for fluid cleaning
  • Microporous design improves insulation
  • Monitored with front-facing air filtration

  • Microwave, convection, and impingement heating technologies
  • Microwave setting options: 5-100 percent
  • Convection temperature range: 212-527 degrees F
  • easyTouch® control system with icon-driven controller
  • Self-monitoring diagnostics for components
  • Recipe profiles with manageable cooking times, microwave power settings, and instructions in 6 stages
  • WiFi or Ethernet connectivity with KitchenConnect cloud to create, change, and update settings
  • USB memory stick

  • Cook plate
  • Paddle
  • Solid-bottom basket
  • Cool-down pan
  • Non-stick cooking liner
  • Oven cleaner/protector pack

  • Cooking cavity: 12 in. W x 12 in. D
  • Overall: 14 in. W x 25 1⁄2 in. D x 24 2⁄5 in. H
  • 30 A
  • 208-240 V/60 Hz/1 ph, NEMA 6-30P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on Merrychef CONNEX12HPNEMA6-30PSS within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Merrychef conneX® 12, High Power Microwave Convection/Impingement Oven, 2000 watt microwave / 2200 watt convection, ventless, 12" x 12" cooking cavity, EasyTouch™ 2.0 , 7" high definition touchscreen control, bottom-hinged door, built-in catalytic converters, (1) cook plate (DB0739), (1) paddle (SR318), (1) solid bottom basket (32Z4165), (1) cool down pan (32Z4079), (1) non-stick cooking liner (32Z4088), (1) oven cleaner/protector pack (32Z4148), (1) Scrapper (32Z4191), (1) steam pipe brush (32Z4188), carbon black exterior, cULus, UL EPH Classified

Warranty Icon
1-year Limited Parts & Labor

Merrychef CONNEX12HPNEMA6-30PSS Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
