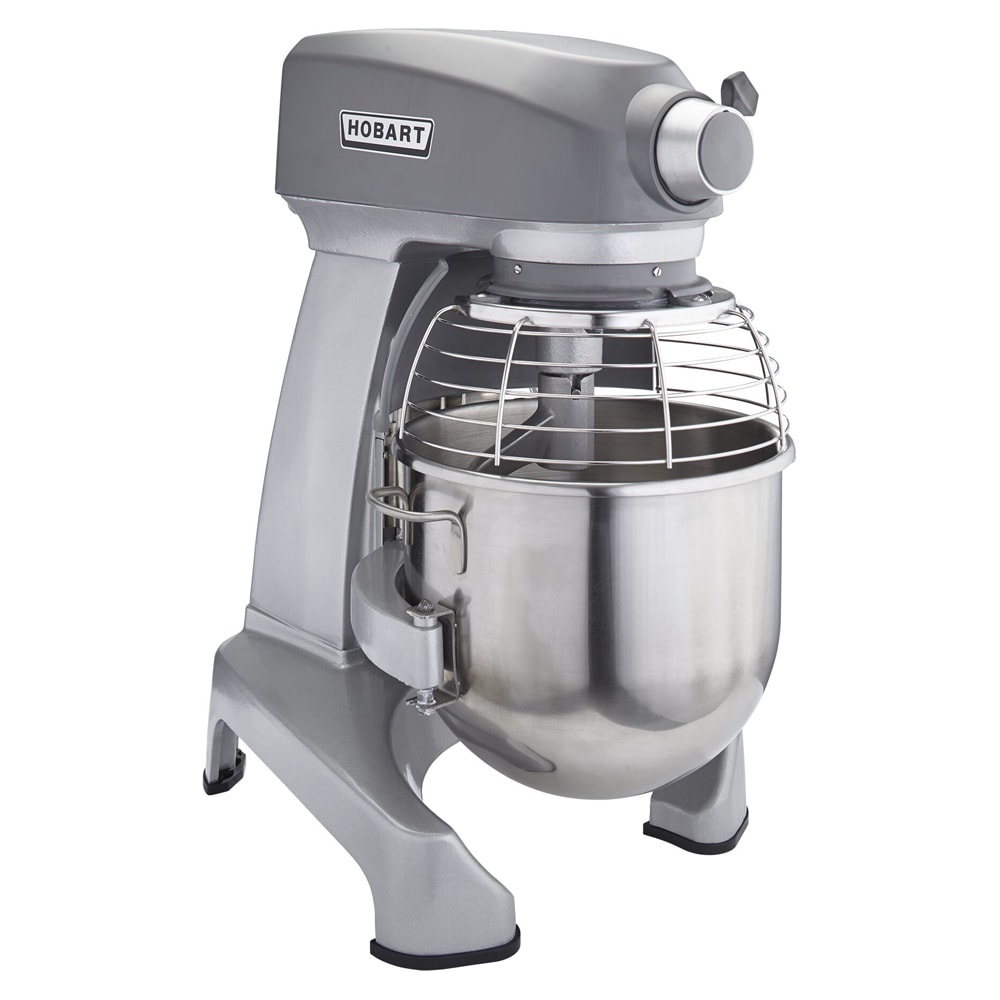

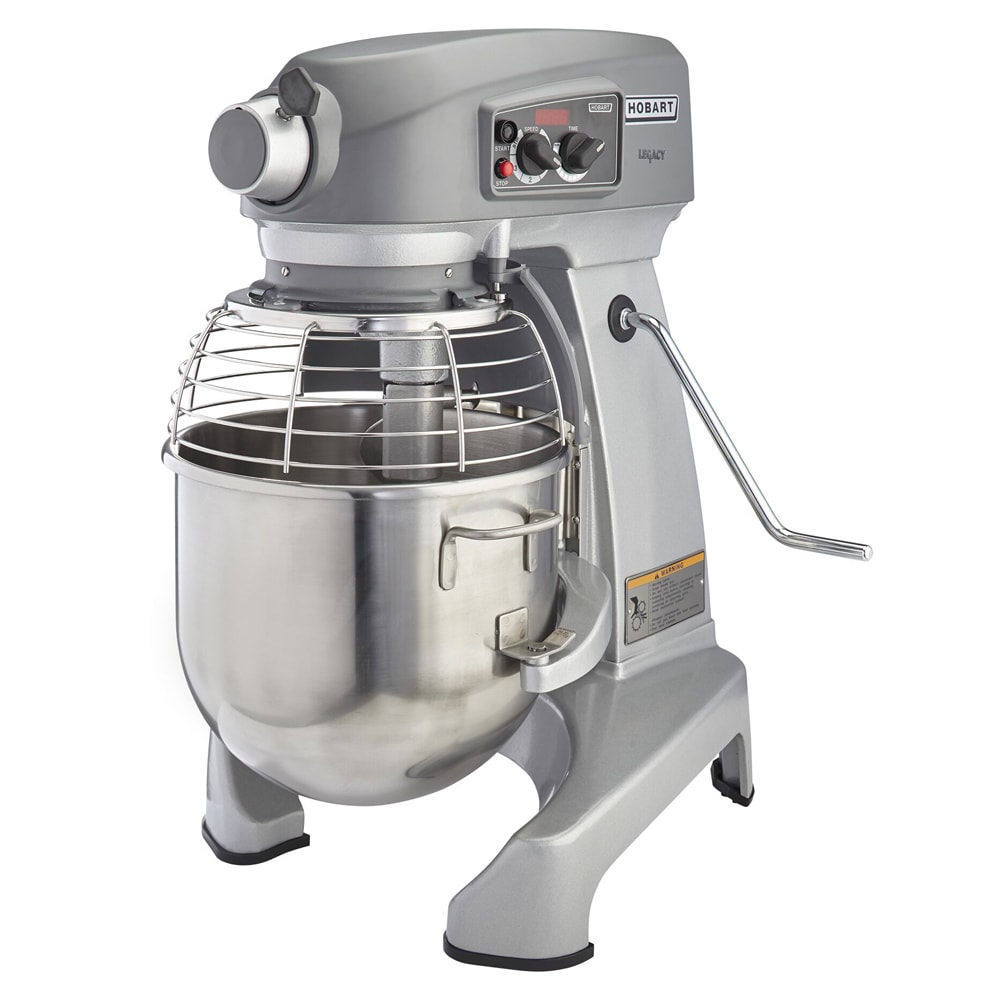

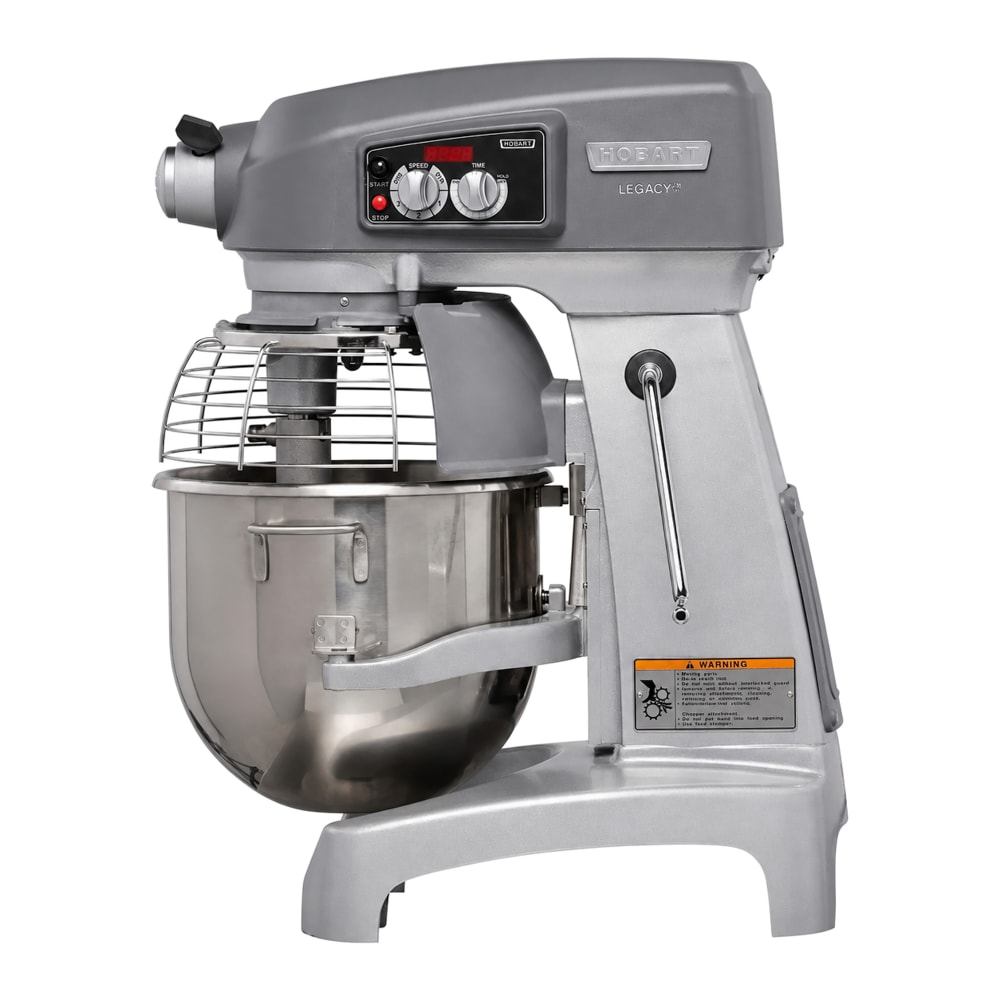

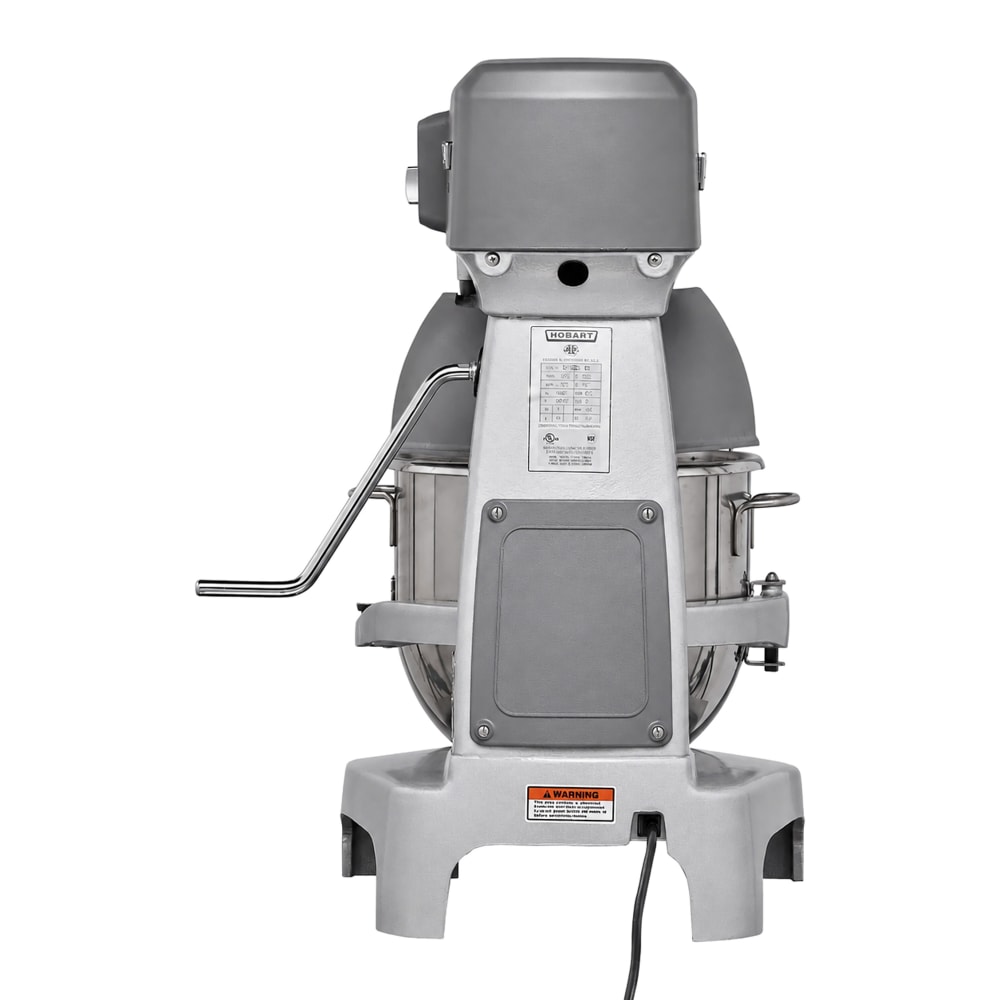

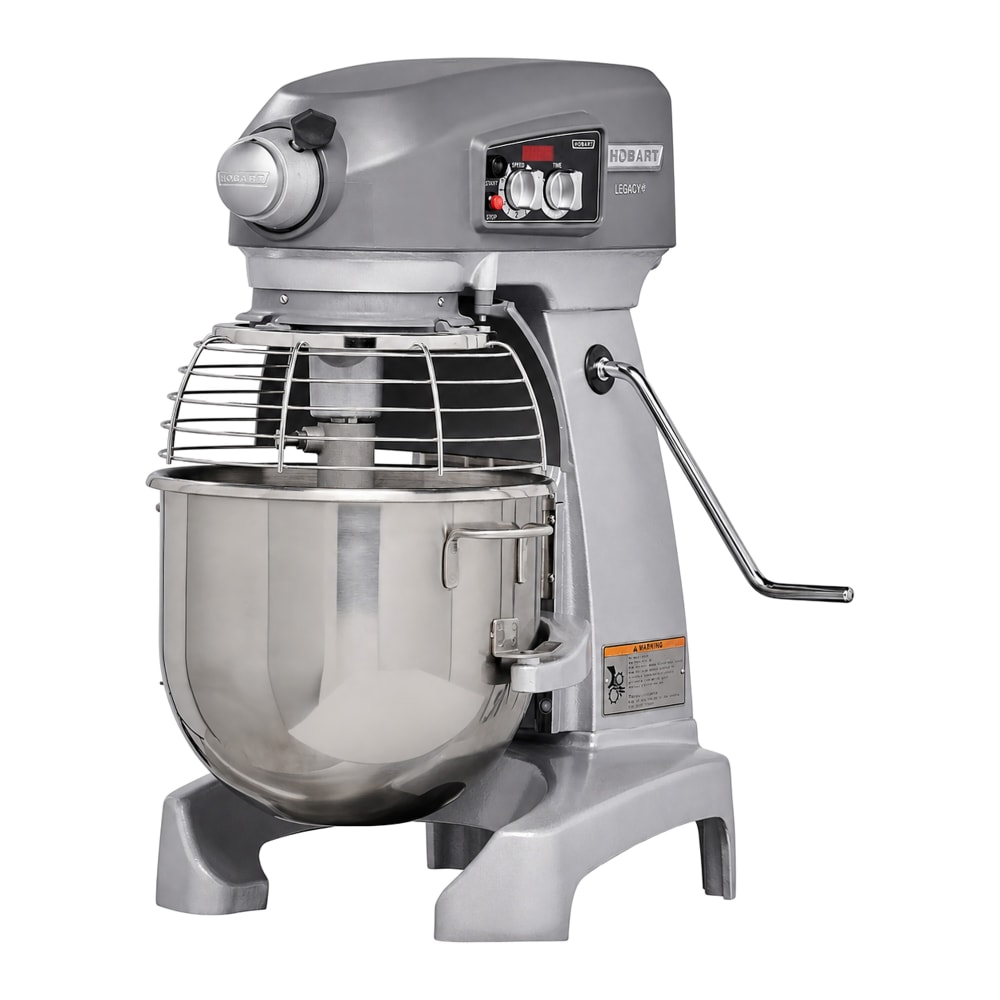

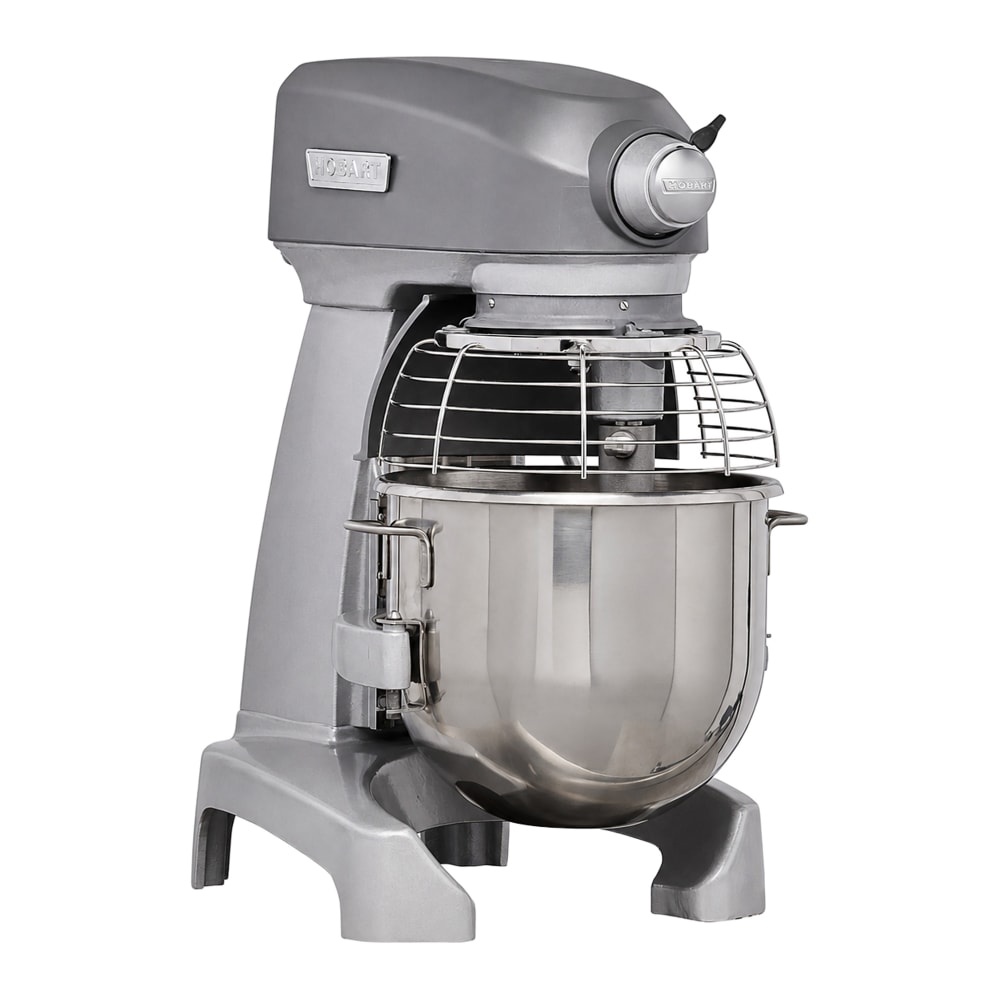

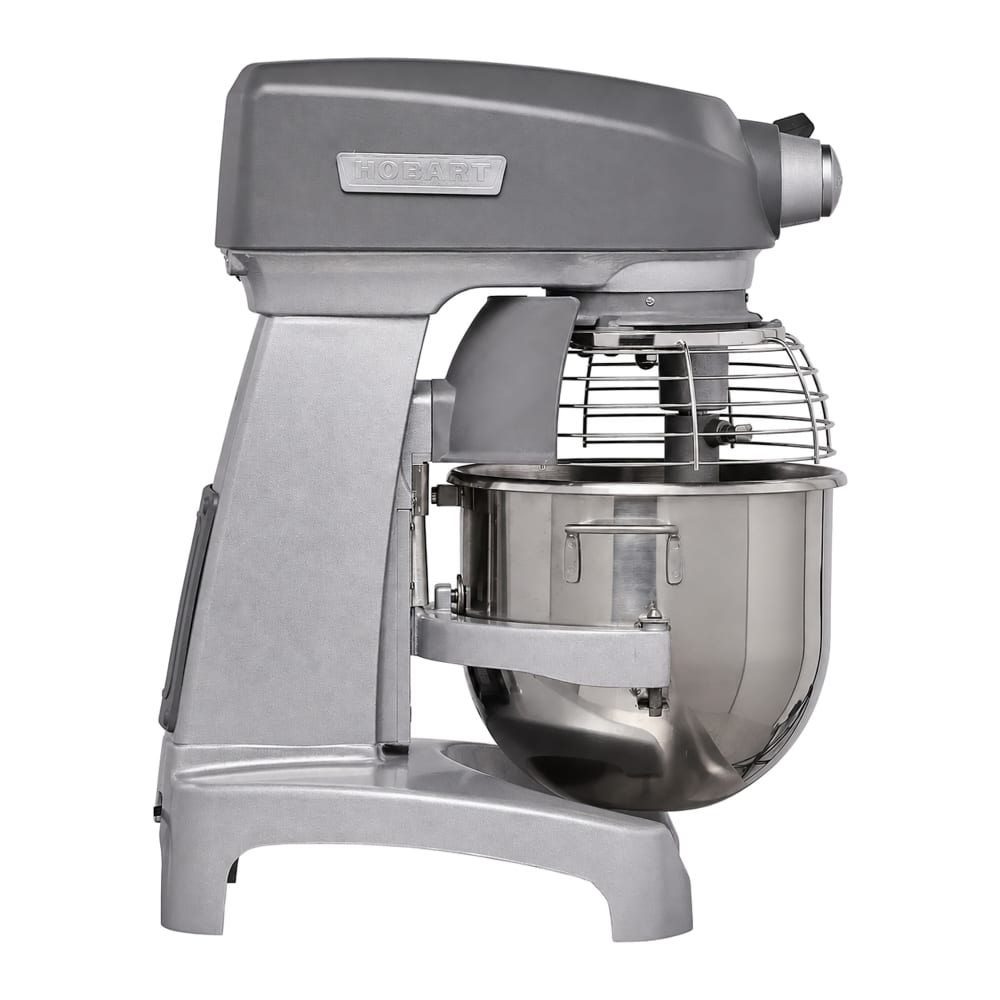

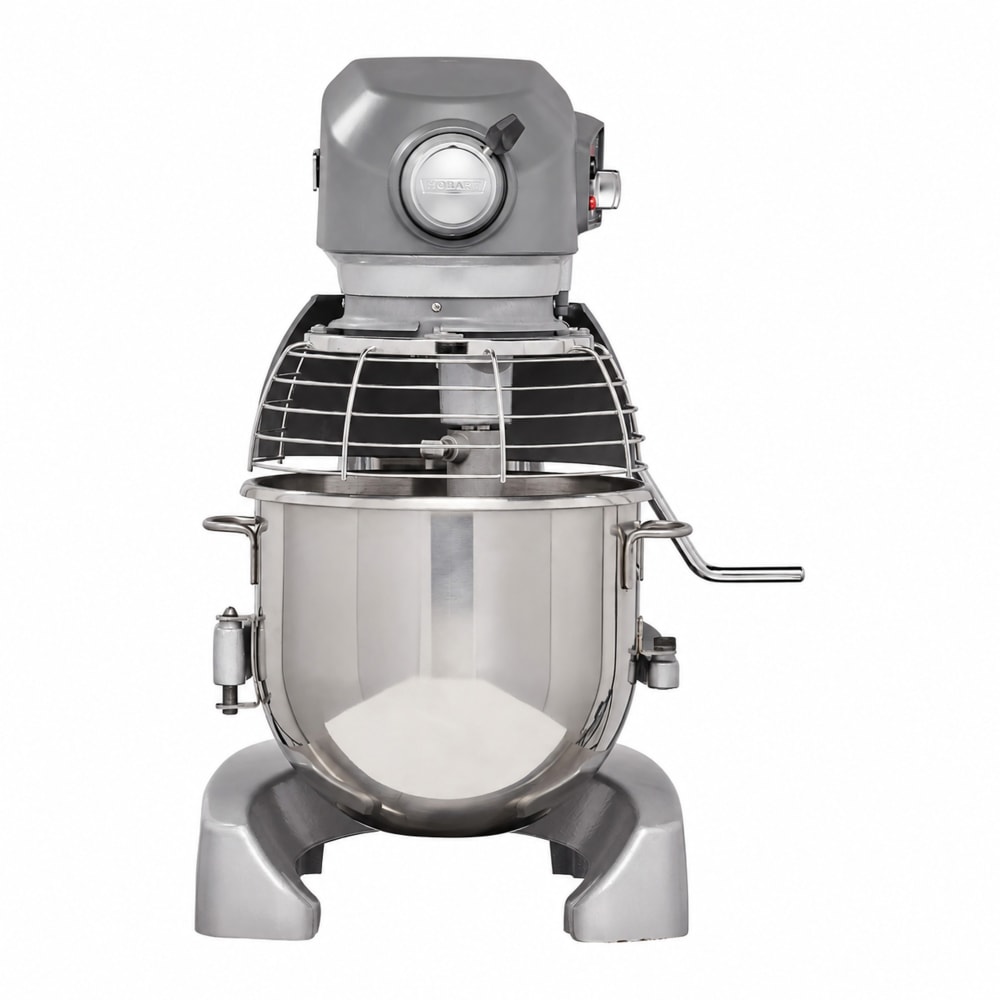

Hobart HL200-1STD Legacy+ 20 qt Planetary Mixer - Bench Model, 1/2 hp, 100-120v

The Hobart HL200-1STD planetary mixer has a 20-quart bowl with a swing-out design that employees can load and unload conveniently. A lift raises this bowl with an ergonomic hand crank, and a bowl interlock prevents operation if the bowl is not placed properly in the unit. A stainless steel bowl guard is included to protect users while the agitator is moving. If the guard is not in place, the safety interlock prevents operation. To provide space for adding ingredients, the wire front guard rotates out of the way. The unit has a removable bowl guard, which makes it easier to clean.

This Hobart HL200-1STD countertop planetary mixer has three fixed speeds and an additional stirring speed. When users change the speed, soft-start technology smoothly transitions to prevent ingredients from splashing out. Users do not have to stop mixing to change the operation speed. For accurate, uniform mixing, a 15-minute timer tracks operation and automatically recalls the last time setting for each speed.

This bench mixer is designed for use on low equipment stands. It has a variable frequency drive system that enables it to operate with a single set of gears. That translates into steady speeds with high torque, and protection for the motor in the event the load exceeds the rated capacity of the mixer. The Hobart HL200-1STD is also equipped with the company's proprietary Quick Release system, which makes putting on and taking off the agitator easier. By simply pulling a pin, the operator can remove the agitator for cleaning and replace it just as easily.

Product Details

• 20-qt. bowl

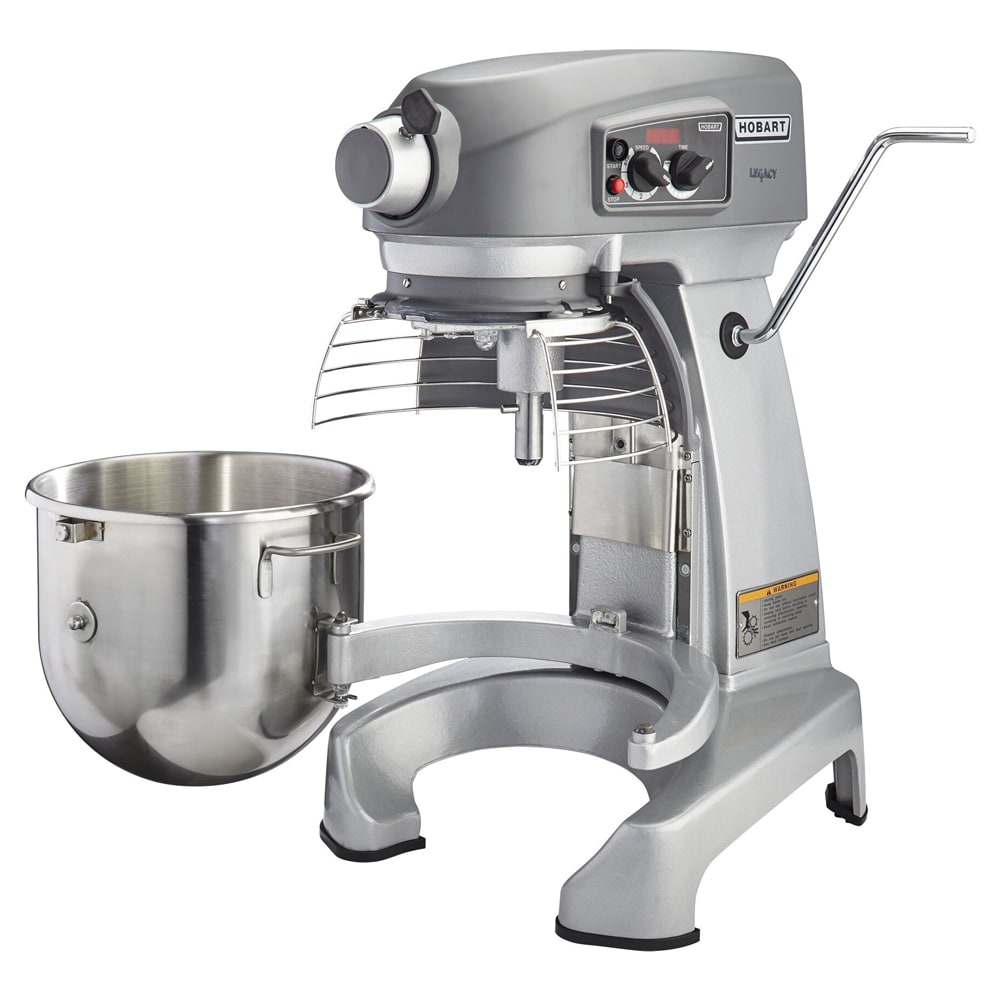

• Swing-out bowl design for convenient loading and unloading

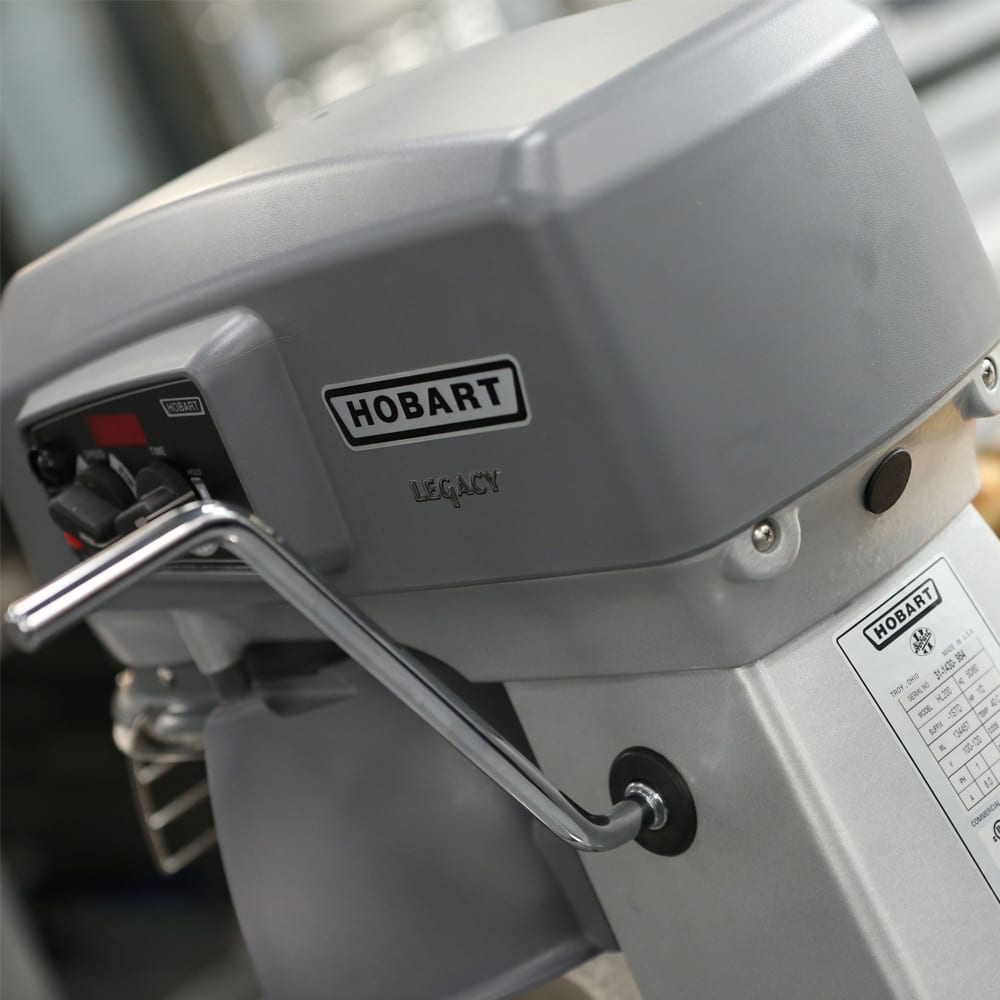

• Bowl lift operates ergonomically with a hand crank and locks into position
• Bowl interlock prevents operation if the bowl is not in place

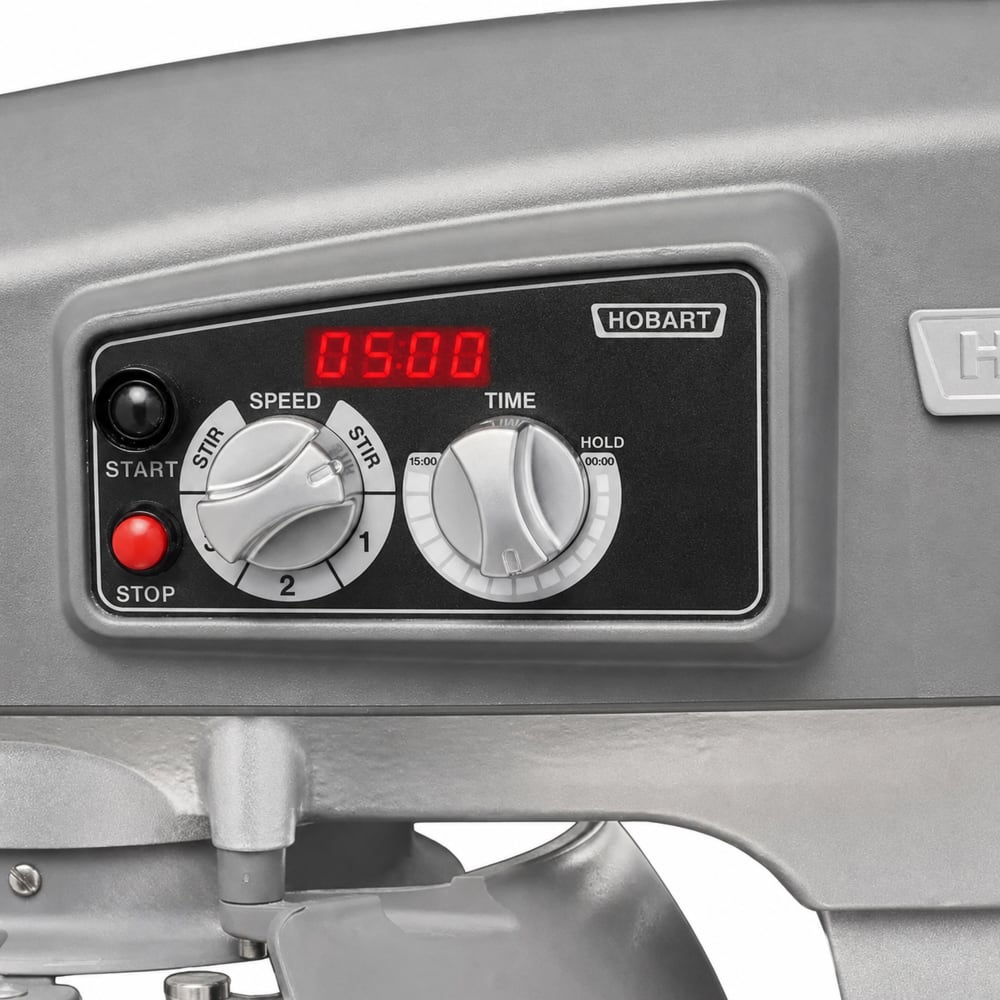

• 3 fixed speeds with an additional speed for stirring
• Soft-start agitation technology softly transitions to reduce splashing
• Change speeds without stopping operation
• 15-min. SmartTimer™ keeps up with mixing time to prevent overmixing
• Automatically recalls the last time set for each speed
• Durable motor is designed to support heavy-duty applications
• Strong, reliable gear transmission is consistent and has little downtime with heavy loads
• Thermal overload protection
• No. 12 attachment hub

Product Features

Bowl Guard

• Heavy-duty stainless steel construction
• Wire front rotates so operators can add ingredients and install or remove the agitator
• Solid rear can be cleaned while in position
• Safety interlock prevents operation if the guard is not in position

Dimensions & Utilities

• 19¹⁄₈ in. W x 22⁷⁄₈ in. D x 29 in. H
• 8 A, ¹⁄₂ HP
• 100-120 V/50-60 Hz/1 ph

*Free shipping on Hobart HL200-1STD within the 48 contiguous states.

From The Manufacturer

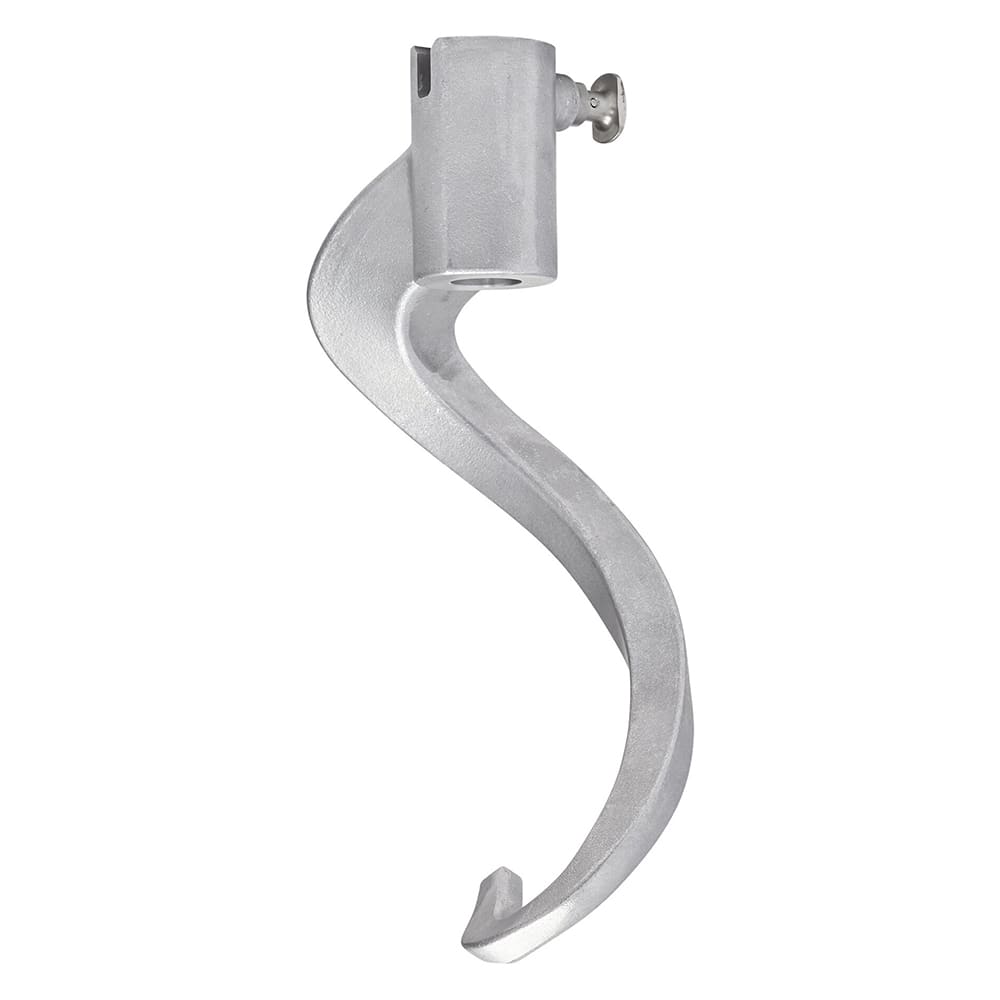

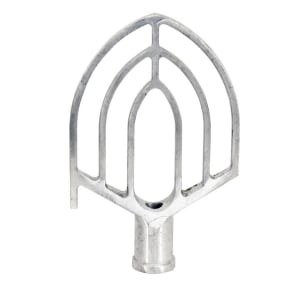

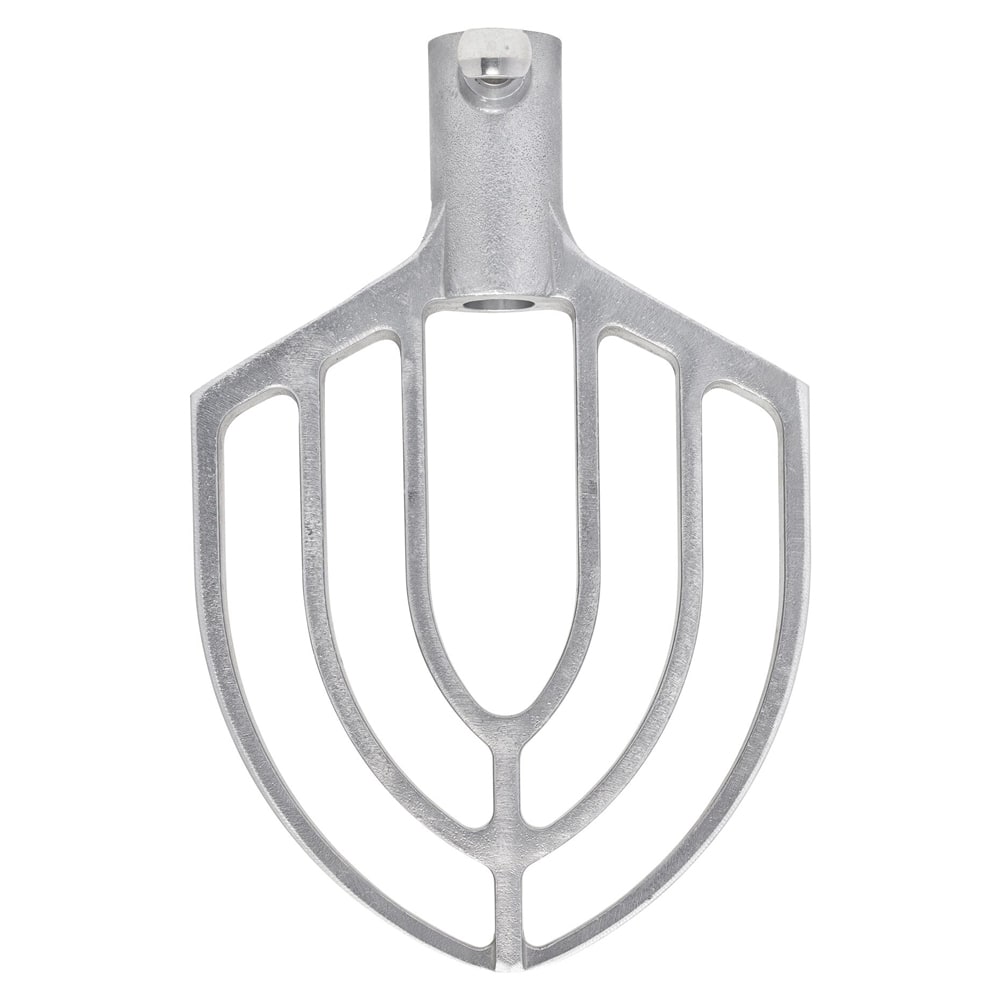

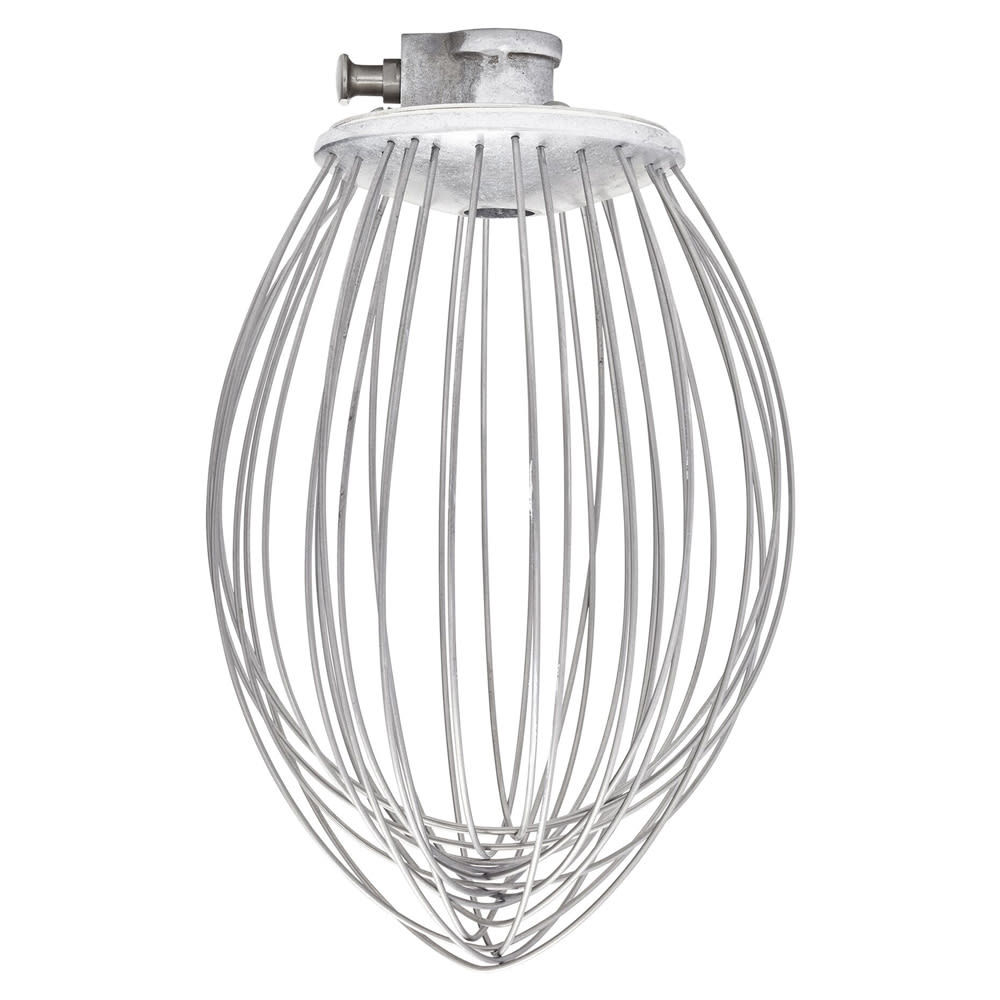

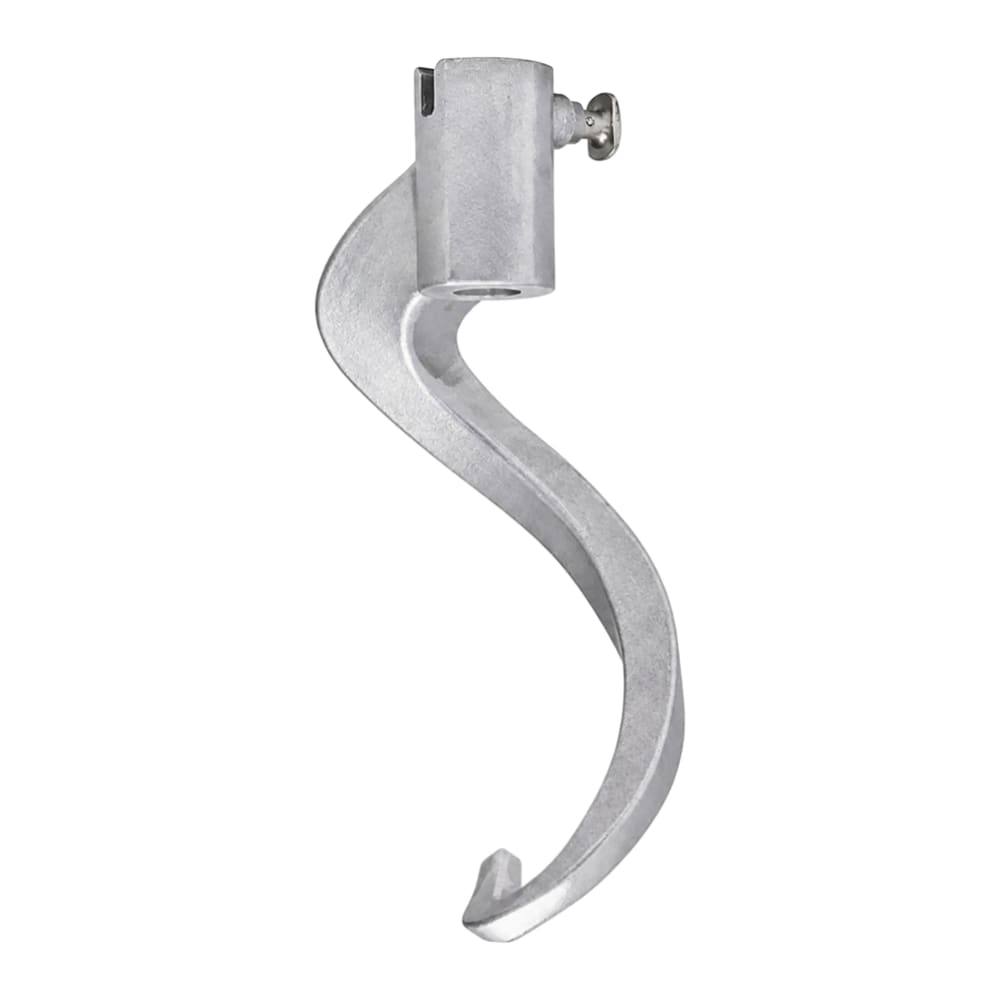

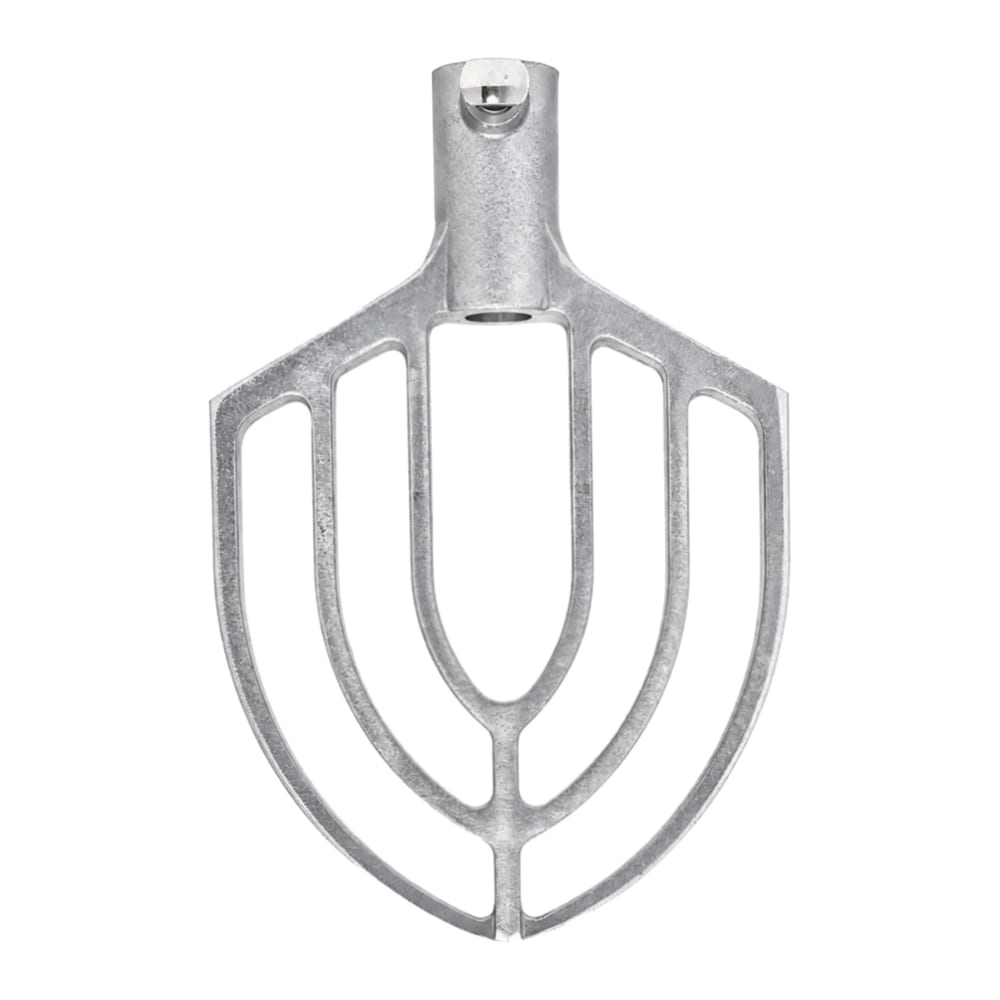

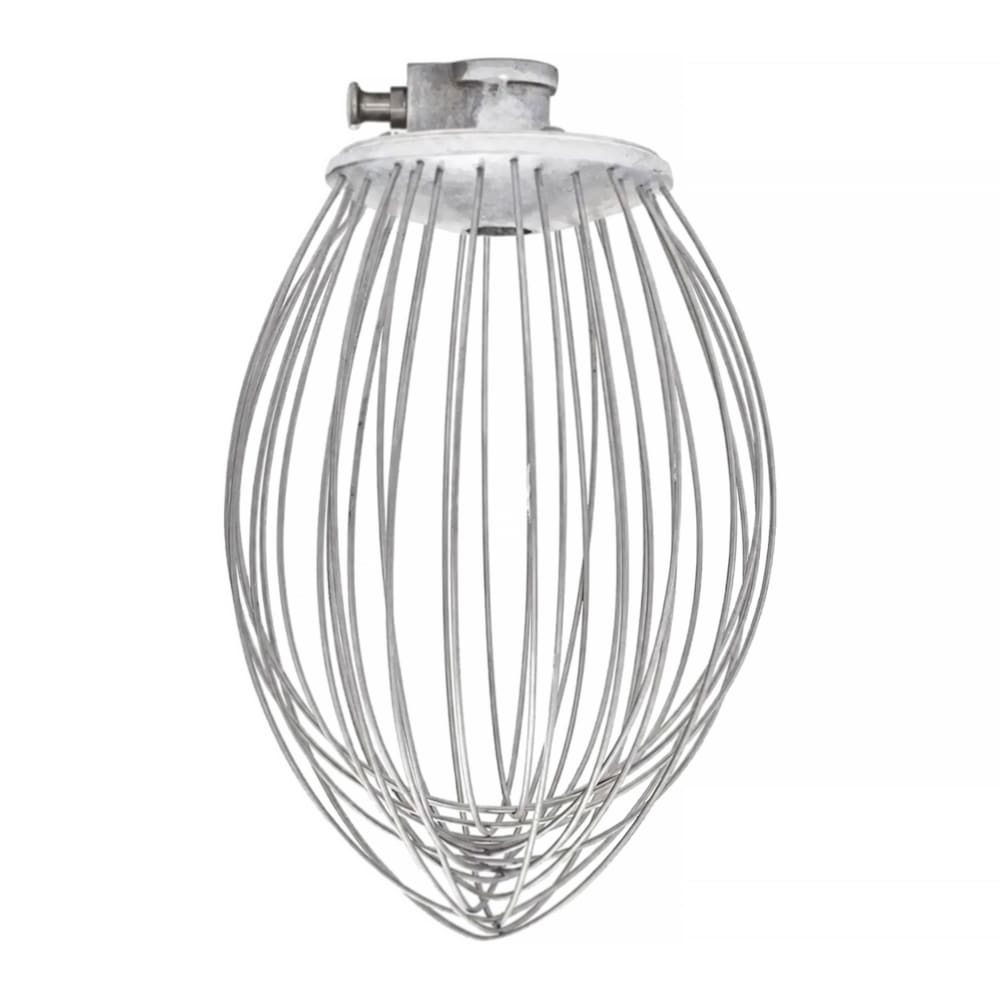

100-120/50/60/1; Bench type mixer; with bowl, beater, whip & spiral dough arm, US/EXP configuration - Legacy Planetary Mixer, Bench, 20 quart, (3) fixed speeds plus stir speed, gear-driven transmission, 15-minute SmartTimer™, #12 taper hub, manual bowl lift, stainless steel bowl, aluminum "B" beater, stainless steel "D" wire whip, aluminum "ED" spiral dough arm, stainless steel bowl guard, 1/2 hp, cord with plug

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Hobart HL200-1STD Specifications

Documents

Spec Sheet

Use & Care Guide

Service Manual

Parts Breakdown

Manual

Installation Guide

Buying Guide

Brochure

Catalog
