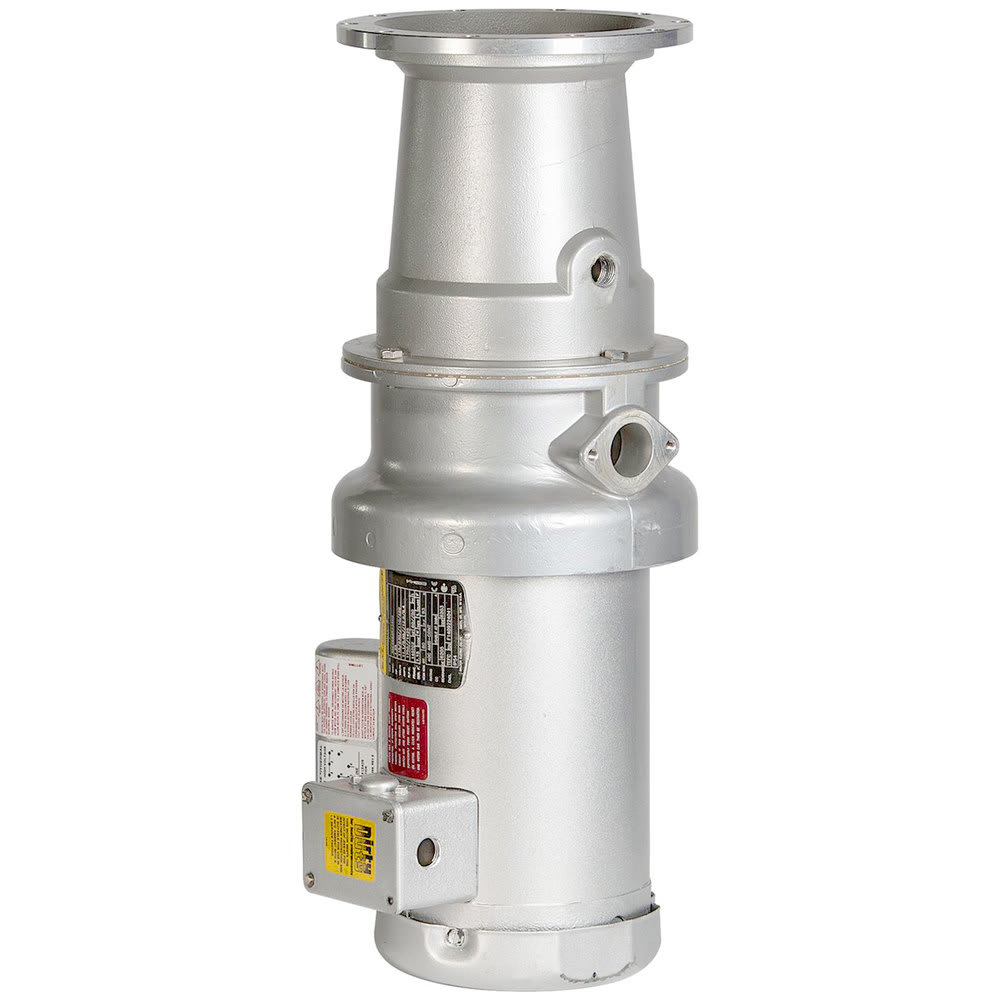

Hobart FD4/75-2 Garbage Disposer w/ Long Upper Housing - 3/4 HP, 208-240/480v/3ph

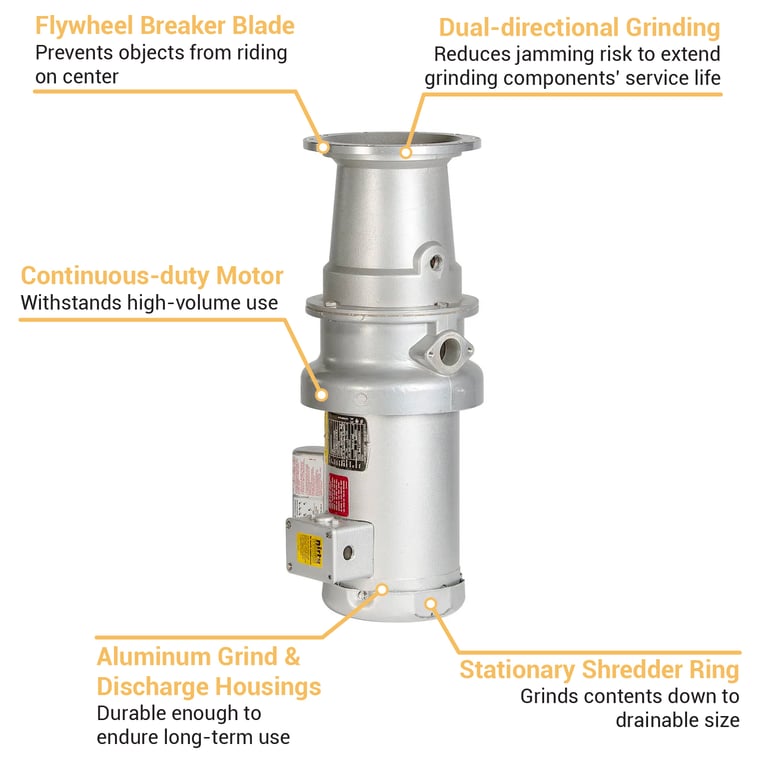

Compatible with low- or medium-volume settings, the Hobart FD4/75-2 garbage disposer's ³⁄₄-horsepower, continuous-duty motor includes a manual-reset thermal overload inherent protector that can reduce the risk of damage during rigorous use. To ensure solid foods are ground to small pieces for streamlined draining, its stationary shredder ring features four machine-ground, primary-action breaker bars and 42 secondary-action grinding teeth, while its Ni-Resist flywheel has a breaker blade that deters food from riding on its center. If contents get jammed in the flywheel, users can manually reverse its rotation. The flywheel's two replaceable, hardened stainless steel cutter blocks can be replaced and indexed for new cutting edges as needed.

The Hobart FD4/75-2 commercial garbage disposer features a long, 8³⁄₈-inch-high upper housing and measures 7 inches in diameter by 21³⁄₄ inches high overall. While its corrosion-resistant aluminum grind and discharge housings provide durability, the motor's ball bearings are permanently lubricated for streamlined operation. This unit can be attached to a 7-inch I.D. throat-opening cone and includes a chrome-plated tailpieces for connection to a 1¹⁄₂-inch standard drain trap. To prevent disruptive vibration and noise transmission, a vinyl isolating ring prevents metal from touching at the cone's mounting point.

Product Details

• Continuous-duty motor withstands frequent use
• Manual-reset thermal overload inherent protection mechanism
• Permanently lubricated ball bearings
• 1³⁄₄-in. stationary shredder ring
• 4 machine-ground, primary-action breaker bars
• 42 secondary-action grinding teeth
• 6³⁄₁₆-in.-diameter Ni-Resist flywheel with breaker blade and 2 stainless steel cutter blocks
• Long upper housing configuration
• Heavy aluminum grind and discharge housings
• Fastens to 7-in. I.D. throat-opening cone
• Vinyl isolating ring prevents metal-to-metal contact
• Motor shaft seal
• Dual-directional grinding capability

Dimensions & Utilities

• 7 in. dia. x 21³⁄₄ in. H
• 2.6-2.4/1.2 A, ³⁄₄ HP
• 208-240/480 V/60 Hz/3 ph
• 1¹⁄₂-in. standard drain trap

Product Features

*Free shipping on Hobart FD4/75-2 within the 48 contiguous states.

From The Manufacturer

Garbage disposer, basic unit only, 3/4 HP motor, 21.75"H, 1.5 - 3 Amps, 208-240v/480v/60/3ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Hobart FD4/75-2 Specifications

Documents

Spec Sheet
