Hobart FD4/75-1 Garbage Disposer w/ Short Upper Housing - 3/4 HP, 208-240/480v/3ph
Retail Price: $2,703.00
$1,669.91 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Attention: Order by 06-01-2025 to save before the price increases!
Hobart FD4/75-1 Description

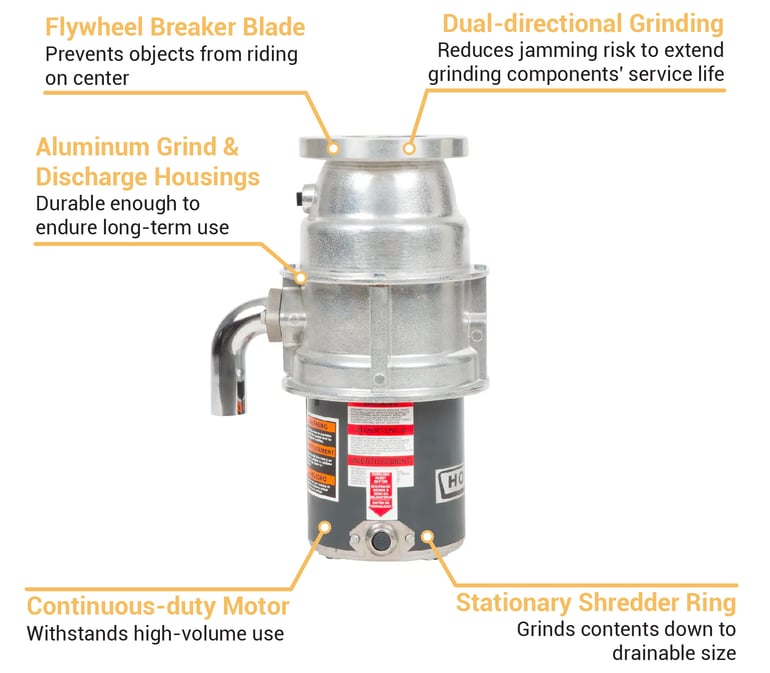

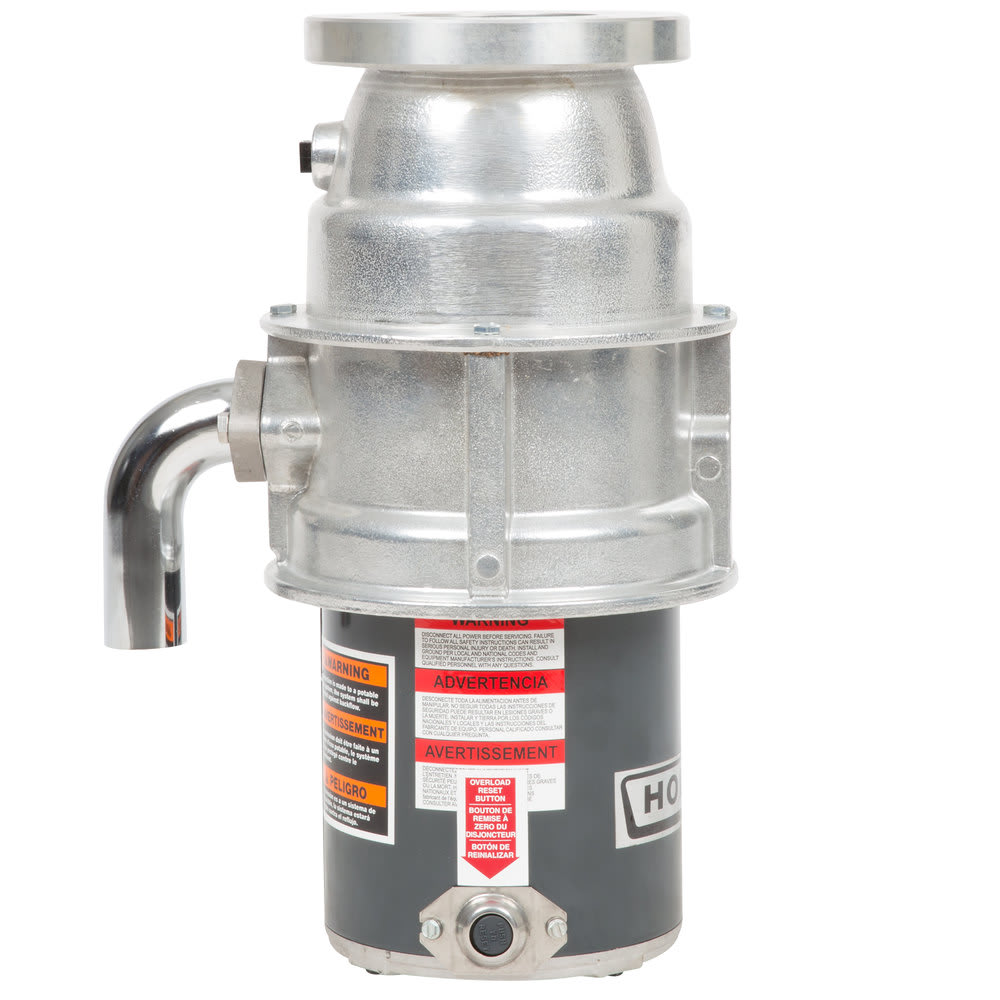

This Hobart FD4/75-1 garbage disposer is built with a short upper housing and measures 7 inches in diameter by 205⁄8 inches high overall. It can be fastened to a 7-inch I.D. throat-opening cone beneath a commercial sink, and a vinyl isolating ring prevents metal-to-metal contact near the cone-mounting area to minimize noise and vibrations. For long-lasting resilience, its grind and discharge housings are made of corrosion-resistant heavy aluminum. Its chrome-plated tailpiece enables connection to a 11⁄2-inch standard drain tarp.
For streamlined operation through rigorous use, the Hobart FD4/75-1 commercial disposer is equipped with a 3⁄4-horsepower, continuous-duty motor, a manual-reset thermal overload inherent protector, and permanently lubricated ball bearings. The stationary shredder ring's four primary-action breaker bars and 42 secondary-action grinding teeth work in tandem with the Ni-Resist flywheel to grind solid food waste into small, drainable pieces. The flywheel is built with a breaker blade that prevents food from getting stuck on its center, while its two hardened stainless steel cutter blocks can be replaced and indexed for new cutting edges as needed. To prevent potentially damaging jams, operators can manually control the flywheel's rotation.
Product Details
- 3⁄4-HP, continuous-duty motor
- Manual-reset thermal overload inherent protection mechanism
- Permanently lubricated ball bearings
- 13⁄4-in. stationary shredder ring
- 4 machine-ground primary-action breaker bars
- 42 secondary-action grinding teeth
- 63⁄16-in.-diameter Ni-Resist flywheel
- Breaker blade prevents objects from riding on flywheel's center
- 2 hardened, replaceable stainless steel cutter blocks can be indexed for new cutting edges
- Short upper housing
- Resilient, heavy aluminum grind and discharge housings
- Fastens to 7-in. I.D. throat-opening cone
- Vinyl isolating ring to minimize vibration and noise transmission
- Motor shaft seal
- Dual-directional grinding capability
Dimensions & Utilities
- 7 in. dia. x 205⁄8 in. H
- 2.6-2.4/1.2 A, 3⁄4 HP
- 208-240/480 V/60 Hz/3 ph
- 11⁄2-in. standard drain trap
Product Features
*Free shipping on Hobart FD4/75-1 within the 48 contiguous states.
From The Manufacturer
Garbage disposer, basic unit only, 3/4 HP motor, 20.63"H, 1.5 - 3 Amps, 208-240v/480v/60/3ph
*Image may not depict product color, inclusions or accessories.
Hobart FD4/75-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Hertz | 60 |
| HP | 0.75 |
| Phase | 3 |
| Product | Garbage Disposals |
| Product Type | Commercial Sinks |
| Unit Type | Basic |
| Usage Level | Light Duty |
| Voltage | 208/240/480 |
| Warranty | 1-year Parts & Labor |
| Weight | 60.00 |
