Hobart FD4/500-1 Disposer, Basic Unit Only, 5 HP, 208-230/460v/3ph
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$6,598.90 /Each
Contact us for details!
Non Returnable Item
Hobart FD4/500-1 Description

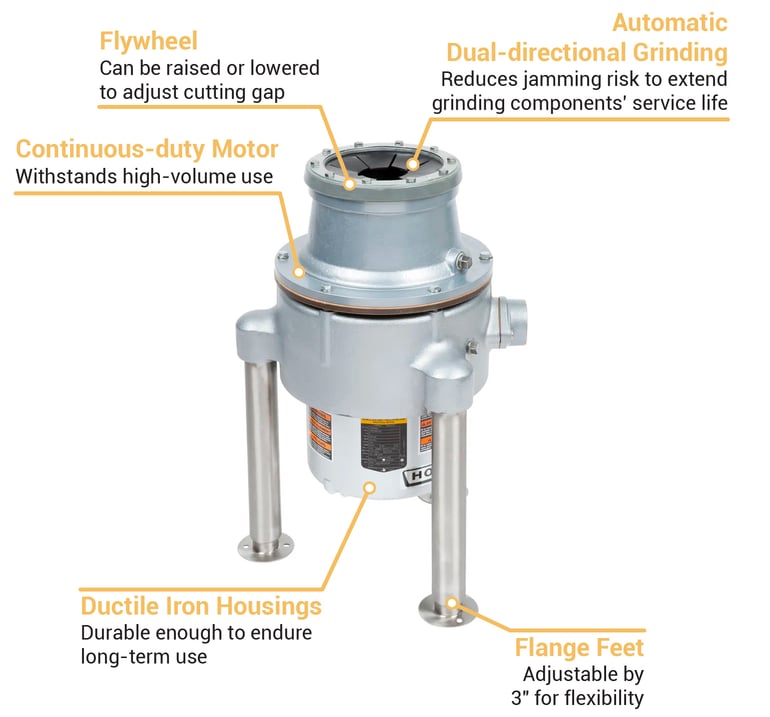

To break down food waste efficiently, the Hobart FD4/500-1 food waste disposer features a continuous-duty motor, 24 grinding teeth, and an angled, 10 5⁄8-inch-diameter flywheel. This flywheel can be raised or lowered to adjust the cutting gap, and it automatically starts in an opposite direction each time it's used to minimize jamming and prolong grinding elements' service life. For high-volume applications, this unit's bearings are permanently lubricated, and its motor features an inherent overload protection mechanism.
The Hobart FD4/500-1 commercial garbage disposer measures 17 1⁄2 inches in diameter by 27 3⁄8 inches high and can be attached to a 7-inch I.D. throat-opening cone. A vinyl isolating ring reduces noise and vibration because it prevents metal-to-metal contact at the cone's mounting area. Built to last in high-traffic settings, its upper housing is heavy-duty ductile iron, while its lower housing is primed, painted ductile gray cast iron lower housing. Four included bolts fasten its motor unit to the grind chamber to simplify removal when needed. To position the housing appropriately beneath a sink, it's fitted with tubular steel legs and flanged feet that can be adjusted by 3 inches.
- Heavy-duty ductile iron upper housing
- Painted, machined, and primed ductile gray cast iron lower housing
- Heavy grind and discharge housings
- Tubular stainless steel legs with adjustable, flanged feet
- Continuous-duty, 5-HP motor with inherent overload protection
- Permanently lubricated bearings
- 24 grinding teeth
- 10 5⁄8-in.-dia. hardened, ductile steel alloy flywheel with breaker blade
- Flywheel can be raised or lowered
- Fastens to 7-in. ID throat-opening cone
- Vinyl isolating ring prevents metal-to-metal contact at cone mounting
- Motor shaft seal
- Automatic dual-direction grinding
- 17 1⁄2 in. dia. x 27 3⁄8 in. H
- 14/7 A, 5 HP
- 200-230/460 V/60 Hz/3 ph
- Removable outlet flange tapped for 2-in. pipe connection
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hobart FD4/500-1 within the 48 contiguous states.
From The Manufacturer
Garbage disposer, basic unit only, flanged feet, 5 HP motor, 27.38"H, 7.5 - 14.5 Amps, 208-230v/460v/60/3ph
Watch a video about this product
Hobart FD4/500-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Hertz | 60 |
| HP | 5 |
| Phase | 3 |
| Product | Garbage Disposals |
| Product Type | Commercial Sinks |
| Special Features | Adjustable Flanged Feet |
| Unit Type | Basic |
| Usage Level | Heavy Duty |
| Voltage | 208/230/460 |
| Warranty | 1-year Parts & Labor |
| Weight | 158.00 |
