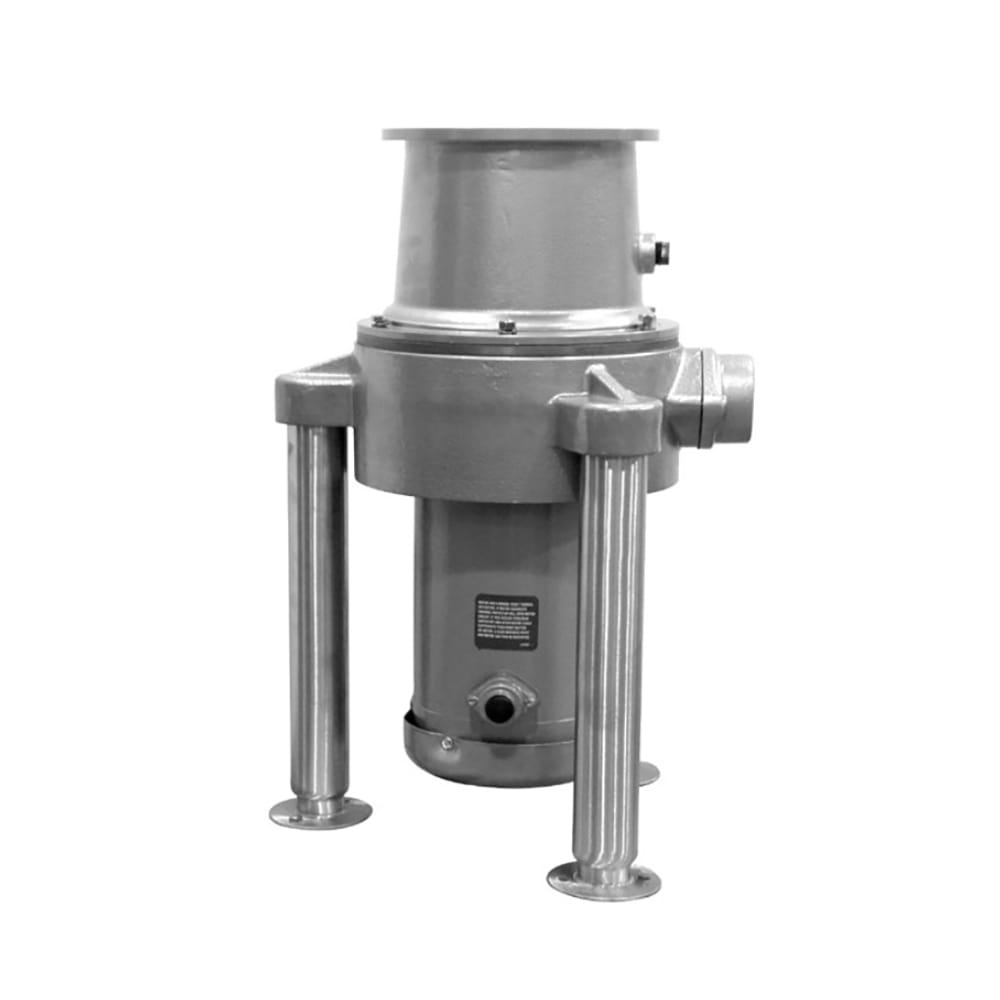

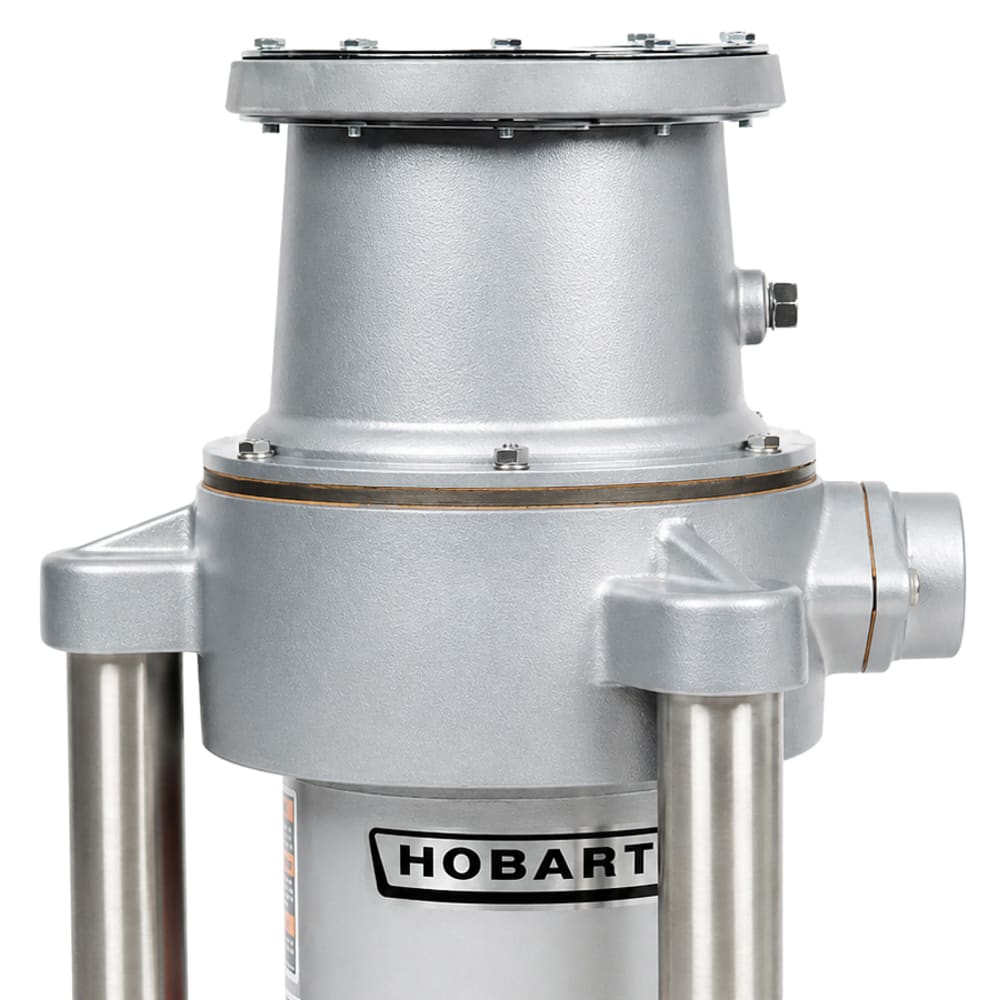

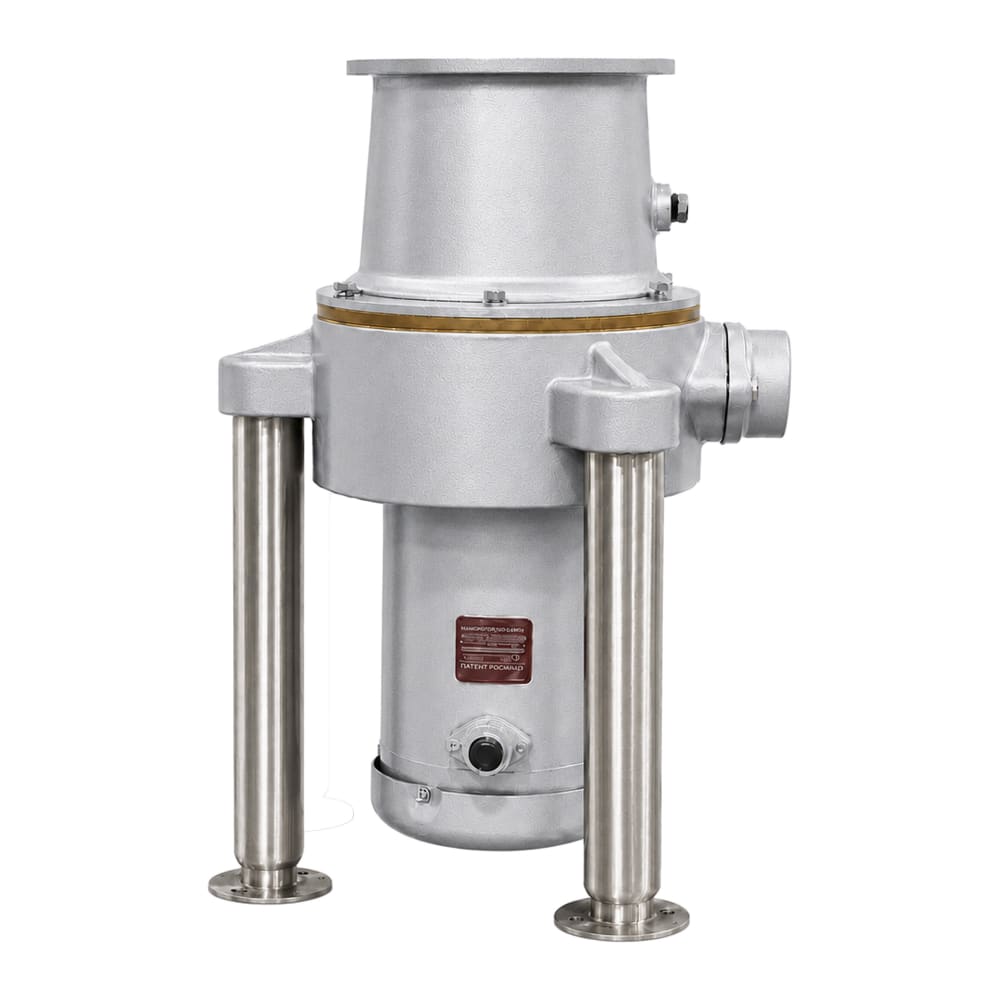

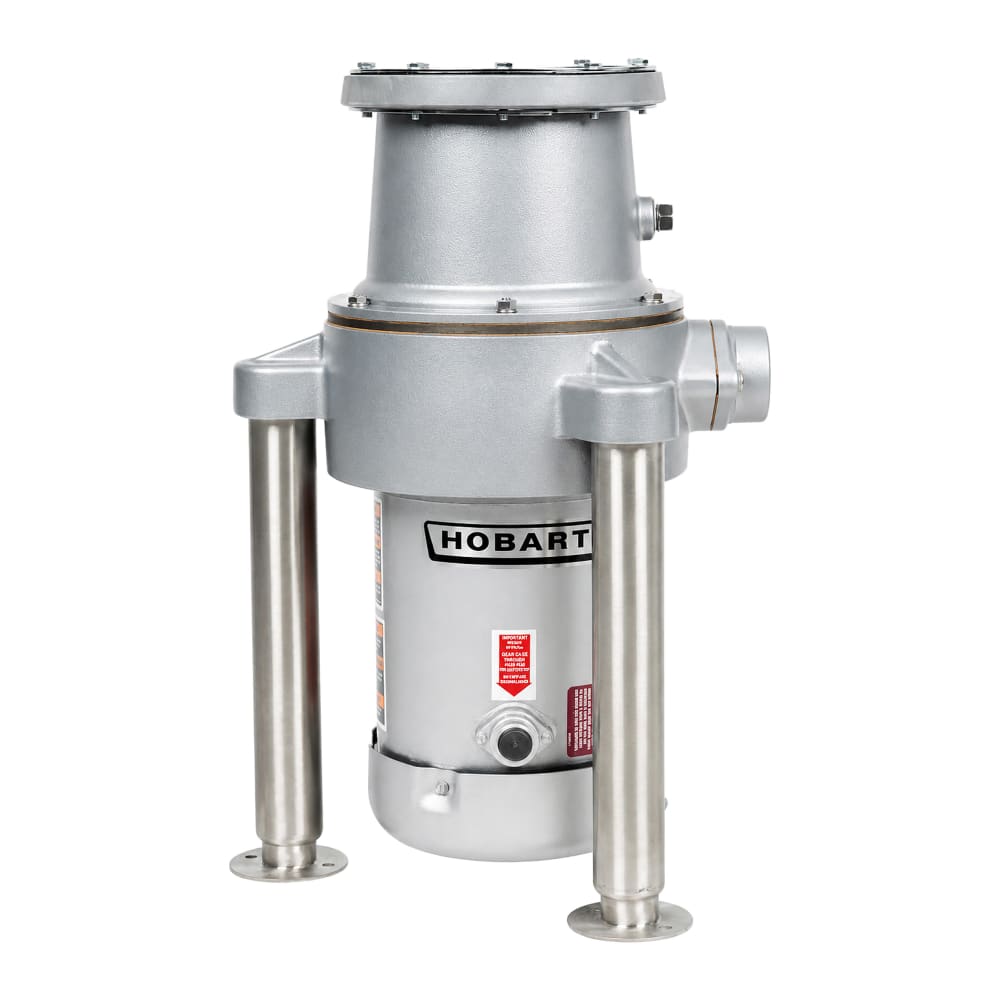

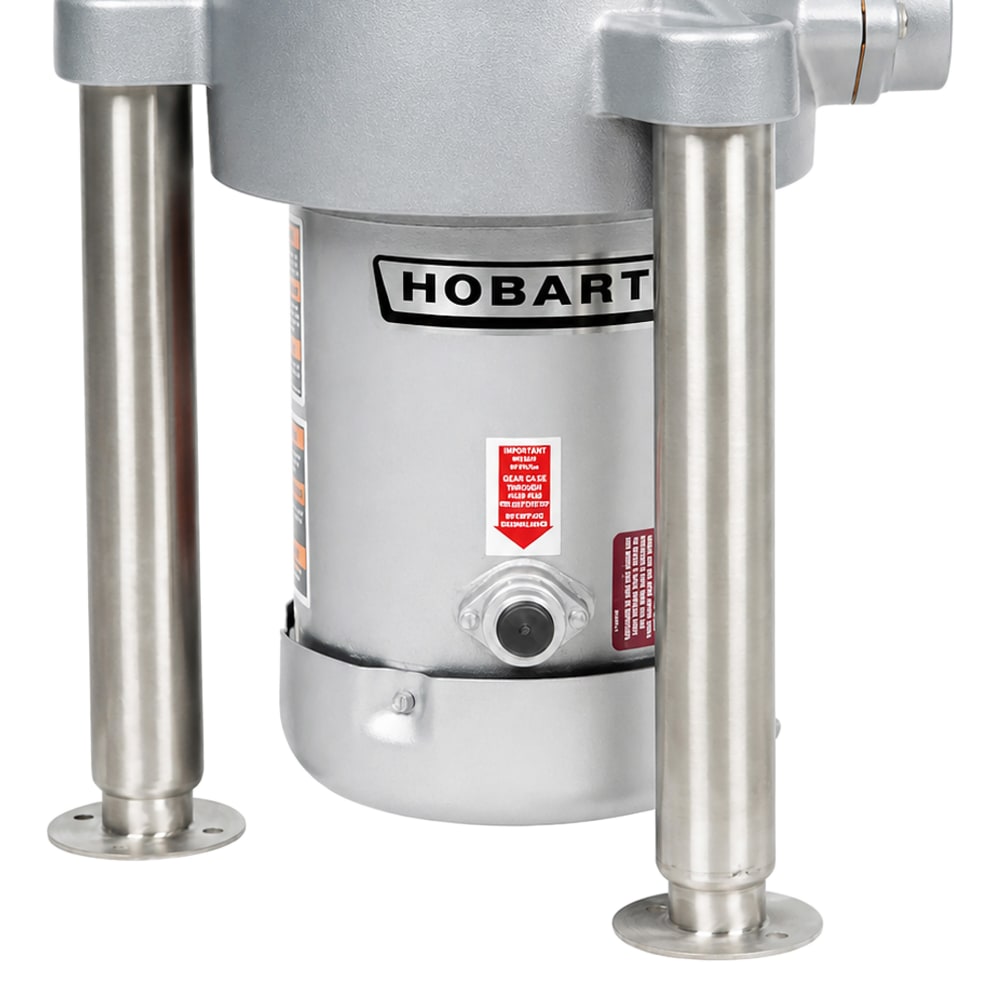

Hobart FD4/150-2 Basic Disposer Unit, 1 1/2 HP Motor, 115/230v/1ph
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$3,166.80 /Each
Contact us for details!
Non Returnable Item
Hobart FD4/150-2 Description
With the flip of a switch, this Hobart FD4/150-2 disposer unit grinds food waste into small particles. This 1 1⁄2-horsepower unit's continuous-duty motor features a manual-reset thermal overload protection mechanism that minimizes damage risk during heavy-duty grinding. To withstand frequent use, its upper and lower shaft support ball bearings are permanently lubricated. While its stationary shredder ring is lined with 40 abrasion-resistant, heat-treated cast ductile iron grinding teeth, its flywheel includes two hardened ductile iron cutter blocks that can be replaced and indexed for new cutting edges.
For long-lasting resilience, the Hobart FD4/150-2 food waste disposer features a heavy ductile iron upper housing and a primed, powder-coated ductile gray cast iron lower housing. This unit can be mounted to a 7-inch I.D. throat-opening cone; its vinyl isolating ring prevents metal-to-metal contact that otherwise would create disruptive vibrations and noise. So the motor unit can be simply removed from the grind chamber, it includes four bolts. This 14 1⁄2-inch-diameter by 27 3⁄8-inch-tall unit is positioned on tubular stainless steel legs with flanged feet that can be adjusted in 3 inches in either direction.
- Heavy ductile iron upper housing
- Powder-coated, primed ductile gray cast iron lower housing
- Tubular stainless steel legs with flanged feet (adjustable by 3 in.)
- Fastens to 7-in. I.D. cone
- Vinyl isolating ring prevents metal-to-metal contact at cone mounting
- Continuous-duty, 1 1⁄2-HP motor
- Manual-reset thermal overload protection
- Dual-directional grinding mechanism
- Permanently lubricated upper and lower shaft support ball bearings
- 40 abrasion-resistant, heat-treated cast ductile iron teeth
- 8-in.-diameter flywheel
- 2 replaceable hardened ductile iron cutter blocks
- Motor shaft seal
- 14 1⁄4 in. dia. x 27 3⁄8 in. H
- 16/8.0 A, 1 1⁄2 HP
- 110-120 V/208-240V/ 60 Hz/1 ph
- Removable outlet flange tapped for 2-in. pipe connection
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hobart FD4/150-2 within the 48 contiguous states.
From The Manufacturer
Disposer, basic unit only, 1-1/2 HP motor, ductile iron housings, adjustable flange feet, 115/230v/60/1ph
Hobart FD4/150-2 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Hertz | 60 |
| HP | 1.5 |
| Phase | 1 |
| Product | Garbage Disposals |
| Product Type | Commercial Sinks |
| Unit Type | Basic |
| Usage Level | Light Duty |
| Voltage | 115/230 |
| Warranty | 1-year Parts & Labor |
| Weight | 158.00 |
