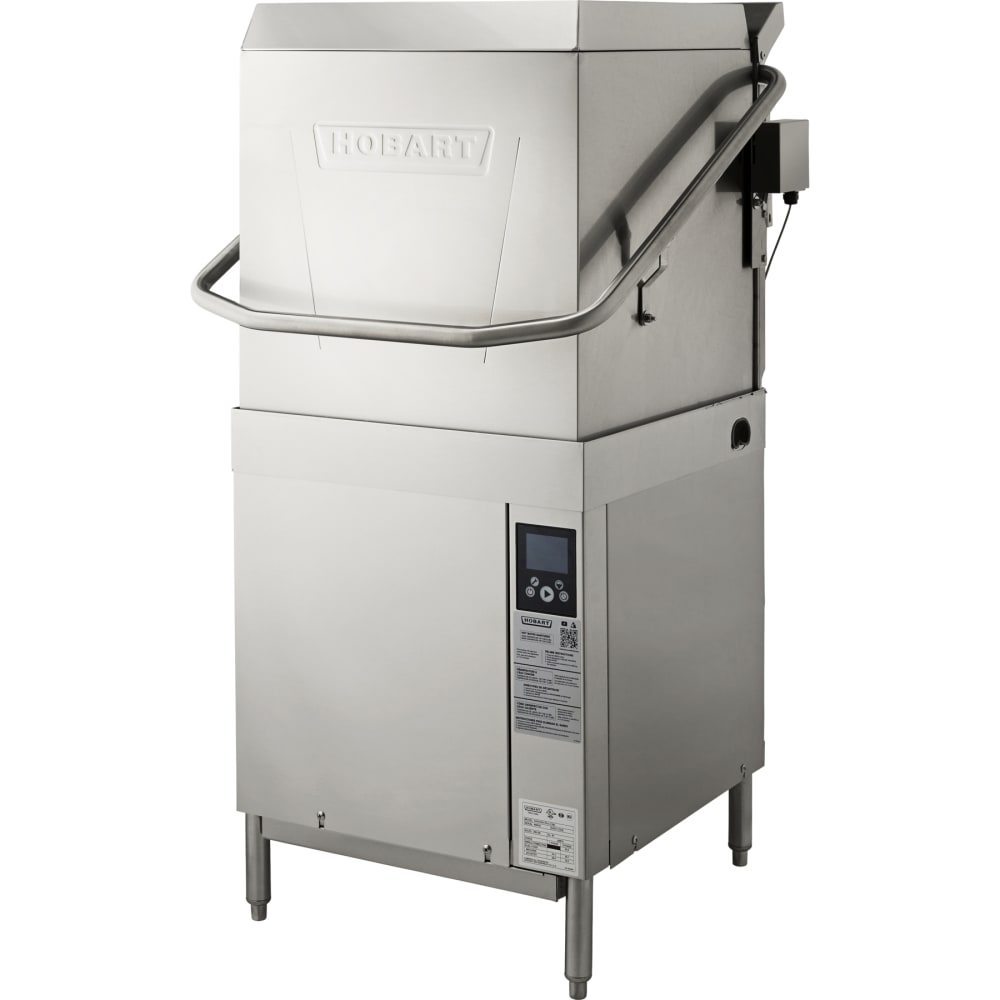

Hobart AM16VL-BAS-4 High Temp Door Type Dishwasher w/ 45 Racks/hr Capacity, Built-in Booster, 480v/3ph
Typically ships in 3 - 4 weeks
$24,822.70 /Each
Contact us for details!
Selected Voltage: 480V, 3 Phase
| 480V, 3 Phase |
| 208-240V, 3 Phase |
Non Returnable Item
Attention: Order by 12-01-2026 to save before the price increases!
Hobart AM16VL-BAS-4 Description

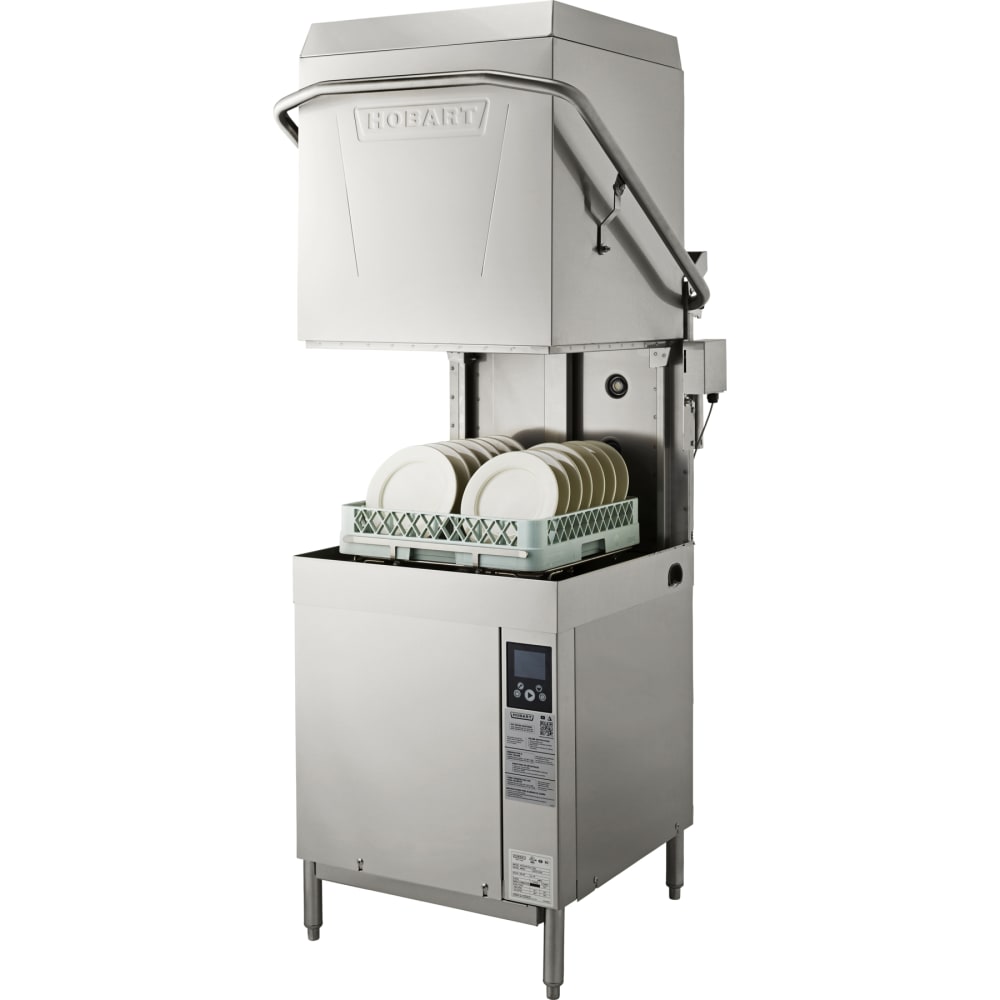

The Hobart AM16VL-BAS-4 high-temp dishwasher measures 30 inches wide by 24 7⁄16 inches deep by 59 inches high and features a lockable, lift-up door with a door-actuated start for fast initiation. Using X-shaped wash arms, it delivers uniform spray to ensure thorough, high-temperature sanitization for up to 45 racks per hour. Its 10 1⁄2-gallon wash tank refills automatically and incorporates electric heat to keep water prepared for successive cycles. Crafted for pass-thru or corner installation, the stainless steel structure rests on integrated legs that inhibit rocking during use.

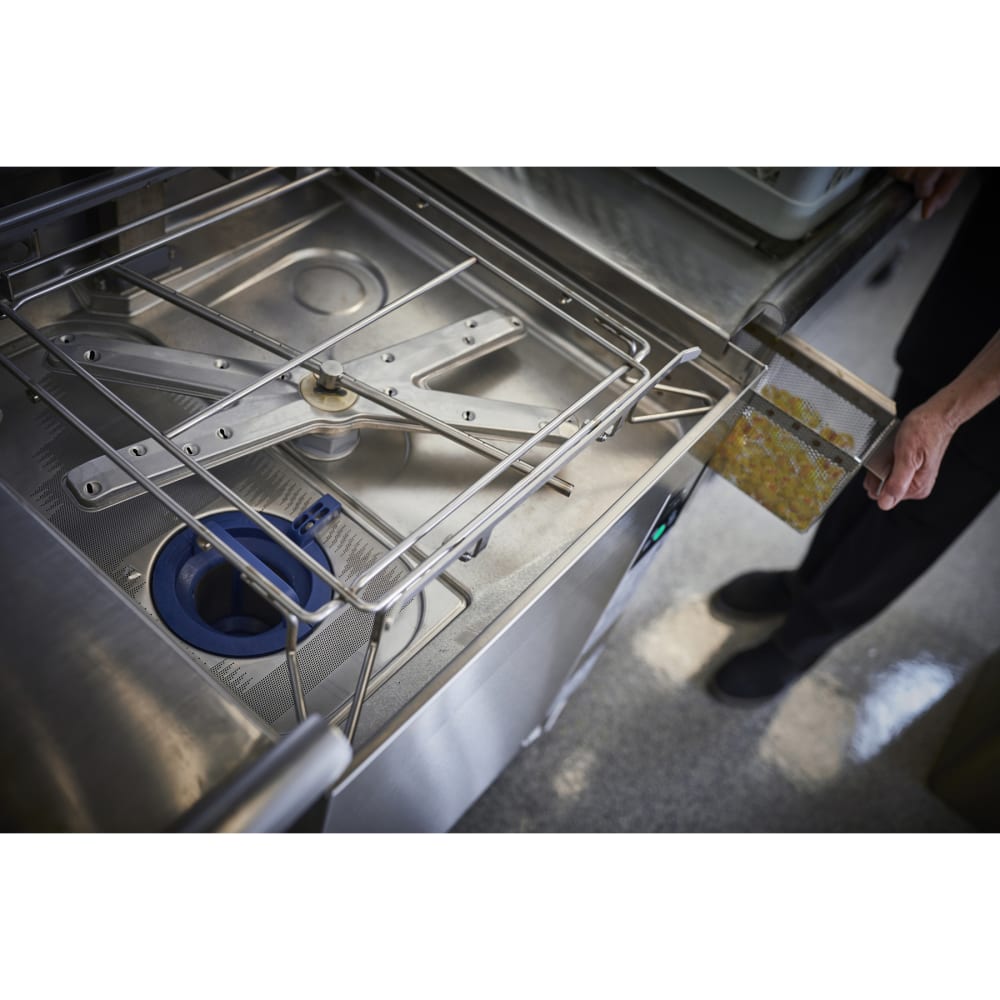

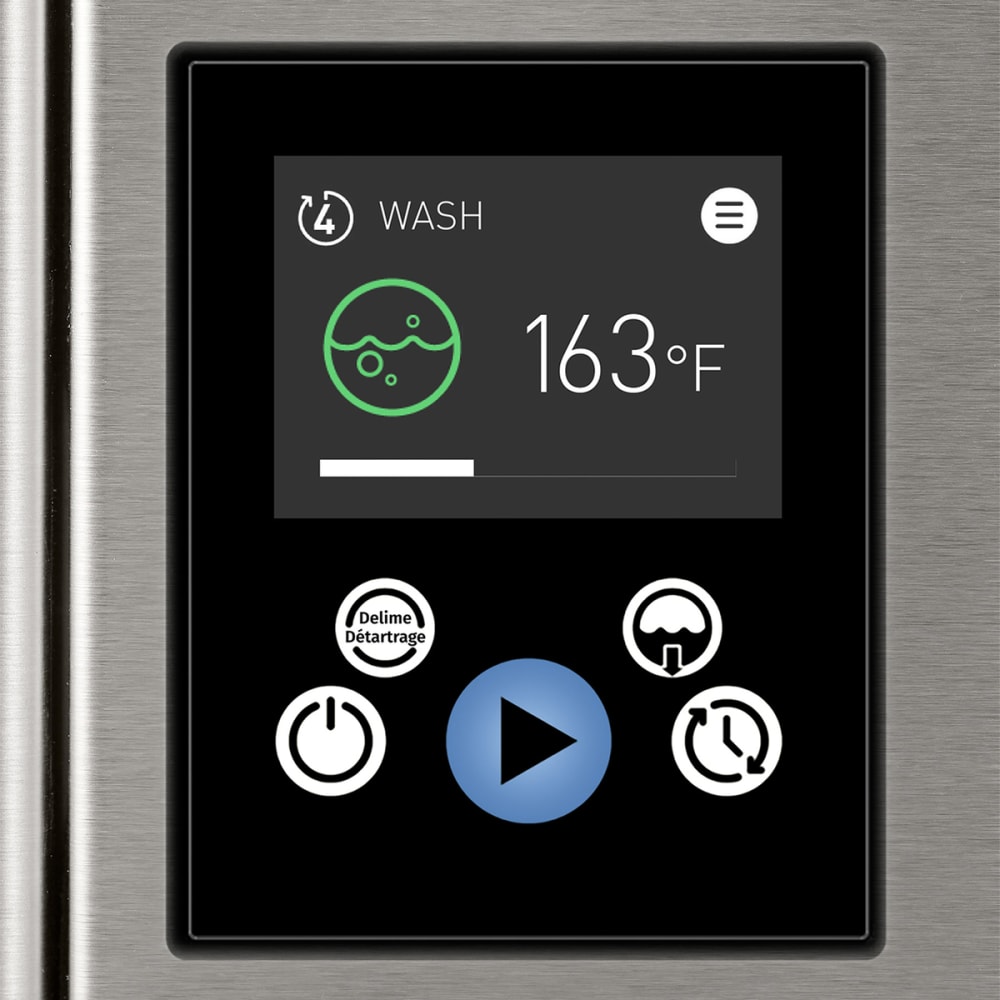

To separate food particles from circulating wash water, the Hobart AM16VL-BAS-4 dishwasher combines two-stage filtration with a scrap screen and basket. A delime cycle removes scale buildup, while AutoClean and a pumped drain retain a hygienic environment. Streamlining everyday checks, the WiFi-enabled touchscreen controls centralize machine functions and service diagnostics. The Sense-A-Temp™ booster brings rinse water to the required operating temperature, and energy recovery works alongside an internal condensing system to capture heat and direct water vapor.
- Accommodates 45 racks per hr.
- Pass-thru or corner installation
- Ventless design
- Stainless steel construction
- 10 1⁄2-gal. wash tank
- Lockable, lift-up door
- Door-actuated start
- X-shaped wash arms
- 2-stage filtration
- Touchscreen controls
- Pumped drain
- Scrap screen and basket
- Integrated legs
- Internal condensing system
- Energy recovery
- Sense-A-Temp booster
- Electric tank heat
- AutoClean
- Automatic fill
- Delime cycle
- 30 in. W x 24 7⁄16 in. D x 59 in. H
- 24 A
- 480 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hobart AM16VL-BAS-4 within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hobart AM16VL-BAS-4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Capacity | Single Rack |
| Cavity Height (in) | 17 |
| Control Location | Bottom |
| Depth (in) | 24.44 |
| Design | Standard |
| Door Type | Lift Up |
| Heat | Electric |
| Height (in) | 59 |
| Hertz | 60 |
| Kitchen Innovations Awards | 2010 |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 45 |
| Rating | Better |
| Special Features | Built In Booster |
| Type | High Temp |
| Voltage | 480 |
| Warranty | 1-year Parts, Labor, & travel time during normal working hours within the USA |
| Width (in) | 30 |
| Weight | 322.00 |
