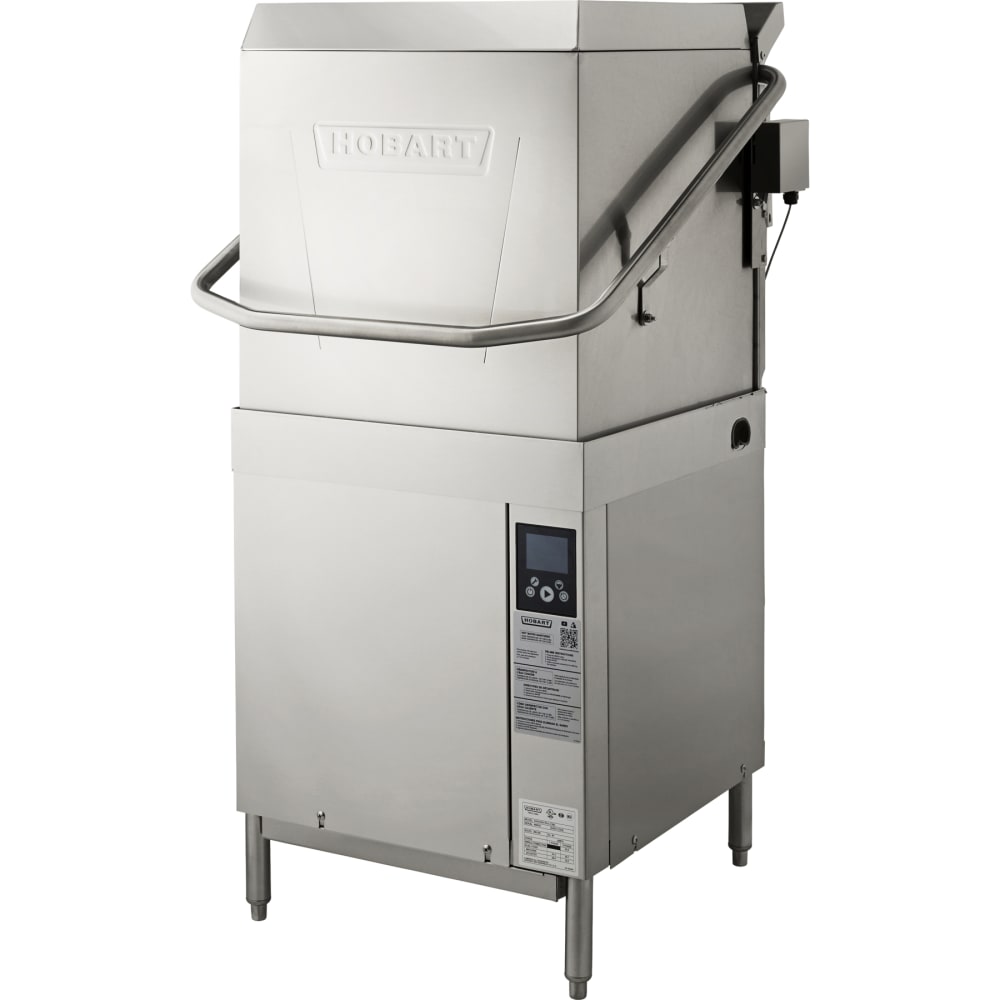

Hobart AM16VL-BAS-2 High Temp Door Type Dishwasher w/ 45 Racks/hr Capacity, Built-in Booster, 208-240v/3ph
$23,446.50 /Each
Contact us for details!
Selected Voltage: 208-240V, 3 Phase
| 208-240V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item

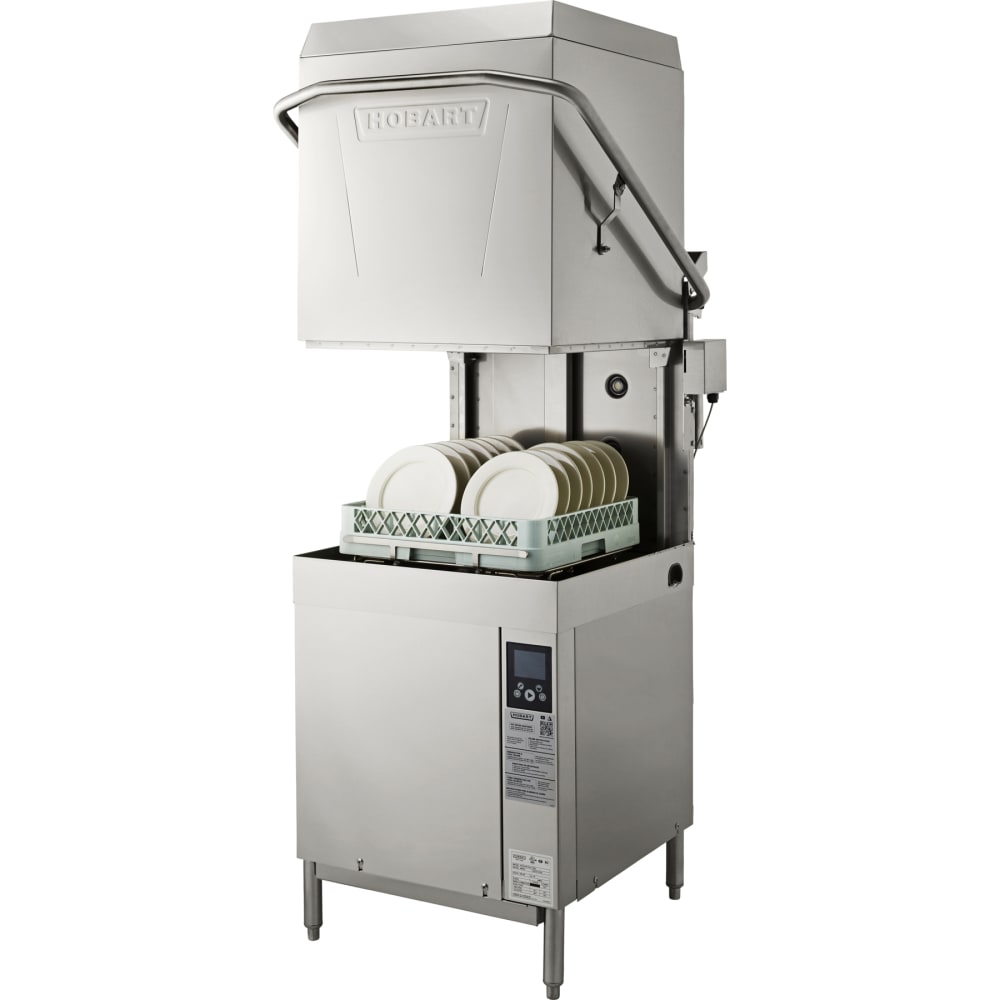

Hobart AM16VL-BAS-2 Description
For long-lasting durability and corrosion resistance, the Hobart AM16VL-BAS-2 commercial dishwasher features a primarily stainless steel construction. This door-type unit can be configured for straight-through or corner installation and is designed with a five-sided, insulated hood. Using high-temperature water to sanitize dishware, it cleans as many as 45 racks per hour. Operators can choose between 1-, 2-, 4-, and 6-minute timed cycle options. To heat water quickly, it uses a Sense-A-Temp™ electric booster heater.
The Hobart AM16VL-BAS-2 high-temp dishwasher features a door-actuated start and automatic fill to minimize hands-on operator tasks. For additional convenience, its smart touchscreen controls are intuitive and simple to use, and it has Wi-Fi connectivity so users can monitor the machine's status. This unit is equipped with an internal condensing system and operates with energy recovery and without a vent. Overall, it measures 30 inches wide by 24 7⁄16 inches deep by 59 inches high.
- Door-type configuration
- Cleans 45 racks per hour
- Timed wash cycles for 1, 2, 4, or 6 minutes
- Compatible with straight-through or corner installation
- Ventless operation and energy recovery
- Internal condensing system
- High-temperature sanitizing
- Durable stainless steel tank, tank shelf, chamber, trim panels, frame, and feet

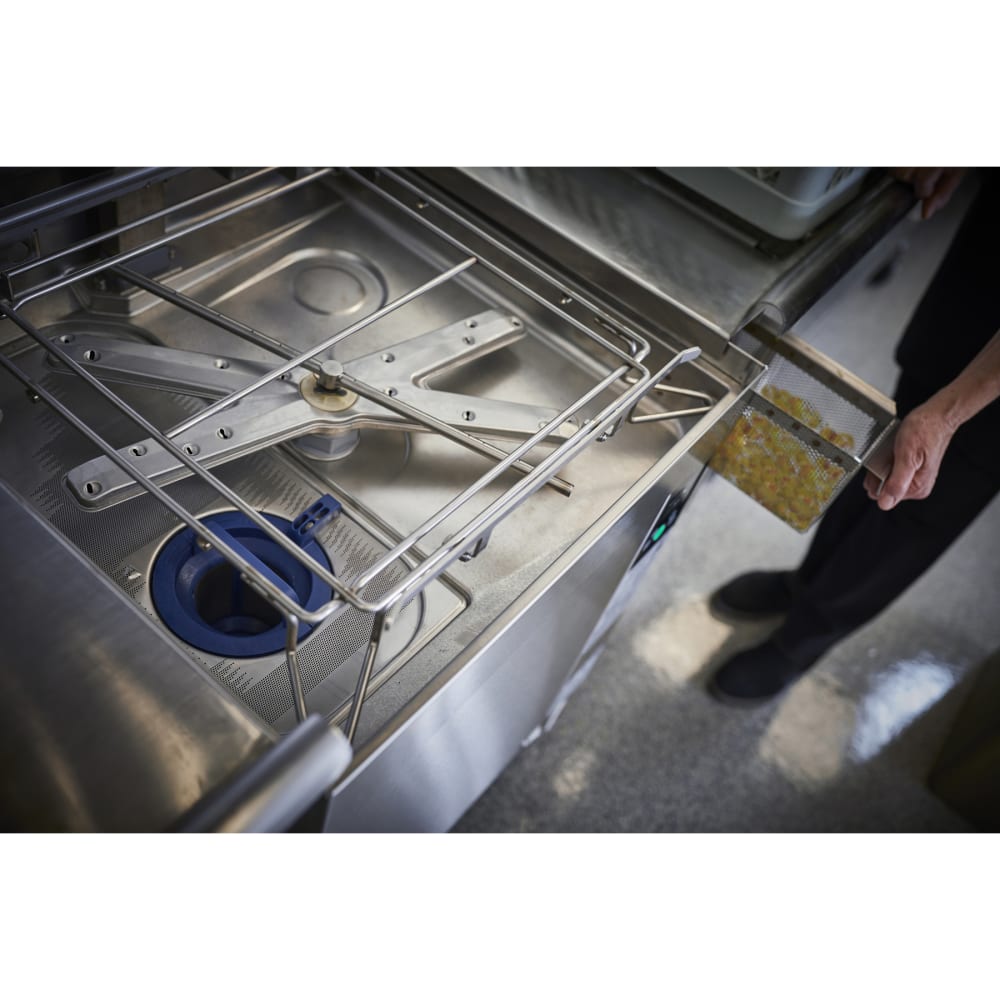

- X-shaped, revolving, interchangeable upper and lower wash arms
- Revolving, interchangeable upper and lower rinse arms
- Sense-A-Temp, 70-degree-F rise electric booster heater

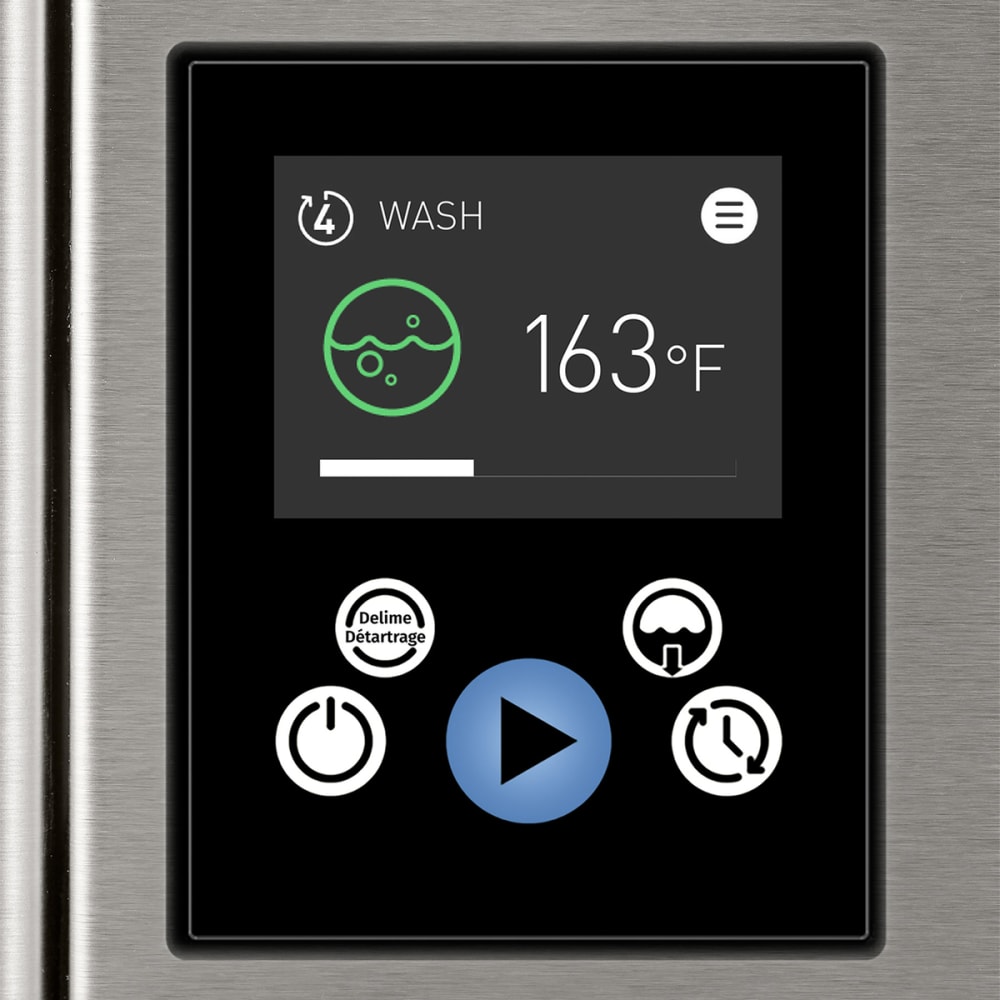

- Smart touchscreen controls are intuitive
- 2-stage filtration
- Door-actuated start
- 5-sided, insulated hood
- Automatic fill
- Pumped drain and rinse
- Wi-Fi connectivity
- Vent fan control
- 30 in. W x 24 7⁄16 in. D x 59 in. H or 78 1⁄2 in. max. H
- 26.9 A
- 208-240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hobart AM16VL-BAS-2 within the 48 contiguous states.
From The Manufacturer
Ventless Dishwashing Machine, door type, energy recovery, high temp sanitizing, 208-240/60/3 (field convertible to single phase), internal condensing system, 45 racks/hour, straight-thru or corner installation, user-friendly smart touchscreen controls, Sense-A-Temp™ booster, electric tank heat, X-shaped wash arms, scrap screen and basket, door actuated start, door lock, stainless steel tank, tank shelf, chamber, trim panels, frame & feet, cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles of a Hobart Service Office during normal business hours with appropriate notice; installation beyond 100 miles will be quoted by Service.
Hobart AM16VL-BAS-2 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Capacity | Single Rack |
| Cavity Height (in) | 17 |
| Control Location | Bottom |
| Depth (in) | 24.44 |
| Design | Standard |
| Door Type | Lift Up |
| Heat | Electric |
| Height (in) | 59 |
| Hertz | 60 |
| Kitchen Innovations Awards | 2010 |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 45 |
| Rating | Better |
| Special Features | Built In Booster |
| Type | High Temp |
| Voltage | 208/240 |
| Warranty | 1-year Parts, Labor, & travel time during normal working hours within the USA |
| Width (in) | 30 |
| Weight | 322.00 |
