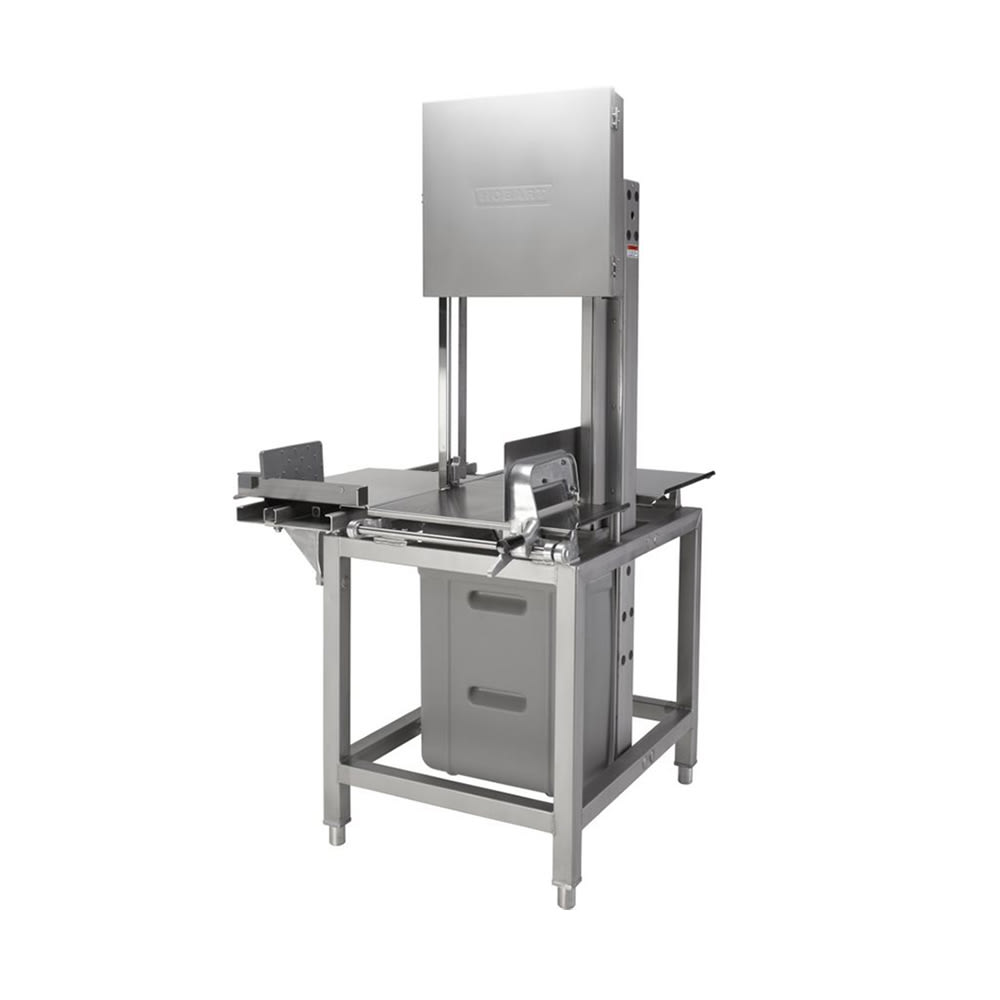

Hobart 6614-7 Floor Model Commercial Meat Saw w/ 126" Blade - 460v/3ph
$22,853.00 /Each
Contact us for details!
Selected Voltage: 460V, 3 Phase
| 460V, 3 Phase |
| 200-230V, 3 Phase |
| 200-240V, 1 Phase |
Hobart 6614-7 Description
Designed to cut large pieces of meat, the Hobart 6614-7 floor model meat saw features a 126-inch-long by 5⁄8-inch-wide vertical blade. It has a single pull-to-start and push-to-stop switch for simple operation, and all controls are heated to reduce moisture condensation. Its accessible blade tension control enables precise cuts, and to maintain a clean workspace, its enclosed bone-dust system entraps dust to reduce mess. Its direct gear-drive transmission is beltless, eliminating the need for belt slips, breaks, replacements, or adjustments, and for simple cleanup, it can be washed in a sink or with a high-pressure hose.
For durability, the meat saw is made of stainless steel, and its movable carriage tray and stationary cutting table are built with turned-down edges that enhance rigidity. The carriage tray features stainless steel ball bearings and a stepped front edge for smooth transportation, while its tri-rail carriage support stabilizes the unit. It also includes a carriage lock to ensure stationary placement. Its rugged gauge is made of stainless steel with an aluminum cast frame and can be quickly disengaged for adjustment to regulate meat thickness for consistency. Its exclusive gauge plate end design lets operators retrieve cuts of meat for simple stacking on the fully supported stationary cutting table. Because this table has a two-piece design, it can be disassembled for thorough cleaning.
The Hobart 6614-17 commercial meat saw includes cast iron upper and lower blade pulleys that can be removed without tools for cleanup. The pulleys' precision balance ensures the blade runs true, while the double flanges and center crown prolong the blade's service life and integrity. Overall, this unit measures 34 inches wide by 34 inches deep by 68 13⁄16 inches high.
- Single pull-to-start, push-to-stop switch
- Each control is heated to resist moisture condensation
- Reduced footprint
- Pivot-mounted motor, transmission, and lower-pulley assembly
- Accessible blade tension control
- Enclosed bone-dust system contains dust
- Safe to wash in sink or with a high-pressure hose
- Water-resistant, enclosed 3-HP motor with flange-mounted, grease-packed ball bearings
- Direct gear-drive transmission has no belt to replace, slip, adjust, or break
- Open-frame stainless steel construction
- 3500-FPM blade speed
- 2-in. legs can be adjusted from 1 3⁄4 in. to 2 1⁄4 in.
- 14-in.-long pulleys
- Cutting clearance: 20 in. W x 12 1⁄2 in. D x 15 1⁄4 in. H
- Stainless steel construction
- Turned-down edges enhance rigidity
- Stepped front edge for quick and efficient carriage movement
- Stainless steel ball bearings beneath carriage
- Tri-rail carriage support provides simple mobility
- Includes carriage lock
- Stainless steel plate on aluminum cast frame
- Adjustment enables control of thickness for consistent, precise cuts
- Can be easily disengaged for adjustment
- Exclusive gauge plate end design enables quick removal of cuts for stacking
- 2-piece design
- Heavy stainless steel with turned-down edges for rigidity
- Fully supported for heavy-duty use
- Offers large stacking space and simple breakdown for cleaning
- Bright-tinned cast iron upper and lower blade pulleys
- Blade runs true with precision pulley balance
- Blade-retaining double flanges and center crown maintain blade integrity
- Can be removed without tools
- Saw blade: 126 in. L x 5⁄8 in. W
- Stationary cutting table: 34 1⁄2 in. W x 18 1⁄4 in. D
- Gauge plate: 16 3⁄4 in. W x 6 3⁄4 in. D
- Carriage tray: 19 3⁄4 in. W x 14 1⁄2 in. D
- Overall: 34 in. W x 34 in. D x 68 13⁄16 in. H
- 3 HP
- 460 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hobart 6614-7 within the 48 contiguous states.
From The Manufacturer
Meat Saw, vertical blade, 14” Pulleys, 3500 fpm, 3 Hp motor, direct gear transmission, stainless steel open frame design, push/pull switch, moveable-lockable carriage tray, two piece stationary rear cutting table, adjustable legs (2" movement), hose down capability, cULus, NSF
Hobart 6614-7 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Blade Length (in) | 126 |
| Construction | Stainless Steel |
| Depth (in) | 34 |
| Height (in) | 68.81 |
| Hertz | 60 |
| HP | 3 |
| No. of Speeds | 1 |
| Phase | 3 |
| Plate Depth (in) | 6.75 |
| Plate Material | Stainless Steel |
| Plate Width (in) | 16.75 |
| Product | Meat & Bone Saws |
| Product Type | Food Prep Equipment |
| Type | Floor Model |
| Voltage | 460 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 34 |
| Weight | 564.00 |
