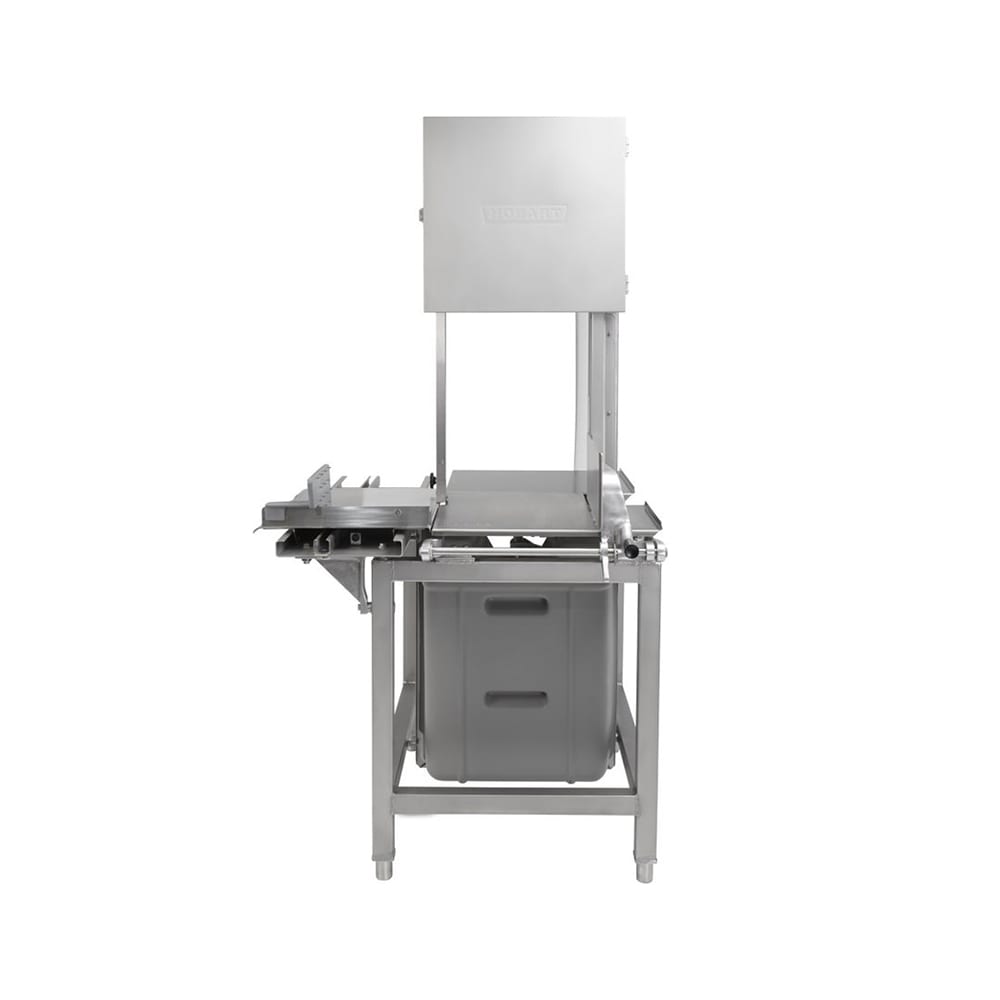

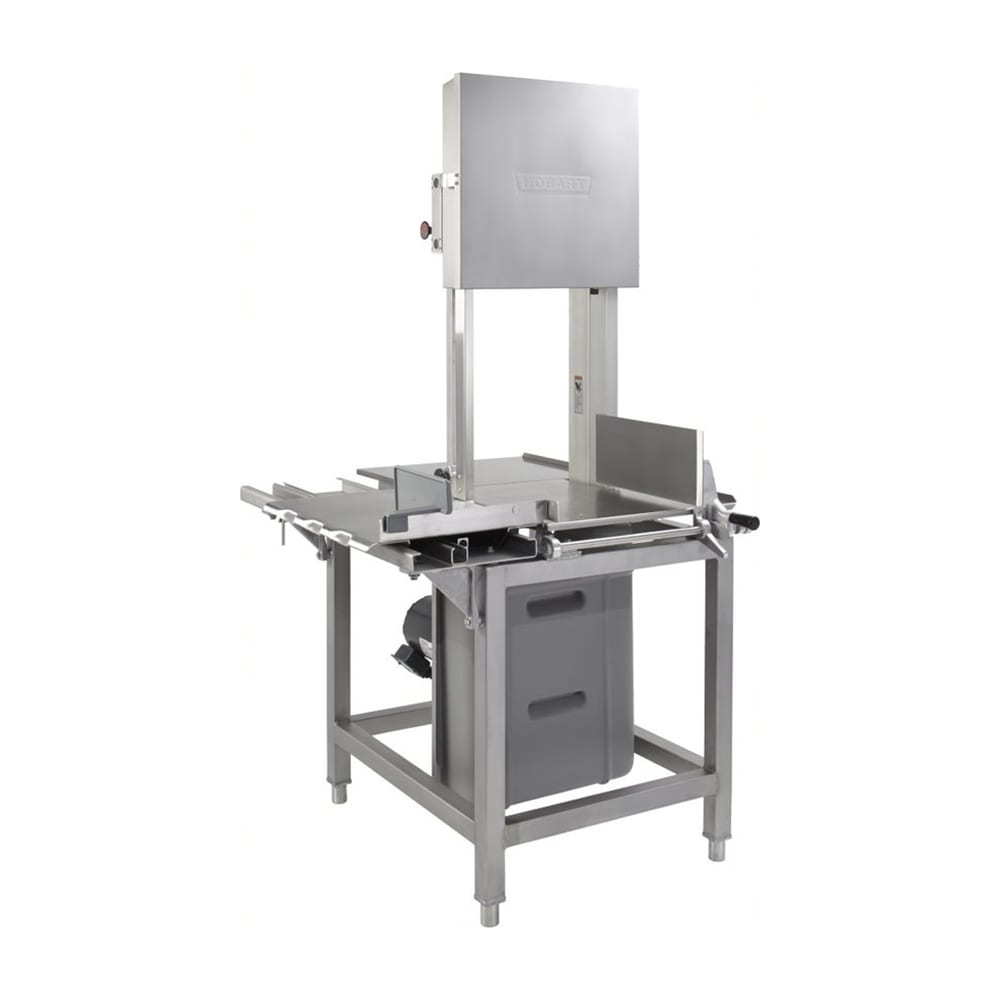

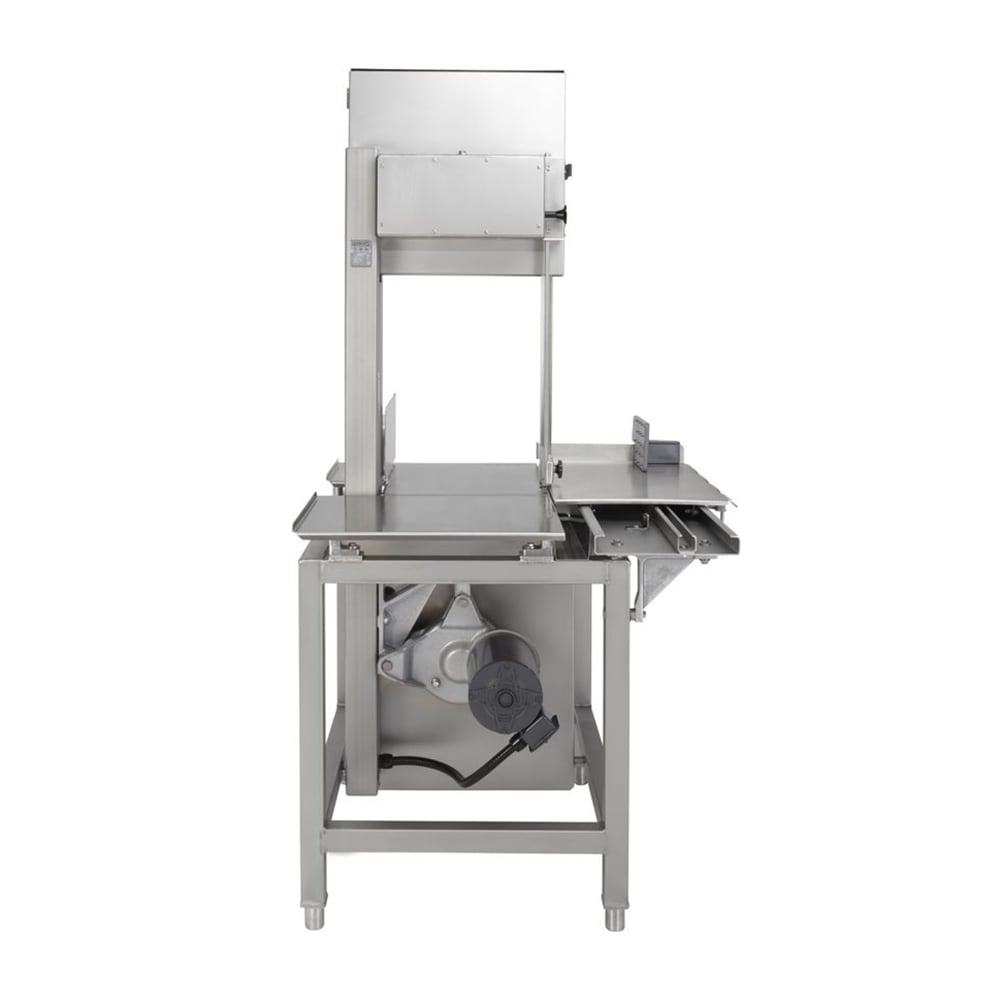

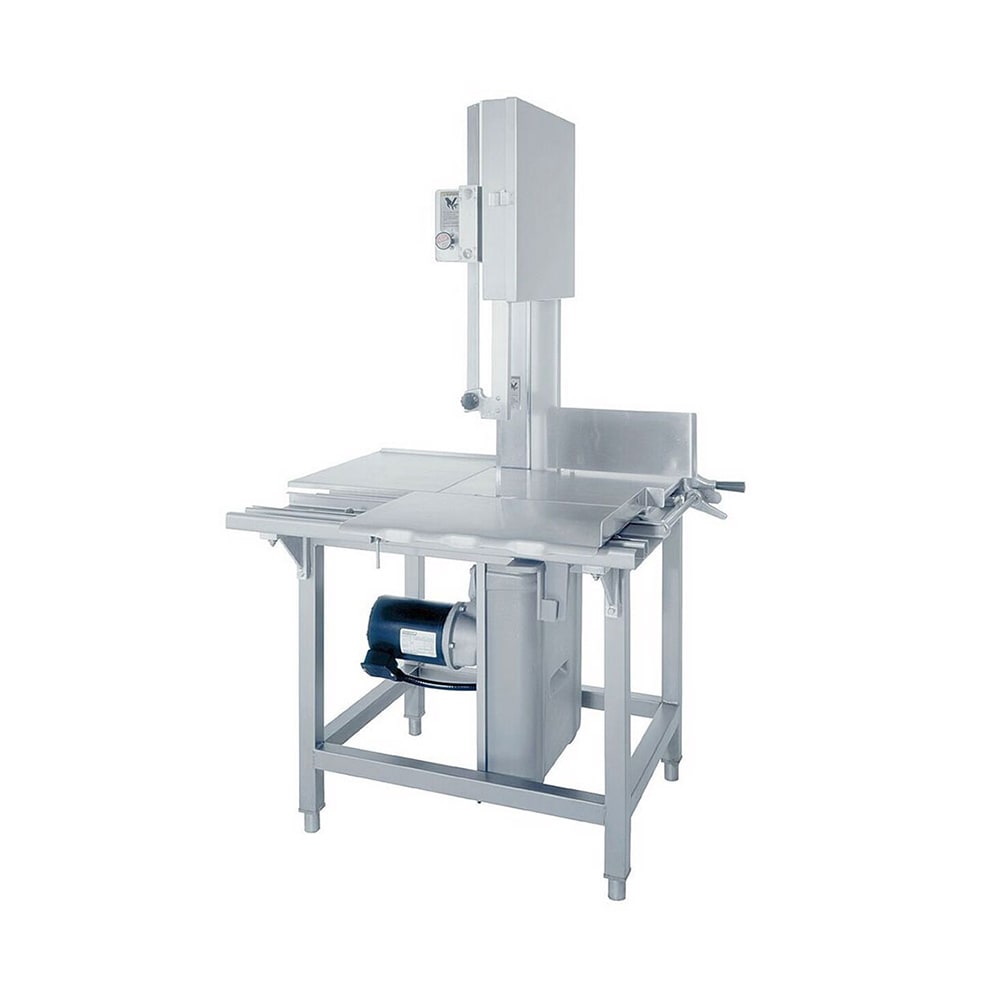

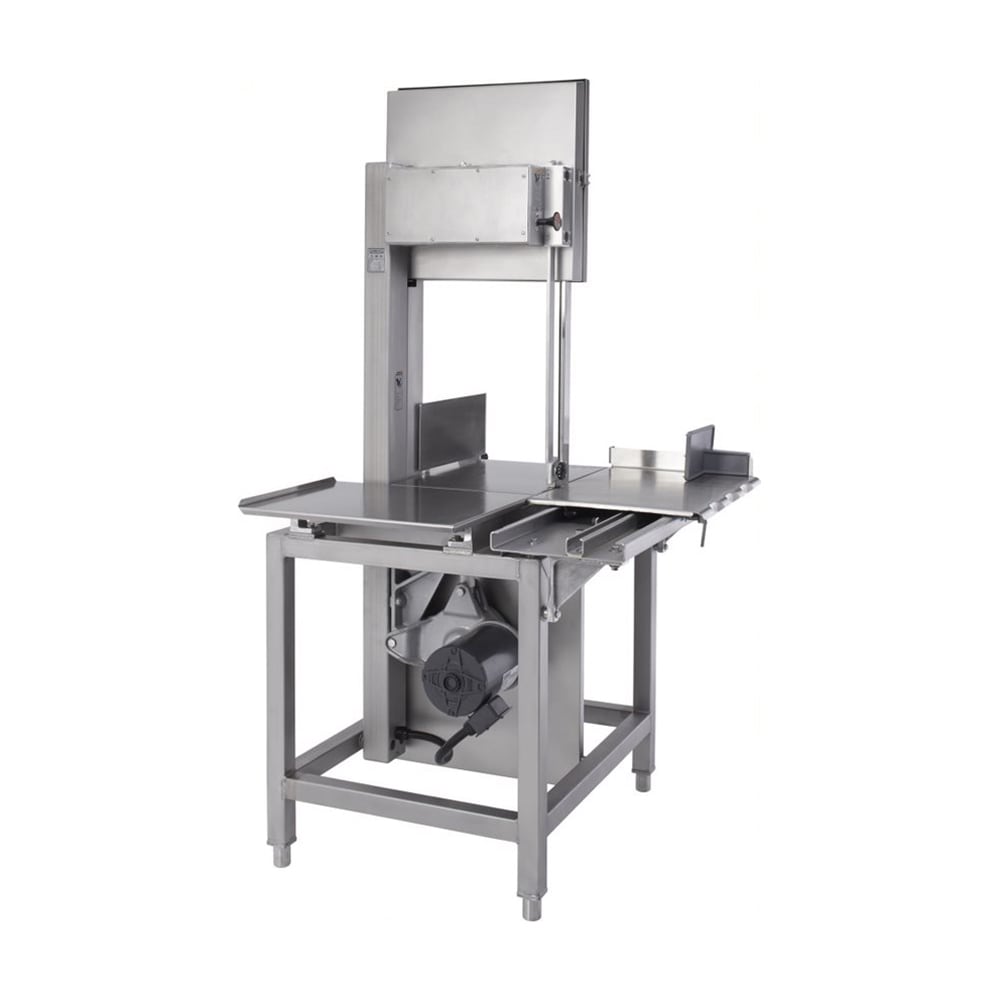

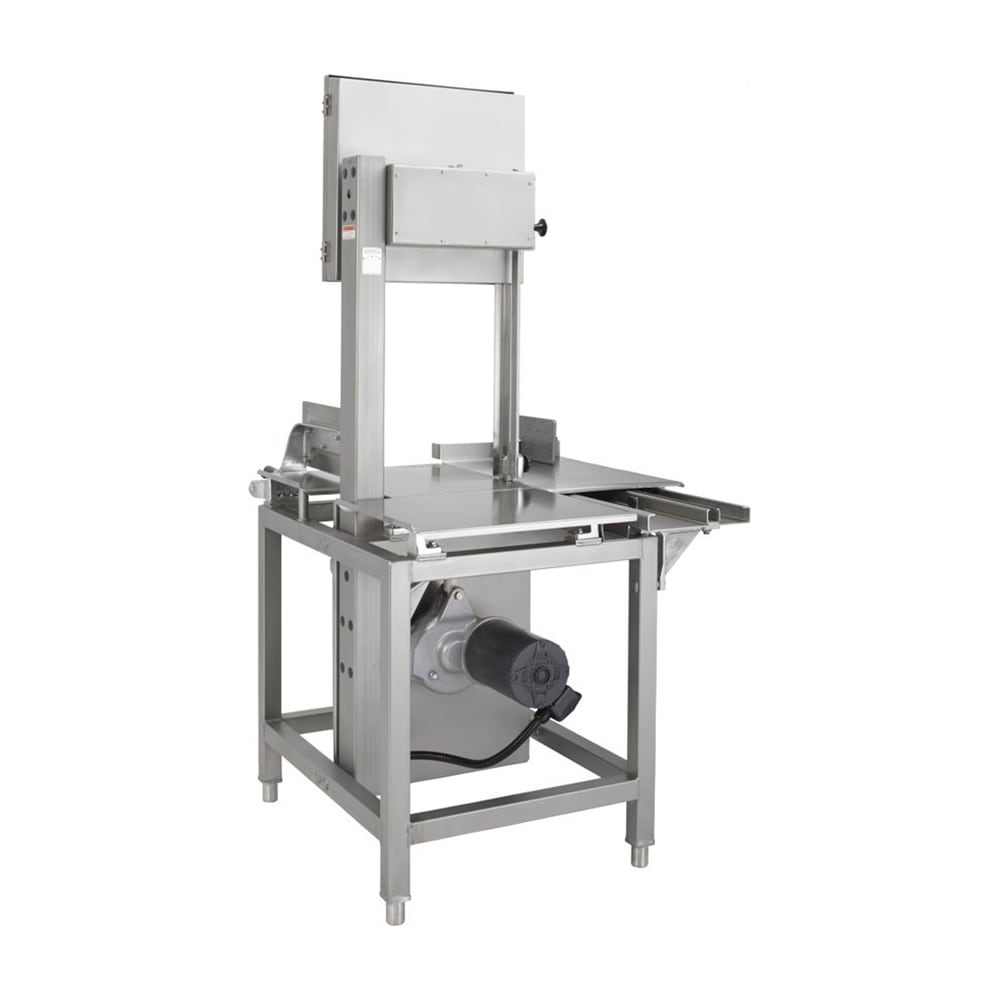

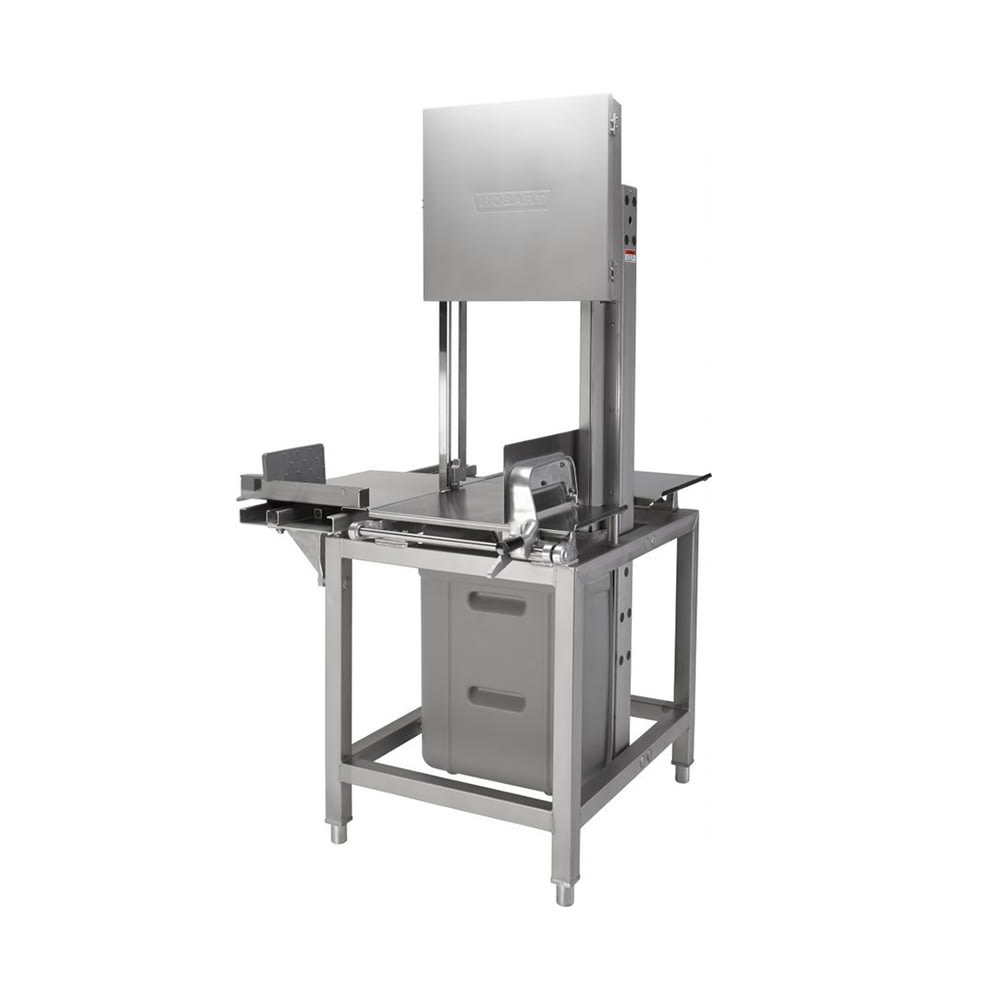

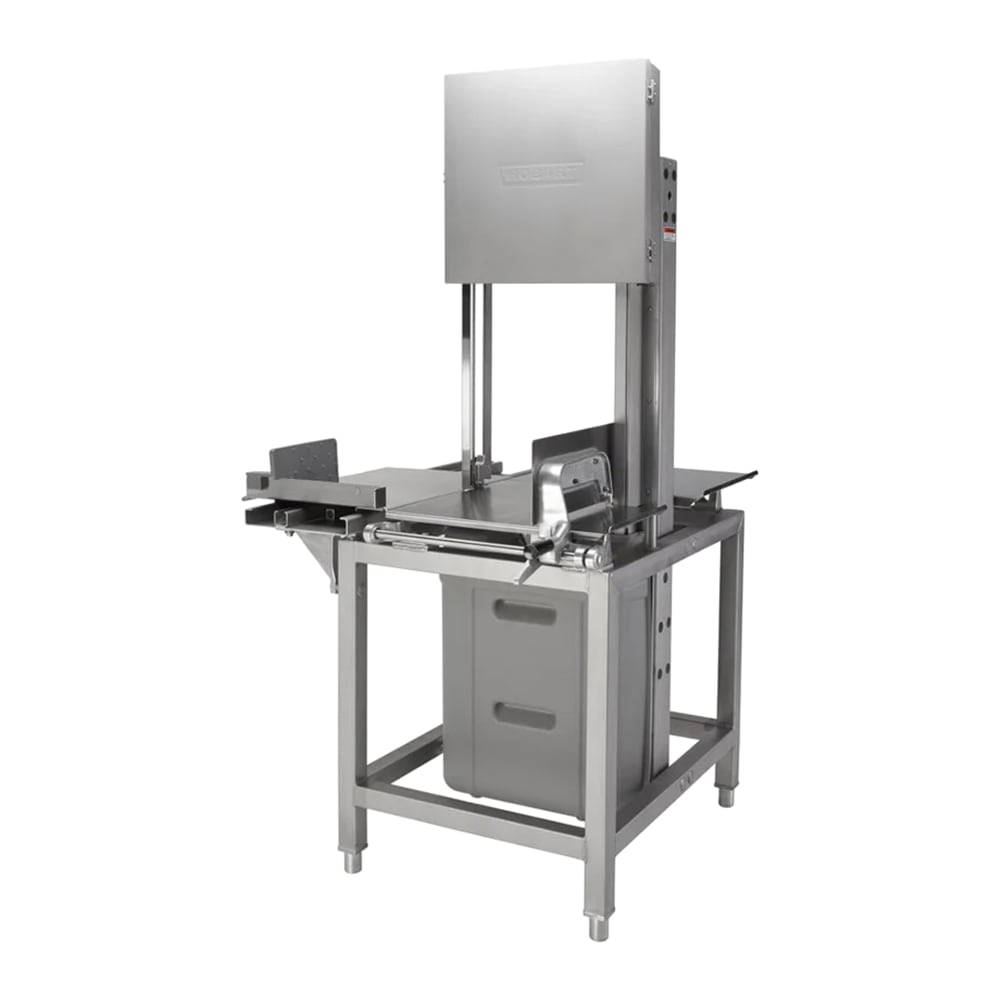

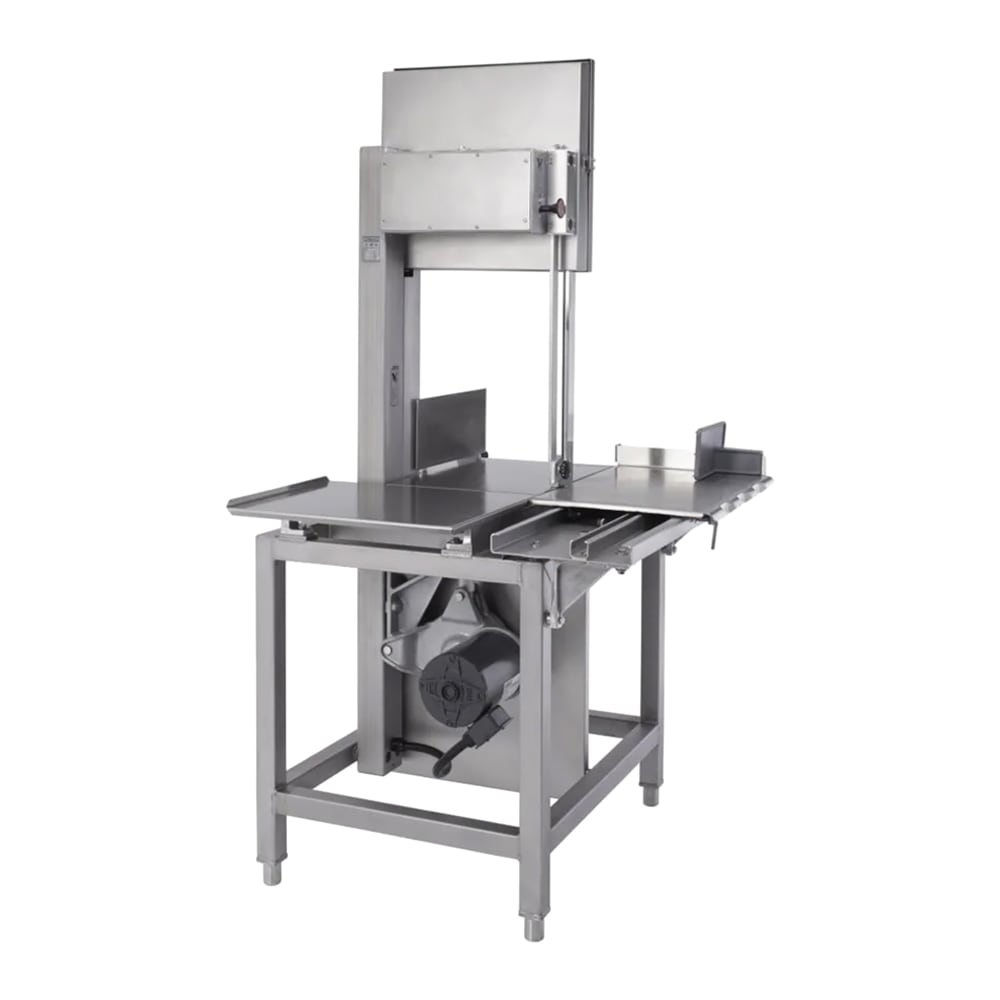

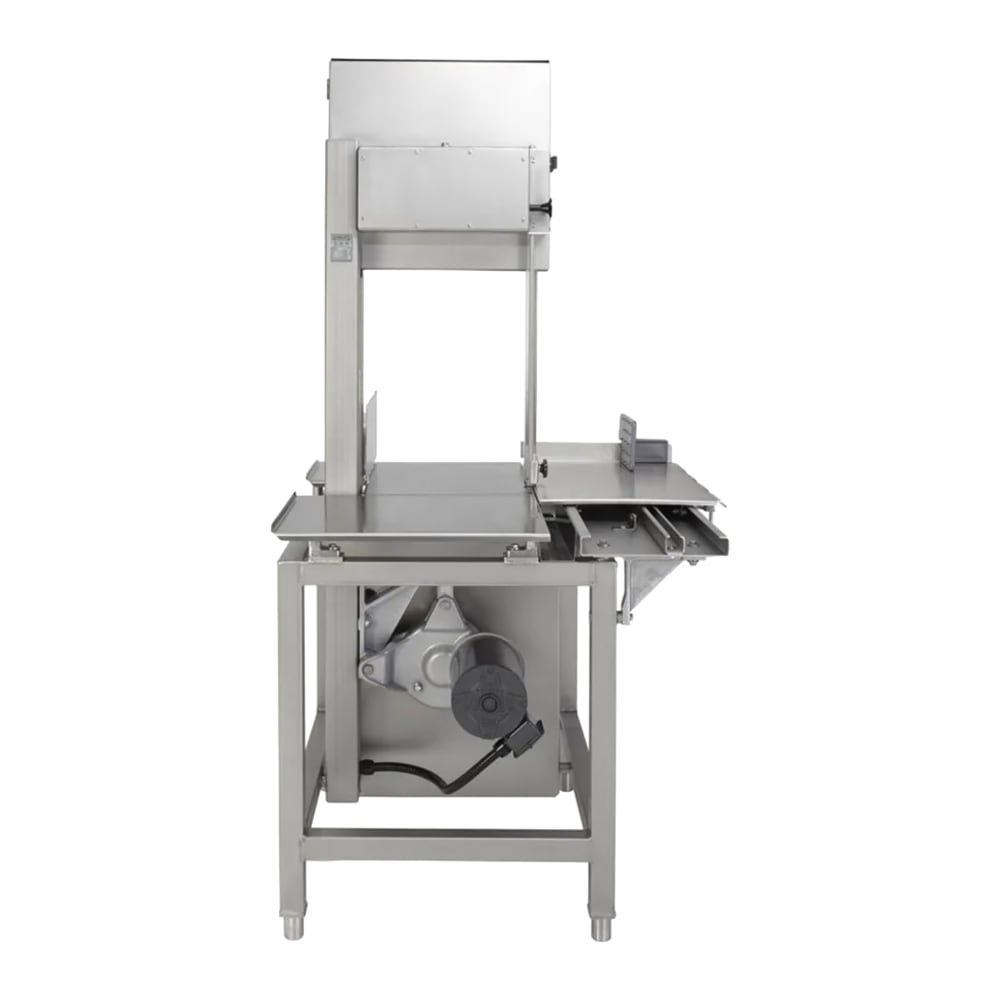

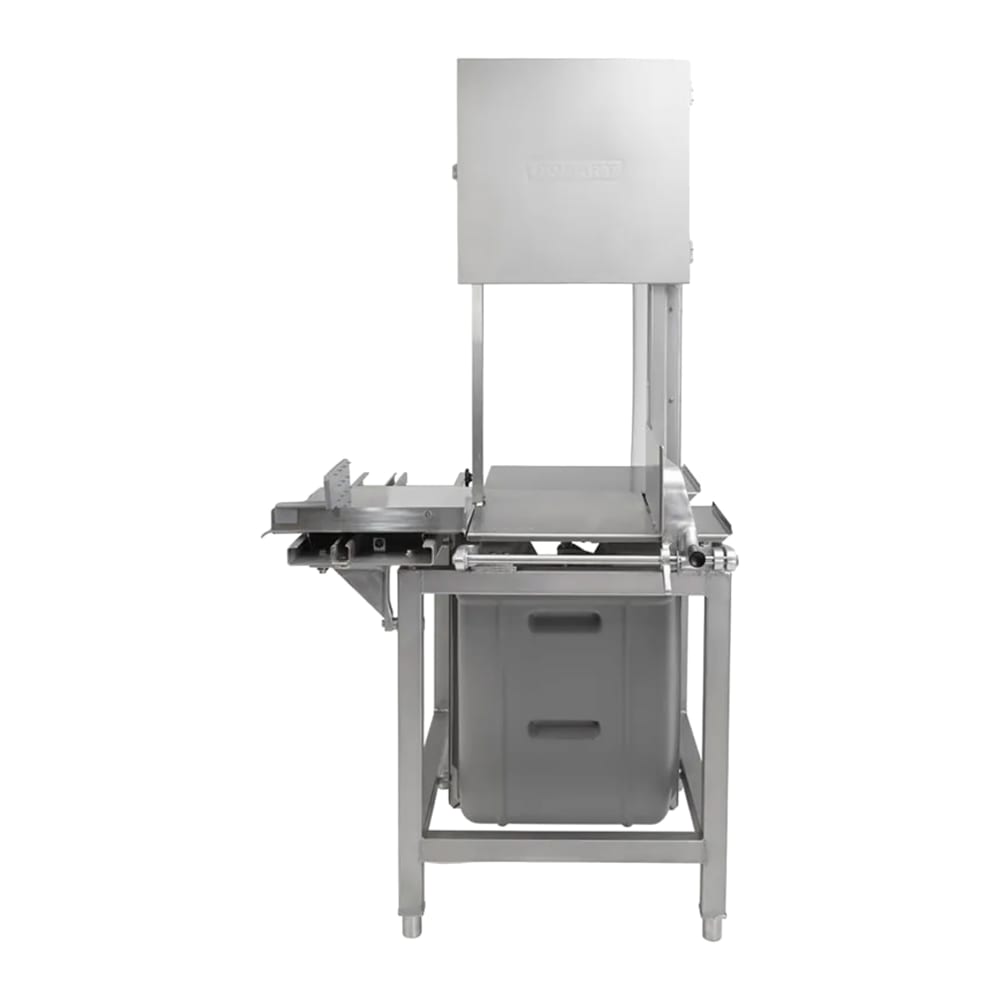

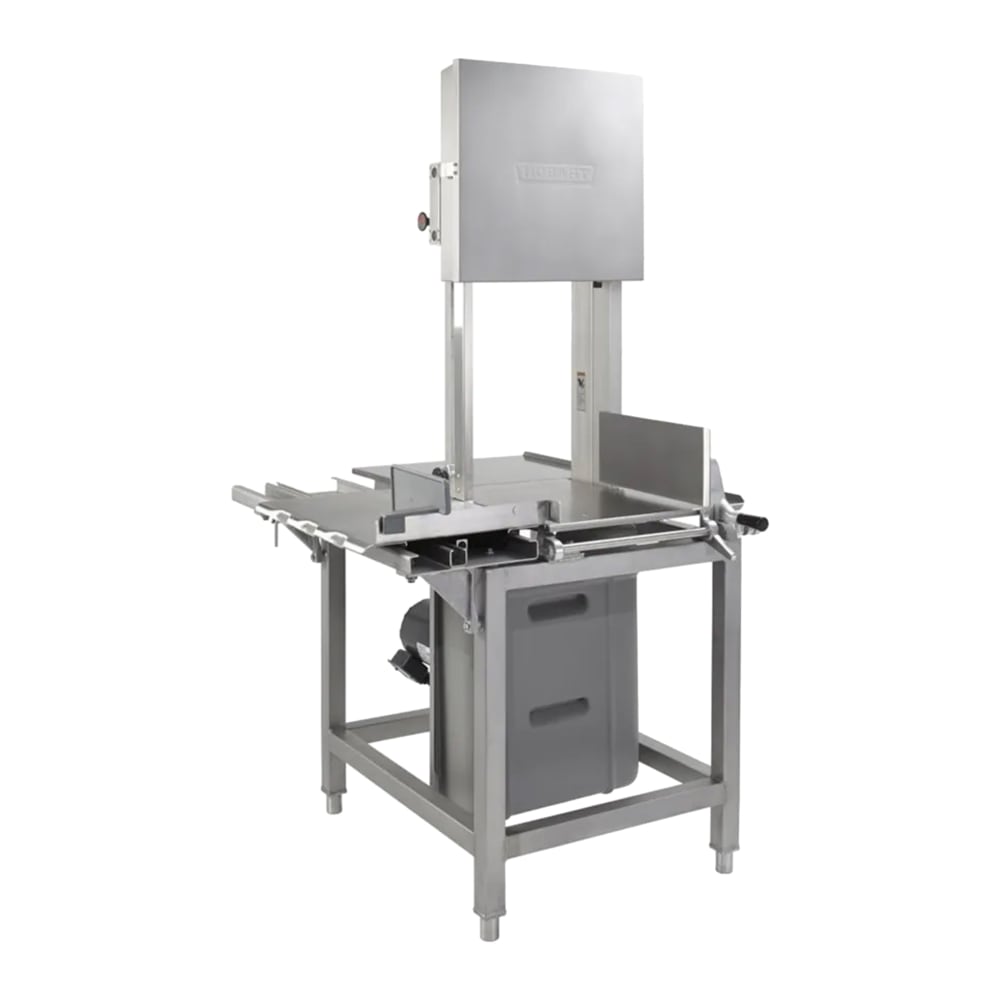

Hobart 6614-1 Meat Saw - 14" Pulleys, 3500 fpm, Direct Gear, Vertical Blade

Image may not depict product color, inclusions or accessories.

KaTom #: 617-66141 • MPN: 6614-1

Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $8,905.05
Call Us For Pricing
800-541-8683

Image may not depict product color, inclusions or accessories.

Hobart 6614-1 Description

Hobart

The Hobart 6614-1 meat saw is mostly constructed of durable stainless steel. A variety of pulleys ensures meat is sliced through properly. Upper and lower pulleys are enclosed for protection, and a pusher plate prevents injury by eliminating the need to handle meat close to the blade. The operator pulls to activate the unit and pushes a button to stop it. Each control has a heater to stop condensation from forming on electrical components. The Hobart 6614-1 meat saw’s cutting table has a large stacking space and turned-down edges to protect the user.

Product Details

  • Direct gear drive transmission with no belts to slip, adjust, or replace
  • Heavy-duty stainless steel construction
  • Center crown pulley and double flanges add lasting durability without sacrificing the blade’s integrity
  • Removable double flanged pulleys
  • 2-piece, split rear table and open frame design facilitate cleaning
  • Legs adjust on uneven floors
  • Motor includes grease-packed ball bearings
  • 3500 fpm blade speed
  • Enclosed upper and lower pulleys
  • Pusher plate protects hands from the blade
  • Bone dust system has a large lower scrap pan
  • Pull-to-start, push-to-stop switch
  • Heater controls prevent moisture condensation
  • Removable, tinned cast iron upper and lower blade pulleys
  • Stainless steel plate on an aluminum cast frame
  • Adjustable plate regulates cut thickness
  • 2-piece, 1814-in. x 3412-in. cutting table has turned-down edges
  • Cutting table has a large stacking space
  • 3 HP motor
  • Saw blade dimensions: 126 in. L x 58 in. W
  • Overall dimensions: 34 in. W x 4114 in. D x 681316 in. H
  • cULus listed; NSF certified

Movable Carriage Tray

  • Turned-down edges reinforce the unit
  • Stepped front edge facilitates transportation
  • 6 stainless steel ball bearings on the underside of the carriage
  • Tri-rail carriage provides stability and supports heavy loads
  • Lock on the carriage
  • Carriage dimensions: 1934 in. W x 1412 in. D

Pivoted Automatic Tension

  • Simplifies use and increases productivity
  • Pivot-mounted motor, transmission, and lower pulley assembly
  • Blade tension control can be accessed below the right table
  • Simple adjustment provides broad blade length tolerance

Meat Saw, vertical blade, 14” Pulleys, 3500 fpm, 3 Hp motor, direct gear transmission, stainless steel open frame design, push/pull switch, moveable-lockable carriage tray, two piece stationary rear cutting table, adjustable legs (2" movement), hose down capability

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

warning-small Important Prop 65 information for California residents.

Hobart 6614-1 Specifications

PDF Spec Sheet
Manufacturer Hobart
Warranty 1 Year
Weight 434.00
