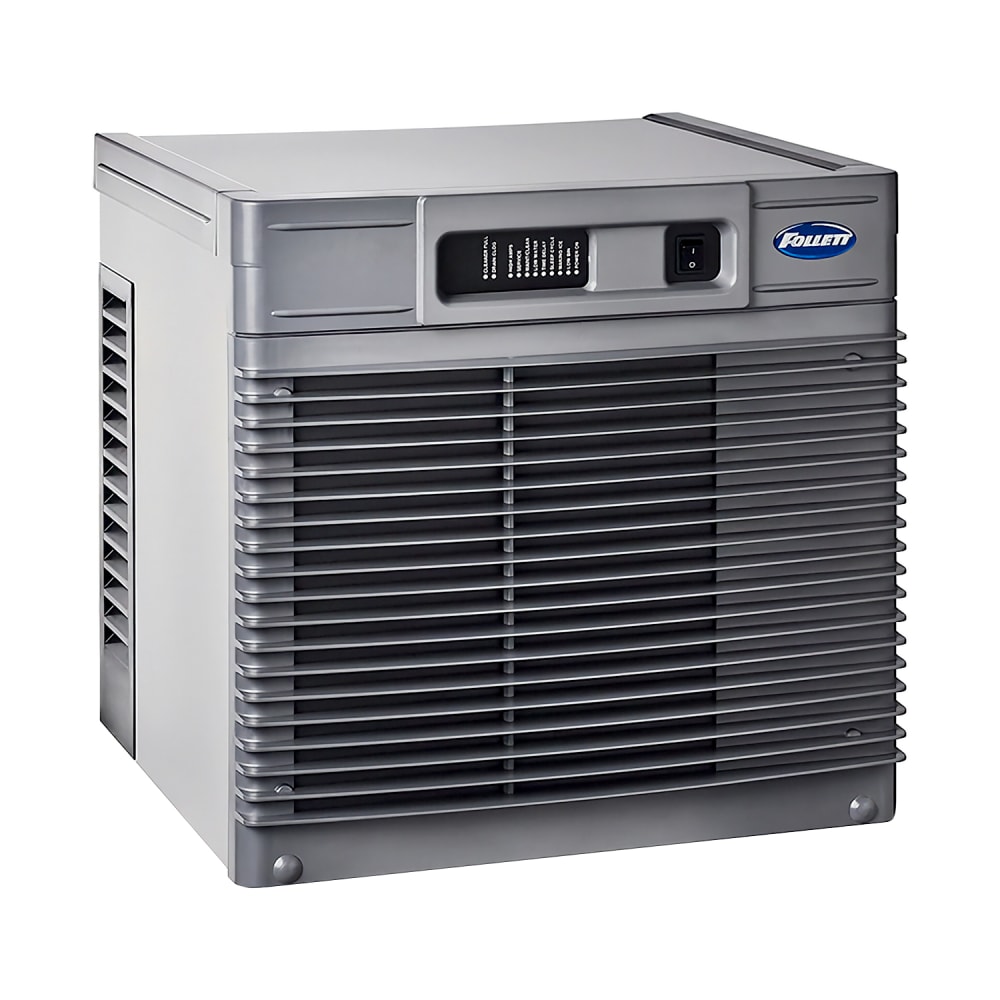

Follett D414AS 18 4/5" Maestro Plus™ Nugget Ice Machine Head - 425 lb/24 hr, Air Cooled, 115v/1ph
Typically ships in 9 - 13 Business Days
$6,836.00 /Each
Call for details!
Follett D414AS Description
The Follett D414AS Maestro Plus™ nugget ice machine head produces up to 425 pounds of Chewblet® nugget ice daily to support remote ice delivery equipment (RIDE®) applications. Built for flexible installation, this compact air-cooled model can be mounted in a wide range of configurations, including in-cabinet, undercounter, wall bracket, floor stand, on-bin, or on-fountain. Its air-cooled, self-contained condenser simplifies installation and eliminates the need for remote components. The frame is made of stainless steel to provide structural durability, while critical internal components—including the evaporator, auger, and top bearing—are also constructed of stainless steel to ensure mechanical integrity during repeated operation. A heavy-duty, oversized tapered roller bearing minimizes mechanical wear for extended low-maintenance performance. To reduce scale and sediment buildup, the system performs automatic self-flushing after each production cycle. Full cleaning and sanitizing can be completed in less than one hour.
The Follett D414AS Maestro Plus ice machine head uses R290 hydrocarbon refrigerant in a compact, self-contained cooling system. A front-mounted LED control board offers clear at-a-glance operational feedback to assist with system monitoring. This unit connects via a 3⁄8-inch FPT water inlet and drains through a 3⁄4-inch MPT outlet. Its narrow footprint measures just 18 4⁄5 inches wide to support installation in tight spaces or directly onto compatible dispensers and ice bins.
- Maestro Plus series
- Produces Chewblet nugget ice
- Makes up to 425 lbs. of ice in a 24-hour period
- Compatible with RIDE® remote ice delivery equipment
- Can be mounted in cabinets, under counters, on wall brackets, floor stands, ice bins, or fountain dispensers
- Air-cooled, self-contained condenser
- Stainless steel exterior frame
- Stainless steel evaporator
- Stainless steel auger
- Stainless steel top bearing
- Oversized, heavy-duty, tapered roller bearing
- Automatic self-flushing cycle
- Cleaning and sanitizing cycle completes in under 1 hour
- LED control board
- Top kit sold separately
- Air-cooled refrigeration method
- Self-contained system
- R290 hydrocarbon refrigerant
- Air temperature range: 50-100 degrees F
- Water temperature range: 45-90 degrees F
- Overall: 18 4⁄5 in. W x 22 9⁄100 in. D x 17 1⁄10 in. H
- 7.2 A, 5.4 kW
- 3⁄8-in. FPT water inlet
- 3⁄4-in. MPT drain outlet
- 115 V/60 Hz/1 ph, 7-ft. cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Follett D414AS within the 48 contiguous states.
From The Manufacturer
Maestro Plus™ ice machine for RIDE remote ice delivery installations, air-cooled self-contained condenser, up to 425 lbs production of Chewblet® nugget ice in 24 hours, 115v/60/1-ph, NSF, cULus, ENERGY STAR
Follett D414AS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Follett |
| 24 Hr. Production (lb) | 425 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.09 |
| Height (in) | 17.1 |
| Hertz | 60 |
| Ice Type | Nugget |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Maestro Plus™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 18.8 |
| Weight | 127.00 |
