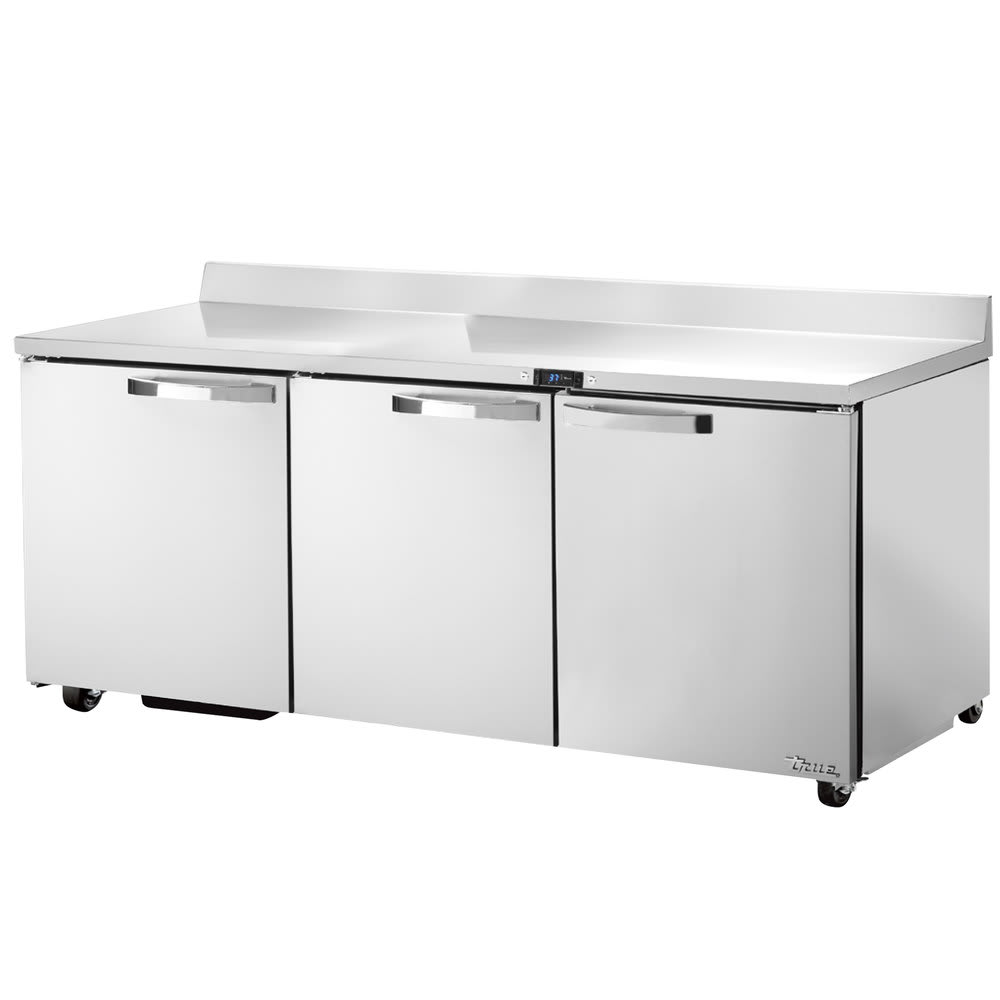

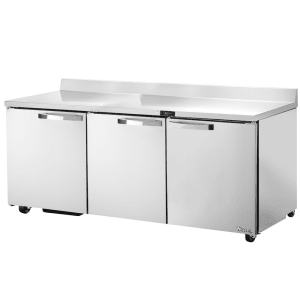

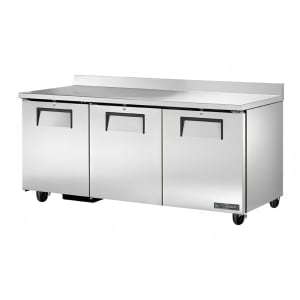

True TWT-72-HC~SPEC3 ADA 72" Worktop Refrigerator w/ (3) Sections & (3) Doors, 115v

The True TWT-72-HC~SPEC3 Spec Series® worktop refrigerator has three positive-seal, self-closing doors that swing within cabinet dimensions. Their 90-degree, stay-open technology works great for unhindered access when cleaning the interior. The lockable, 20-gauge doors come with metal handles and magnetic gaskets with gaskets removable without tools for easy cleaning. For a luxury appearance, the countertop front is flush with the front of the doors. This unit features six shelves: two on the left, two on the right, and two in the center, all of which are adjustable on ¹⁄₂-inch increments. Each PVC-coated wire shelf comes with four chrome-plated clips apiece.

Compliant with ADA requirements, the True TWT-72-HC~SPEC3 worktop refrigerator has a 34-inch work surface height and 3-inch diameter stem castors. Made of stainless steel and insulated with polyurethane, this refrigerator has a one-piece backsplash and top to prevent messes from collecting in crevices. The evaporator and condenser fan motors are designed to move a consistent volume of air with minimal heat and little energy, and the capillary tube system is also energy-efficient, using R290 hydrocarbon refrigerant. Controlled by a digital display, the temperature holding range is 33 to 38 degrees Fahrenheit.

Helping the condensing coil function more effectively, the compressor’s fan motor utilizes a self-cleaning function; at the start of each cycle, the fan blows air in reverse for a 20-second period to eliminate buildup from the coil. This can help lengthen the unit’s lifespan and reduce energy consumption, but it operates best when used alongside routine preventive maintenance.

Product Details

• Temperature holding range: 33-38 degrees F
• Digital display and electronic controls
• Condensing unit located in the back for maintenance
• Evaporator is epoxy coated to prevent corrosion
• Electronically commutated fan motors move air consistently
• 20-second fan reversal function automatically cleans condensing coil

• Capillary tube system uses R290 hydrocarbon refrigerant
• 6 shelves made of PVC-coated wire
• Shelves located in left, right, and center doors
• Shelves adjustable on ¹⁄₂-in. increments
• 4 chrome-plated shelf clips per shelf
• Stainless steel construction and 1-piece top are simple to clean
• Coved interior corners
• Cabinet and doors foamed in place with polyurethane insulation
• 3-in.-diameter stem castors
• 34-in. work surface height
• Door fronts flush with countertop front
• 20-ga. doors self-close and swing within cabinet dimensions
• Doors include locks and 90-degree stay-open feature
• Gaskets are magnetic and can be removed without tools
• Heavy-duty, 16-ga. top
• Part of the Spec Series
• Meets ADA requirements

Dimensions & Utilities

• Left top shelf dimensions: 21 ⁹⁄₁₆ in. L x 23 ¹¹⁄₁₆ in. D
• Left bottom shelf dimensions: 21 ⁹⁄₁₆ in. L x 13 ³⁄₄ in. D
• Right top shelf dimensions: 21 ⁹⁄₁₆ in. L x 21 ¹⁄₄ in. D
• Right bottom shelf dimensions: 21 ⁹⁄₁₆ in. L x 13 ³⁄₄ in. D
• Center top shelf dimensions: 23 ¹⁄₂ in. L x 21 ¹⁄₄ in. D
• Center bottom shelf dimensions: 23 ¹⁄₂ in. L x 13 ³⁄₄ in. D
• Overall dimensions: 72.38 in. W x 31.63 in. D x 37.25 in. H
• 4.0 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph
• 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TWT-72-HC~SPEC3 ADA within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Work Top Refrigerator, three-section, 34" working height, rear mounted self-contained refrigeration, SPEC Package 3 includes: 16-ga. stainless steel top with rear splash, (3) heavy-duty stainless steel doors, steel handles, door lock standard, (6) PVC coated adjustable wire shelves, electronic temperature control with digital temperature display, stainless steel front, sides & back, stainless steel interior, 3" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 4.0 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TWT-72-HC~SPEC3 ADA Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
