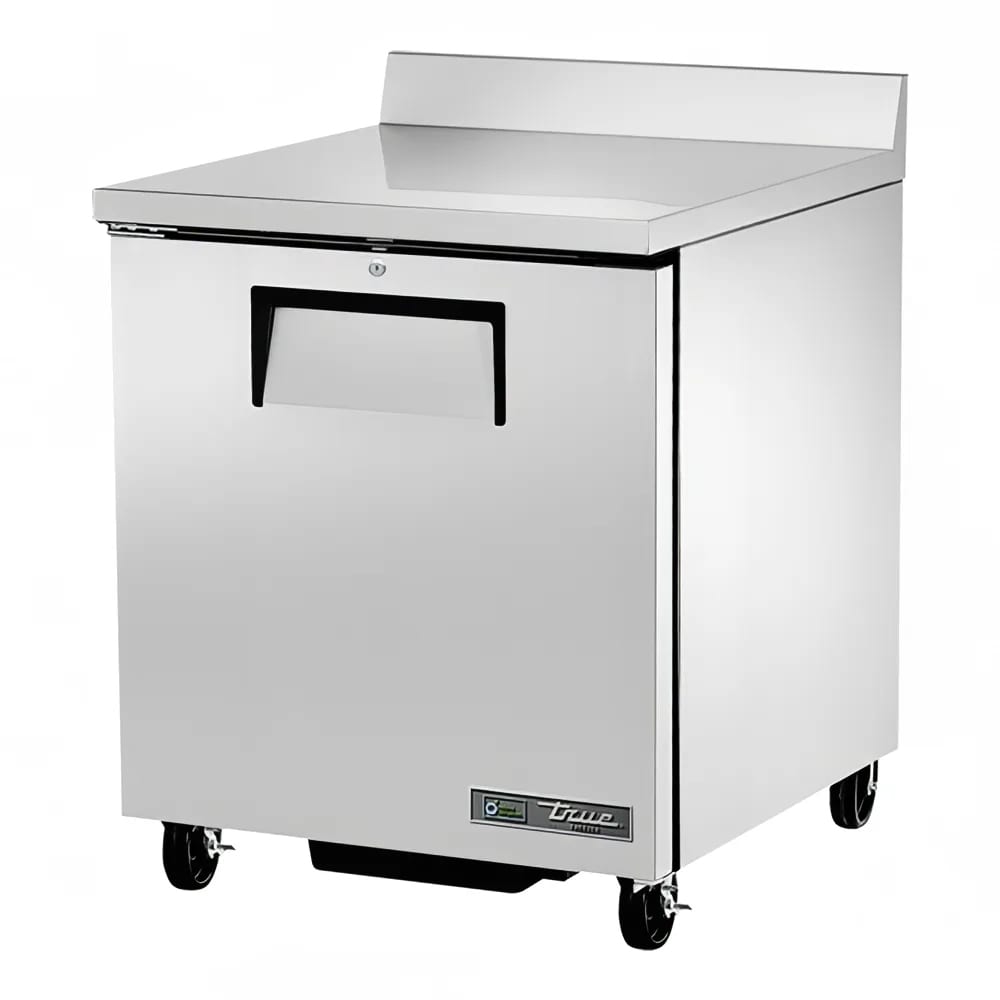

True TWT-27F-HC 28" W Worktop Freezer w/ (1) Section & (1) Left Hinge Door, 115v

With an extra-large evaporator coil, high horsepower, and a large condenser, the True TWT-27F-HC worktop freezer keeps temperatures at -10 degrees Fahrenheit. It operates with a cast iron, self-lubricating fan motor that is sealed and designed to produce an efficient, low-velocity, high-volume airflow with short run times and fast temperature recovery. The defrost system is automatic, time initiated, and time terminated, while the capillary tube system uses eco-friendly R290 hydrocarbon refrigerant.

When paired with regular preventive maintenance, the fan compressor’s self-cleaning function helps lower energy consumption and lengthen the unit’s lifespan. At the start of each cycle, the motor directs air in reverse for a 20-second period; this blows away any buildup that’s collected on the condensing coil since the last cycle.

Its stainless steel exterior has a GalFan-coated, steel back for corrosion resistance and the interior is lined with clear-coated aluminum. The backsplash and the top are formed from one piece to prevent crevices that trap food and foster bacterial growth. This unit features lockable, 5-inch-diameter stem castors, a work surface height of 36 inches, and polyurethane insulation.

The True TWT-27F-HC worktop freezer has two PVC-coated, wire shelves that each include four chrome-plated clips. The shelves are adjustable in ¹⁄₂-inch increments and the support pilasters are made of the same material as the cabinet interior for a cohesive look. The positive-seal, self-closing door swings within the cabinet dimensions with a 90-degree, stay-open feature and is fitted with a 12-inch-long, recessed handle with a sheet metal interlock. Magnetic door gaskets have a one-piece construction that can be removed without tools, expediting cleaning. This freezer is pre-wired at the factory for final connection to the included cord and plug set.

Product Details

• Operating temperature: -10 degrees F
• Capillary tube system uses R290 refrigerant with zero ozone depletion potential
• Extra-large evaporator coil, high-horsepower compressor, and a large condenser perfect for frozen foods
• Self-lubricating, sealed fan motor has large blades and a low-velocity, high-volume design
• Features fast temperature recovery and short run times
• Reversal of the fan motor for 20 seconds knocks dirt, debris, and dust from condensing coil
• Located in the back of the unit, the condenser is swiftly cleaned and reached
• Evaporator is epoxy-coated for corrosion-resistance
• Automatic defrost system is time initiated and time terminated
• Stainless steel exterior has a GalFan-coated, steel back
• Top and backsplash are formed from one piece to prevent product from spilling underneath
• Interior has a clear-coated aluminum liner and a stainless steel floor with coved corners
• Insulated with high-density polyurethane
• Work surface is 36 in. high
• With a lockable front set, stem castors have 5-in. diameters
• Positive-seal, self-closing door is fitted with a 12-in.-long, recessed handle that is foamed in place with sheet metal
• Door has a 90-degree, stay-open capability and swings within the cabinet dimensions
• Includes 2 shelves adjustable in ¹⁄₂-in. increments
• Shelves are made of PVC-coated wire and each includes 4 chrome-plated clips

Dimensions & Utilities

• Shelves: 23¹⁄₄ in. W x 16 in. D
• Overall: 27⁵⁄₈ in. W x 3 in. D x 39⁵⁄₈ in. H
• 2.3 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TWT-27F-HC within the 48 contiguous states.

From The Manufacturer

Work Top Freezer, one-section, -10°F, rear mounted self-contained refrigeration, stainless steel top with rear splash, (1) stainless steel door, (2) PVC coated adjustable wire shelves, stainless steel front & sides, clear coated aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.3 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, Made in USA, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TWT-27F-HC Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
