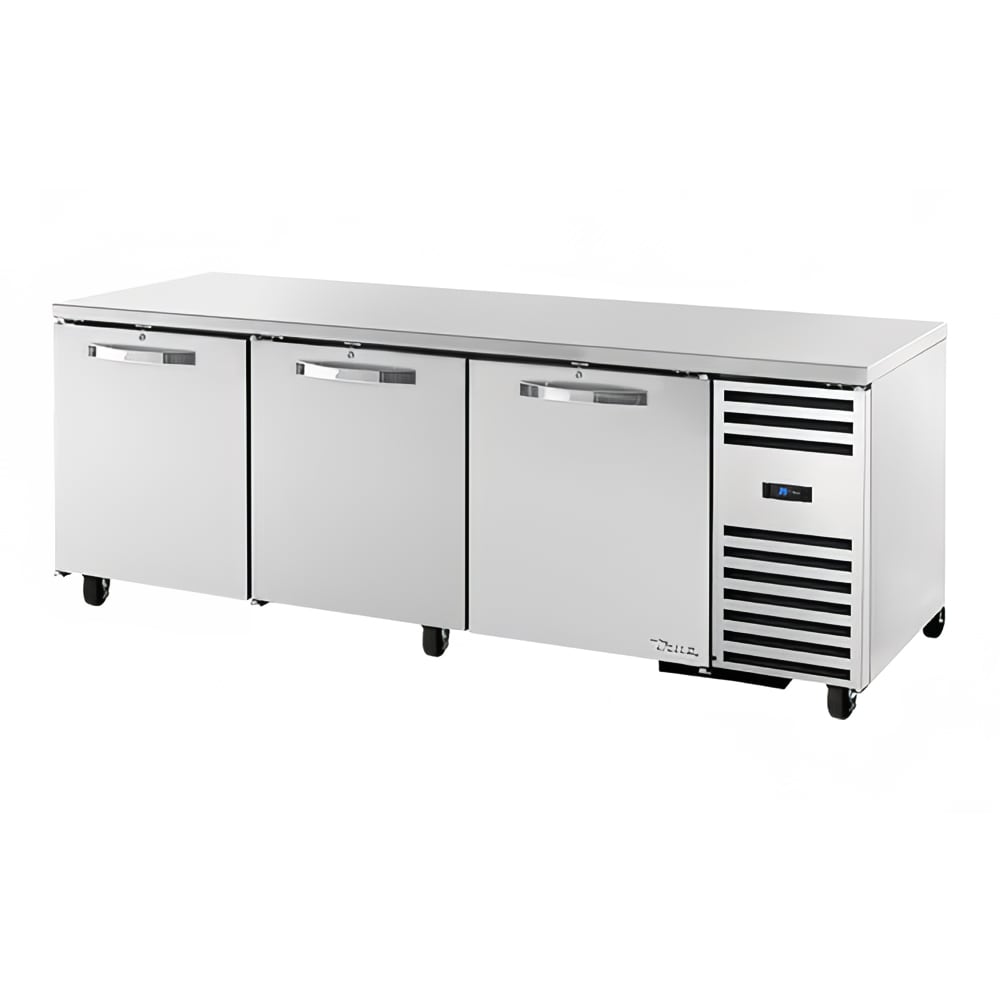

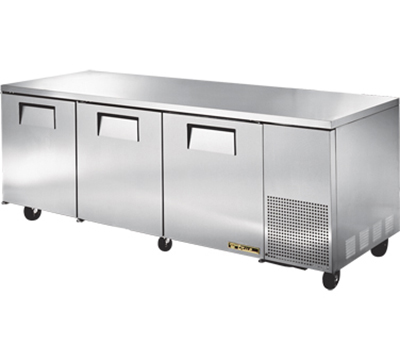

True TUC-93-HC~SPEC3 93" W Undercounter Refrigerator w/ (3) Sections & (3) Doors, 115v

The True TUC-93-HC~SPEC3 undercounter refrigerator has two shelves in the right door, two in the left door, and two in the center for maximum storage space. All six PVC-coated, wire shelves include four chrome-plated clips each and are adjusted in ¹⁄₂-inch increments. The polyurethane-insulated cabinet and doors feature stainless steel exteriors and the lockable doors are lined with aluminum. The doors include one-piece, magnetic gaskets and all-metal, working spec handles. The three doors swing within the cabinet dimensions.

Able to retain a set temperature between 33 and 38 degrees Fahrenheit, this refrigerator uses an oversized refrigeration system with guided airflow and a self-contained, capillary tube system that uses R134A refrigerant. The large condensing unit can be maintained and accessed from behind the front grille. With its large evaporator coil, high-horsepower compressor, and large fan blades, the True TUC-93-HC~SPEC3 deep undercounter refrigerator offers high-volume, low-velocity airflow. The epoxy-coated evaporator has a self-lubricating motor, sealed for fast temperature recovery and short run times.

When the compressor starts up, the condensing fan motor blows in reverse for a 20-second period to eliminate buildup from the condensing coil. By removing dirt and debris, the condensing coil operates more efficiently, increasing the unit's lifespan and providing ideal product temperatures. To ensure the best results, preventive maintenance should be implemented regularly.

Product Details

• Capillary tube system uses R134A refrigerant
• Stainless steel construction
• Short run times and quick temperature recovery
• Refrigeration system uses guided airflow to provide equal temperatures throughout
• Temperature holding range: 33-38 degrees F
• Temperature controls have a digital display
• Evaporator coil is extra large, with a high-horsepower compressor and a large condenser
• Fan motors move air at a low velocity and in high volume
• Reversing fan motor blows dust and debris off condenser coil
• Condensing unit is behind the front grille; evaporator is epoxy coated
• Interior corners are coved
• Structure is insulated with environmentally friendly polyurethane
• Lockable doors are stainless steel with an aluminum liner
• Positive-seal doors with all-metal handles swing within the cabinet dimensions
• Countertop front is flush with the front of doors
• Gaskets are magnetic and can be removed without tools
• 6 PVC-coated wire shelves
• Shelves are adjustable in ¹⁄₂-in. increments
• Heavy-duty, 16-ga. top and 20-ga. doors
• Spec Series® logo

Dimensions & Utilities

• Right and left shelves: 23⁵⁄₈ in. W x 28 in. D
• Center shelves: 25¹⁄₂ in. W x 28 in. D
• Overall: 93¹⁄₄ in. W x 35 in. D x 36 in. H
• 4.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TUC-93-HC~SPEC3 within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Deep Undercounter Refrigerator, 33 - 38°F, side mounted self-contained refrigeration, SPEC Package 3 includes: stainless steel top, (3) heavy-duty stainless steel doors, steel handles, door lock standard, (6) PVC coated adjustable wire shelves, electronic temperature control with digital temperature display, stainless steel sides & back, stainless steel interior, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 4.5 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
