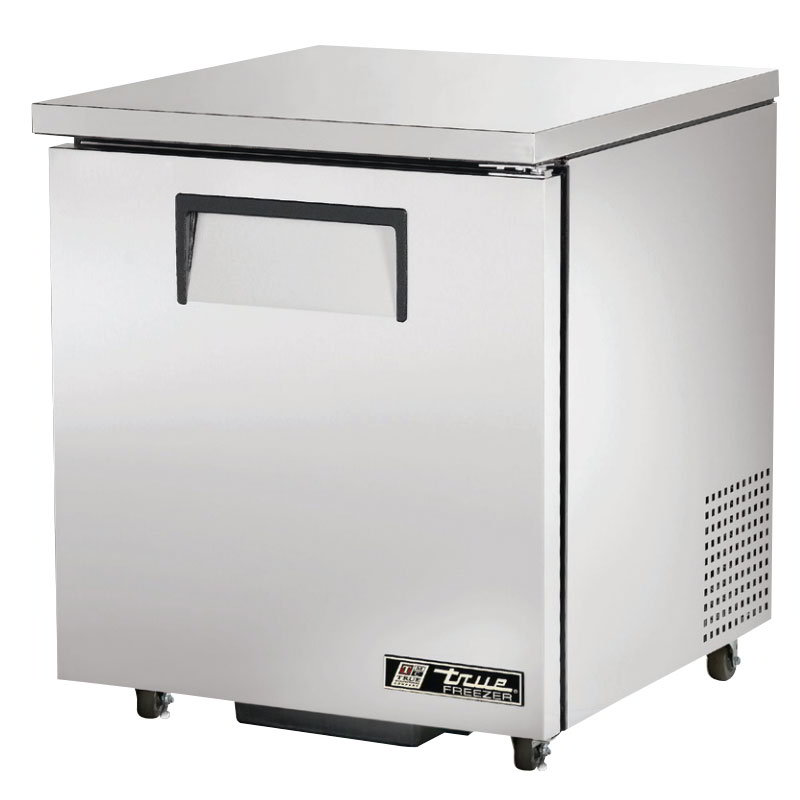

True TUC-27F-HC ADA 27 5/8" W Undercounter Freezer w/ 1 Left Hinge Solid Door, 115v

KaTom #: 598-TUC27FLHADA • MPN: TUC-27F-HC LH ADA
  • 598-TUC27FLHADA Primary Thumbnail Image

Typically ships in 6 - 8 weeks

Free Shipping Item
Lowest Price Guarantee

$3,037.11 /Each

Selected Hinge: Left Hinge

Right HingeRight Hinge
Skip Taylor User Image
Ask a Foodservice Equipment Specialist

Attention: Order by 01-01-2027 to save before the price increases!

True Refrigeration TUC-27F-HC ADA Description

The True TUC-27F-HC undercounter freezer has an extra-large evaporator balanced with a powerful compressor and large condenser, meaning it can reliably maintain cabinet temperatures of -10 degrees Fahrenheit, an ideal level for frozen foods and ice cream. Its capillary tube system is self-contained, factory engineered, and uses environmentally friendly R290 hydrocarbon refrigerant. Starting and stopping on a time clock, its defrost system is automatic.

This refrigerator has an evaporator fan motor with a sealed, self-lubricating design, which reduces the amount of required maintenance. Its large fan blades provide efficient airflow, fast temperature recovery, and short run times for busy food service environments. To ensure the condensing coil is performing at maximum efficiency, the condensing fan motor blows in reverse for 20 seconds when the compressor cycles on, removing buildup that's settled on the coil. A cleaner coil uses less energy and increases unit lifespan, but preventive maintenance should still be carried out regularly to monitor coil operation.

To simplify maintaining the undercounter’s condensing unit, the back of the cabinet slides out. So it can fit under most counters, the True TUC-27F-HC undercounter freezer has an ADA-compliant 33 11⁄16-inch height. Its door is self-closing and seals shut with a gasket in the frame. Inside, product can sit on the floor and two PVC-coated shelves, which are adjustable to accommodate tall or short items.

  • Left-hinged door opens from the right
  • Doors feature a positive seal, self-closing mechanism and a 90-degree stay-open component
  • Cleanup is simplified through removable magnetic door gaskets of 1-piece construction
  • High-density, polyurethane insulation foams entire cabinet structure and solid door in place
  • 12-in.-long recessed handle is permanently attached with sheet metal interlock
  • Exterior matches interior
  • Stainless steel front, sides, and top resist scuffs and dents
  • GalFan-coated steel back avoids corrosion
  • Clear coated aluminum covers the interior
  • Coved stainless steel floor facilitates cleaning
  • 2 wire shelves constructed of heavy-duty PVC-coated material
  • 4 chrome plated shelf clips per shelf
  • Shelves are adjustable on 1⁄2-in. increments
  • 3-in.-diameter stem castors
  • 34-in. work surface height is compliant with ADA requirements

  • Operating temperature: -10 degrees F
  • Capillary tube system is self-contained so all cooling components are kept together
  • Uses R290 hydrocarbon refrigerant with 0 ozone depletion potential and 3 global warming potential
  • Evaporator is epoxy coated to resist corrosion
  • Large fan blades and evaporator fan motor produce low-velocity, high-volume airflow
  • Reverse condensing fan motor technology helps maintain a clean condensing coil
  • Unique design ensures fast temperature recovery and short run times for busy food service environments
  • Back of the cabinet slides out for quick condenser access
  • Automatic defrost is time initiated and time terminated

  • 27 9⁄16 in. W x 31 1⁄16 in. D x 33 11⁄16 in. H
  • 2.3 A, 1⁄4 HP
  • 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on True Refrigeration TUC-27F-HC ADA within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Undercounter Freezer, 34" working height, -10°F, (1) stainless steel door, (2) PVC coated adjustable wire shelves, stainless steel top, front & sides, clear coated aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.3 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ADA Compliant, ENERGY STAR®
Warranty Icon
7-year Parts & Labor; 7-year Compressor

True Refrigeration TUC-27F-HC ADA Specifications

Warning Small WARNING: Important Prop 65 information for California residents.













Related Categories

Compare to Similar Items

0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

The oversized airflow system speeds temperature recovery.

— KaTom Foodservice Equipment Specialist

Yes. It stays open at 90° for loading.

— KaTom Foodservice Equipment Specialist

A coved floor and removable gaskets ease cleaning.

— KaTom Foodservice Equipment Specialist

Yes. It uses a front-breathing refrigeration system.

— KaTom Foodservice Equipment Specialist

This has adjustable shelves in 1⁄2-in. increments.

— KaTom Foodservice Equipment Specialist

It uses R290 refrigerant.

— KaTom Foodservice Equipment Specialist

It slides out for easier condenser access.

— KaTom Foodservice Equipment Specialist

It maintains a temperature of -10°F.

— KaTom Foodservice Equipment Specialist

It provides 7.6 cu. ft. of frozen storage space.

— KaTom Foodservice Equipment Specialist

Yes, it uses automatic defrost.

— KaTom Foodservice Equipment Specialist

It uses doors for access.

— KaTom Foodservice Equipment Specialist

It is 33¾ in. tall.

— KaTom Foodservice Equipment Specialist

It is 31.13 in. deep.

— KaTom Foodservice Equipment Specialist

It requires 115 V, 60 Hz, 1-ph. with a 5-15P plug electrical service.

— KaTom Foodservice Equipment Specialist

Yes, it uses R290 (Hydrocarbon).

— KaTom Foodservice Equipment Specialist

Yes, it is ADA compliant.

— KaTom Foodservice Equipment Specialist

Yes, it has casters for moving the unit during floor cleaning.

— KaTom Foodservice Equipment Specialist

Yes, the door closes automatically after use.

— KaTom Foodservice Equipment Specialist

Yes, the door or drawer gaskets are removable for cleaning.

— KaTom Foodservice Equipment Specialist

Yes, the condenser slides out for service.

— KaTom Foodservice Equipment Specialist
