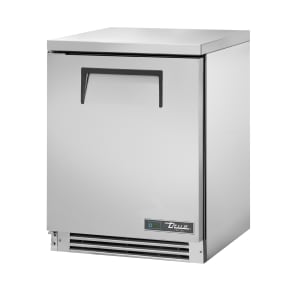

True TUC-24F-HC 24" W Undercounter Freezer w/ (1) Section & (1) Left Hinge Door, 115v

The True TUC-24F-HC undercounter freezer has a stainless steel top, sides, and front for heavy use. Its back is finished in aluminum, and its interior is lined with clear-coat aluminum to resist corrosion. With its coved corners preventing debris from getting stuck, the stainless steel floor simplifies cleaning, and product sits on two adjustable, PVC-coated wire shelves. To access products, the left-hinged door has a 12-inch, permanent handle while cold air is held inside the cabinet with magnetic gaskets.

The capillary tube system controls the flow of R290 hydrocarbon refrigerant, which maintains an ideal temperature of -10 degrees Fahrenheit for storing frozen food and ice cream. Resisting corrosion, the evaporator is epoxy coated while condenser and evaporator fan motors move a consistent volume of air, ensuring the entire unit is cooled evenly. Its defrost system is automatic, turning on at a designated time, and the True TUC-24F-HC undercounter freezer has a rear-accessible condensing unit.

Each time the compressor turns on, the condensing fan motor directs air in an opposite direction to help remove buildup from the condensing coil's surface. A well-maintained coil can keep products cooler for longer periods of time while using less energy. This mechanism should work alongside general preventive maintenance to ensure the coil and its components are working properly.

Product Details

• Exterior front, top, and ends are made of stainless steel
• Aluminum sides resist corrosion
• Interior aluminum liner is clear coated to ease cleaning
• Cabinet structure is insulated with foamed-in-place polyurethane
• 2 front leg levelers stabilize on uneven floors
• 4 stationary castors
• Left-hinged door is finished with a stainless exterior and an aluminum interior to match the cabinet liner
• 12-in. door handle is recessed and foamed in place with a sheet metal interlock, ensuring it stays permanently attached
• Self-closing door stays open past 90 degrees to simplify cabinet stocking
• Magnetic door gaskets can be removed without tools
• Door locks are included to secure freezer contents after hours
• 2 gray PVC-coated shelves are adjustable in ¹⁄₂-in. increments

Refrigeration System

• Self-contained capillary tube system controls refrigerant flow
• R290 refrigerant maintains internal temperature by removing heat from the cabinet
• Operating temperature: -10 degrees F
• Electronically commutated evaporator and condenser fan motors move consistent air amounts through cabinet without generating much heat
• Reverse condensing fan motor mechanism helps remove debris from the condensing coil's surface
• Condensing unit is accessible through the rear of the unit to ease cleaning and maintenance
• Defrost system initiates on a timer and terminates when the proper temperature is reached
• Epoxy-coated evaporator is corrosion resistant

Dimensions & Utilities

• Shelves: 20 in. W x 13⁷⁄₈ in. D
• Overall: 24 in. W x 25³⁄₄ in. D x 31⁵⁄₈ in. H
• 2.3 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15 plug

*Free shipping on True Refrigeration TUC-24F-HC within the 48 contiguous states.

From The Manufacturer

Undercounter Freezer, -10°F, (1) stainless steel door, (2) PVC coated adjustable wire shelves, stainless steel top, front & sides, clear coated aluminum interior with stainless steel floor, front breathing, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.3 amps, NEMA 5-15P, cULus, UL EPH Classified, CE

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TUC-24F-HC Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
