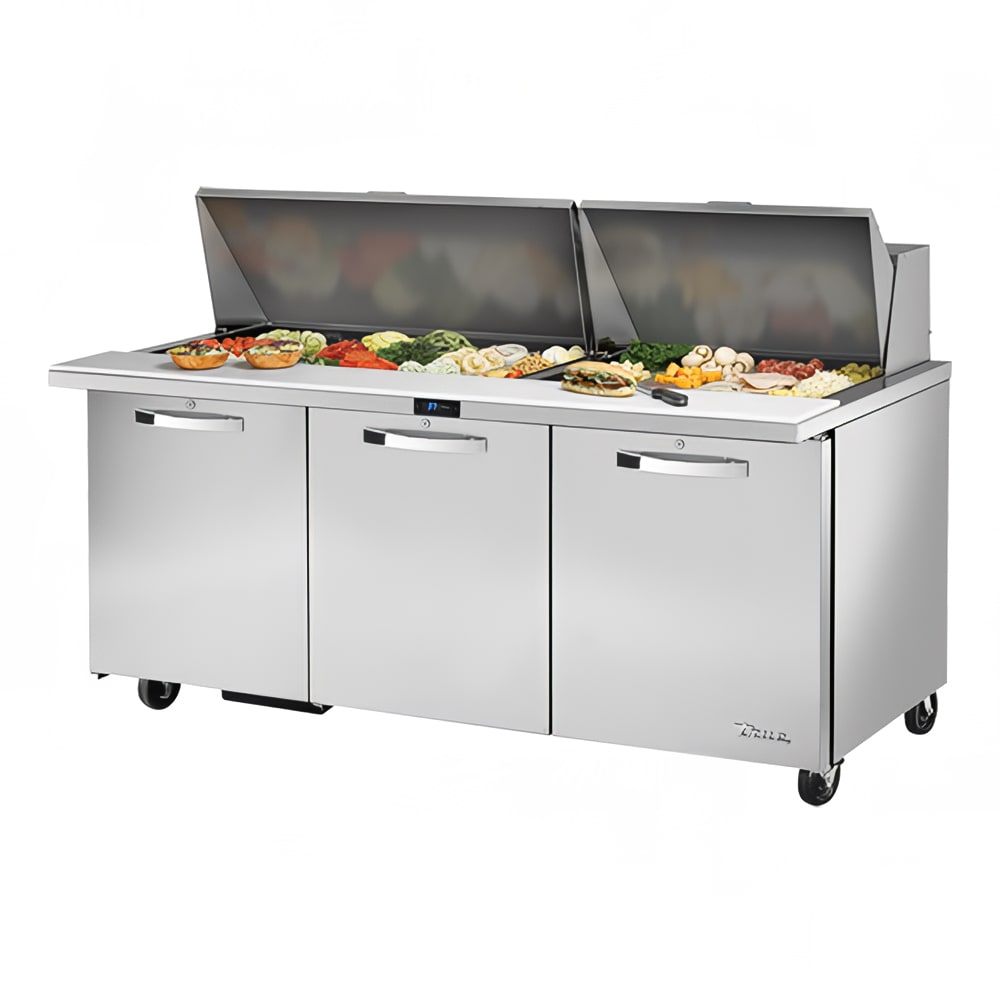

True TSSU-72-30M-B-ST-HC~SPEC3 ADA 72" Spec Series® Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-72-30M-B-ST-HC~SPEC3 ADA mega-top sandwich and salad prep table provides a practical and efficient design in delis and similar foodservice operations. The top of the unit holds as many as 30 polycarbonate pans that are 4 inches deep to hold diced tomatoes, onions, jalapenos, or sliced deli meats. The pans can be reached at a comfortable arm's length, and the provided 8⁷/₈-inch cutting board allows employees to make subs, sandwiches, and other heavily-filled selections. Furthermore, the stainless steel covers are foamed in with high-density insulation, so products remain fresh while covered. The covers and board are uncomplicated to remove for thorough cleaning at the end of the day.

At the bottom side, this unit is supplied with three full doors. The doors are fitted with all-metal handles to withstand gentle or more forceful pulls. Each section—three in total—holds two PVC-coated shelves, amounting to a total of six shelves. Shelf pilasters offer support, and for accommodating inventory in bulk, they're adjustable in ¹/₂-inch increments. This base remains stable and resistant to dents or other structural damage because the sides, front, and back are constructed of stainless steel. The cabinet's interior liner and floor offer a similar construction, and the entire cabinet is foamed-in for optimal temperature keeping.

The True TSSU-72-30M-B-ST-HC~SPEC3 ADA mega-top sandwich and salad prep table is installed with a refrigerated base, maintaining optimal temperatures from 33 to 41 degrees Fahrenheit. Additionally, the unit's forced-air system is efficiently facilitated with sealed, self-lubricated fan motors and large fan blades. The condenser is located at the rear and slides out for simple maintenance, while the evaporator flaunts an epoxy coat for optimal protection from the refrigeration system's elements.

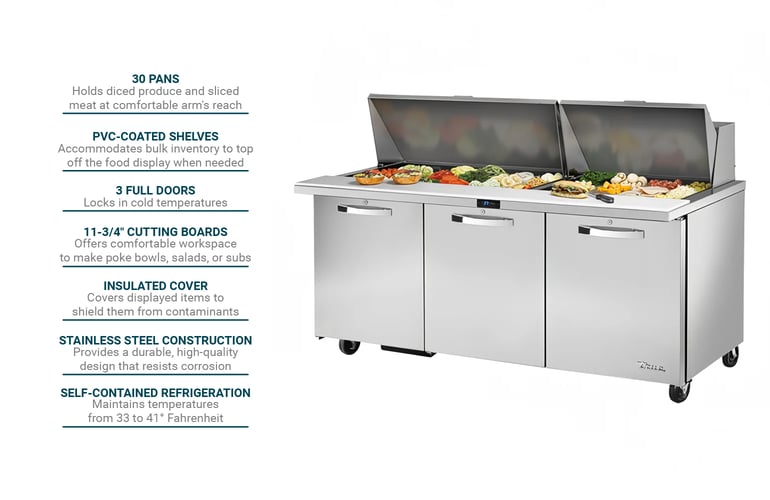

Product Details

• Part of the Spec Series®
• Holds 30 sixth-size clear polycarbonate pans
• Countertop is 34 in. of ground for ADA compliance
• 6 gray PVC-coated shelves
• Shelves are adjustable in ¹/₂-in. increments
• Fitted with 3 full doors that lock
• 8⁷/₈-in. cutting board (removable)
• 2 stainless steel insulated covers
• Stainless steel front, sides, back, and interior liner
• Stainless steel floor features coved corners
• Entire cabinet structure is foamed in for adept insulation

Refrigeration System

• Self-contained refrigeration system
• Forced-air design circulates R290 hydrocarbon refrigerant
• Temperature holding range: 33-41 degrees F
• Fan motors are sealed and self-lubricated
• Large fan blades enhance efficiency
• Simple-to-slide-out condenser unit at the rear

Dimensions & Utilities

• 72³/₈ in. W x 34¹/₈ in. D x 40³/₈ in. H
• 7.2 A, ¹/₂ HP
• 115 V/60 Hz/1 ph, 7-ft. NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration TSSU-72-30M-B-ST-HC~SPEC3 ADA within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Mega Top Sandwich/Salad Unit, 3" castors (34" work surface height), (30) 1/6 size (4"D) poly pans, SPEC Package 3 includes: (2) stainless steel insulated covers, 8-7/8"D cutting board, (3) full doors with locks, (6) gray PVC coated adjustable wire shelves, digital temperature control and display, stainless steel front, sides & back, stainless steel interior liner & stainless steel floor with coved corners, , R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TSSU-72-30M-B-ST-HC~SPEC3 ADA Specifications

Documents

Spec Sheet

Warranty

Installation Guide
