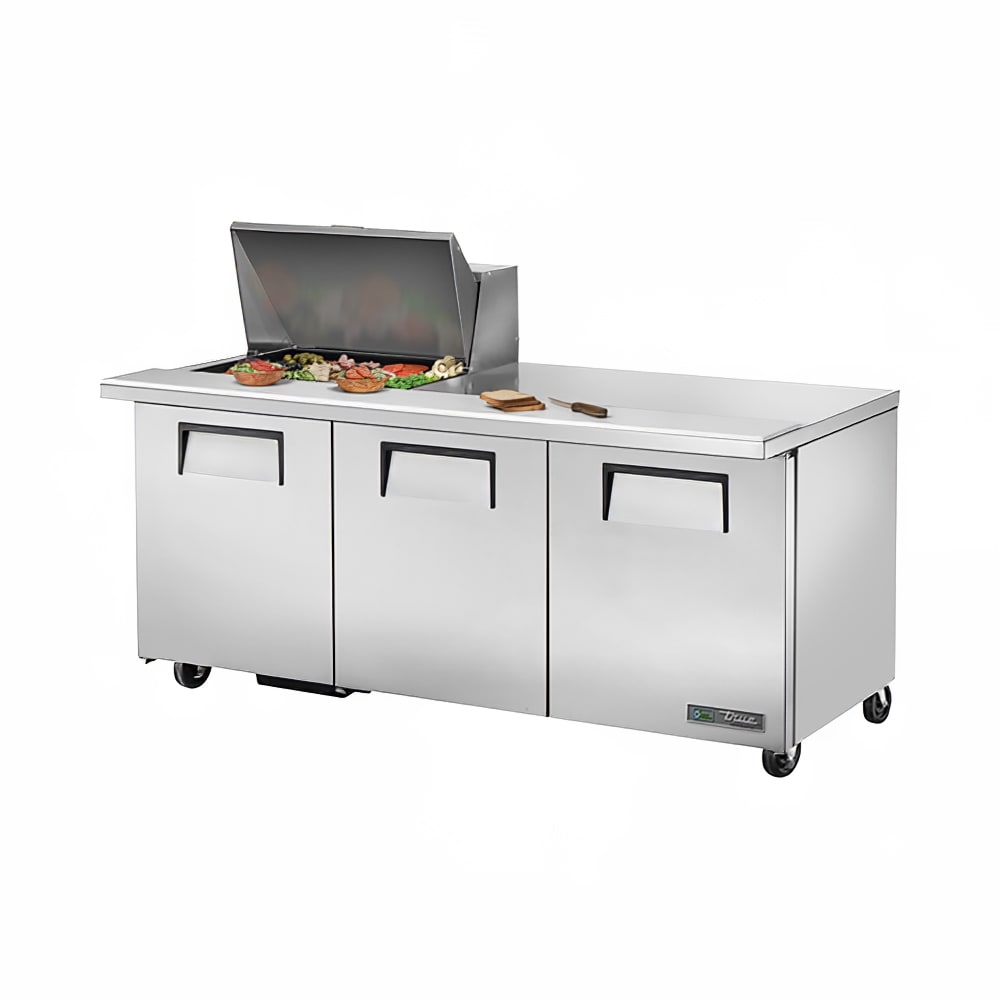

True TSSU-72-12M-B-HC 72" TSSU Series Mega Top Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-72-12M-B-HC mega-top prep table self-lubricating refrigeration system's sealed evaporator fan motor and large fan blades supply efficient airflow. Its factory balanced, energy efficient design guides air to maintain a uniform temperature in the cabinet interior and food pans. The back of the cabinet provides slide-out condensing unit access for quick maintenance. The unit is built with an 8⁷⁄₈-inch-deep cutting board that runs the length of the equipment. This cutting board is made of thick polyethylene, a durable and easy-to-sanitize material. Behind the cutting board is a refrigerated food pan area that comes equipped with 12 sixth-size pans. This area can accommodate a number of other pan sizes when fitted with adapter bars.

The True TSSU-12M-B food prep table uses R290 hydrocarbon refrigerant, which runs through the self-contained capillary tube system. Its patented forced-air design holds product at a consistent temperature between 33 and 41 degrees Fahrenheit. The exterior of the unit is constructed of stainless steel with a GalFan-coated steel back for structural reinforcement. The interior is insulated with foamed-in-place polyurethane and has a clear-coated aluminum liner for corrosion resistance. Coved corners on the interior's stainless steel floor aid in cleaning.

Upon compressor start up, the fan motor reverses for 20 seconds to blow debris, dirt, and dust off the condensing coil. Because this feature cleans the coil automatically, the system runs more efficiently and reduces energy consumption compared to systems with dirty parts. Although this self-cleaning feature prolongs the unit's lifespan, it doesn't replace the need for routine preventative maintenance.

Product Details

• Stainless steel front, top, and sides are durable and can be wiped clean
• Steel back coated with corrosion resistant GalFan
• Cabinet interior designed to match stainless steel exterior with clear aluminum liner
• Floor of stainless steel construction with coved corners
• High-density polyurethane insulation retains temperature
• 90-degree, stay-open feature on self-closing doors that swing within cabinet dimensions
• Magnetic door gaskets of 1-piece construction ease cleaning with no-tool removable feature
• Sheet metal interlock foams 12-in.-long recessed handle into each door
• 6 heavy-duty, PVC-coated wire shelves provide storage space
• 4 shelf clips included per shelf are chrome plated
• Supplied with 12 sixth-size polycarbonate food pans that are clear for visibility
• Various configurations of pan sizes with available pan divider bars that fit into countertop pan opening (pans sold separately)
• Removable, foam-insulated lid and hood help keep pans cool
• 8⁷⁄₈-in.-deep, full-length cutting board made of polyethylene for a durable prep surface

Self-contained Refrigeration System

• Sealed evaporator fan motor and larger fan blades create high-volume and low-velocity airflow
• Factory-balanced, energy-efficient design guides airflow to maintain uniform temperature in cabinet interior and food pans
• Back of cabinet condensing unit access slides out for maintenance
• Uses R290 hydrocarbon refrigerant in factory-engineered, self-contained capillary tube system
• Temperature holding range: 33-41 degrees F
• Compressor fan motor reverses automatically for 20 seconds to clean condensing coil
• Evaporator coated in epoxy, eliminating potential corrosion

Dimensions & Utilities

• Right and left shelves: 21⁹⁄₁₆ in. L x 16 in. D
• Center shelves: 23¹⁄₂ in. L x 16 in. D
• Overall: 72³⁄₈ in. W x 35¹⁄₈ in. D x 46⁵⁄₈ in. H
• 7.2 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-72-12M-B-HC within the 48 contiguous states.

From The Manufacturer

Mega Top Sandwich/Salad Unit, (12) 1/6 size (4"D) poly pans, stainless steel insulated cover, 8-7/8"D cutting board, (3) full doors, (6) PVC coated adjustable wire shelves, stainless steel top/front/sides, GalFan coated steel back, aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, cULus, UL EPH Classified Made in USA

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TSSU-72-12M-B-HC Specifications
