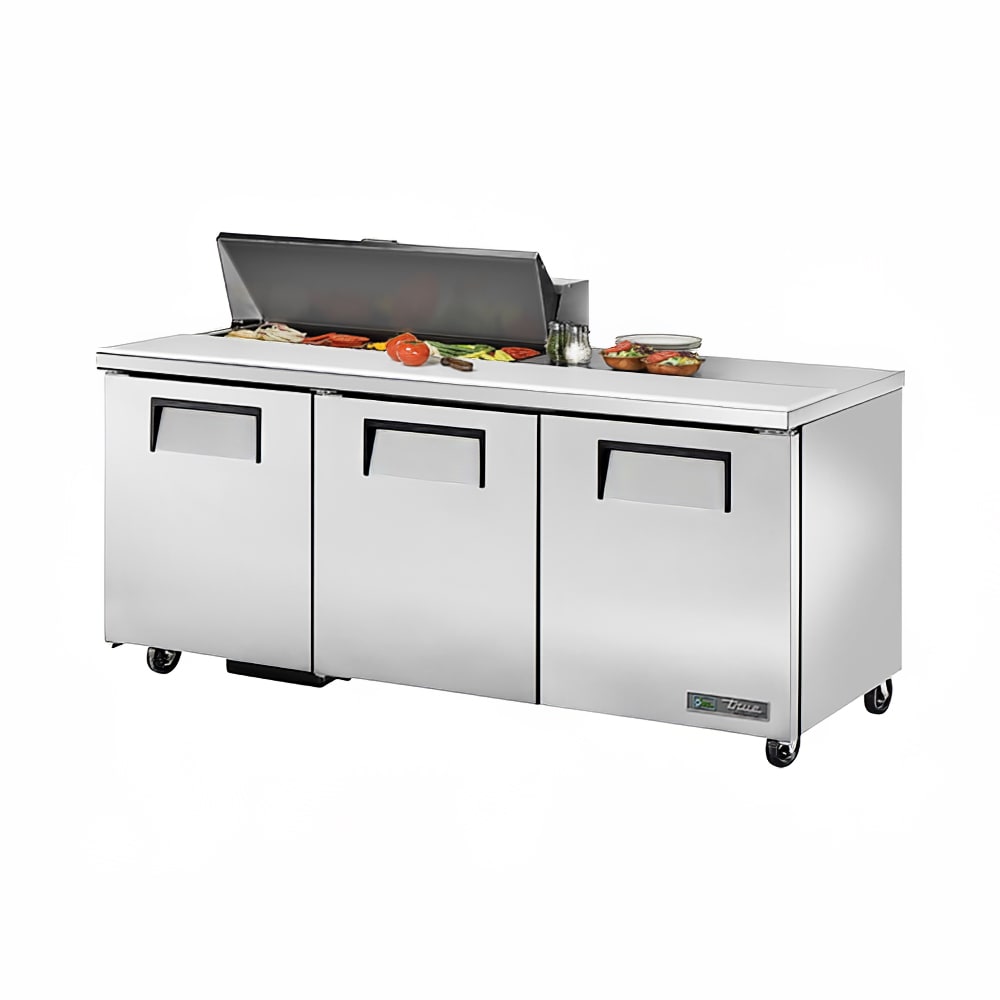

True TSSU-72-10-HC ADA 72" TSSU Series Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The True TSSU-72-10-HC ADA-compliant food prep table's front, top, and sides are constructed of stainless steel, and its interior is lined with clear-coated aluminum and insulated with foamed-in-place polyurethane to retain cold temperatures. The interior's floor is made of stainless steel and has coved corners to aid in cleaning. The countertop prep area is equipped with foam-insulated, removable lids and a hood that keeps pan temperatures cold and ingredients fresh. It comes with 18 sixth-size pans made of durable polycarbonate and six heavy-duty, PVC-coated wire shelves that are adjustable to maximize storage space.

The True TSSU-72-10-HC sandwich and salad prep table has a full-length removable cutting board for a food preparation area. A self-contained capillary tube system meters R290 hydrocarbon refrigerant to cool the unit. The self-lubricating evaporator fan motor and large fan blades provide consistent airflow, and the evaporator is coated in epoxy for corrosion resistance. It holds set temperatures between 33 and 41 degrees Fahrenheit, which are kept even by guided airflow.

Ensuring the condensing coil remains clean, the reverse condensing fan motor blows in reverse for 20 seconds each time the compressor starts. This helps to remove dust, dirt, and debris, helping the coil run more efficiently to provide improved product temperatures. To ensure this feature works optimally, routine maintenance should be performed.

Product Details

• Equipped with 18 sixth-size food pans made of polycarbonate
• Pan opening in countertop designed to fit varying pan size configurations with available pan divider bars (pans sold separately)
• Full-length, removable cutting board that measures 11³⁄₄ in. deep is made of polyethylene
• Stainless steel exterior with steel back coated in GalFan for corrosion resistance
• Interior features clear-coated aluminum liner and stainless steel floor with coved corners
• 6 heavy-duty, PVC-coated wire shelves are adjustable
• Self-closing doors remain open past 90 degrees to facilitate loading and unloading of product
• Removable, 1-piece door gaskets
• Cabinet structure and solid doors insulated with high-density polyurethane
• 12-in.-long recessed handle is foamed-in-place, with sheet metal interlock on each door
• Stem castors are 3 in. diameter to create a work surface height of 34 in.

Sealed Refrigeration System

• Potential for corrosion eliminated by evaporator coated in epoxy
• Large fan blades and self-lubricating evaporator fan motor provide efficient low-velocity, high-volume airflow
• Condensing coil kept clean with reverse condensing fan motor
• Uses environmentally friendly hydrocarbon refrigerant
• Capillary tube system is self-contained and factory engineered
• Guided airflow provides uniform temperatures to cabinet interior and food pans
• Slide-out condensing unit access in back of cabinet for maintenance
• Temperature holding range: 33-41 degrees F

Dimensions & Utilities

• Right and left shelves: 21⁹⁄₁₆ in. L x 16 in. D
• Center shelves: 23¹⁄₂ in. L x 16 in. D
• Overall: 72³⁄₈ in. W x 31¹⁄₈ in. D x 40³⁄₄ in. H
• 7.2 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-72-10-HC ADA within the 48 contiguous states.

From The Manufacturer

Sandwich/Salad Unit, 34" work surface height, (10) 1/6 size (4"D) poly pans, stainless steel insulated cover, 11-3/4"D cutting board, (3) full doors, (6) PVC coated adjustable wire shelves, stainless steel top/front/sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 7.2 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
