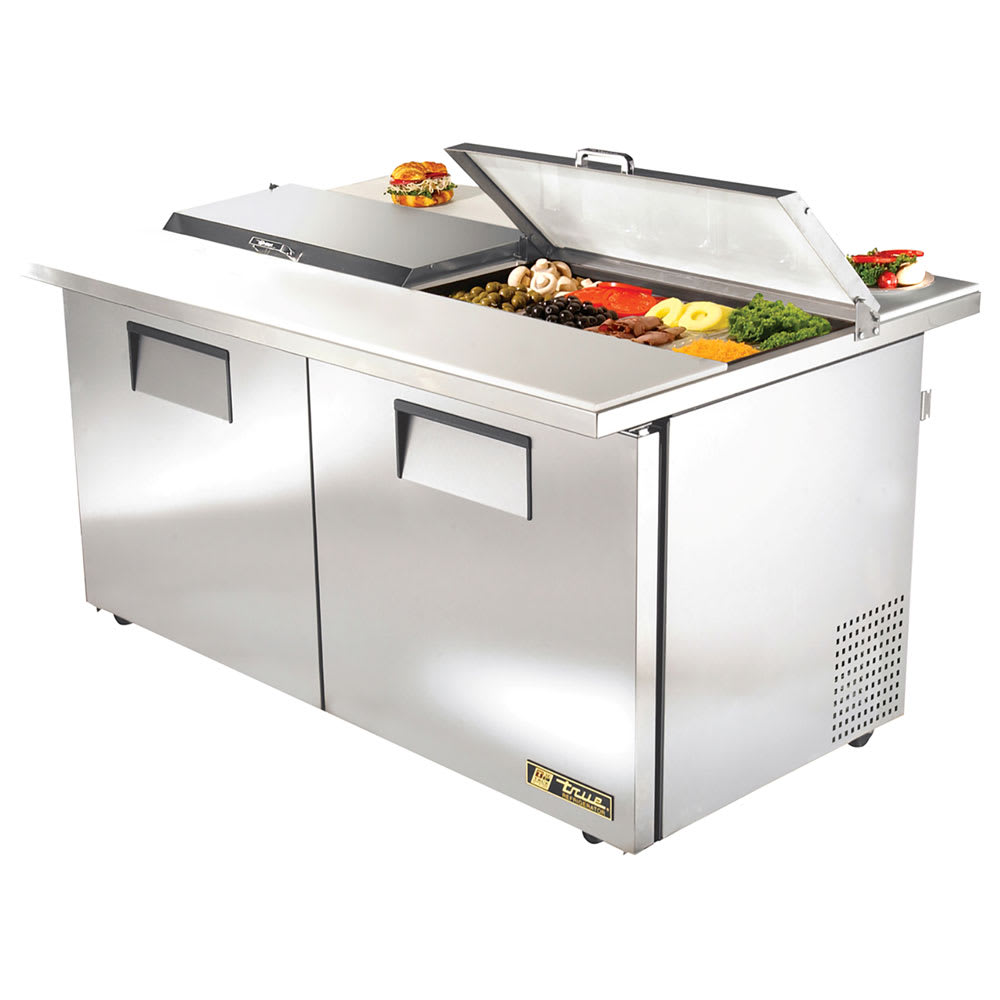

True TSSU-60-16-DS-ST-HC ADA 60" TSSU Series Dual Sided Sandwich/Salad Prep Table w/ Refrigerated Base, 115v

The capillary tube refrigeration system of this True TSSU-60-16-DS-ST-HC dual-sided sandwich and salad prep table uses environmentally friendly R290 hydrocarbon refrigerant. For convenient maintenance, its condensing unit slides out from the back of the cabinet, and efficient airflow is achieved with the self-lubricating fan motor and large fan blades. Because of this forced-air design, product is held at a set temperature between 33 and 41 degrees Fahrenheit.

The condensing fan motor operates in reverse for 20 seconds after the compressor starts, eliminating dust and dirt from the condensing coil. For maximum efficiency, routine maintenance should be implemented alongside this self-cleaning feature. When the coil is cleaned regularly, the unit ensures stored product remains cold, and it operates using a reduced amount of energy.

Complying with ADA guidelines, the True TSSU-60-16-DS-ST-HC prep table has a 34-inch working height, and it has polyethylene cutting boards on both sides for efficiency. In the middle, 16 sixth-size, clear polycarbonate pans drop into the top to organize ingredients, and lids can stay over these pans for cold temperatures or can be removed for convenient access to ingredients. The refrigerated base offers additional storage space, and its PVC-coated shelves and stainless steel floor are corrosion resistant. Coved corners in the floor are rounded, preventing buildup of dirt and debris. When cleaning or stocking, the shelves can be removed and the doors can be pulled to 90 degrees, where they will stay open.

Product Details

• 3-in.-diameter stem castors
• Detachable stainless steel lids
• Insulated lids lock in freshness, minimize condensation, and keep temperatures cool
• Comes with (2) 11³⁄₄-in.-deep, full-length cutting boards that are removable for cleaning
• Cutting boards have a sanitary, white polyethylene preparation surface
• 90-degree, stay-open feature on self-closing doors
• Steel back is coated in GalFan to resist corrosion
• Durable stainless steel front, top, and ends
• Includes 16 sixth-size, 4-in.-deep food pans that are made of clear polycarbonate
• Accommodates food pans that measure 6-in. deep (sold separately)
• Cleaning process is simplified with magnetic gaskets that snap in and out of the door frame
• 4 shelves are constructed of heavy-duty, PVC-coated wire
• 4 clips per shelf for stability
• Shelves are adjustable in ¹⁄₂-in. increments
• Shelf support pilasters are constructed of aluminum
• Stainless steel floor with coved corners and clear-coated aluminum interior liner
• Permanently attached, 12-in.-long handles
• Dense polyurethane insulation foams cabinet structure and solid doors in place
• 34-in. work surface height is ADA compliant

Refrigeration System

• Capillary tube system regulates R290 hydrocarbon refrigerant flow
• Condensing unit slides out from the back for convenient maintenance
• Evaporator's epoxy coating combats potential for corrosion
• Efficient airflow design is achieved with self-lubricating fan motor and large fan blades
• Reverse condensing fan motor eliminates dust and debris from the condensing coil
• Guided airflow maintains pan and interior temperatures
• Temperature holding range: 33-41 degrees F

Dimensions & Utilities

• Sixth-size pans: 6⁷⁄₈ in. L x 6¹⁄₄ in. W x 4 in. D
• Shelves: 27¹⁄₂ in. W x 16 in. D
• Overall: 60⁵⁄₁₆ in. W x 38¹¹⁄₁₆ in. D x 35¹⁄₄ in. H
• 6.5 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TSSU-60-16-DS-ST-HC ADA within the 48 contiguous states.

From The Manufacturer

Dual Side Sandwich/Salad Unit, 34" work surface height, (16) 1/6 size (4"D) poly pans, (2) stainless steel insulated covers, 11-3/4"D cutting boards, (2) full doors, (4) PVC coated adjustable wire shelves, stainless steel top/front/sides, aluminum back, aluminum interior with stainless steel floor, 3" castors, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cULus, UL EPH Classified, ADA Compliant

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
