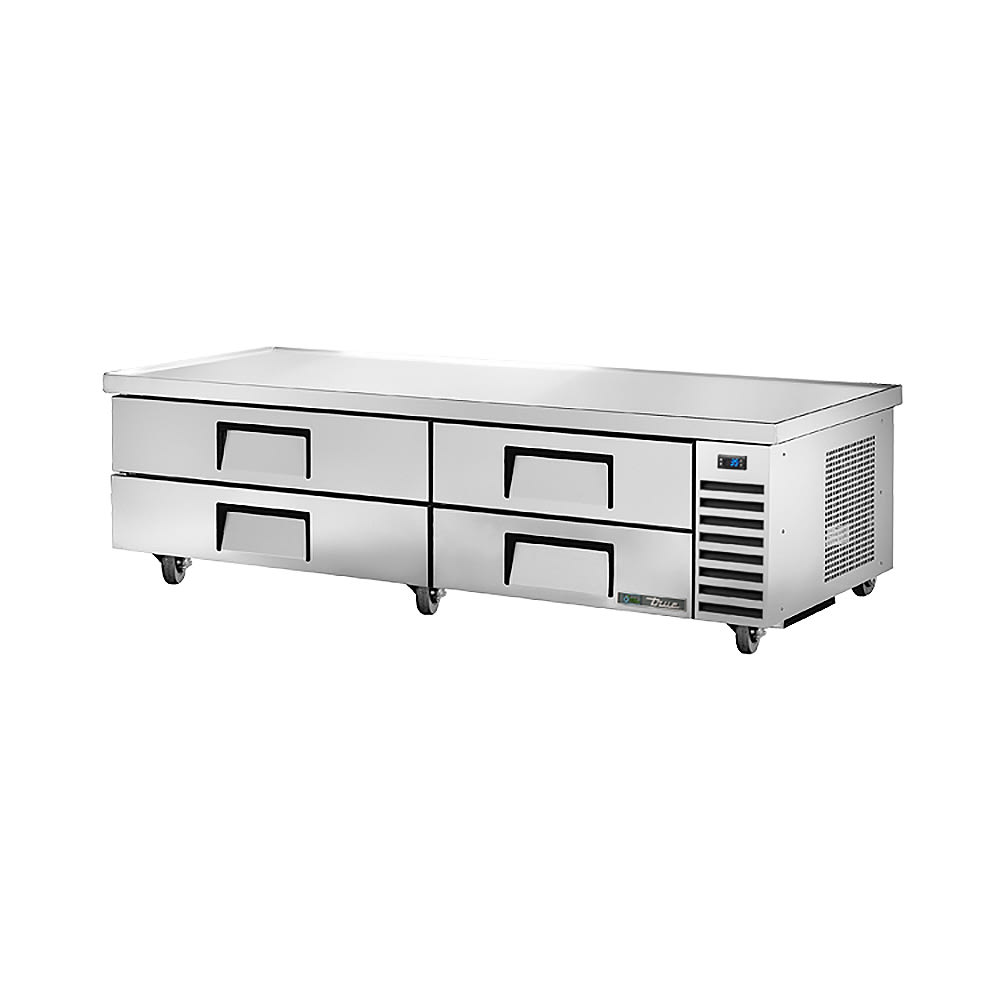

True TRCB-82-84-HC 84" Chef Base w/ (4) Drawers - 115v

The True TRCB-82-84-HC chef base features a one-piece stainless steel top that supports as much as 1,084 pounds and has a drip-resistant edge to catch spills. Equipment and supplies can sit on top, where they are close to ingredients in the drawers. Because the drawer handles are recessed, staff members can move left and right as they work without needing to dodge handles. Designed to hold cool ingredients, the left drawers can fit three full-size pans while the right drawers hold two full-size food pans.

Each sturdy drawer retains cold air with dense polyurethane foam and gaskets around the frame. Inside the True TRCB-82-84-HC chef base, operators can set the temperature between 33 and 38 degrees Fahrenheit, and these cold temperatures are produced as R290 refrigerant moves through the capillary tubes. A large, self-lubricating evaporator fan blows cold air around the cabinet, while the internal temperature can be checked on the digital display, which is mounted on the exterior. For convenient service access, cooling components are self-contained and slide out from the side.

Product Details

• 1,084-lb. capacity worktop
• Top's seamless stainless steel construction is durable
• Marine edge is drip resistant to prevent messes on the floor
• 4 refrigerated drawers
• Left drawers can hold 3 full-size food pans while right drawers can hold 2 full-size food pans
• Pans are sold separately
• Temperature holding range: 33-38 degrees F
• Cool temperatures are maintained by self-contained capillary tube system
• Forced-air refrigeration ensures cold air is evenly distributed throughout the cabinet
• Large fan blades move a large volume of air at once
• Temperature is monitored by an external digital display
• Foamed-in-place polyurethane provides insulation throughout structure
• Exterior stainless steel construction resists dings, dents, and rust
• Aluminum back is finished to match the rest of the unit
• Corrosion-resistant drawer liner is stainless steel
• Cabinet liner is constructed of white aluminum
• Moves without difficulty because it is mounted on 4-in. castors

Dimensions & Utilities

• 84 in. W x 33¹⁄₁₆ in. D x 25³⁄₈ in. H
• 10.3 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TRCB-82-84-HC within the 48 contiguous states.

From The Manufacturer

Refrigerated Chef Base, 82-5/16"W base, 84"W one-piece 300 series 18 gauge stainless steel top with V edge, (4) drawers (left drawer accommodates (3) and right drawer accommodates (2) 12" x 20" x 4" pans, NOT included), stainless steel front/sides, aluminum back, aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 4.4 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, Made in USA

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
