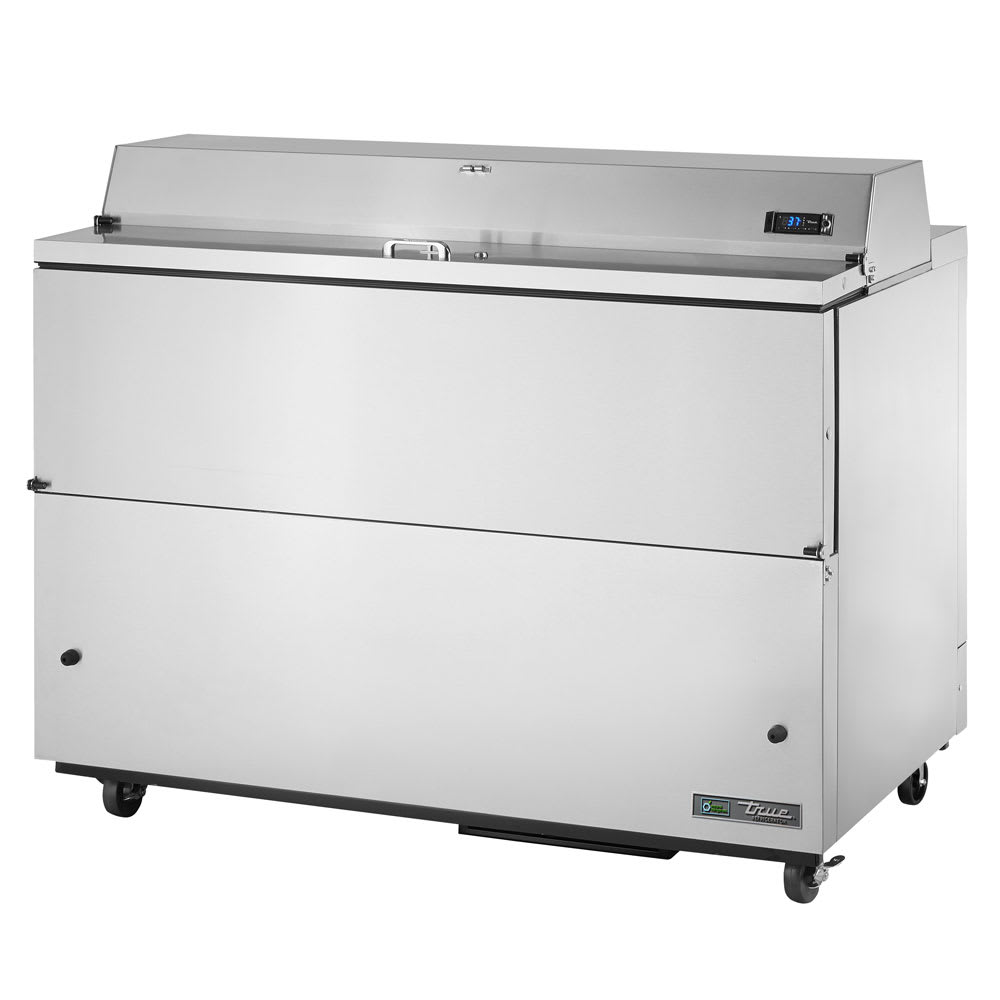

True TMC-58-S-HC Milk Cooler w/ Top & Side Access - (1024) Half Pint Carton Capacity, 115v

Because it has a total capacity of 16 standard milk crates, the True TMC-58-S-HC milk cooler is ideal for schools and cafeterias. A drop-down door on the front and a flip-up door on the top provide access to contents. Constructed of stainless steel, the exterior and service doors are durable, while a clear-coated aluminum lines the interior. Cold air stays inside the cabinet because it is insulated with polyurethane insulation, and structure is provided by the black powder-coated steel frame.

To ensure milk stays safe, a self-contained capillary tube system with R290 hydrocarbon refrigerant uses forced-air refrigeration to maintain a set temperature between 33 and 38 degrees Fahrenheit, which can be monitored on an external digital display. The True TMC-58-S-HC milk cooler's evaporator is coated in epoxy to resist corrosion, and because the condensing unit slides out, it is convenient to service.

To improve condensing coil operation, the condensing fan motor blows in a reverse direction for 20 seconds when the compressor is turned on. This mechanism helps reduce buildup of debris and dust on the coil's surface, reducing overall coil energy usage and increasing the unit's lifespan. Though effective, this mechanism should not replace general maintenance.

Product Details

• Holds as many as (16) 13-in. x 13-in. x 11⁵⁄₈-in. milk crates
• Drop-down front door and flip-up top door provide access to interior
• Locks on the doors deter theft
• Magnetic gaskets around the door frames retain cold air
• Conveniently clean the unit with a drain and plug
• Stainless steel exterior construction is attractive and durable
• Interior includes a clear-coated aluminum liner and 3 floor racks
• Insulated with foamed-in-place polyurethane
• Structure is created by the black powder-coated steel frame
• (4) 4-in.-diameter castors with locking front set

Refrigeration System

• Temperature holding range: 33-38 degrees F
• External digital display monitors temperature
• Forced-air refrigeration is provided by a self-contained system
• Capillary tube system uses R290 hydrocarbon refrigerant
• Condenser and evaporator fan motors produce little heat and move air at a consistent volume
• 20-second reverse condensing fan motor mechanism helps remove buildup of debris on condensing coil
• Evaporator is epoxy coated to resist corrosion

Dimensions & Utilities

• 58¹⁄₄ in. W x 35 in. D x 46³⁄₄ in. H
• 2.7 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TMC-58-S-HC within the 48 contiguous states.

From The Manufacturer

Mobile Milk Cooler, forced-air, (16) 13" x 13" x 11-5/8" crate capacity, stainless steel drop front/hold-open flip-up lid with lock, 33 - 38°F temperature range, (3) heavy-duty floor racks, digital thermometer, stainless exterior, aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.7 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TMC-58-S-HC Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
