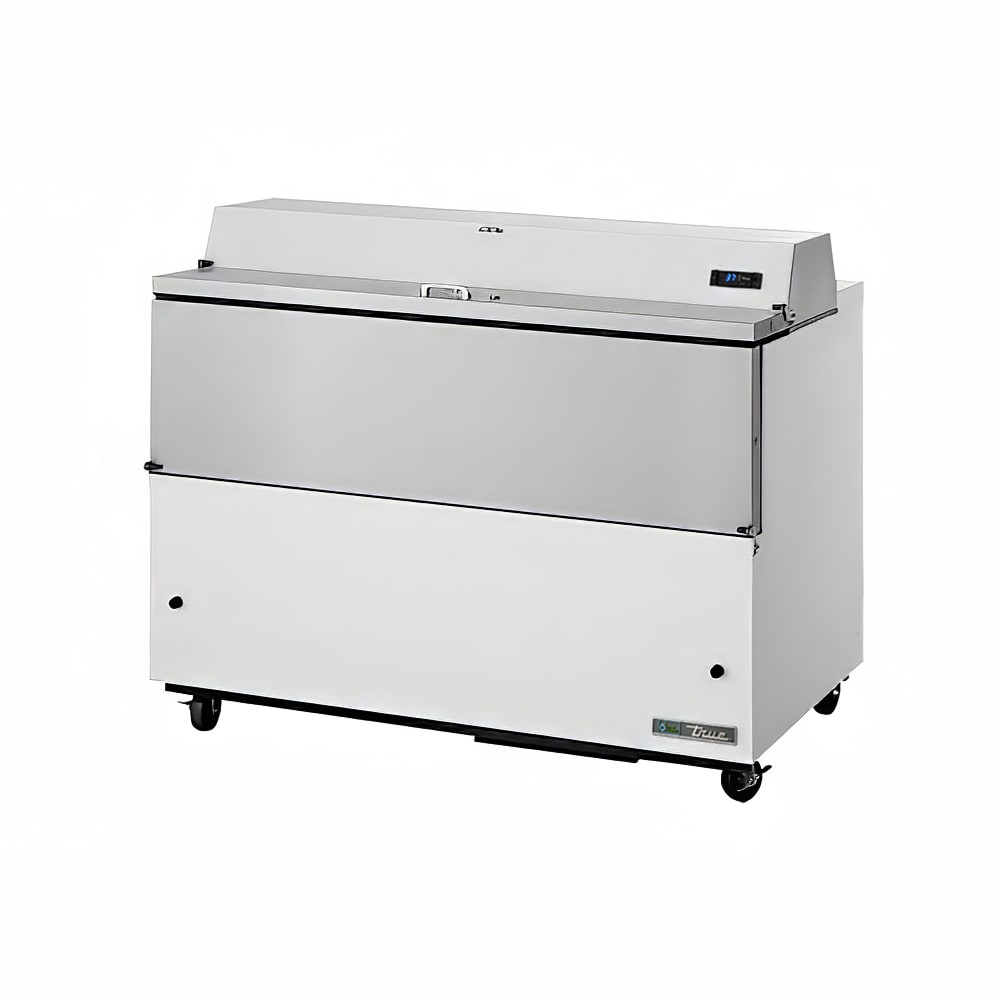

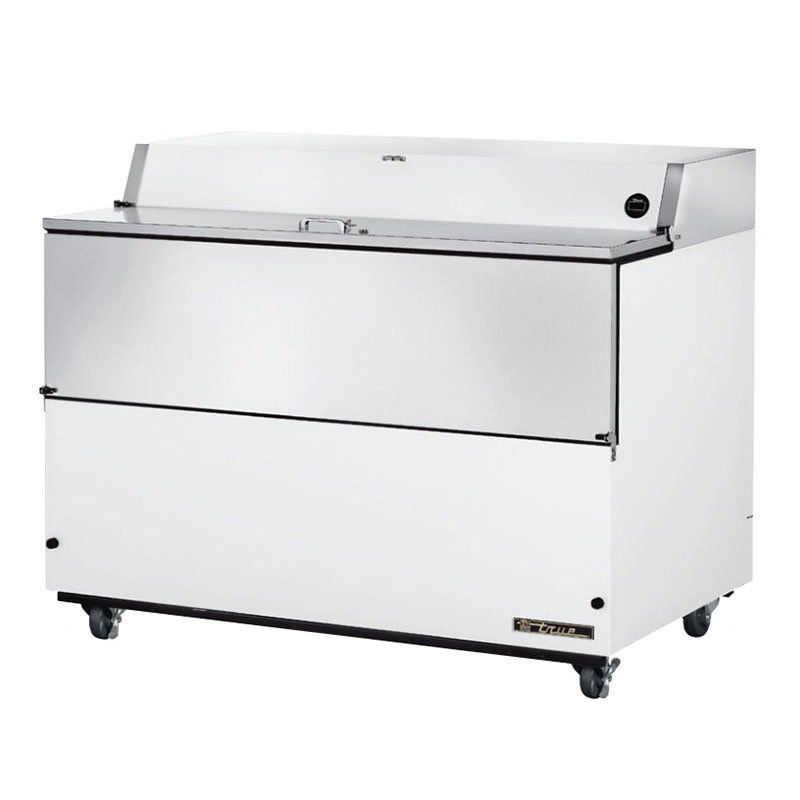

True TMC-58-HC Milk Cooler w/ Top & Side Access - (1024) Half Pint Carton Capacity, 115v

Perfect for schools and cafeterias, the True TMC-58-HC milk cooler can hold 16 standard milk crates, and it has a drop-front door and a top door that flips up, giving staff flexibility when stocking and serving. Its exterior features stainless steel and white vinyl, while the interior liner is constructed of clear-coated aluminum. Insulated with foamed-in-place polyurethane, the cabinet retains cold temperatures. Heavy-duty floor racks are included to protect the cooler from dents and scratches, and it is mounted on 4-inch-diameter swivel castors with two that lock in place for safety.

The forced-air refrigeration system maintains a selected temperature between 33 and 38 degrees Fahrenheit, which is maintained through a capillary tube system that controls the flow of R290 hydrocarbon refrigerant. To ensure the temperature inside is ideal, it is displayed on an external digital display, and a consistent amount of air is moved throughout the cabinet with evaporator and condenser fan motors. When the unit's compressor turns on, the condensing fan motor automatically directs air in a reverse direction for 20 seconds. This helps eliminate collection of dirt and dust from the condensing coil's surface, enabling it to perform more efficiently, increasing the unit's lifespan. Despite this mechanism's effectiveness, it should not replace general maintenance practices. Accessible from the rear, the refrigeration system on this True TMC-58-HC milk cooler is convenient to service.

Product Details

• Accepts as many as 16 standard 13-in. x 13-in. x 11⁵⁄₈-in. milk crates
• Drop-front door and flip-up top door provide options for stocking and servicing
• Door locks for protection
• Keep cold air in and warm air out with magnetic door gaskets
• Foamed-in-place polyurethane insulation creates structure and retains cold air
• Exterior is constructed of white powder-coated steel and stainless steel
• Interior liner is clear-coated aluminum
• Black powder-coated frame rail ensures stability
• Includes 3 heavy-duty floor racks for protection
• ¹⁄₂-in. NPT-PVC drain plug
• Mounted on (4) 4-in.-diameter swivel castors, and front set locks

Refrigeration System

• Forced-air refrigeration uses a capillary tube system and R290 hydrocarbon refrigerant
• Temperature holding range: 33-38 degrees F
• Digital external display shows temperature
• Air volume is consistent and minimal heat is created with condenser and evaporator fan motors
• Condensing fan motor automatically cleans off condensing coil when compressor is turned on
• Access internal components through the back with a sliding condensing unit
• Epoxy-coated evaporator is corrosion resistant

Dimensions & Utilities

• 58¹⁄₄ in. W x 35 in. D x 46³⁄₄ in. H
• 2.7 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TMC-58-HC within the 48 contiguous states.

From The Manufacturer

Mobile Milk Cooler, forced-air, (16) 13" x 13" x 11-1/8" crate capacity, stainless steel drop front/hold-open flip-up lid with lock, 33 - 38°F temperature range, (3) heavy-duty floor racks, digital thermometer, white vinyl exterior, aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.7 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TMC-58-HC Specifications
