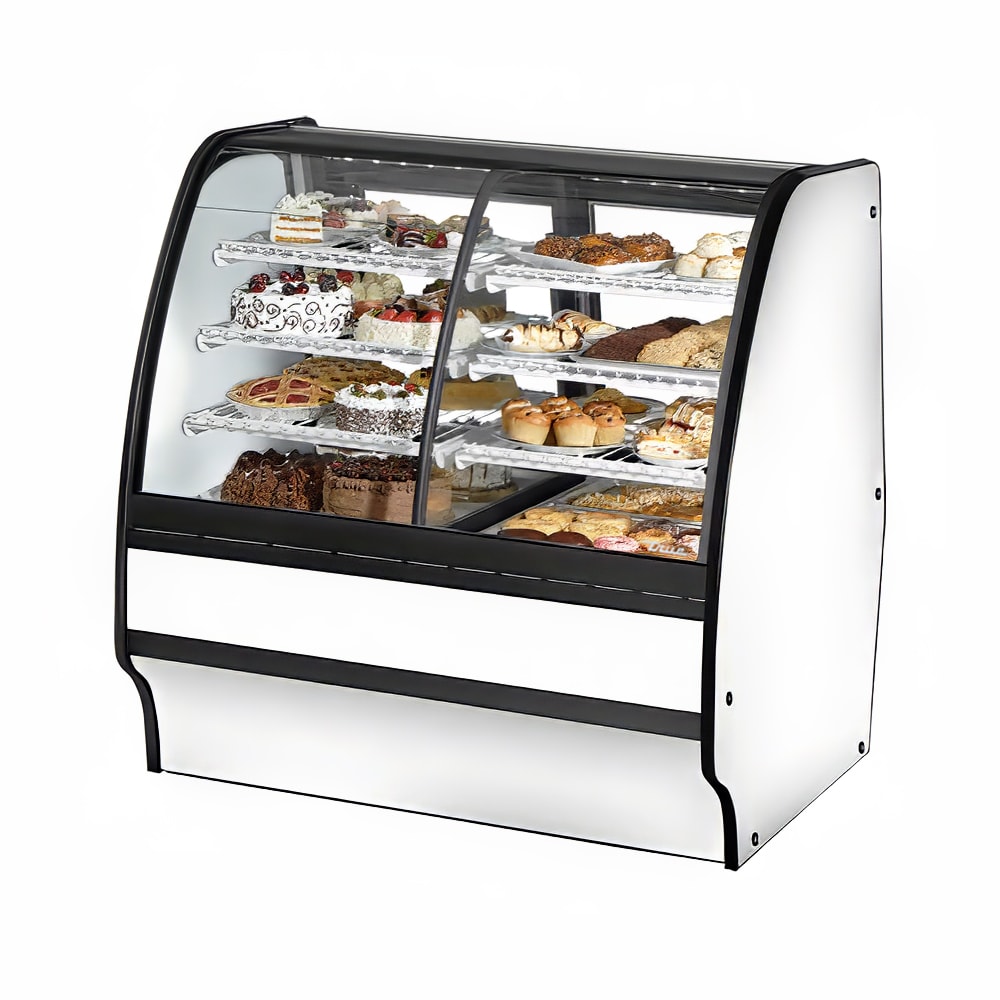

True TGM-DZ-48-SC/SC-W-W 48 1/4" Full Service Dual Zone Bakery Case w/ Curved Glass - (4) Levels, 115v

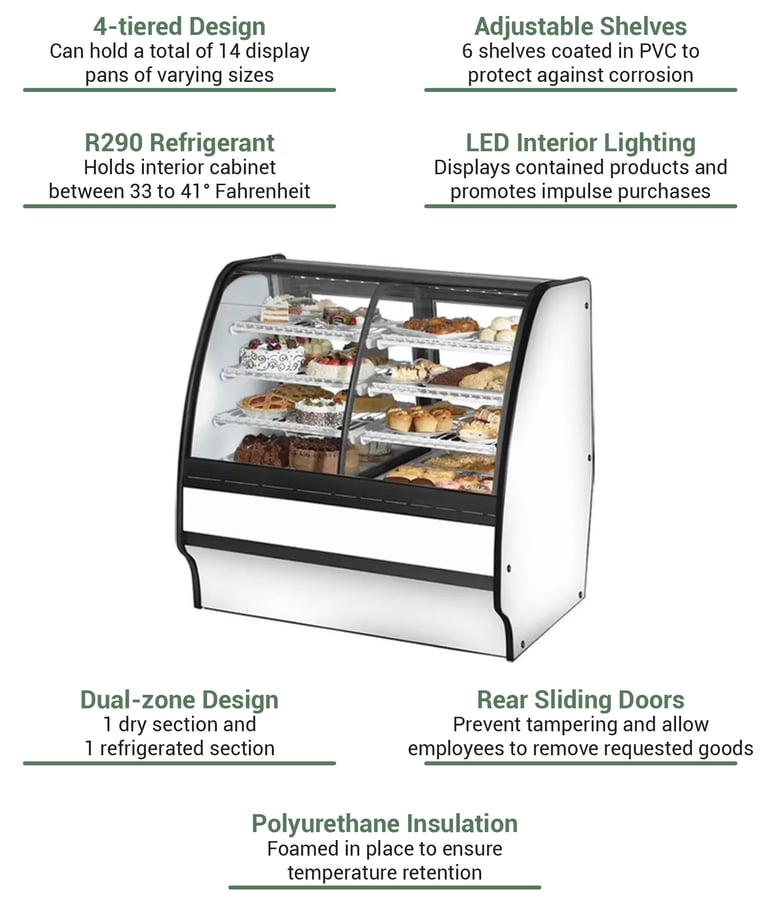

The True Refrigeration TGM-DZ-48-SC/SC-W-W display case features a dual-zone configuration that can hold temperatures between 33 and 41 degrees Fahrenheit; one section of the unit is refrigerated and one is dry. Its R290 hydrocarbon refrigerant is circulated throughout the unit using a capillary tube system. Its condenser is removable for simple cleaning and maintenance, and its motors can be reversed to expunge dust, crumbs, and debris from its internal mechanics. To assist in locking down cold temperatures, it uses a layer of high-density, foamed-in polyurethane insulation

Because it has four levels with three elevated tiers, the True Refrigeration TGM-DZ-48-SC/SC-W-W bakery case ships with six adjustable shelves that are PVC coated for corrosion resistance. Once assembled, the interior can hold four 18-inch-long by 26-inch-deep display pans, two 9-inch-long by 26-inch-deep display pans, and eight 12-inch-long by 18-inch-deep display pans. It's primarily made of aluminum, while its sides are made of solid wood for added support. Its front has a pane of curved glass, and its back is fitted with glass rear-sliding doors. Both the exterior and interior are an elegant white. To keep products clearly visible, it has an LED lighting system. Once installed, it measures 48¹/₄ inches wide by 39 inches deep by 49¹/₈ inches high.

Product Details

• 1 refrigerated section and 1 dry section
• Cabinet holds (4) 18 in. L x 26 in. D display pans, (2) 9 in. L x 26 in. D display pans, and (8) 12 in. L x 18 in. D display pans
• Curved glass front
• 2 rear sliding glass doors
• 4 total levels with 3 elevated tiers
• 6 adjustable shelves made of wire and coated in PVC for corrosion resistance
• LED interior lighting
• White powder-coated interior and exterior
• Aluminum cover and front panels
• Solid wood sides
• Interior made of rolled steel
• High-density, foamed-in polyurethane insulation layer
• Frame fitted with stable leg levelers

Refrigeration

• Eco-friendly R290 hydrocarbon refrigerant
• Isolated capillary tube system
• Removable condensing unit
• Condenser motors can be reverse to remove debris and other particulates
• Temperature range: 33-41 degrees F
• Optional temperature range: 42-65 degrees F

Dimensions & Utilities

• 48¹/₄ in. W x 39 in. D x 49¹/₈ in. H
• 10 A, ¹/₄ HP
• 115 V/60 Hz/1 ph with 9-ft. NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration TGM-DZ-48-SC/SC-W-W within the 48 contiguous states.

From The Manufacturer

Glass Merchandiser, dual zone (dry/refrigerated), 48-1/4"W, self-contained refrigeration, with fixed curved glass front, solid colored sides, (2) rear sliding glass doors, (3) tiered levels of adjustable white PVC coated wire shelves (6 shelves total), LED interior lighting, white powder coated exterior, white powder coated interior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 10.0 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

True Refrigeration TGM-DZ-48-SC/SC-W-W Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Access	Full Service
Color	White
Depth (in)	39
Design	Curved
Door Type	Sliding
Height (in)	49.13
Hertz	60
Number of Levels	4
Product	Bakery Display Cases
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Refrigeration Type	Refrigerated
Series	TGMDZ Series
Shelving Type	Wire
Voltage	115
Warranty	6-year Parts; 5-year Labor; 7-year Compressor Parts
Width (in)	48.25
Weight	665.00
