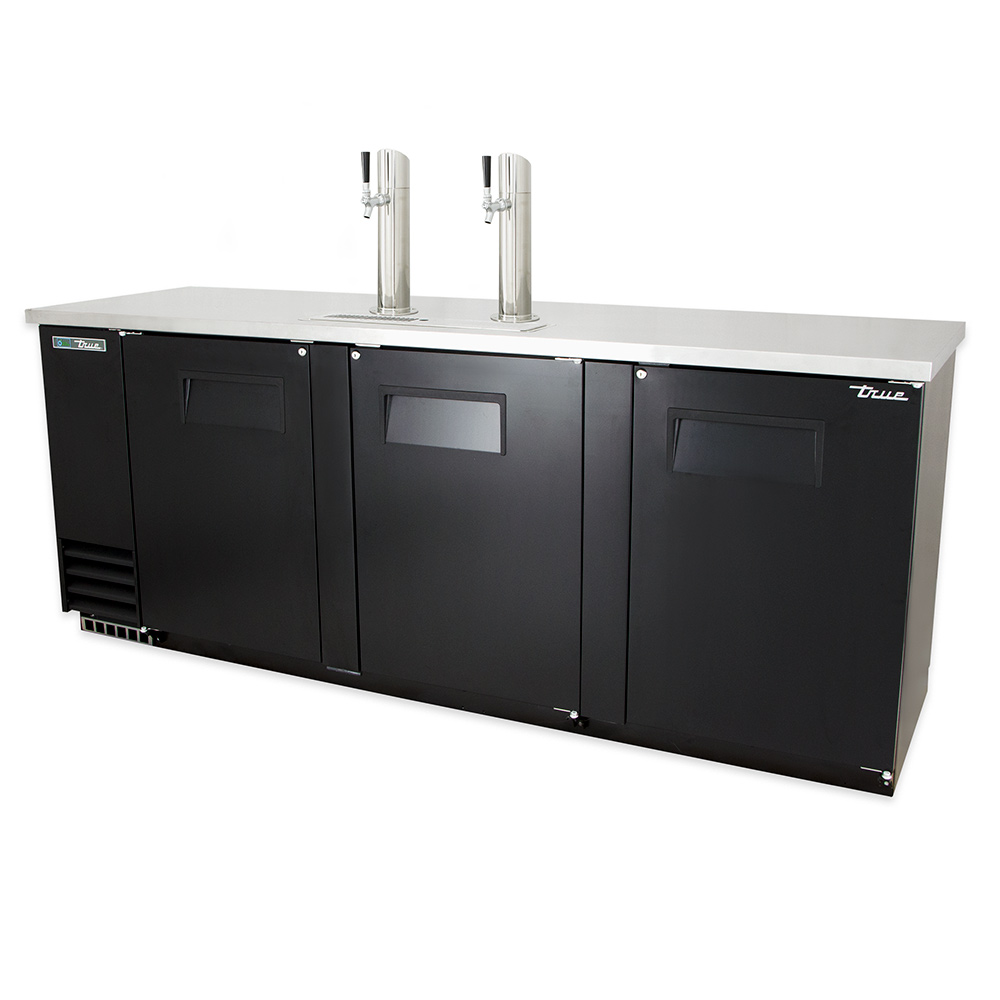

True TDD-4-HC 90" Draft Beer System w/ (4) Keg Capacity - (2) Columns, Black, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 598-TDD4 • MPN: TDD-4-HC
Ships Free

IN STOCK: Ships in 1 Business Day

(1 review)Write a Review
Price Increase Update
Retail Price: $2,948.81

Selected Color: Black

Stainless Steel

Image may not depict product color, inclusions or accessories.

True Refrigeration TDD-4-HC Description

True Refrigeration

The True TDD-4-HC draft beer system has a four keg capacity and is designed to accommodate various types of beer kegs. The exterior is constructed of laminated black vinyl on the front and sides with a stainless steel countertop that is durable and easy to clean. The galvanized steel interior has a door threshold protector to prevent damage to the TDD-4-HC when loading and unloading product. Each of the three doors is manufactured with a 12-inch-long recessed handle that is permanently attached with a sheet metal interlock that is foamed in place.

The draft beer system uses a self-contained, capillary tube refrigeration system with R290 hydrocarbon refrigerant to ensure products are kept cool. The evaporator coil is balanced with a higher horsepower condenser to maintain a temperature range of 33 to 38 degrees Fahrenheit. The True TDD-4-HC draft beer system comes equipped with two 3-inch-diameter, stainless steel, insulated beer columns where cold air is directed into the columns to reduce foaming.

Product Details

  • Capacity of 4 half barrel kegs
  • (2) 3-in.-dia. stainless steel beer columns have cold air directed in them to reduce foaming in beer
  • Self-contained, capillary tube refrigeration system uses R290 hydrocarbon refrigerant to maintain cool temperatures
  • 33-38 degrees F temperature range
  • Cast iron, self-lubricating evaporator fan motors with large fan blades create a high volume of air that ensures quicker temperature pull down and colder holding temperatures
  • Epoxy coated evaporator resists corrosion
  • Standard door locks prevent unauthorized access
  • 2-way tapper manifold comes standard
  • NSF-7 listed for storage and display of bottled and packaged product
  • 115 V/60 Hz/1 ph, 9.1 A, 13 HP, and 7-ft. cord with NEMA 5-15P plug
  • Overall Dimensions: 9038 in. W x 2718 in. D x 5214 in. H
  • cULus and UL-EPH listed

Product Features

True Manufacturing tdd4 Features

Cabinet Construction

  • Exterior front is resistant to wear thanks to the heavy duty, black vinyl front and sides
  • Stainless steel countertop is durable and easy to clean
  • Stainless steel interior floor is resistant to corrosion and simple to clean
  • Heavy gauge galvanized steel interior walls are durable for heavy use
  • Door threshold protector prevents damage to cabinet structure when loading and unloading product
  • Entire cabinet is insulated with foamed-in-place polyurethane insulation to retain cold air
  • Welded steel frame with black powder coating provides structure for the cabinet
  • 12-in. long recessed handles are foamed in place using sheet metal interlocks for permanent attachment

Product Updates

In January 2015, True began shipping this item with a taller, angled-top column cap. The company will continue to provide replacements for the older flat-top caps for several years. For more information, call KaTom at 1-800-541-8683.

Draft Beer Cooler, (4) keg capacity, stainless steel counter top, black vinyl exterior & (3) doors with locks, galvanized interior with stainless steel floor, (2) 3" diameter beer columns, R290 Hydrocarbon refrigerant, 1/4 HP 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cULus, UL EPH Classified, MADE IN USA, ENERGY STARĀ®

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

True Refrigeration TDD-4-HC Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Also Known As TDD-4, TRUE TDD-4, TRUTDD4, 890TDD4, TDD4, 675-035
Base Frame
Compressor Location Left
Exterior Finish Black Laminate
Keg Capacity 4
Number of Columns 2
Number of Taps 2
Warranty 3-year Parts & Labor/5-year Compressor
Width (in) 90
Width (in) Range 59 - 96 in
Phase 1
Hertz 60
Voltage 115
Product Beer Dispenser
Product Type Commercial Refrigeration
Weight 535.00
True TDD-4-HC Certifications
  • UL
  • NSF
  • Energy Star
