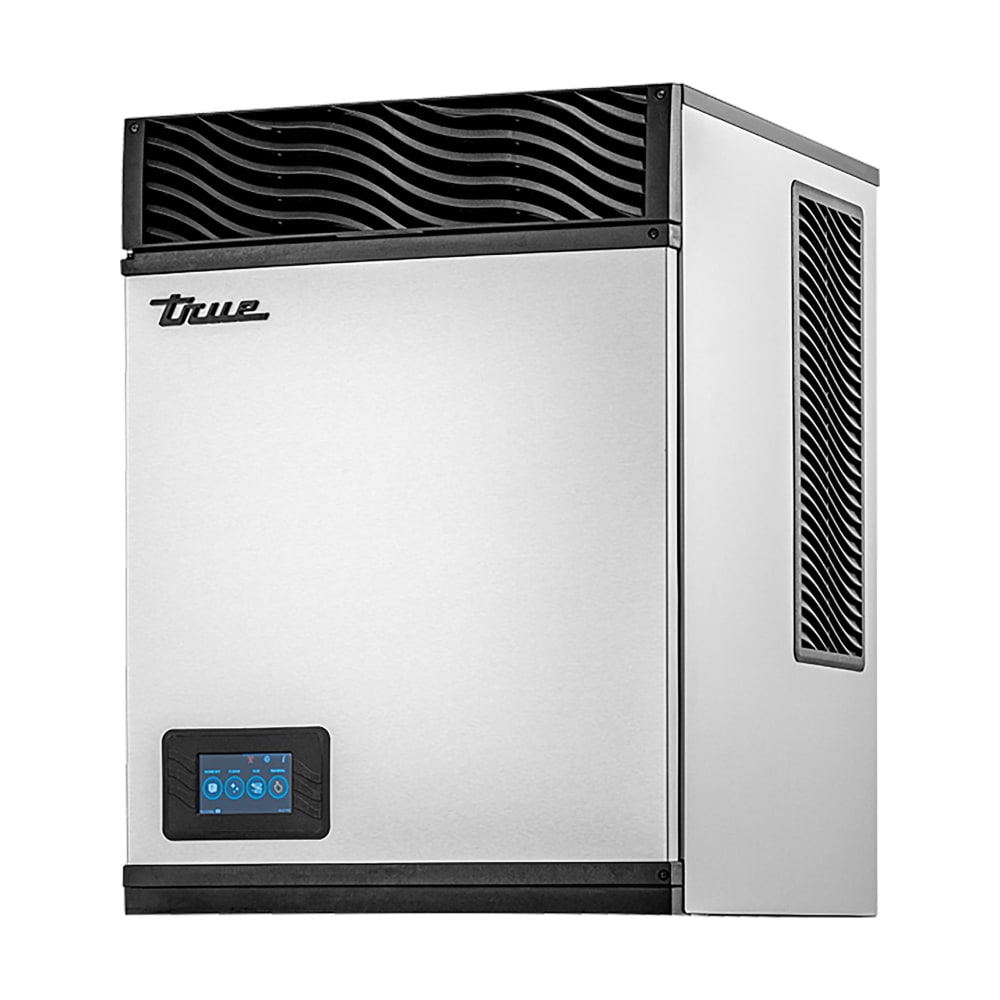

True TCIM-822-HA2-A~T-3 22" Half Cube Ice Machine Head - 830 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$6,207.00 /Each
Attention: Order by 10-01-2026 to save before the price increases!
True Refrigeration TCIM-822-HA2-A~T-3 Description
For daily ice service, the True TCIM-822-HA2-A~T-3 ice machine head produces 830 pounds of half-cube ice during each 24-hour production cycle. Its TrueNcapsuL8® evaporator is insulated and sealed to limit moisture exposure behind the plate. The half-cube form measures 7⁄16 by 1 1⁄8 by 7⁄8 inch for beverage and ice-dispensing applications in commercial service settings.
The True TCIM-822-HA2-A~T-3 ice machine head uses a 4 3⁄10-inch TrueTouch® touchscreen for real-time ice-level monitoring, system status, and diagnostics. Its one-touch cleaning cycle and tool-free removable components support maintenance. A removable air filter, micro-channel condenser, and R290 refrigerant complete the air-cooled system. Its gauge-free diagnostics use pressure transducers without external gauges during service.
- Part of True Ice Series
- Produces 830 lbs. of ice per 24 hr.
- Creates half-cube ice
- TrueNcapsuL8 insulated and sealed evaporator
- TrueGuard™ antimicrobial protection in molded components
- TrueTech® clear-coated exterior finish
- 4 3⁄10-in. TrueTouch touchscreen display
- Real-time ice-level, usage, and system-status monitoring
- Ice-production scheduling
- Gauge-free diagnostics with integrated pressure transducers
- Visual, audible, and push alerts
- Self-contained
- Air-cooled condenser
- R290 hydrocarbon refrigerant
- 1-touch cleaning
- Removable air filter and RCU technology
- Micro-channel condenser
- Ultra-quiet fan operation
- 22 1⁄4 in. W × 24 3⁄5 in. D × 30 3⁄16 in. H
- 1⁄2-in. FNPT potable-water inlet
- 3⁄4-in. FNPT water outlet
- 15-A minimum circuit ampacity
- 208-230 V/60 Hz/1 ph, hardwired
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration TCIM-822-HA2-A~T-3 within the 48 contiguous states.
From The Manufacturer
True Ice Series Ice Maker, cube style (half), self-contained, air-cooled condenser, 22"W x 24"D x 30"H, up to 830 lb. production/24 hr, TrueNcapsuL8® insulated & sealed evaporator, TrueGuard™ built-in Anti Microbial, advanced electronic control with 4.3" touch display, ice level monitoring, TrueTech® aluminum exterior finish, R290 Hydrocarbon Refrigerant, 208-230/60/1-ph, 7.6 amps, UL EPH Classified, cULus, ENERGY STAR®
Watch a video about this product
True Refrigeration TCIM-822-HA2-A~T-3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| 24 Hr. Production (lb) | 830 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.6 |
| Height (in) | 30.19 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | True Ice Series |
| Special Features | Alert System |
| Special Features | One-touch Cleaning |
| Special Features | Removable Air Filter |
| Special Features | TrueGuard Antimicrobial |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 22.24 |
| Weight | 205.00 |
