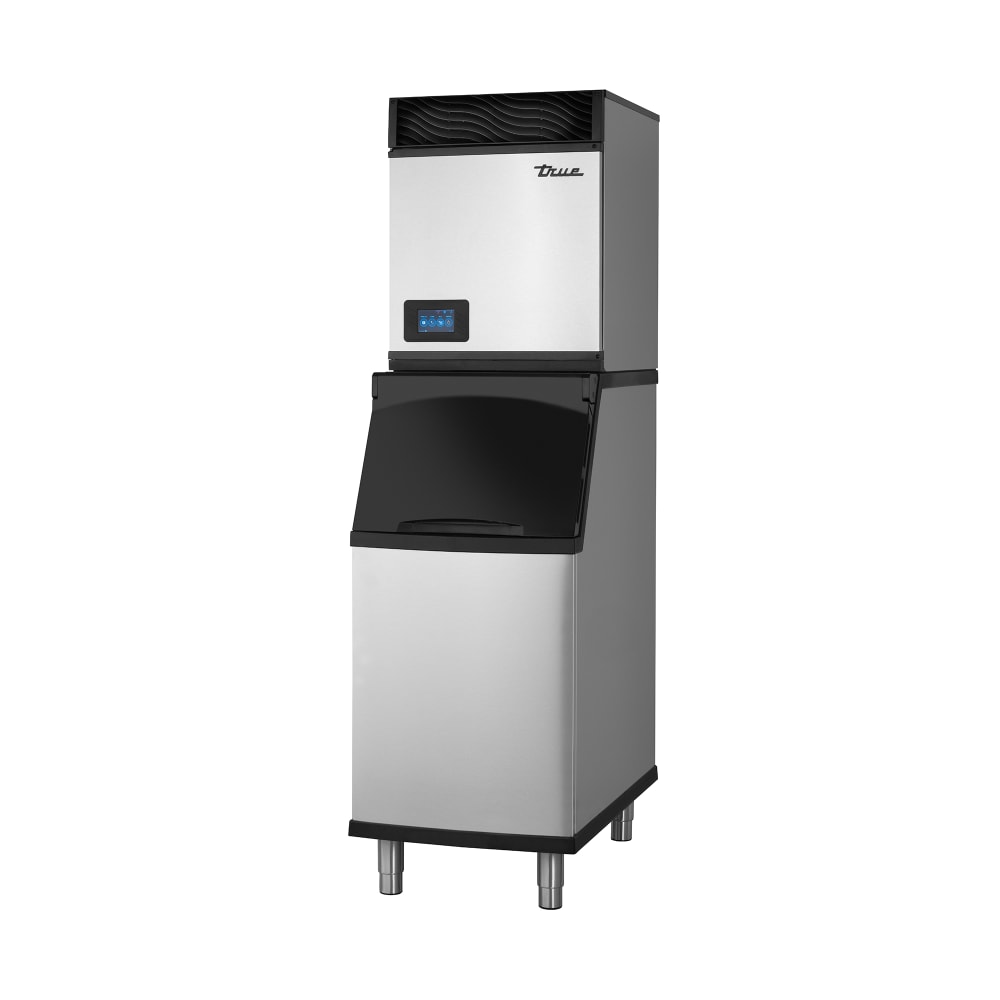

True TCIM-622-HA1-A/TIB-422-A 640 lb True Ice Series Half Cube Ice Machine w/ Bin - 320 lb Storage, Air Cooled, 115v

Ideal for high-volume establishments, the True TCIM-622-HA1-A/TIB-422-A True Ice combination unit can produce 640 pounds of ice over 24 hours when in an ambient environment of 70 degrees Fahrenheit with incoming water registering at 50 degrees. This amount decreases when exposed to warmer conditions. Overall, the unit’s bin connection can hold 320 pounds of ice.

The top unit of the True TCIM-622-HA1-A/TIB-422-A ice maker is the digital, touchscreen controls, which provide access to the various systems of the unit such as production times and cleaning operations. The exterior of the unit is coated in a Truetech finish over its aluminum panels. To cool the unit, R290—an environmentally friendly alternative to traditional refrigerant—flows through the unit.

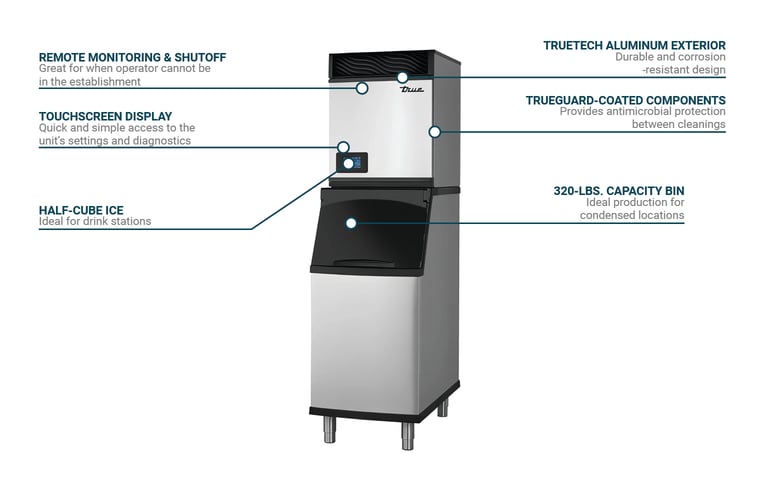

Ice Maker

• True Ice
• 640-lb. of ice over 24 hours with 70-degree-F ambient air/ 50-degree-F incoming water
• 565-lb. of ice over 24 hours in ambient temperature of 90 degrees F/ incoming water 70 degrees
• Half-cube ice
• Ice dimensions: ⁷/₁₆ in. L x 1¹/₈ in. W x ⁷/₈ in. H
• Truetech aluminum exterior finish
• TrueGuard-coated components
• TrueNcapsuL8 insulation and evaporator seal
• Air-cooled condenser
• Digital touchscreen display
• Ice level monitoring
• Remote monitoring and shut off
• R290 refrigerant

Ice Bin

• 320-lb. capacity
• Sloped front
• Antimicrobial imbedded plastic interior
• Truetech aluminum exterior finish

Dimensions & Utilities

• Ice maker head: 22 in. W x 24 in. D x 22 in. H
• Ice bin: 22 in. W x 34 in. D x 50 in. H
• 115 V/ 60 Hz/ 1 ph

Product Features

*Free shipping on True Refrigeration TCIM-622-HA1-A/TIB-422-A within the 48 contiguous states.

From The Manufacturer

True Ice Series Ice Maker, cube style (half), self-contained, air-cooled condenser, 22"W x 24"D x 27"H, up to 640 lb. production/24 hr, TrueNcapsuL8 insulated & sealed evaporator, TrueGuard built-in Anti Microbial, advanced electronic control with 4.3" touch display, Ice level monitoring, Truetech aluminum exterior finish, R290 Hydrocarbon Refrigerant, UL EPH Classified, cULus, ENERGY STAR®

True Ice Series Ice Storage Bin, slope front, 22" wide, 320 lb. bin storage 22"W x 34"D x 50"H, Antimicrobial imbedded plastic interior, Truetech aluminum exterior finish, UL EPH Classified, cULus

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor

True Refrigeration TCIM-622-HA1-A/TIB-422-A Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
