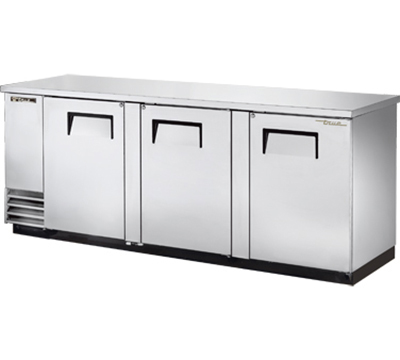

True TBB-4-S-HC 90 3/8" Bar Refrigerator - 3 Swinging Solid Doors, Stainless, 115v

The True TBB-4-S-HC three-section back bar cooler can hold 152 six-packs of 12-ounce cans on its wire shelves, which encourage air to flow all around the stored items. These shelves are coated for corrosion resistance and can be adjusted to accommodate bottles. LED lighting brightens the interior for product visibility. Since the unit is made of stainless and galvanized steel, it can endure high-volume use and corrosive substances. Its doors open with 12-inch handles—their recessed design does not take up useable aisle space.

Temperatures in this True TBB-4-S-HC three-section bar refrigerator range from 33 to 38 degrees Fahrenheit, maintained by R290 hydrocarbon refrigerant—an eco-friendly alternative to traditional refrigerants. Featuring a condensing unit that slides out from behind the front grille, the refrigeration system has accessible components. The fan motors in the system are electronically commutated, so they save energy and reduce the production of heat.

When the compressor turns on, the condensing fan motor blows in reverse for 20 seconds, removing buildup of dirt and dust from the condensing coil. A cleaner condensing coil can operate with less energy, and it can also increase the unit's lifespan. To ensure the coil is performing properly over time, preventive maintenance should be regularly practiced.

Product Details

• Can accommodate (152) 6-packs of 12-oz. cans
• 6 black PVC-coated wire shelves can be adjusted in increments of ¹⁄₂ in.
• Holds 4 half-barrel kegs
• LED interior lighting shines in the cabinet for visibility
• Durable, corrosion-resistant stainless steel front and sides with an aluminum back
• Galvanized steel interior walls are durable and corrosion resistant
• Stainless steel floor facilitates cleaning
• Door threshold protector helps prevent damage when operators load kegs
• Foamed-in-place polyurethane insulation creates structure and cold-air retention
• 3 doors have 12-in. recessed door handles that are attached with a foamed-in-place sheet metal interlock
• Magnetic door gaskets help prevent cold-air leaks
• Locks on the doors eliminate unauthorized access

Refrigeration System

• Temperature range: 33-38 degrees F
• Uses R290 hydrocarbon refrigerant
• Electronically commutated fan motors operate efficiently, reducing energy use and heat production
• Self-cleaning condensing fan motor mechanism helps remove condensing coil buildup for every time compressor turns on
• Condensing unit is accessible behind the front grille and slides out for convenience
• Evaporator is coated in epoxy for resistance to corrosion

Dimensions & Utilities

• 2 right shelves: 20³⁄₄ in. W x 21¹⁄₄ in. D
• 2 middle and 2 left shelves: 31³⁄₄ in. W x 21¹⁄₄ in. D
• Overall: 90³⁄₈ in. W x 28³⁄₄ in. D x 37 in. H
• 2.8 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

From The Manufacturer

Back Bar Cooler, three-section, 90-3/8"W, (152) 6-packs or (4) 1/2 keg capacity, (6) shelves, condensing unit on left, stainless steel top, (3) full doors with locks, LED interior lights, galvanized interior with stainless steel floor, stainless steel exterior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

7-year Parts & Labor; 7-year Compressor
