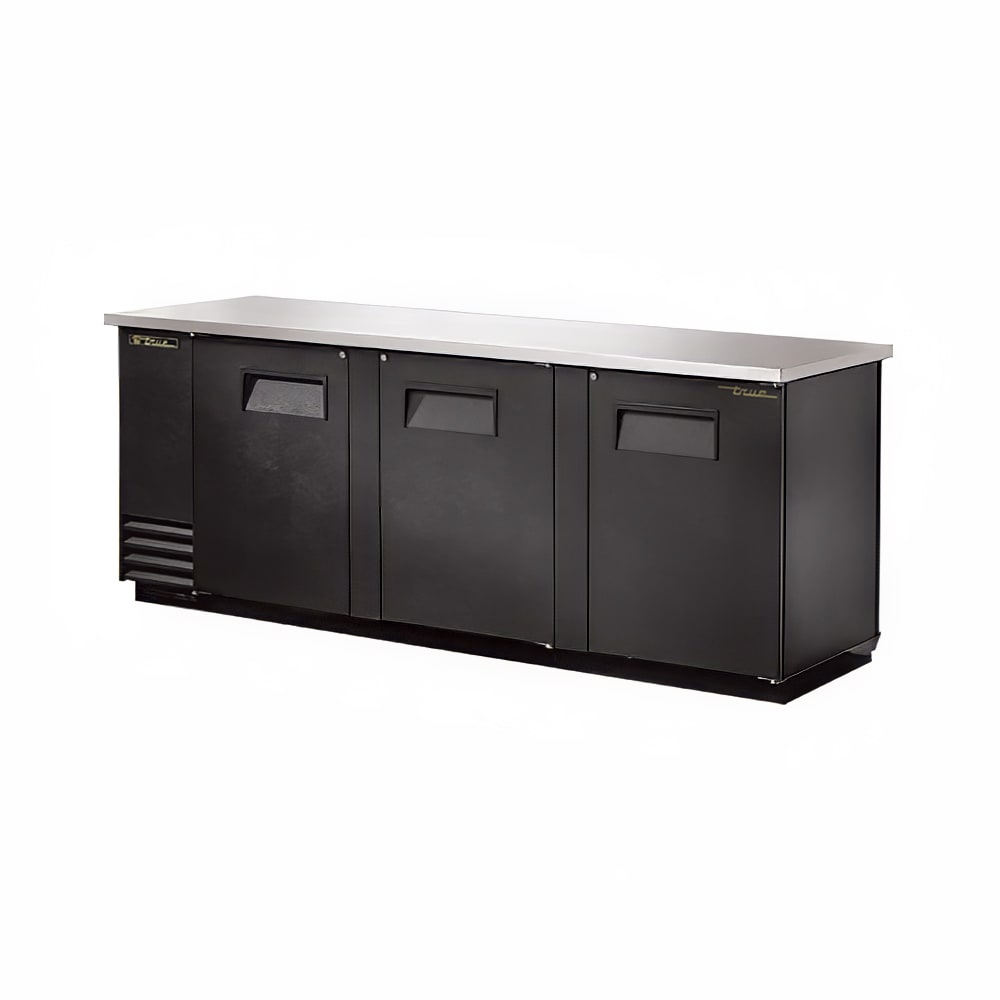

True TBB-4PT 90 3/8" Bar Refrigerator - 3 Swinging Solid Doors, Black, 115v

In the True TBB-4PT three-section pass-thru bar refrigerator's cabinet, six adjustable PVC-coated wire shelves hold as many as 152 six-packs of 12-ounce cans. If operators remove these shelves, they can hold four half-barrel kegs. LED lighting shines in the unit to increase product visibility. Providing strength and corrosion resistance, the exterior is made of wear-resistant black vinyl with aluminum on the back. Both the front and back have three solid doors, so the unit can be placed between the front and back of the house.

This True TBB-4PT three-section back bar cooler operates between 33 and 38 degrees Fahrenheit using R290 hydrocarbon refrigerant, which is more eco-friendly than traditional options. Its efficient fan motors reduce heat production and minimize energy consumption, and its evaporator has a corrosion-resistant epoxy coating. Since the condensing unit slides out from behind the front grill, operators have convenient access to the condensing unit.

Product Details

• Can hold (152) 6-packs of 12-oz. cans
• 6 black PVC-coated wire shelves adjust in ¹⁄₂-in. increments
• Holds 4 half-barrel kegs if the shelves are removed
• Interior LED lighting ensures stored items are visible
• Heavy-duty aluminum back and black vinyl front and sides on the exterior
• Interior has galvanized steel walls and a quick-cleaning stainless steel floor
• Door threshold is protected from impacts when kegs are loaded
• Foamed-in-place polyurethane insulation retains cold air

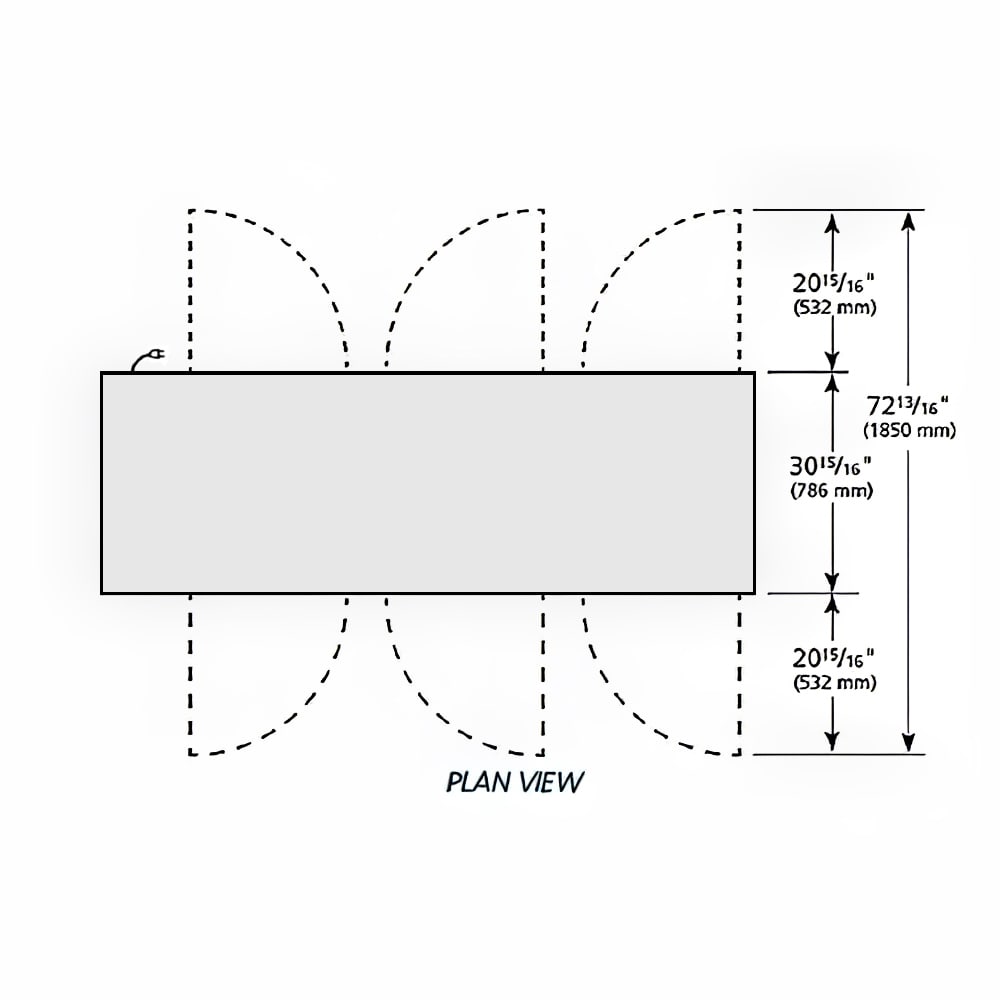

Pass-thru doors

• 3 doors on both the front and back create a convenient pass-thru design
• Laminated black vinyl matches the rest of the exterior
• 12-in. recessed handles
• Magnetic gaskets reduce cold-air leaks
• Locks reduce the risk of theft

Refrigeration System

• Temperature range: 33-38 degrees F
• Eco-friendly R290 hydrocarbon refrigerant
• Electronically commutated fan motors are designed to operate efficiently, reducing heat production and saving energy
• Condensing unit is accessible behind the front grille with a convenient slide-out design
• Evaporator has an epoxy coating that resists corrosion

Dimensions & Utilities

• 2 right and 2 left shelves: 23¹⁄₂ in. W x 21¹⁄₄ in. D
• 2 middle shelves: 28¹⁄₄ in. W x 21¹⁄₄ in. D

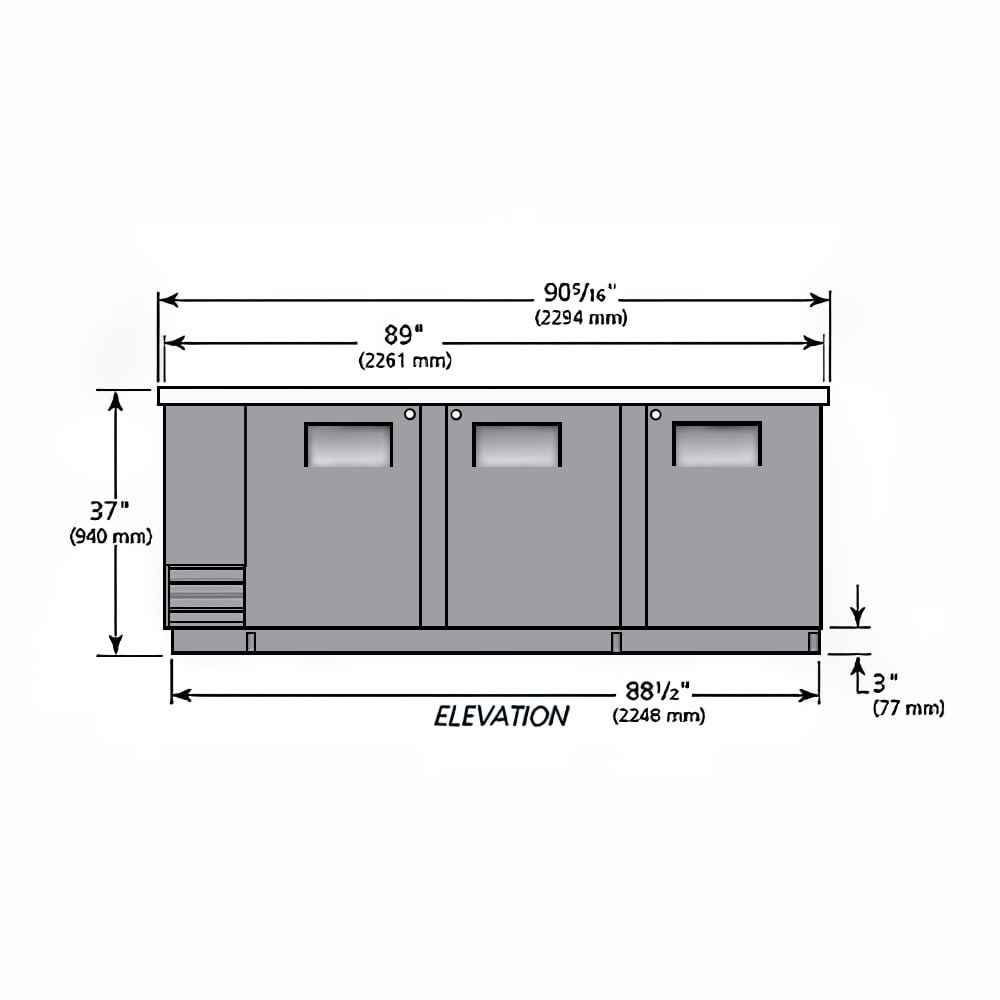

• Overall: 90³⁄₈ in. W x 31 in. D x 37 in. H
• 8.8 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TBB-4PT within the 48 contiguous states.

From The Manufacturer

Back Bar Cooler, pass-thru, three-section, 90-3/8"W, (152) 6-packs or (4) 1/2 keg capacity, (6) shelves, stainless steel top, (6) solid doors with locks, fluorescent interior lights, galvanized interior with stainless steel floor, black powder coated cold-rolled steel exterior, 1/2 HP, 115v/60/1-ph, 8.8 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TBB-4PT Specifications
