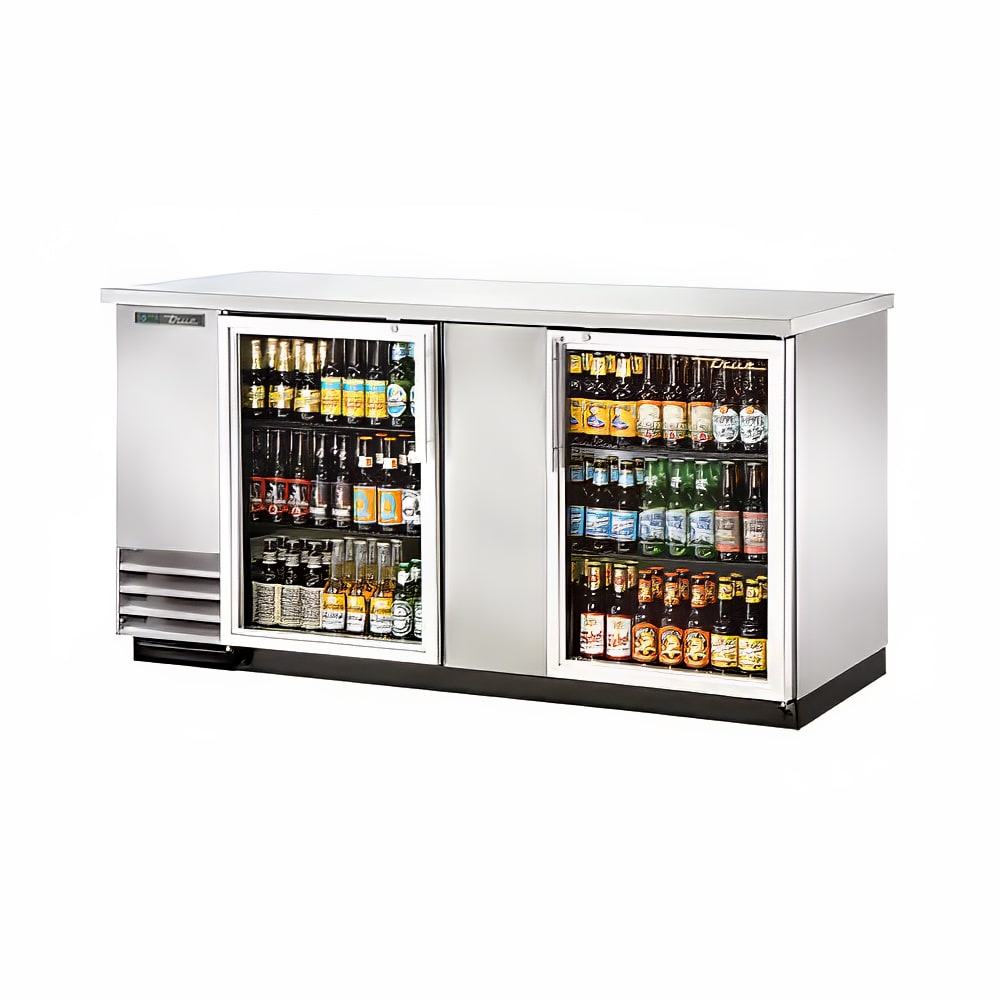

True TBB-3G-S-HC-LD 69" Bar Refrigerator - 2 Swinging Glass Doors, Stainless, 115v

The True TBB-3G-S-HC-LD back bar cooler is brightened by LED interior lights and has two low-e, double-pane glass doors. Both doors have magnetic gaskets to prevent cold-air leaks and 12-inch-long recessed handles for a sturdy grip. A door threshold protector prevents cabinet damage from product loading. Its walls are foamed with polyurethane insulation to retain temperatures and create structure, and its front, sides, and countertop are made of stainless steel with a matching aluminum back.

This True TBB-3G-S-HC-LD bar refrigerator can hold 112 six-packs of 12-ounce cans or three half-barrel kegs. It uses R290 hydrocarbon refrigerant, which is held in a self-contained capillary tube system, to keep temperatures between 33 and 38 degrees Fahrenheit. Its evaporator and condenser fan motors are electronically commutated to efficiently move air without using too much energy or creating too much heat.

To improve condensing coil performance, the reverse condensing fan motor blows in an opposite direction for 20 seconds each time the compressor is turned on. By removing buildup of dirt, dust, and debris, the coil can keep products cool with less energy uses. To ensure the coil is operating correctly, users should engage in preventive maintenance.

Product Details

• Accepts (112) 6-packs of 12-oz. cans or 3 half-barrel kegs
• 4 black, PVC-coated shelves with 4 chrome plate shelf clips for each shelf
• Double-paned thermal glass doors provide product visibility
• 12-in.-long recessed door handles maximize aisle space
• Magnetic gaskets snap into the door frame and seal cold air inside
• Door locks prevent theft and tampering
• LED lights illuminate interior

Refrigeration System

• Temperature holding range: 33-38 degrees F
• Self-contained capillary tube system uses R290 hydrocarbon refrigerant
• Condensing unit can be accessed from behind the front grille, sliding out for cleanup and maintenance
• Evaporator is coated in epoxy to resist corrosion
• Evaporator and condenser fan motors efficiently move air since they are electronically commutated
• Reverse condensing fan motor technology works alongside preventive maintenance to maintain a clean condensing coil

Cabinet Construction

• Stainless steel front, sides, and countertop resist corrosion and damage
• Aluminum exterior back matches the rest of the unit
• Stainless steel interior with ¹⁄₂-in. reinforced lip
• Stainless steel floor and heavy-gauge steel walls resist warping
• Polyurethane foam insulation retains temperatures and adds structure
• Door threshold protector prevents damage from loading and unloading product

Dimensions & Utilities

• 2 right shelves: 20³⁄₄ in. W x 19³⁄₈ in. D
• 2 left shelves: 31³⁄₄ in. W x 21¹⁄₄ in. D

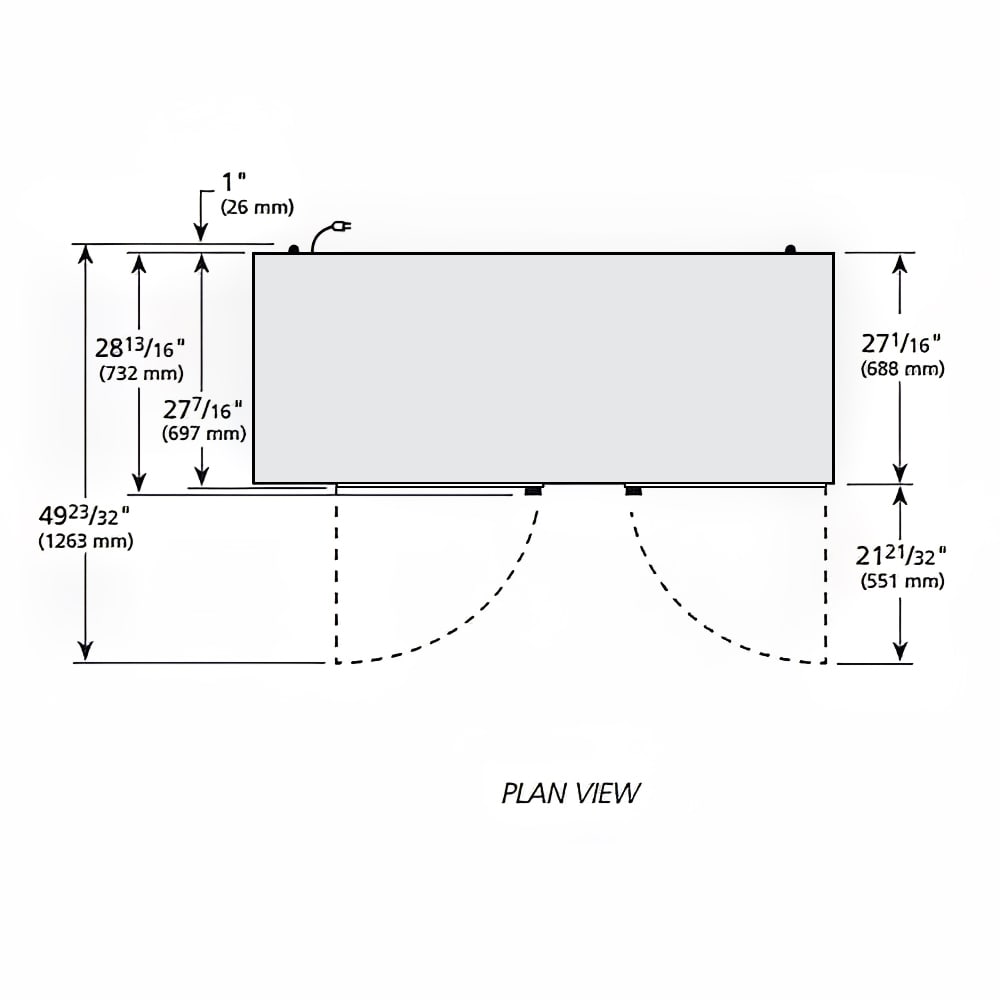

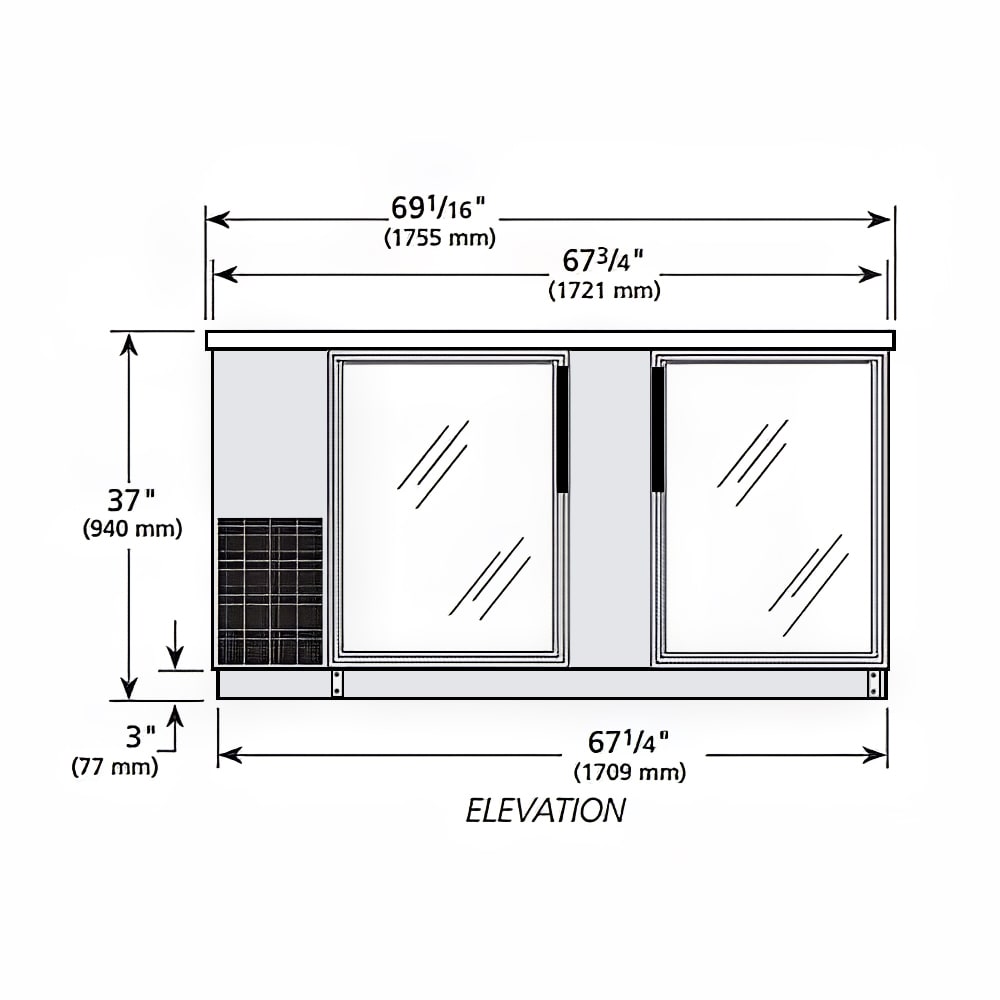

• Overall: 69¹⁄₈ in. W x 29⁷⁄₈ in. D x 37 in. H
• 2.8 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TBB-3G-S-HC-LD within the 48 contiguous states.

From The Manufacturer

Back Bar Cooler, two-section, 69-1/8"W, (112) 6-packs or (3) 1/2 keg capacity, (4) shelves, condensing unit on left, stainless steel top, (2) glass doors with locks, LED interior light, galvanized interior with stainless steel floor, stainless steel exterior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration TBB-3G-S-HC-LD Specifications

Documents

Spec Sheet

Warranty

Installation Guide

Product Info

Brochure
