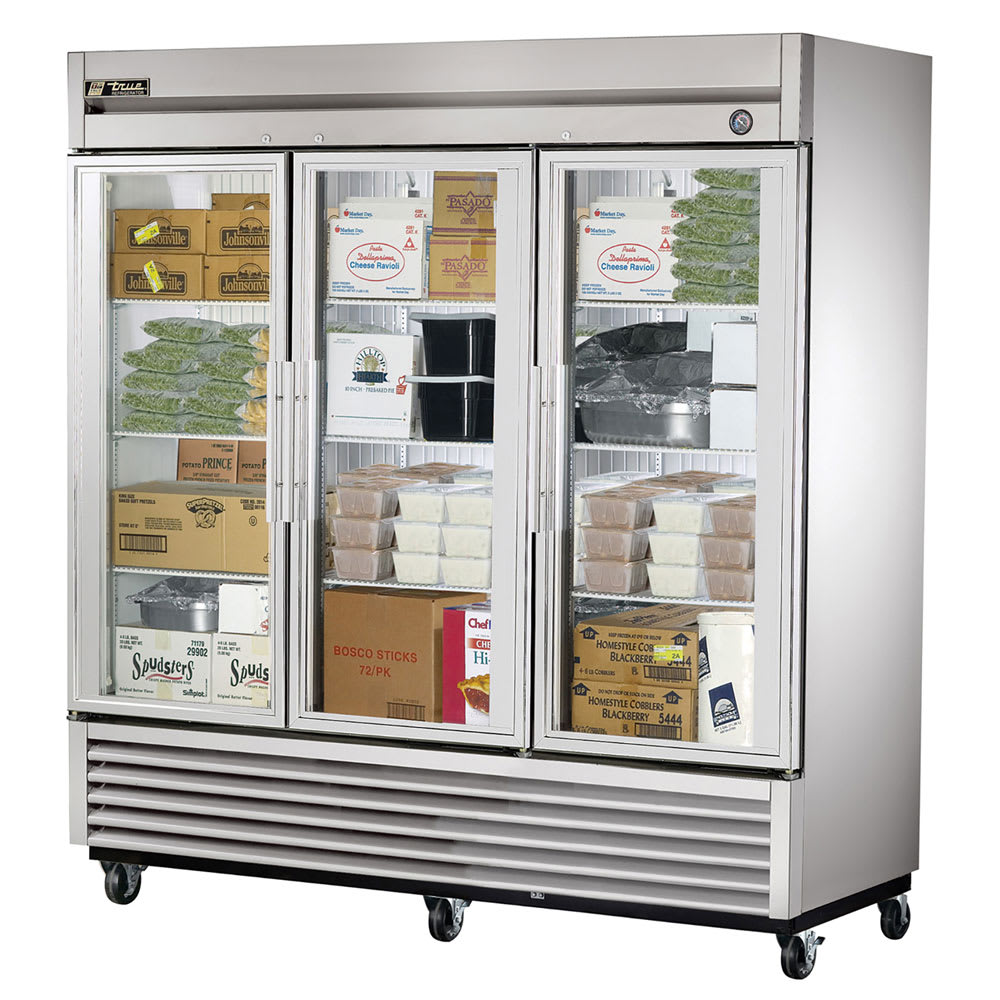

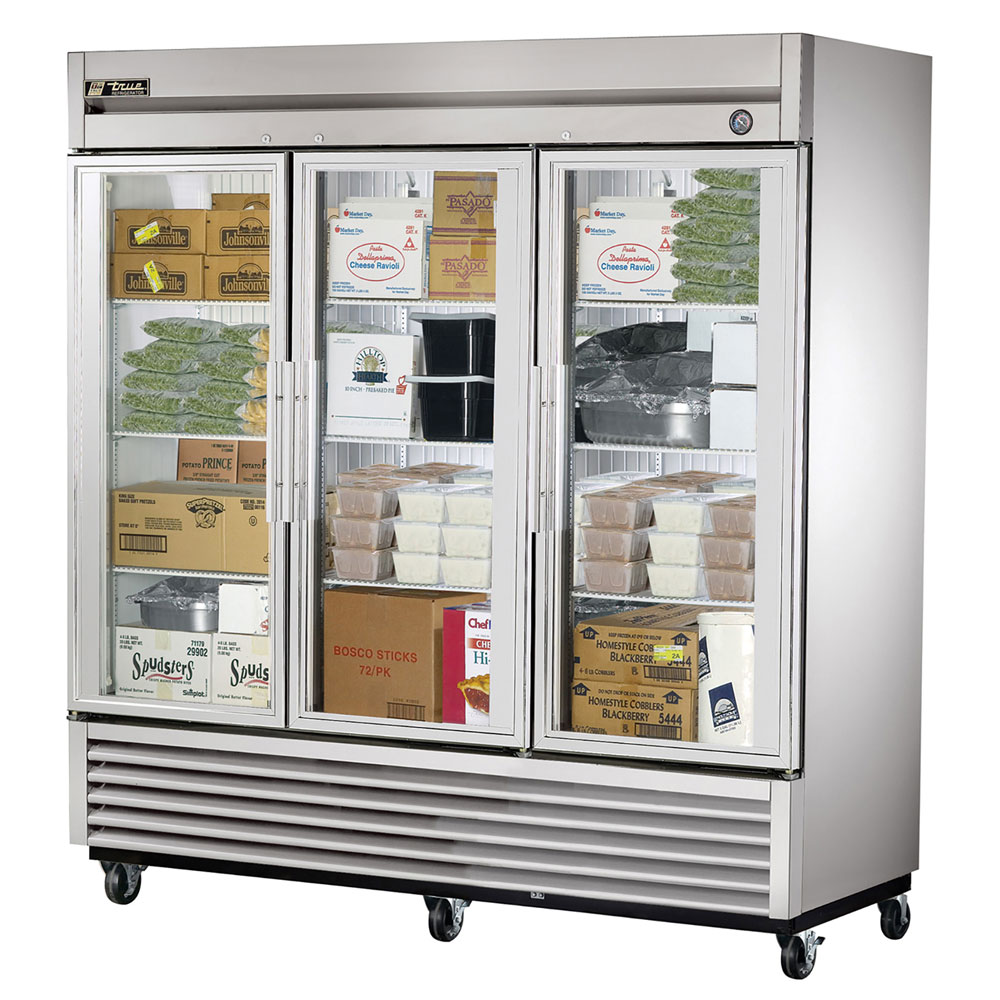

True T-72FG-HC~FGD01 78 1/8" T Series Three Section Reach In Freezer, (3) Left/Right Hinge Glass Doors, 115v

The True T-72FG-HC~FGD01 three-section freezer has triple-pane thermal glass doors that resist heat transfer so products remain visible without sacrificing energy efficiency. To further improve product visibility, the refrigerator cabinet is illuminated with energy-efficient LED lights. Its self-contained capillary tube system holds and regulates the flow of R290 hydrocarbon refrigerant, and each door has a 15-inch extruded handle for a comfortable grip.

Inside the True T-72FG-HC~FGD01 reach-in freezer, nine gray, PVC-coated shelves hold product. These shelves are adjustable along support pilasters in ¹⁄₂-inch increments and are mounted with durable chrome-coated shelf clips. Each door has a magnetic gasket that snap into the frame, creating an airtight seal. For movement, 4-inch-diameter castors are in place, the front set locking for safety. Its defrost cycle runs automatically at a set time and stops when a certain temperature is reached.

When it starts up, the condensing fan motor in this unit reverses for 20 seconds, blowing debris, dust, and dirt off the condenser coil. Because this coil is integral to how the system is functioning, cleaning it regularly promotes reliable, efficient operation. This automatic self-cleaning also helps to maintain the coldest, most consistent cabinet storage temperatures. Even though this reversing motor reduces energy consumption and extends the unit's lifespan, it doesn't eliminate the need for routine preventative maintenance.

Product Details

• Self-contained capillary tube system uses R290 hydrocarbon refrigerant
• Large evaporator coil is balanced with a powerful horsepower compressor and condenser coil to maintain temperatures with quick recovery
• Cabinet temperatures are kept uniform with large evaporator fans powered by sealed, cast-iron motors
• Reversing condenser fan motor blows dust and debris off coil
• Airflow guards in rear of cabinet ensure air can be distributed evenly throughout cabinet
• Condensing unit is located in the bottom of equipment for service and cleaning access
• Evaporator has been coated with epoxy to avoid rust
• Automatic defrost system initiates on a timer and terminates according to temperature to achieve the shortest cycle possible
• Stainless steel cabinet front matches an aluminum back, top, and ends
• NSF-approved, clear-coated aluminum liner finishes the cabinet interior to ease cleaning
• Cabinet is energy efficient with high-density polyurethane foam
• Rugged steel frame rail is welded and powder-coated black
• 4-in.-diameter castors simplify transportation
• Triple-pane thermal glass prevents heat from being transferred through door
• 15-in. extruded aluminum door handle is built for a long service life
• Doors are self-closing and form a positive seal for energy efficiency
• Gasket on door snaps in and out on magnets and is formed of one piece
• Staff can keep an eye on internal temperatures with exterior temperature display

Adjustable Shelves and Illuminated Storage

• Includes 9 adjustable wire shelves
• Shelves are coated in gray PVC to prevent corrosion and simplify cleaning
• Shelf support pilasters are made of clear-coated aluminum and allow shelves to be adjusted on ¹⁄₂-in. increments
• Interior LED lights illuminate held products so they're easy to identify and access

Dimensions & Utilities

• Shelves: 24¹⁄₈ in. W x 22³⁄₈ in. D
• Overall: 78¹⁄₈ in. W x 32¹⁄₈ in. D x 83³⁄₈ in. H
• 13 A, ³⁄₄ HP
• 115, 208-230 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug

*Free shipping on True Refrigeration T-72FG-HC~FGD01 within the 48 contiguous states.

From The Manufacturer

Freezer, reach-in, three-section, -10°F, framed glass door version 01, (3) glass doors, (9) PVC coated adjustable wire shelves, LED interior lighting, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1-ph, 13.0 amps, NEMA 5-20P, cULus, UL EPH Classified, Made in USA

*Image may not depict product color, inclusions or accessories.

True Refrigeration T-72FG-HC~FGD01 Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Compressor Location	Bottom
Cubic Feet	65.6
Depth (in)	31.13
Door Design	Full
Door Type	Glass
Height (in)	83.38
Hertz	60
Hinge Configuration	Left/Right
Interior Material	Aluminum
NEMA	5-20P
Phase	1
Product	Reach-In Freezers
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Sections	3
Series	T Series
Type	Reach In
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	78.13
Weight	805.00
