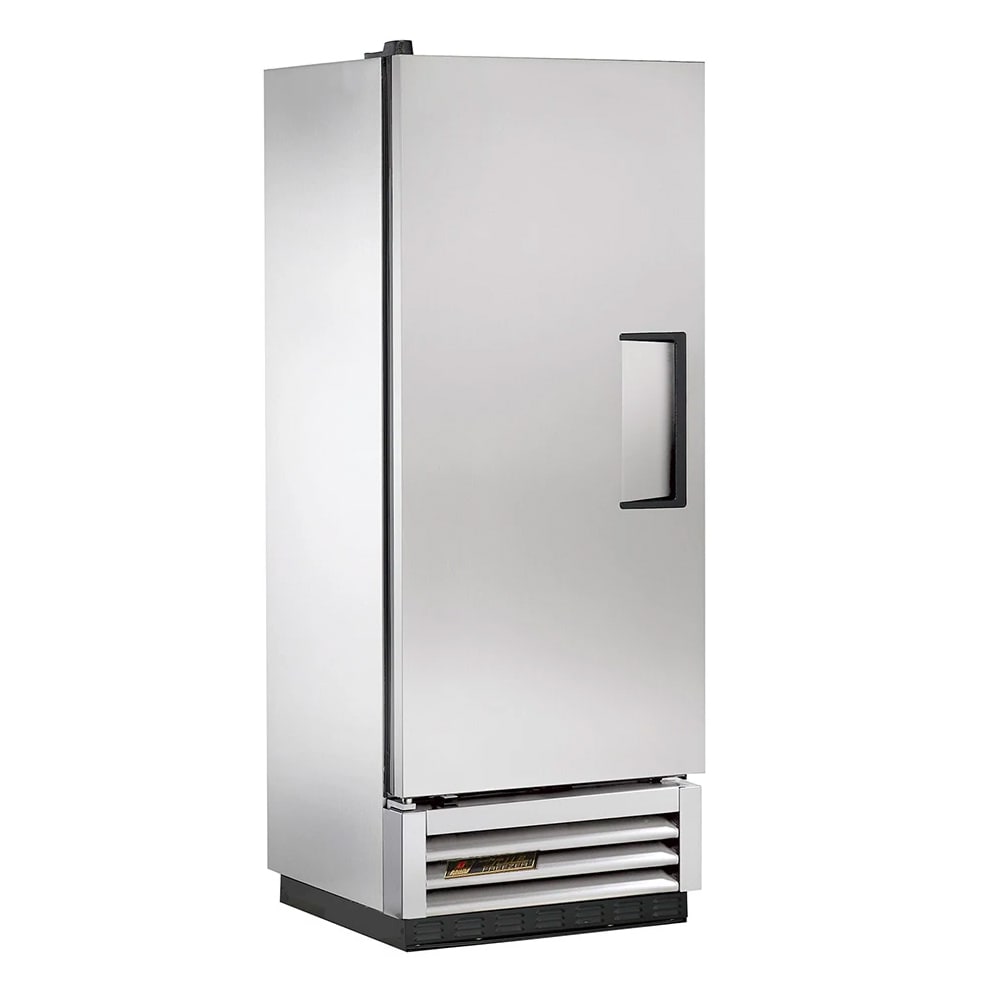

True T-12F-HC 24 7/8" T Series One Section Reach In Freezer, (1) Left Hinge Solid Door, 115v

The True T-12F-HC one-section reach-in freezer uses a capillary tube system and R290 hydrocarbon refrigerant to keep cabinet temperatures around -10 degrees Fahrenheit, which is ideal for holding both ice cream and frozen foods. Large fan blades move high volumes of air through the cabinet to ensure all products are evenly chilled. The condensing unit is mounted at the bottom for accessibility. To save energy, an automatic defrost system turns on at a set time and turns off after the ideal temperature is reached.

The condenser fan motor in this unit runs in reverse for 20 seconds when it turns on, removing debris, dirt, and dust from the condensing coil. With this component being so integral to system operation, cleaning it regularly ensures the system functions reliably and efficiently. This self-cleaning also helps to maintain cold and consistent storage temperatures while reducing energy consumption. Even though this reversing fan motor doesn't eliminate routine maintenance requirements, it should lengthen the life of the unit.

The exterior is constructed of aluminum and stainless steel for durability, and the clear-coat aluminum interior resists scratching and staining. Cold air is retained since the walls are insulated with foamed-in-place polyurethane. The stainless steel door closes by itself to prevent air from escaping, and magnetic gaskets around its frame reduce the risk of leaks. The door is hinged on the left and opens on the right. This True T-12F-HC freezer includes three PVC-coated shelves that are adjustable in ¹⁄₂-inch increments.

Product Details

• Cooled with an oversized and balanced capillary tube system
• Maintained temperature: -10 degrees F
• Uses R290 hydrocarbon refrigerant
• Condensing unit is located at the bottom of the freezer, putting it in the coolest part of the kitchen
• Even air flow is provided by condenser and evaporator fan motors
• Reversing fan motor at start up blows dust off coil
• Defrost system initiates automatically on a timer and terminates when the system reaches the appropriate temperature
• Evaporator is coated in epoxy to resist rust
• 3 gray, PVC-coated wire shelves
• Shelves adjust in ¹⁄₂-in. increments
• Interior lighting is safety shielded to protect stored products
• Airflow guards in the back of the cabinet prevent stored products from inhibiting airflow

Product Features

Cabinet Construction

• Stainless steel front with matching aluminum ends, top, and back
• Interior is built with an easy-to-clean, clear-coated aluminum liner
• Interior floor is made of stainless steel and has coved corners
• Refrigerator cabinet is insulated with foamed-in-place polyurethane insulation
• Heavy-duty steel frame rail is powder coated to resist corrosion
• Stainless steel door covers the entire front of the equipment
• 12-in. foamed-in-place handle is designed to stay attached for the life of the equipment
• Door is self-closing and forms a positive seal
• 1-piece magnetic door gasket can be removed without tools, making it easy to clean and replace
• Left-hinged door opens on the right

Dimensions & Utilities

• Shelves: 20¹³⁄₁₆ in. W x 17 in. D
• Overall: 24⁷⁄₈ in. W x 23¹⁄₈ in. D x 64¹⁄₈ in. H
• 4.5 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration T-12F-HC within the 48 contiguous states.

From The Manufacturer

Freezer, reach-in, one-section, -10°F, (1) solid door, (3) PVC coated adjustable wire shelves, interior lighting, stainless steel door, stainless steel front, aluminum sides, aluminum interior with stainless steel floor, leg levelers, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 4.5 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

True Refrigeration T-12F-HC Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Compressor Location	Bottom
Cubic Feet	11.3
Depth (in)	23.13
Door Design	Full
Door Type	Solid
Height (in)	64.13
Hertz	60
Hinge Configuration	Left
Interior Material	Aluminum
NEMA	5-15P
Phase	1
Product	Reach-In Freezers
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Sections	1
Series	T Series
Type	Reach In
Voltage	115
Warranty	7-year Parts & Labor; 7-year Compressor
Width (in)	24.88
Weight	170.00
