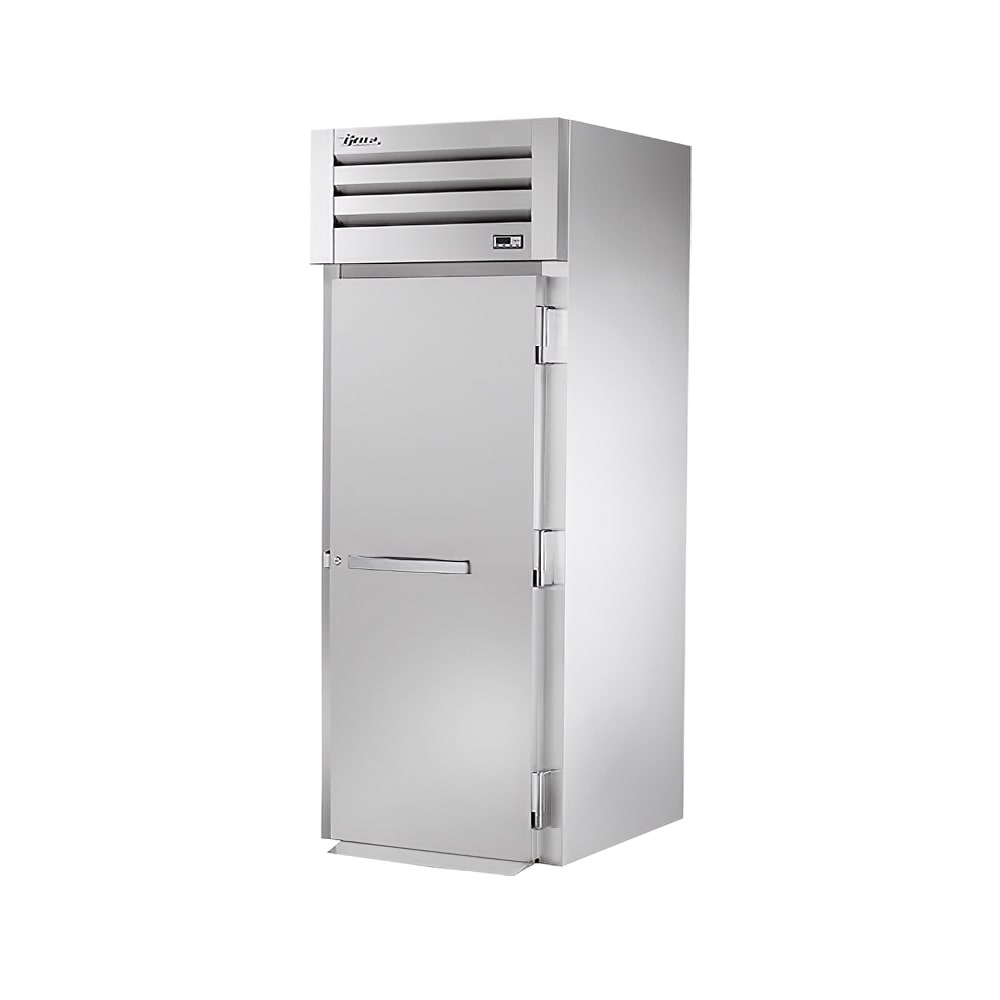

True STG1FRI-1S-HC 35" SPEC SERIES® One Section Roll In Freezer, 1 Right Hinge Solid Door, 115v
Typically ships in 6 - 8 weeks
$8,235.25 /Each
Selected Hinge: Right Hinge
True Refrigeration STG1FRI-1S-HC Description
The True STG1FRI-1S-HC SPEC SERIES® roll-in freezer is equipped with a heavy-gauge, stainless steel ramp for loading tray racks containing product, while the durable stainless steel exterior has corrosion-resistant aluminum sides. Interior side walls and back are constructed of aluminum, while the floor and ceiling are constructed of stainless steel. Bumpers protect the interior from damage that may occur when rolling in racks, and the door and cabinet are insulated with foamed-in-place polyurethane to seal in cold air. To remain open at a 120-degree angle, the self-closing door has a stay-open feature
The True STG1FRI-1S-HC roll-in freezer has a self-contained capillary tube system that uses environmentally friendly R290 refrigerant to ensure the unit maintains a temperature of -10 degrees Fahrenheit. Preventing an unauthorized user from tampering with the unit, the refrigeration system is top mounted. A time-initiated, temperature-terminated defrost system is automatic to prevent frost from gathering inside. For high-volume, low-velocity airflow throughout the unit, the sealed, cast iron evaporator fan motors are self-lubricated.
- Formerly Known As STG1FRI-1S
- Part of the SPEC SERIES
- Stainless steel exterior has aluminum sides
- Interior side walls and back are constructed of aluminum with a stainless steel floor and ceiling
- Cabinet and door are insulated with foamed-in-place, high-density polyurethane
- Interior bumpers protect unit from dents and scratches
- Unit receives roll-in racks measuring 27 in. W x 29 in. D x 66 in. H
- 1 heavy-gauge, stainless steel ramp for rack loading
- Self-closing door with stay-open feature
- 3 cam-lift door hinges per door section
- 1-piece, magnetic door gasket seals the door and removes for cleaning
- Incandescent interior lighting is safety shielded
- Unit is pre-wired
- Self-contained, factory-engineered capillary tube system
- Top-mounted refrigeration system is out of reach of unauthorized users
- Operating temperature: -10 degrees F
- Extra-large evaporator coil, a high horsepower compressor, and large condenser keep the unit cool
- Sealed, cast iron evaporator fan motors are self-lubricating with large fan blades for faster temperature recovery
- Uses R290 refrigerant
- Time-initiated, temperature-terminated automatic defrost system
- 35 in. W x 39 in. D x 84 in. H
- 12 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration STG1FRI-1S-HC within the 48 contiguous states.
From The Manufacturer
True Refrigeration STG1FRI-1S-HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Compressor Location | Top |
| Depth (in) | 38.88 |
| Door Design | Full |
| Door Type | Solid |
| Height (in) | 84.38 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Interior Material | Stainless/Aluminum |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| Rating | Spec |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | Spec Series® |
| Special Features | Auto Defrost |
| Type | Roll In |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
| Width (in) | 35 |
| Weight | 470.00 |
WARNING: Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
True Refrigeration STG1FRI-1S-HC True STG1FRI-1S-HC 35" SPEC SERIES® One Section Roll In Freezer, 1 Right Hinge Solid Door, 115v Current Item |
True Refrigeration STA1FRI-1S-HC True STA1FRI-1S-HC 35" SPEC SERIES® One Section Roll In Freezer, 1 Right Hinge Solid Door, 115v |
True Refrigeration STR1FRI-1S-HC True STR1FRI-1S-HC 35" SPEC SERIES® One Section Roll In Freezer, 1 Right Hinge Solid Door, 115v |
|
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $8,235.25 / Each | $9,596.97 / Each | $10,431.04 / Each | $10,448.27 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 6 - 8 weeks | |||
| Rating | Spec | Spec | Spec | Better |
| Sections | 1 | 1 | 1 | 1 |
| Compressor Location | Top | Top | Top | Top |
| Door Design | Full | Full | Full | Full |
| Door Type | Solid | Solid | Solid | Solid |
| Type | Roll In | Roll In | Roll In | Reach In |
| Width (in) | 35 | 35 | 35 | 33 |
| Special Features | Auto Defrost | Auto Defrost | Auto Defrost | Auto Defrost |
| Hinge Configuration | Right | Right | Right | Right |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Depth (in) | 38.88 | 38.88 | 38.88 | 36.13 |
| Height (in) | 84.38 | 84.38 | 84.38 | 84 |
| Warranty | 7-year Parts & Labor; 7-year Compressor | 7-year Parts & Labor; 7-year Compressor | 7-year Parts & Labor; 7-year Compressor | 7-year Limited Parts & Labor; 7-year Compressor Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
This roll-in freezer runs on 115 V, 60 Hz, single phase, and includes a NEMA 5-15P plug with a 9-foot cord.
It accommodates a roll-in rack up to 27 inches wide by 29 inches deep by 66 inches high.
The unit maintains approximately –10°F for frozen food storage.
The interior has aluminum side and back walls with a stainless steel floor and ceiling for durability and easy cleaning.
Yes. It uses a time-initiated, temperature-terminated automatic defrost cycle.
Yes. The self-closing door stays open at approximately 120° for easy loading and unloading.
Yes, it uses automatic defrost.
The cabinet temperature is monitored with a digital control system.
It requires 115V, 60 Hz, 1-phase power with a NEMA 5-15P connection.
The compressor is located at the top of the cabinet.
Yes, it uses R290 hydrocarbon refrigerant.
Yes, it has a self-closing door.
Yes, its doors include locks.
Yes, it accommodates a 27"W x 29"D x 66"H cart; the cart is not included.
Yes, it includes incandescent interior lighting.
