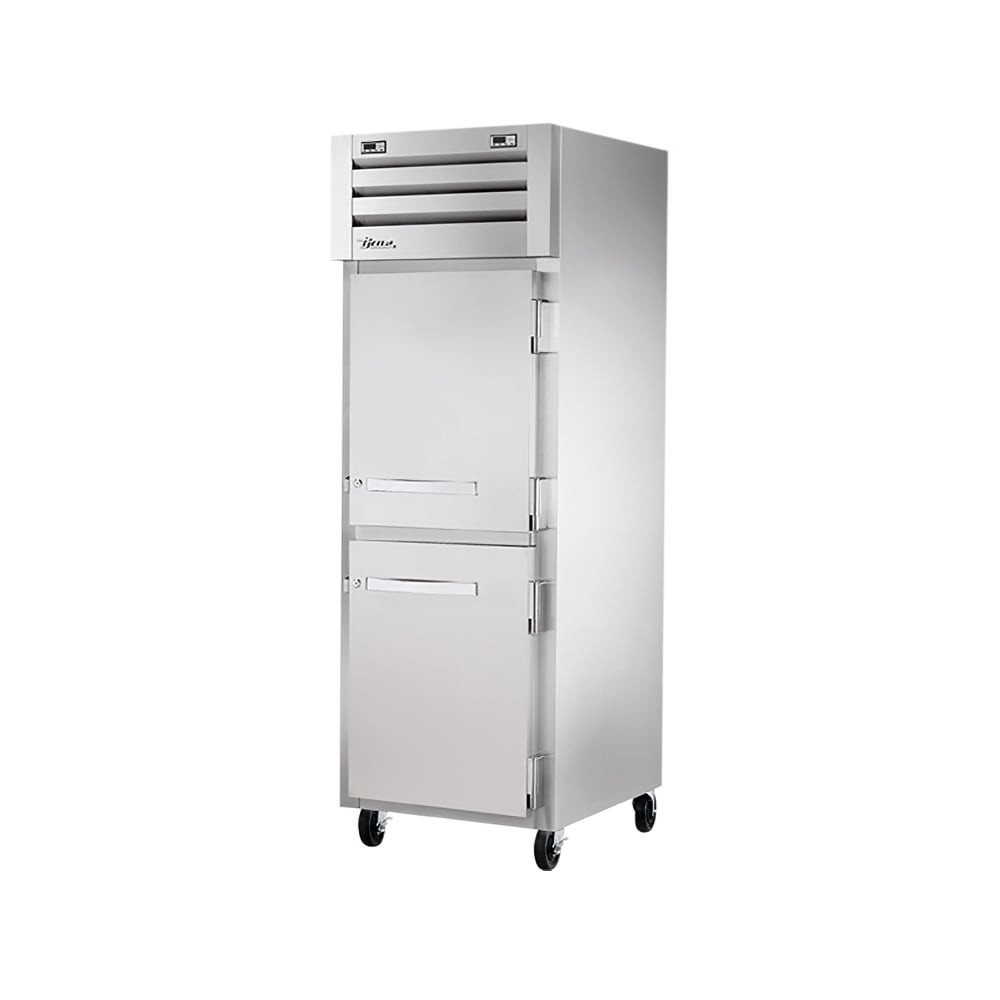

True STG1DT-2HS-HC 27 1/2" SPEC SERIES® One Section Commercial Combo Refrigerator Freezer - Solid Doors, Dual Temp, 115

The True STG1DT-2HS-HC single-section refrigerator freezer has six wire shelves with a corrosion-resistant epoxy coating, while LED lighting enhances visibility so operators can find the ingredients they need. Constructed of aluminum and stainless steel, the unit is strong and resistant to corrosion. Its doors are hinged on the right with durable handles on the left, and they can self-close or stay open past 120 degrees for loading or unloading.

This True STG1DT-2HS-HC one-section refrigerator freezer has one independently operating, self-contained refrigeration system for each section. These systems are top mounted to prevent debris on the floor from getting sucked in, and the refrigerator operates between 33 and 38 degrees Fahrenheit, while the freezer maintains a temperature of -10 degrees Fahrenheit. Each section has an external digital temperature display, and since the freezer's evaporator gets extremely cold, its defrost system removes frost that forms from condensation buildup. Defrost cycles begin on a timer and end when the temperature on the evaporator is low enough for optimal operation.

To ensure products remain cold, the reverse condensing fan motor automatically removes dirt and debris from the condensing coil. If employees perform maintenance regularly, this feature will increase the efficency and lifespan of the condensing coil and overall unit.

Product Details

• Top refrigerator section with a bottom freezer section
• 3 PVC-coated wire shelves per section
• LED lighting brightens the interior
• Aluminum interior walls, back, and exterior side walls
• Stainless steel interior floor and ceiling
• Right-hinged, stainless steel doors self-close to keep cold air inside the cabinets
• Doors stay open at 120 degrees
• 1-piece, removable magnetic door gaskets seal in cold air
• Polyurethane insulation is foamed in place to prevent cold air from leaking out
• 5-in. castors
• Part of the Spec Series®

Refrigeration Systems

• Independently operating, self-contained refrigeration systems for each section
• Electrically commutated evaporator and condenser fan motors efficiently move a consistent volume of air
• Reversing fan motor blows excess dust and debris off the condensing coil
• Top-mounted system stays away from dirt and debris on the floor
• Time-initiated, temperature-terminated defrost system for the freezer
• R134A refrigerant
• Freezer operating temperature: -10 degrees F
• Refrigerator temperature range: 33-38 degrees F
• 2 exterior digital temperature displays

Dimensions & Utilities

• 27¹⁄₂ in. W x 35¹⁄₄ in. D x 84¹⁄₈ in. H
• 6.4 A, ¹⁄₁₀ refrigerator HP, ¹⁄₃ freezer HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration STG1DT-2HS-HC within the 48 contiguous states.

From The Manufacturer

SPEC SERIES® Refrigerator/Freezer, reach-in, one-section, (2) stainless steel half doors, locks, cam-lift hinges, digital temperature control, (3) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, R 1/10HP, F 1/4HP, 115v/60/1-ph, 3.7 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration STG1DT-2HS-HC Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
