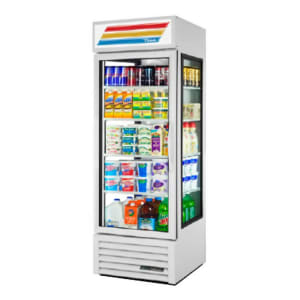

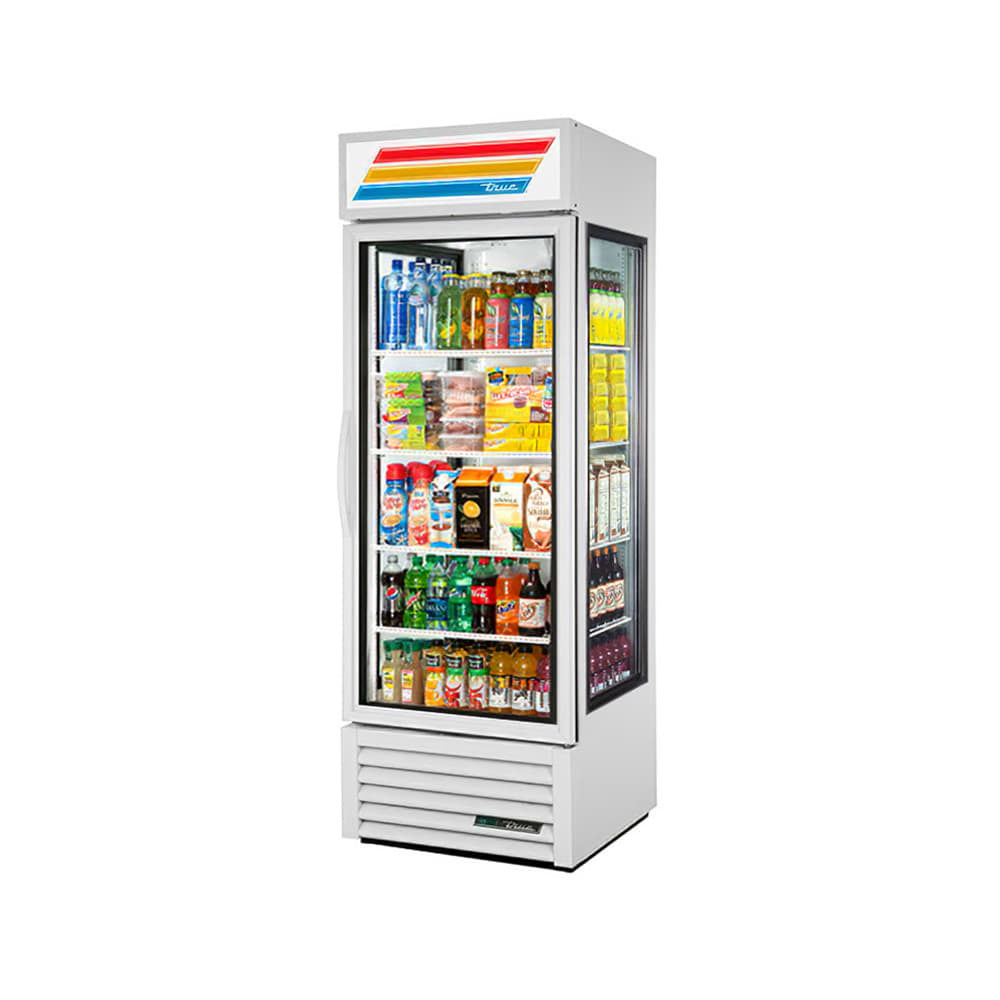

True GEM-23-HC~TSL01 27 1/2" GEM Series One Section Glass Door Merchandiser - 1 Right Hinge Door, White, 115v
$5,398.20 /Each
Selected Color: White
Selected Hinge: Right Hinge
True Refrigeration GEM-23-HC~TSL01 Description
The True GEM-23-LD glass end merchandiser is great for placing food and beverages on the end of aisles, checkout stations, and walls. Temperatures range from 33 to 38 degrees Fahrenheit and are maintained by environmentally friendly R290 hydrocarbon refrigerant. This refrigeration system is mounted on the bottom of the cabinet, so it can be accessed for maintenance easier than a top-mounted system. Condenser and evaporator fan motors create consistent airflow that produces less heat and uses less energy.
Upon compressor start up, the fan motor reverses direction for the first 20 seconds to rid the condensing coil of dust and dirt. When the condensing coil is properly cleaned, the unit operates with increased efficiency and reduced energy consumption. Ensuring the best results, employees should maintain the coil regularly.
The exterior of this merchandiser is white powder coated, which provides corrosion resistance and fits into most settings. A white aluminum interior liner brightens the cabinet so products are visible, and the floor in the cabinet is stainless steel to simplify cleaning. Cold air is retained since the entire cabinet has foamed-in-place polyurethane insulation. To see products without opening, the glass door is double paned with thermal insulation, and the sides are also made of glass. Sealing in cold air and removable for cleaning, the True GEM-23-LD glass end merchandiser has a magnetic gasket
- 4 PVC-coated wire shelves are adjustable in 1⁄2-in. increments
- LED interior lights ensure displayed items are visible
- White powder-coated exterior resists chipping, peeling, and corrosion
- White aluminum liner brightens the interior
- Stainless steel interior floor simplifies cleanup
- Polyurethane insulation retains cold air and provides cabinet structure since it is foamed in place
- Black powder-coated frame rail resists corrosion
- Double-pane, thermal-insulated glass on the door and sides provides product visibility
- 12-in. PVC handle
- Magnetic gasket on the door removes for cleaning
- Exterior sign panel lights up to attract customers
- R290 hydrocarbon refrigerant is environmentally friendly
- Temperature range: 33-38 degree F
- Evaporator is coated in epoxy for resistance to corrosion
- Consistent air volume is created by the condenser and evaporator fan motors so less heat is produced and energy is reduced
- Condensing fan motor reverses upon compressor start up to remove dust from the condensing coil
- Refrigeration system is mounted on the bottom of the cabinet, providing convenient maintenance access
- Shelves: 22 9⁄16 in. W x 23 1⁄4 in. D
- Overall: 27 1⁄2 in. W x 31 1⁄2 in. D x 78 5⁄8 in. H
- 5.4 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration GEM-23-HC~TSL01 within the 48 contiguous states.
From The Manufacturer
True Refrigeration GEM-23-HC~TSL01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Color | White |
| Compressor Location | Bottom |
| Cubic Feet | 20.62 |
| Depth (in) | 31.51 |
| Door Design | Swing |
| Door Type | Glass |
| Height (in) | 78.63 |
| Hertz | 60 |
| Hinge Configuration | Right |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Display Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | GEM Series |
| Special Features | LED Lighting |
| Special Features | Self Contained |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
| Width (in) | 27.5 |
| Weight | 335.00 |
WARNING: Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
True Refrigeration GEM-23-HC~TSL01 True GEM-23-HC~TSL01 27 1/2" GEM Series One Section Glass Door Merchandiser - 1 Right Hinge Door, White, 115v Current Item |
True Refrigeration GEM-23-HC~TSL01 |
|---|---|---|
| Customer Rating |
|
|
| Price | $5,398.20 / Each | $5,398.20 / Each |
| Shipping | Free Shipping | Free Shipping |
| Sections | 1 | 1 |
| Door Design | Swing | Swing |
| Width (in) | 27.5 | 27.5 |
| Rating | Better | Better |
| Cubic Feet | 20.62 | 20.62 |
| Series | GEM Series | GEM Series |
| Special Features | LED Lighting | LED Lighting |
| Depth (in) | 31.51 | 31.51 |
| Color | White | Black |
| Voltage | 115 | 115 |
| Height (in) | 78.63 | 78.63 |
| Hinge Configuration | Right | Right |
| Warranty | 7-year Parts & Labor; 7-year Compressor | 7-year Parts & Labor; 7-year Compressor |
- 5
- 4
- 3
- 2
- 1
Review this product!
Yes, the shelves can be repositioned for different product heights.
Yes, it includes an illuminated sign panel.
It plugs in with a 5-15P plug and runs on 115V power.
Yes, evaporator fan motors circulate air through the cabinet.
It uses swing doors.
LED lighting illuminates the cabinet interior.
It includes 4 shelves.
It provides 20.62 cu. ft. of refrigerated capacity.
Yes, it has a self-contained refrigeration system.
The glass doors use Low-E double-pane glass with thermal insulation to reduce heat transfer.
The refrigeration system uses R290 (Hydrocarbon).
It is UL EPH Classified.
It maintains temperatures from 33-38°F.
The door hinge configuration is right.
