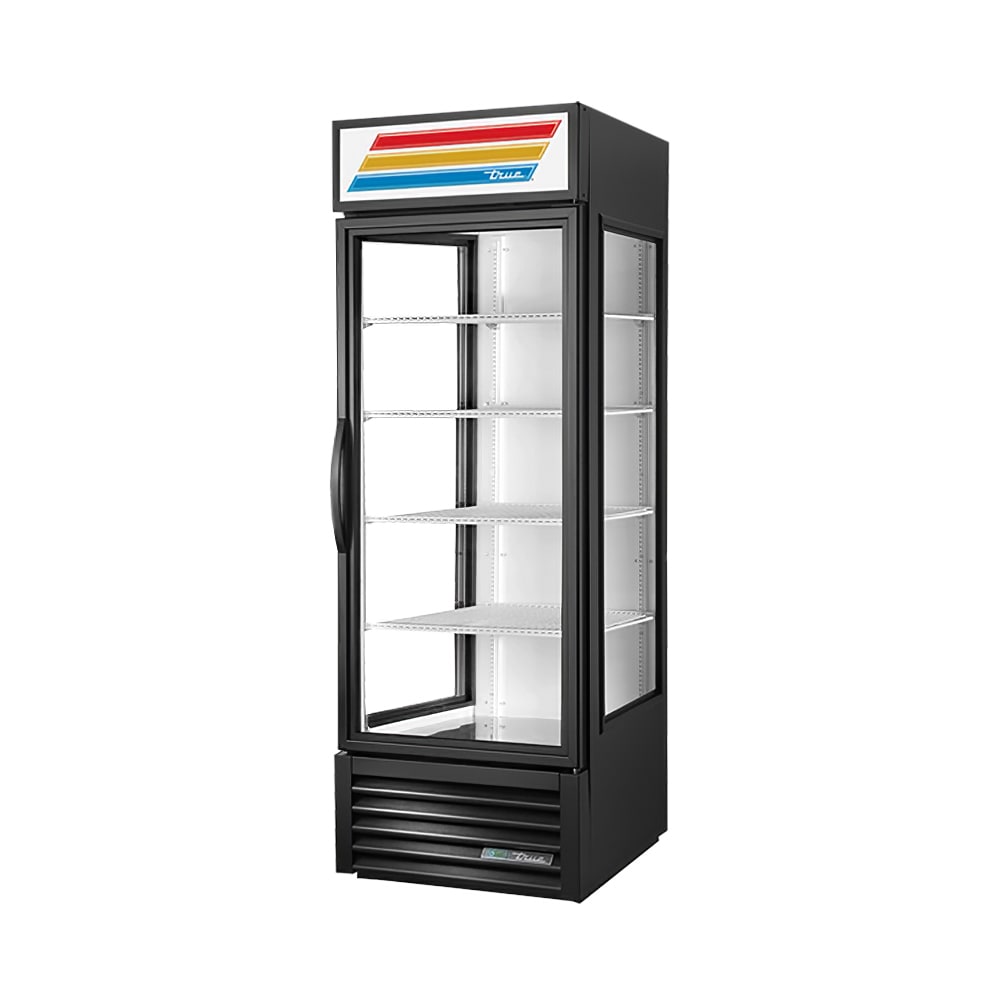

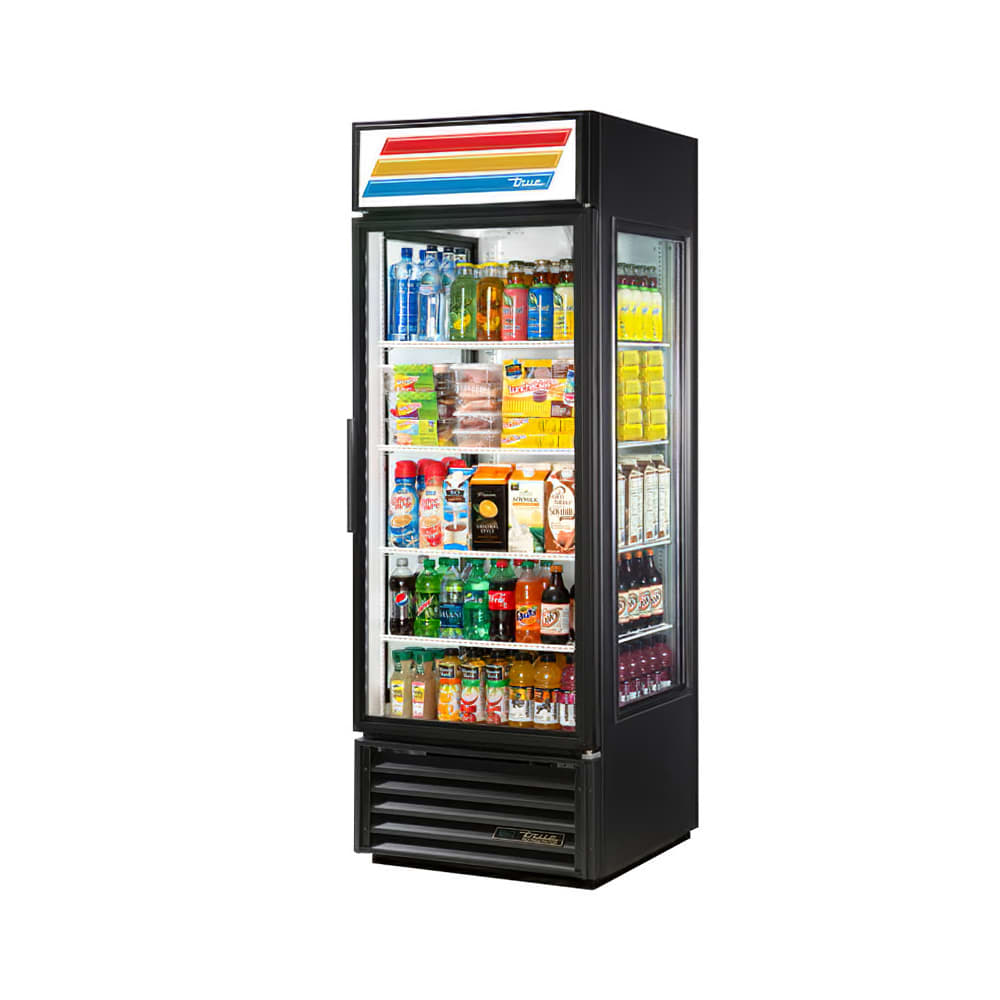

True GEM-23-HC~TSL01 27 1/2" GEM Series One Section Glass Door Merchandiser - (1) Right Hinge Door, Black, 115v
Typically ships in 10 - 12 weeks
$5,398.20 /Each
Selected Color: Black
True Refrigeration GEM-23-HC~TSL01 Description
The True GEM-23-HC~TSL01 glass end merchandiser has a bottom-mounted refrigeration system, meaning it operates in the coolest area of a kitchen. This bottom-mounted system is also more accessible for maintenance than a top-mounted system, while condenser and evaporator fan motors create a consistent volume of air so heat production and energy consumption is reduced. Temperatures in the cabinet range from 33 to 38 degrees Fahrenheit with R290 hydrocarbon refrigerant.
When used alongside regular maintenance, the reverse condensing fan motor increases the unit's efficiency and lifespan. After the compressor is turned on, the fan motor reverses to reduce the accumulation of dust and debris from the condensing coil. This self-cleaning feature ensures the unit keeps stored product cold.
With a white aluminum interior and LED interior lights, the cabinet is bright so products are visible to customers. Glass sides and a double-pane glass door on the front provide product visibility, while four PVC-coated wire shelves resist corrosion and hold products. These shelves are adjustable in 1⁄2-inch increments to accommodate various product heights, and the True GEM-23-HC~TSL01 glass door merchandiser has magnetic gaskets on the door to help prevent cold air from leaking out.
- 4 wire shelves are adjustable in 1⁄2-in. increments and resist corrosion since they are PVC coated
- Products are fully visible with LED interior lights
- Black powder-coated exterior is durable
- White aluminum liner resists corrosion and adds strength
- Interior floor is constructed of stainless steel to facilitate cleaning
- Foamed-in-place polyurethane insulation retains cold air
- Black powder-coated frame rail resists corrosion
- Products are visible through the thermal-insulated, double-pane glass door and sides
- 12-in. door handle
- Removable, magnetic door gasket seals in cold air
- Illuminated sign panel attracts customers
- Eco-friendly R290 hydrocarbon refrigerant
- Temperature range: 33-38 degrees F
- Epoxy-coated evaporator is corrosion resistant
- Condenser and evaporator fan motors create a consistent volume of air for less heat production and less energy consumption
- Condensing coil cleaned with a reverse condensing fan motor
- Servicing is convenient since the system is mounted on the bottom of the cabinet
- Shelves: 22 9⁄16 in. W x 23 1⁄4 in. D

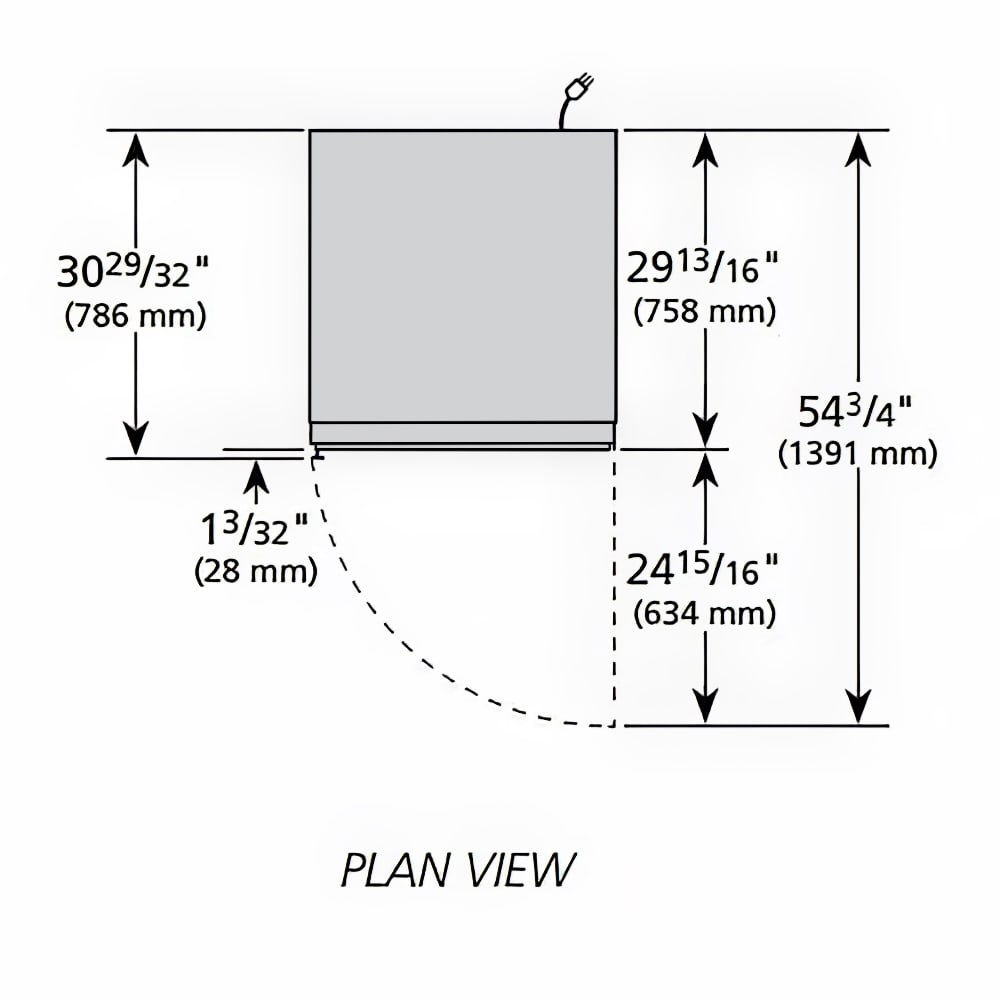

- Overall: 27 1⁄2 in. W x 31 1⁄2 in. D x 78 5⁄8 in. H
- 5.4 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration GEM-23-HC~TSL01 within the 48 contiguous states.
From The Manufacturer
Glass End Merchandiser, one-section, True standard look version 01, (4) shelves, (2) Low-E thermal glass sides & (1) hinged door, LED interior lights, powder coated exterior, white aluminum interior liner with stainless steel floor, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 5.4 amps, NEMA 5-15P, cULus, UL EPH Classified
True Refrigeration GEM-23-HC~TSL01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Color | Black |
| Compressor Location | Bottom |
| Cubic Feet | 20.62 |
| Depth (in) | 31.51 |
| Door Design | Swing |
| Door Type | Glass |
| Height (in) | 78.63 |
| Hertz | 60 |
| Hinge Configuration | Right |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Display Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | GEM Series |
| Special Features | LED Lighting |
| Special Features | Self Contained |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor Parts |
| Width (in) | 27.5 |
| Weight | 335.00 |
