True Refrigeration GDM-49-HC~TSL01 Description

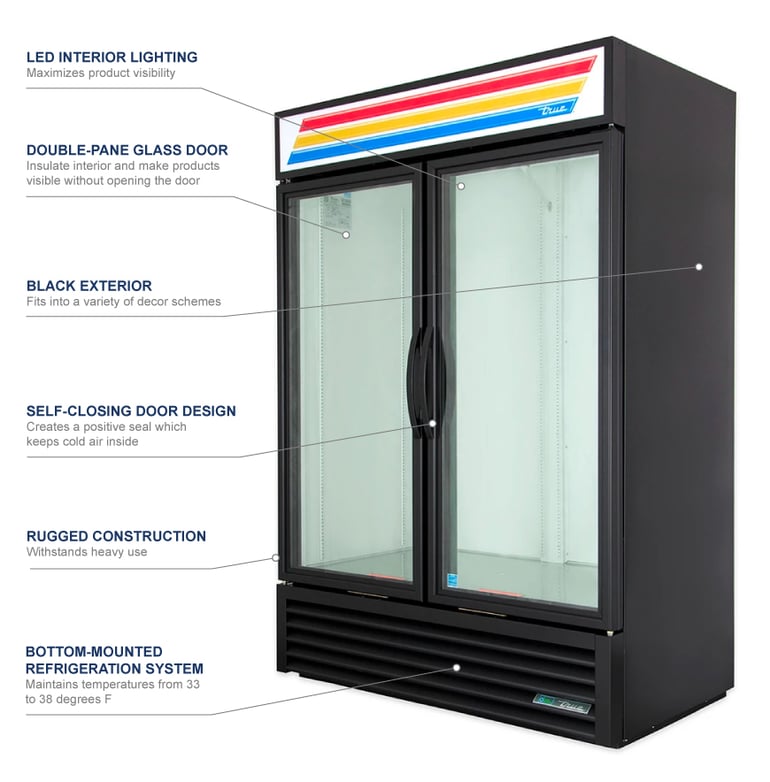

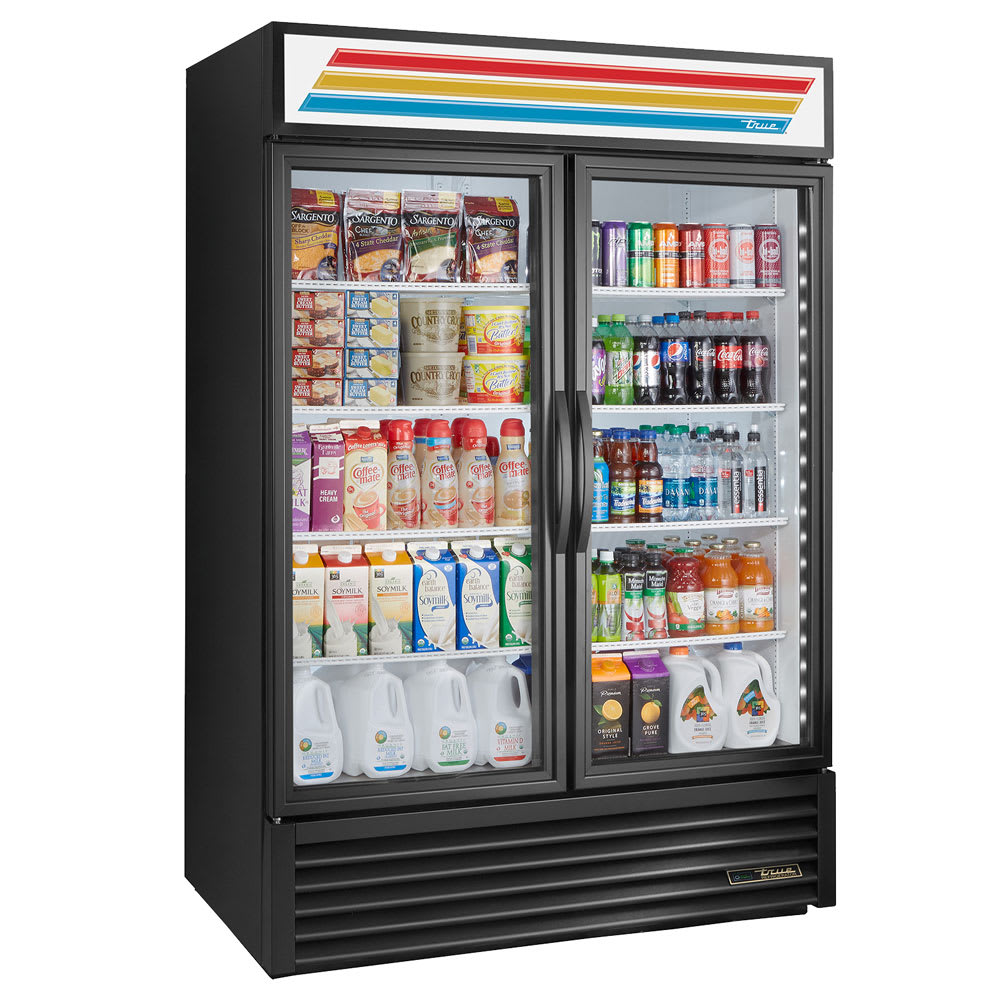

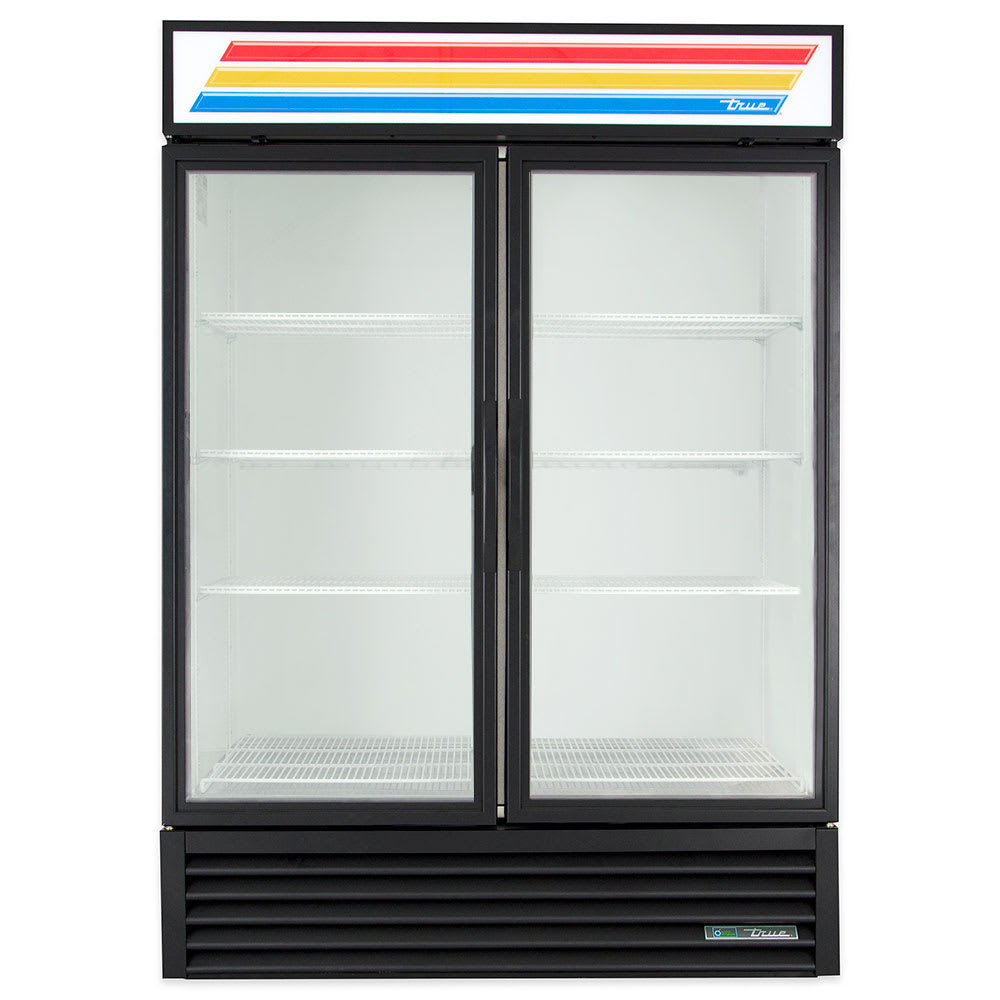

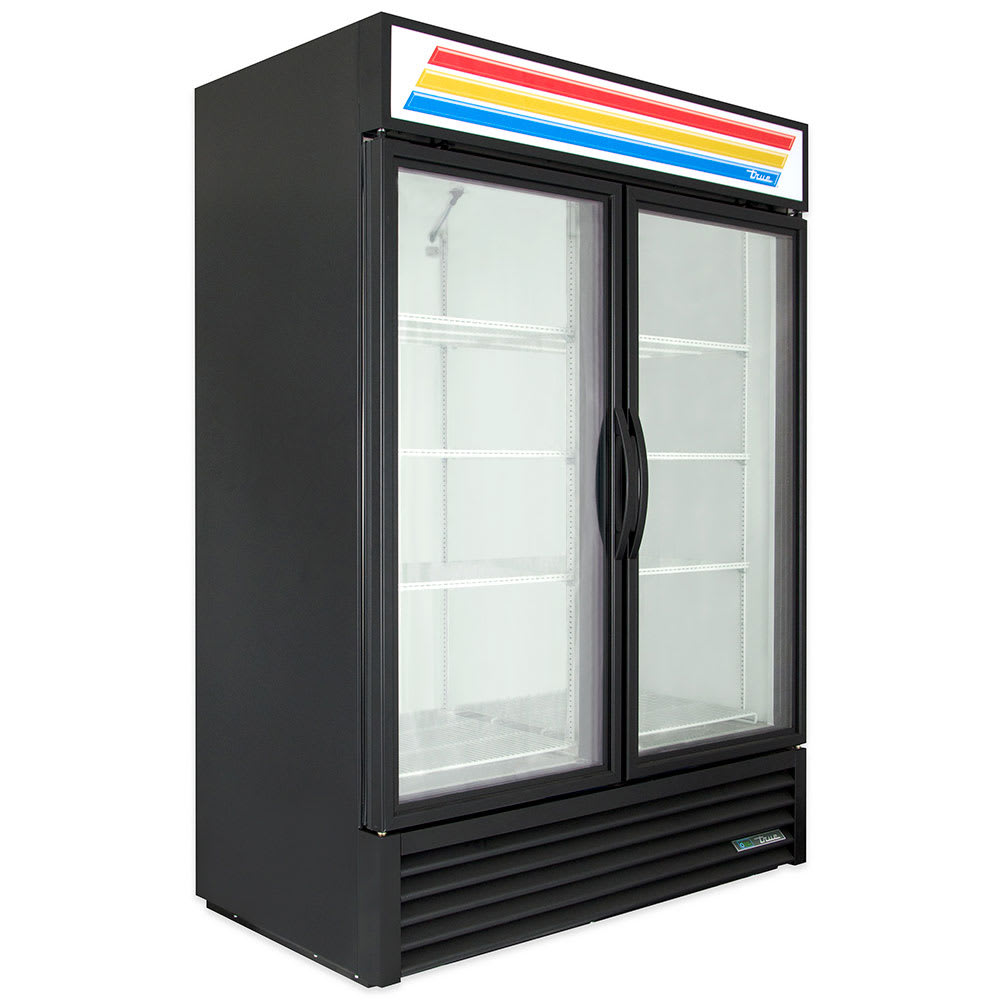

The True GDM-49-HC~TSL01 two-section glass door merchandiser is built with two swinging glass doors, each of which are constructed with double-pane, thermal-insulated glass that prevents heat from passing through to maintain energy efficiency. Each of these doors is fitted with an extruded, contoured handle that provides a comfortable grip so that they open smoothly when a customer or operator needs to reach the contents. Magnetic door gaskets prevent cold air from escaping the cabinet and can be removed for cleaning and replacement.
The condensing unit is mounted in the bottom of the unit, a setup that enables critical components to operate in the coolest, most grease-free part of the kitchen to prevent premature failure. This design also lifts the merchandiser's bottom shelf off the ground so that items are within customers' reach. The True GDM-49-HC~TSL01 black merchandiser's capillary tube system maintains temperatures from 33 to 38 degrees Fahrenheit, which is the optimal range to keep chilled food fresh and safe. Environmentally friendly R290 hydrocarbon refrigerant keeps these temperatures cool. Since the evaporator and condenser fan motors provide high-volume airflow, less heat is produced and less energy is consumed.
Product Details

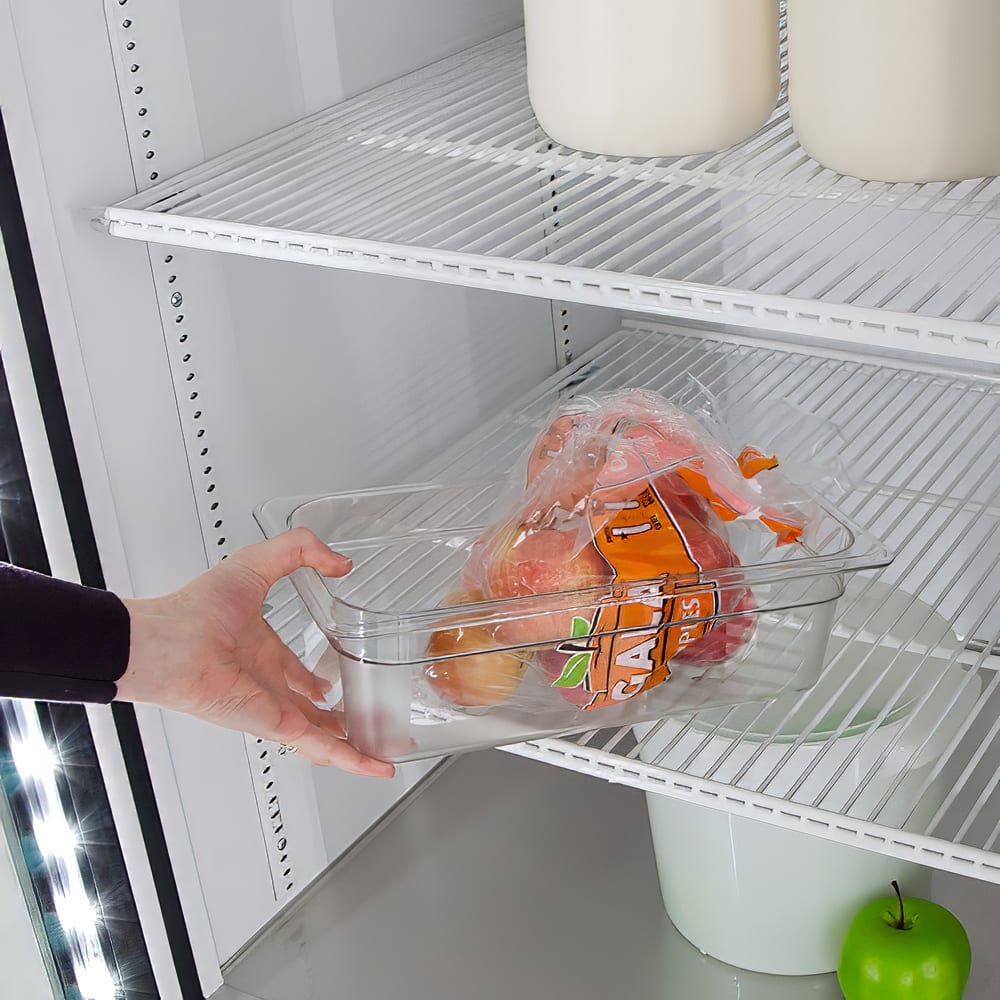

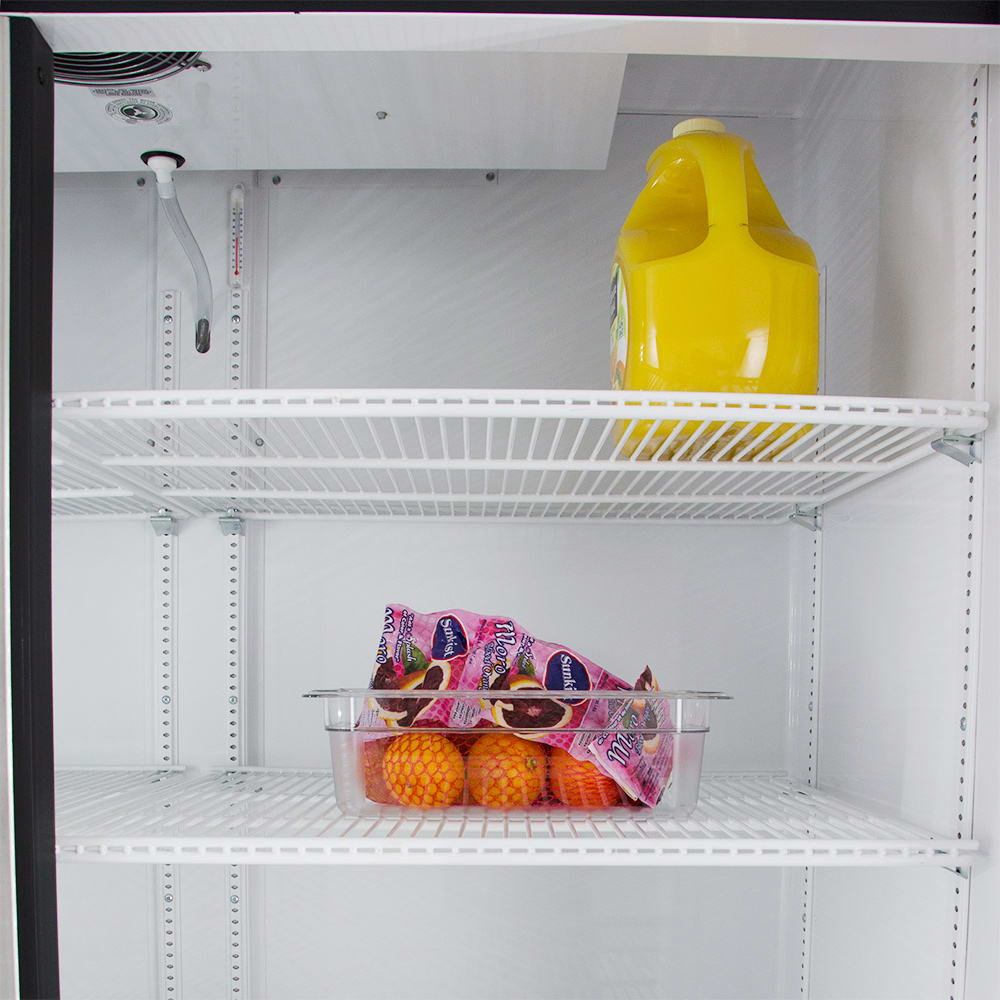

- 8 PVC-coated wire shelves can be adjusted in 1⁄2-in. increments along the interior aluminum pilasters

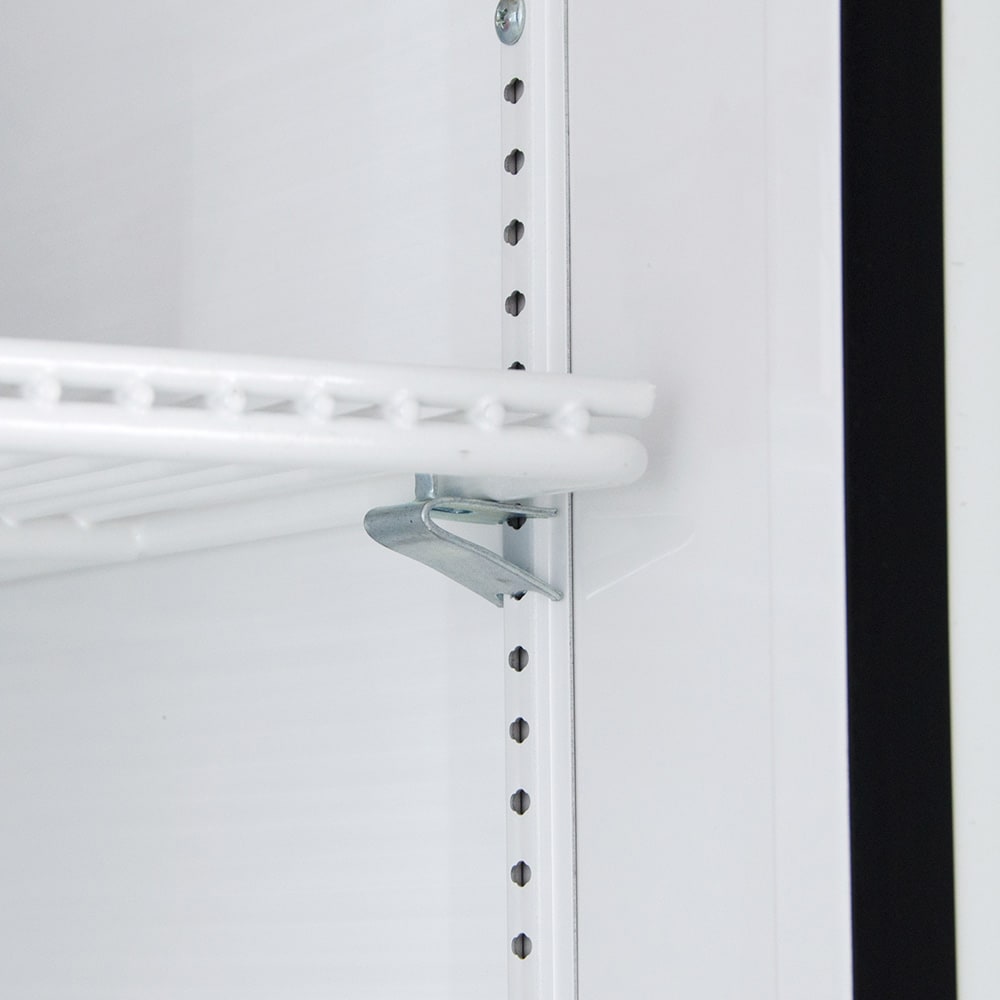

- 4 chrome-plated shelf clips per shelf
- Lower shelf is slightly raised so that products are viewable
- Black powder-coated exterior is durable and permanent
- White aluminum interior will not peel or chip
- Stainless steel floor has coved corners that support cleanup
- Cabinet is insulated with foamed-in-place polyethylene for superior energy efficiency
- Heavy-duty steel frame rail is welded and powder coated for durability and resistance to rust
- Leg levelers that are equipped to the frame rail provide level installation
- Illuminated sign panel can be fitted with a number of available signs (each sold separately)
- LED lighting clearly illuminates held products, creating an attractive display

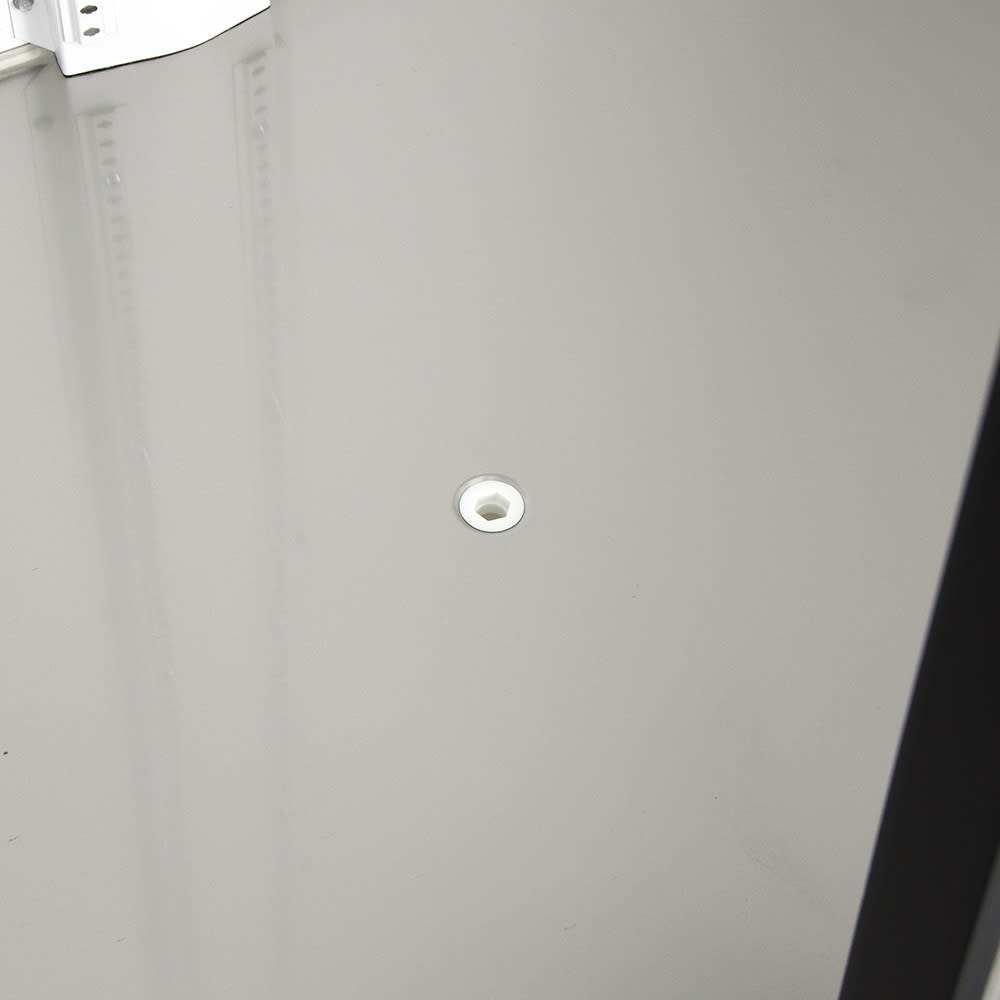

- Clean-out drain is built into the cabinet floor so that the equipment can be hosed clean
- Meets NSF-7 standards for storing packaged and bottled products
- cULus and UL-EPH listed; ENERGY STAR certified
- Made with innovation in the U.S.
Product Features
Reliable Refrigeration
- Temperature range: 33-38 degrees F

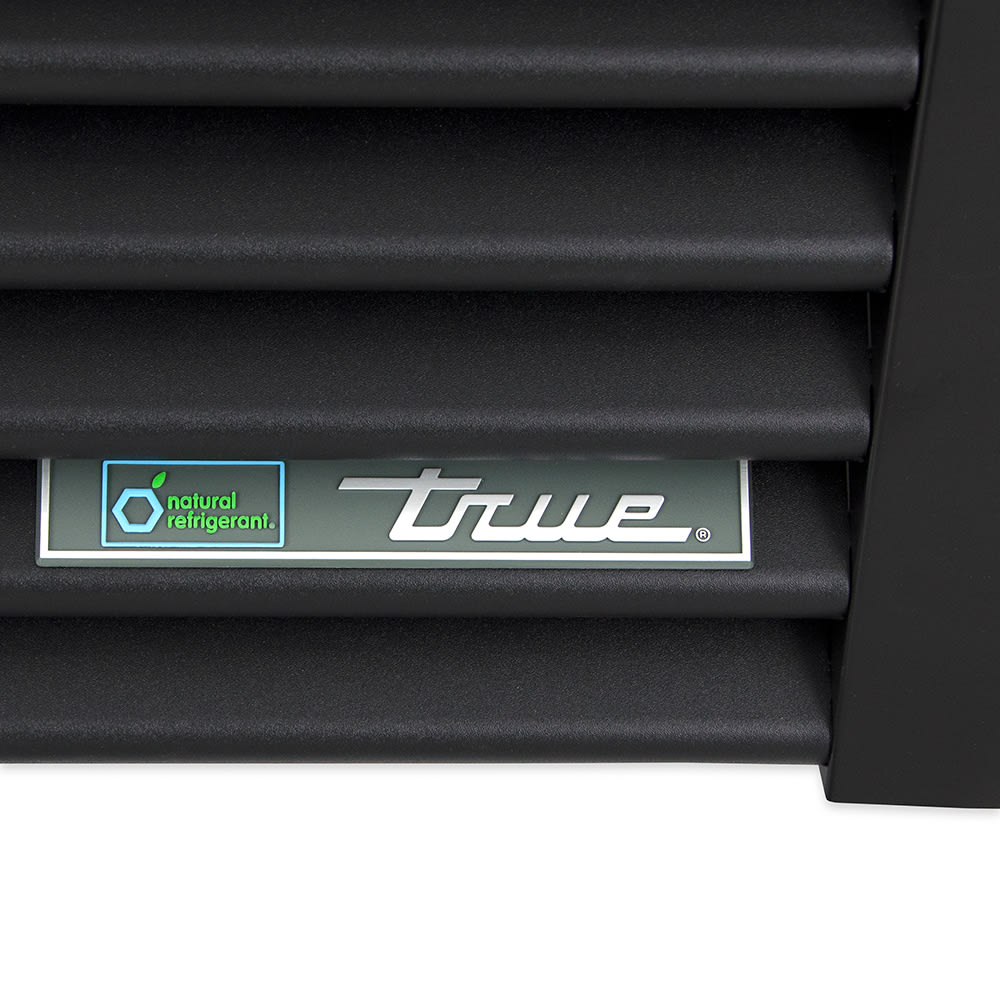

- Capillary tube refrigeration system uses natural R290 hydrocarbon refrigerant, which is a safe, environmentally friendly alternative to manmade chemicals
- Electronically commutated motors power the evaporator and condenser fans, providing greater consistency and improved energy efficiency compared to traditional technologies
- Epoxy-coated evaporator will not rust

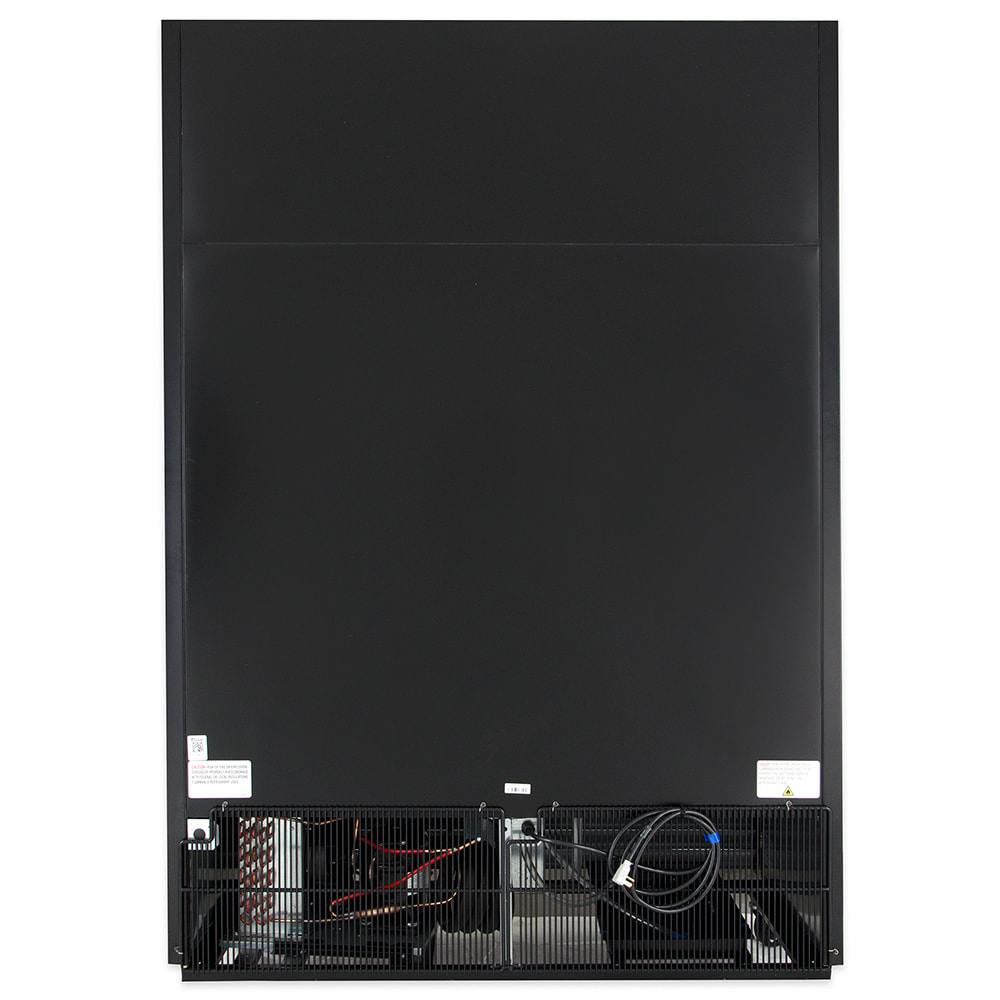

- Bottom-mounted condensing unit can be maintained without difficulty
Energy-efficient Thermal Doors
- Double-pane, thermal-insulated glass prevents exterior heat from warming the interior

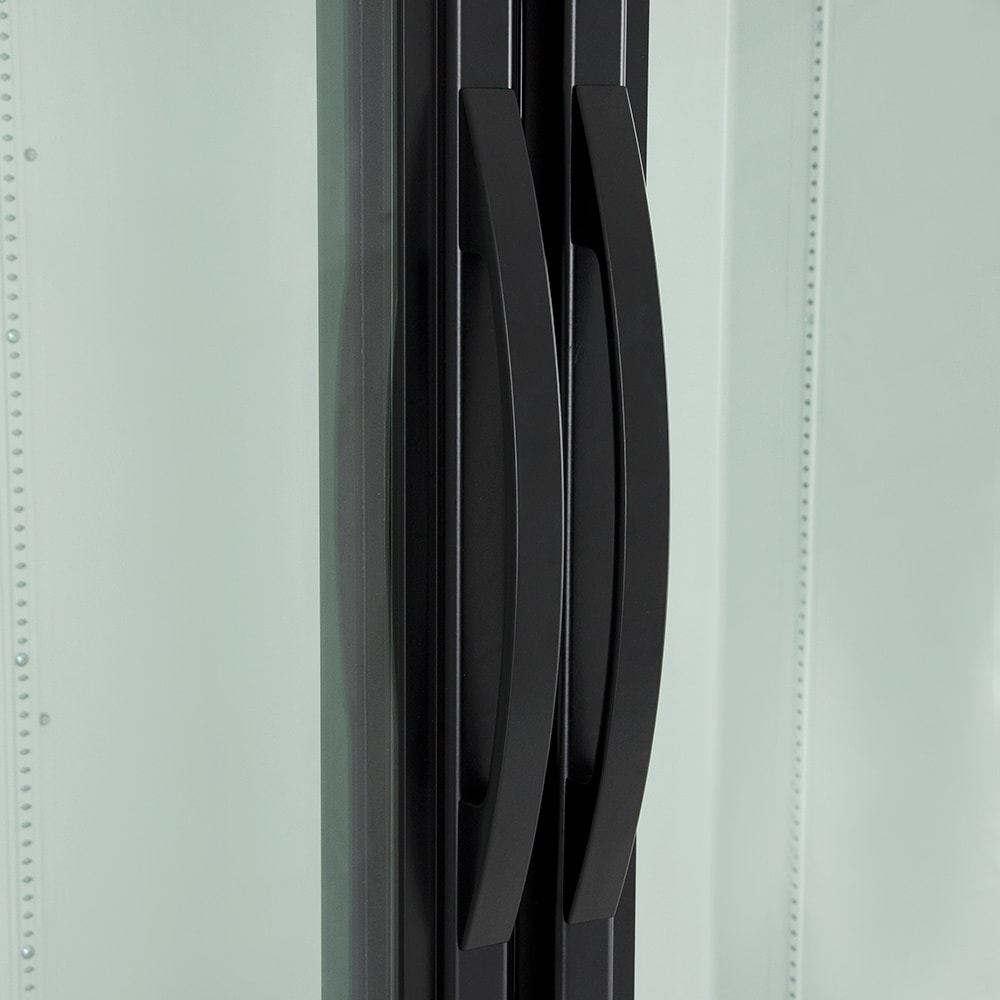

- 12-in.-long extruded handles provide a comfortable grip for opening doors
- Doors are mounted on a torsion-type closure system to prevent them from being left open

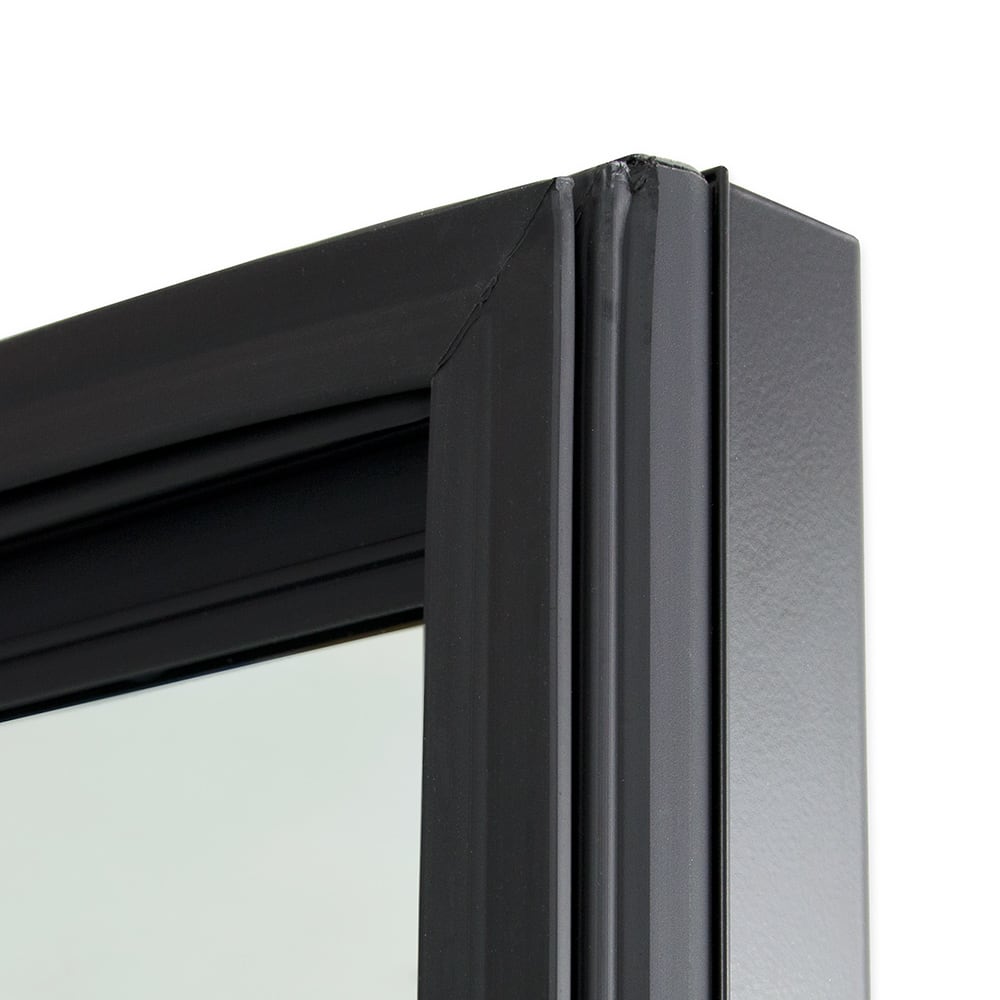

- Magnetic door gaskets form a positive seal to keep air inside the cooler's cabinet
Dimensions & Utilities
- Shelves: 249⁄16 in. W x 221⁄2 in. D
- Overall: 541⁄8 in. W x 311⁄2 in. D x 785⁄8 in. H
- 8.5 A, 1⁄2 HP

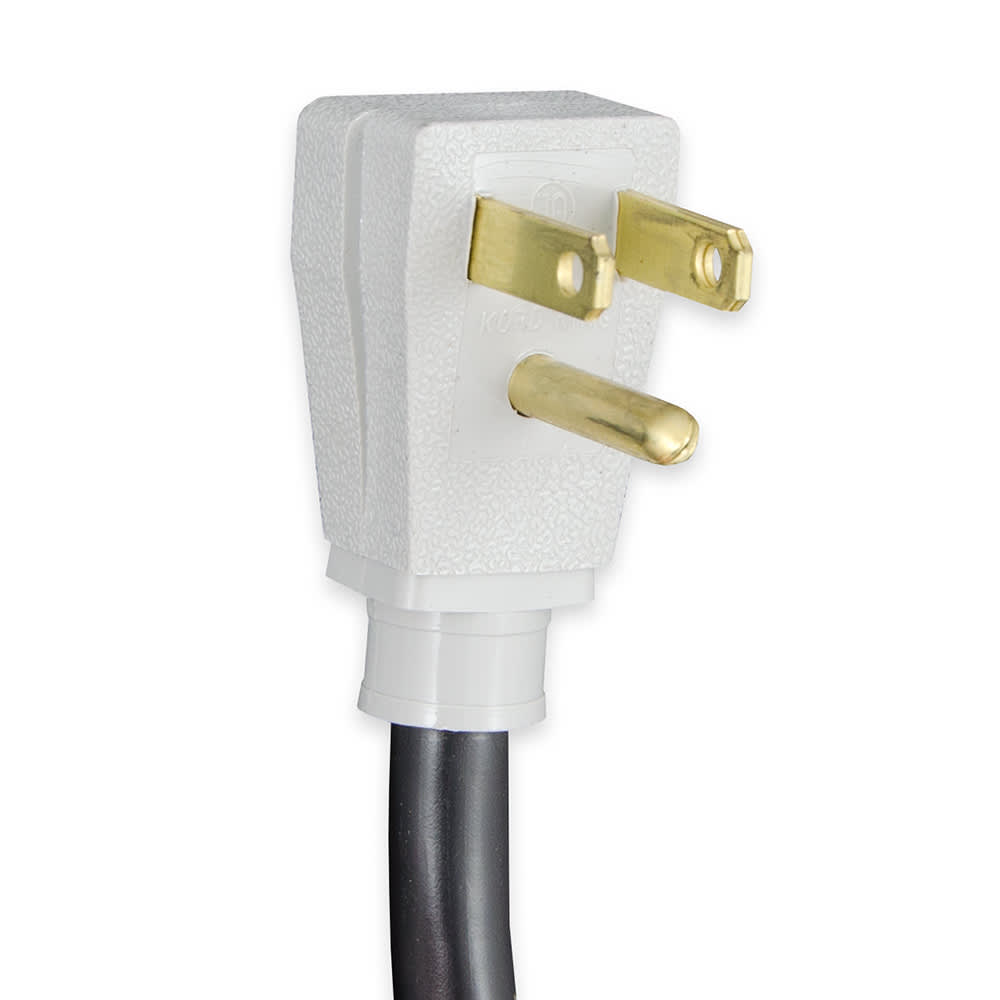

- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
To learn more about glass door merchandisers, take a look at this refrigerated display case guide.
Refrigerated Merchandiser, two-section, True standard look version 01, (8) shelves, black powder coated steel exterior, white interior with stainless steel floor, (2) double pane thermal insulated glass hinged doors, LED interior lights, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1, 8.5 amps, NEMA 5-15P, cULus, UL EPH Classified, MADE IN USA, ENERGY STAR®
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
True Refrigeration GDM-49-HC~TSL01 Specifications
PDF Spec Sheet| Manufacturer | True Refrigeration |
| Compressor Location | Bottom |
| Cubic Feet | 49 |
| Door Design | Swing |
| Exterior Finish | Black |
| Height (in) | 79 |
| Sections | 2 |
| Shelving Type | Wire |
| Warranty | 3-year Parts & Labor; 5-year Compressor |
| Width (in) | 54 |
| Also Known As | GDM-49, GDM-49-HC-LD, GDM-49-BK, GDM-49-BLK, GDM-49-HC, GDM-49-HC~TSL01 |
| Width (in) Range | 31 - 56 |
| Phase | 1 |
| Hertz | 60 |
| Voltage | 115 |
| Product | Display Refrigerator |
| Product Type | Commercial Refrigeration |
| Made in USA | Yes |
| Special Features | LED Lighting |
| Weight | 465.00 |
True Refrigeration GDM-49-HC~TSL01 Customer Reviews
Vince Lentz said...

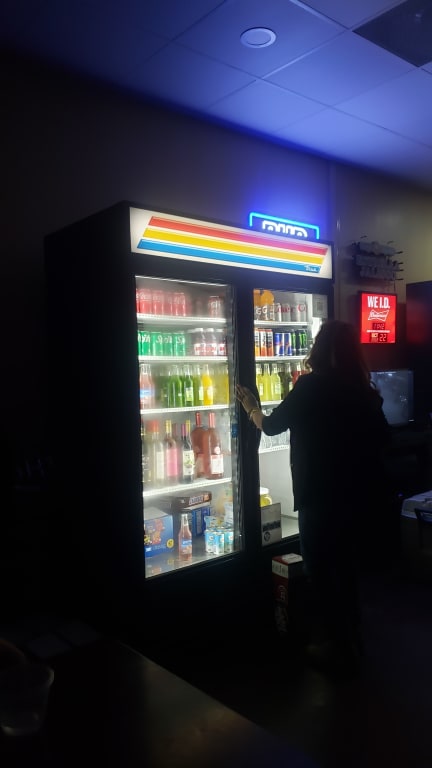

"Using in camp store Very impressed with the quality. Heavy duty shelving easily installed with plenty of room. Looking for bottle lane orgamiz..."
-
