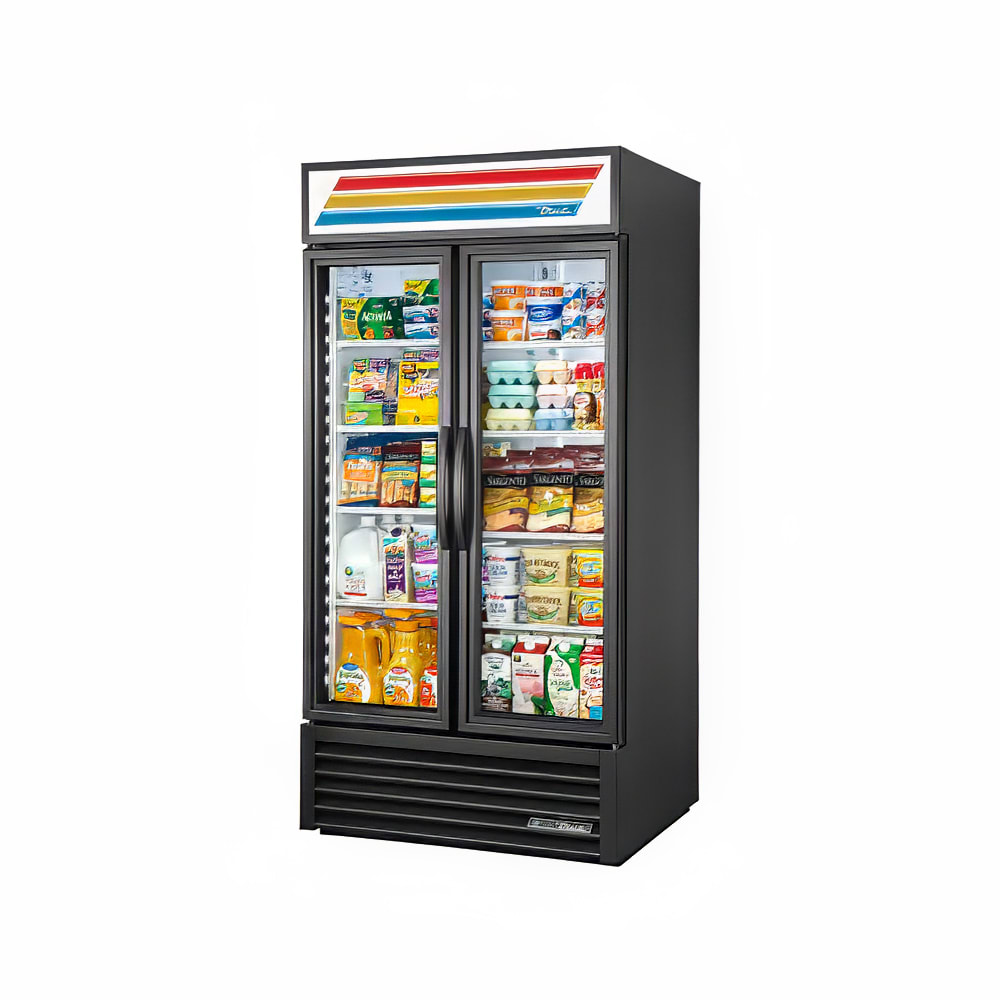

True GDM-35-HC~TSL01 39 1/2" GDM Series Two Section Glass Door Merchandiser - (2) Left/Right Hinge Doors, Black, 115V

The high horsepower of the True GDM-35-HC~TSL01 glass door merchandiser provides temperatures ranging from 33 to 38 degrees Fahrenheit, keeping stock at safe levels. Condenser and evaporator fan motors ensure fast temperature cool down and a fast recovery with high-volume usage, giving operators a sense of stability and reliability. To keep the cabinet temperature cool, the refrigeration system uses eco-friendly R290 hydrocarbon refrigerant, and the condensing unit is mounted on the bottom of the cabinet for maintenance and cleaning.

Removing dirt and dust from the condensing coil, the condensing fan motor operates in reverse for 20 seconds after the compressor is started. This self-cleaning feature along with routine maintenance keeps the coil up to standard to provide proper product temperature and a lengthened unit life.

Behind the two double-pane, thermal-insulated glass doors is a brightly illuminated, white aluminum interior with a stainless steel floor. Eight heavy-duty wire shelves are coated in durable PVC and adjustable on ¹⁄₂-inch increments to support displayed items. To protect the cabinet from corrosion and degradation, the heavy-duty steel frame has a black powder coating.

Since the unit has a bottom-mounted condenser, the lower shelf is raised to a no-stoop height, so customers can clearly see and access refrigerated products. An eye-catching, illuminated sign panel is a great way to gain customer attention, and the True GDM-35-HC~TSL01 glass door merchandiser has LED interior lights to brighten the interior, enhancing product visibility.

Product Details

• 8 PVC-coated wire shelves are adjustable on ¹⁄₂-in. increments
• Each shelf includes 4 chrome-plated shelf clips
• Lower floor shelf slightly raises products for visibility
• Exterior sign panel lights up to attract customers
• Each door has a 12-in. handle that eases door opening
• Self-closing doors help keep cool air in the cabinet
• Removable door gaskets are magnetic for cleaning and replacing
• Gaskets help trap cold air
• Products are visible because of the safety-shielded LED interior lights

Reliable Refrigeration System

• Refrigeration system maintains even temperatures for ideal product preservation
• Self-contained capillary tube system uses environmentally friendly R290 refrigerant
• Temperature range: 33-38 degrees F
• Evaporator and condenser fan motors ensure fast temperature recovery and cool down time by producing a more consistent volume of air
• Condensing fan motor blows in reverse to clean the condensing coil
• Evaporator is coated in epoxy to resist corrosion
• Bottom-mounted condensing unit eases maintenance

Cabinet Construction

• Stainless steel floor has a built-in drain to simplify cleaning
• Black powder-coated steel exterior is durable and permanent
• White aluminum interior liner avoids peeling and chipping
• Polyurethane insulation keeps cold air in the cabinet
• Insulation is foamed in place to give the cabinet sturdiness
• Heavy-duty steel frame rail is black powder coated to resist corrosion
• Leg levelers enable installation on uneven flooring
• Mitered plastic channel frames on the double pane, thermal insulated glass doors

Dimensions & Utilities

• Shelves: 17¹⁄₄ in. W x 21¹⁄₈ in. D

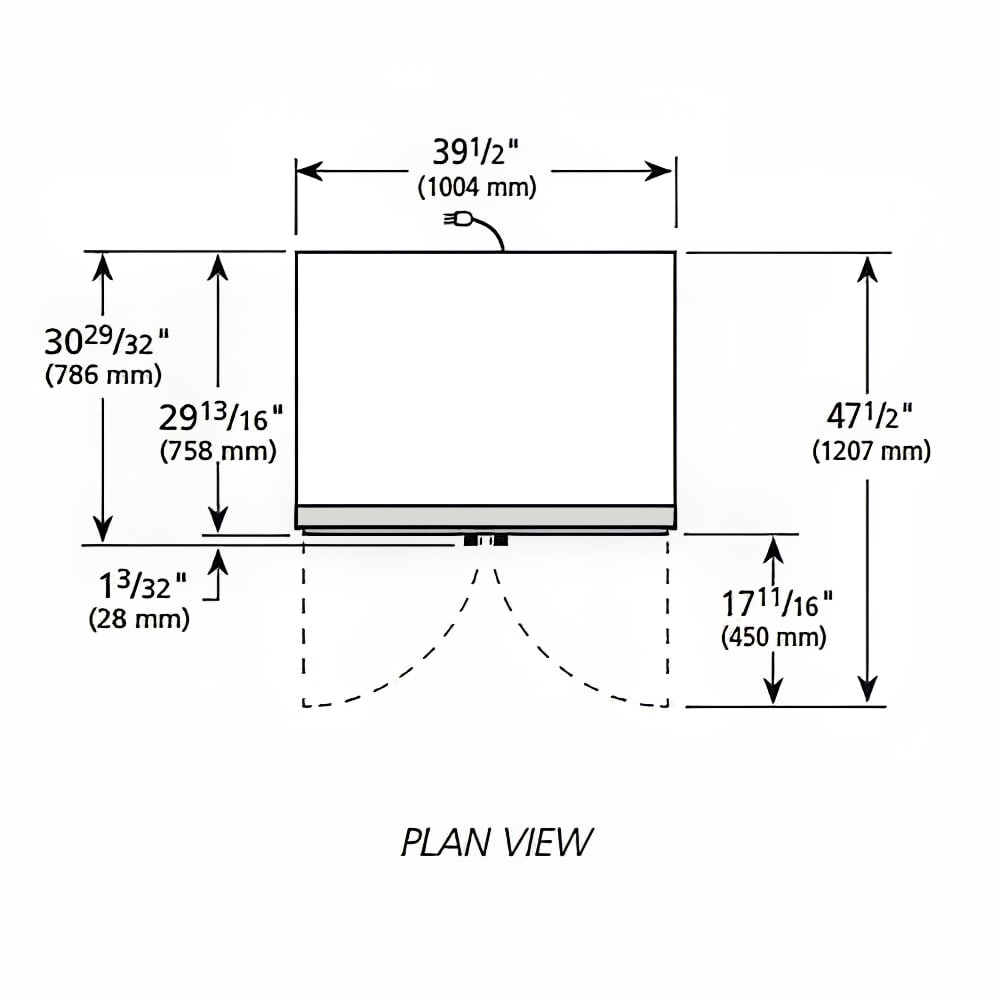

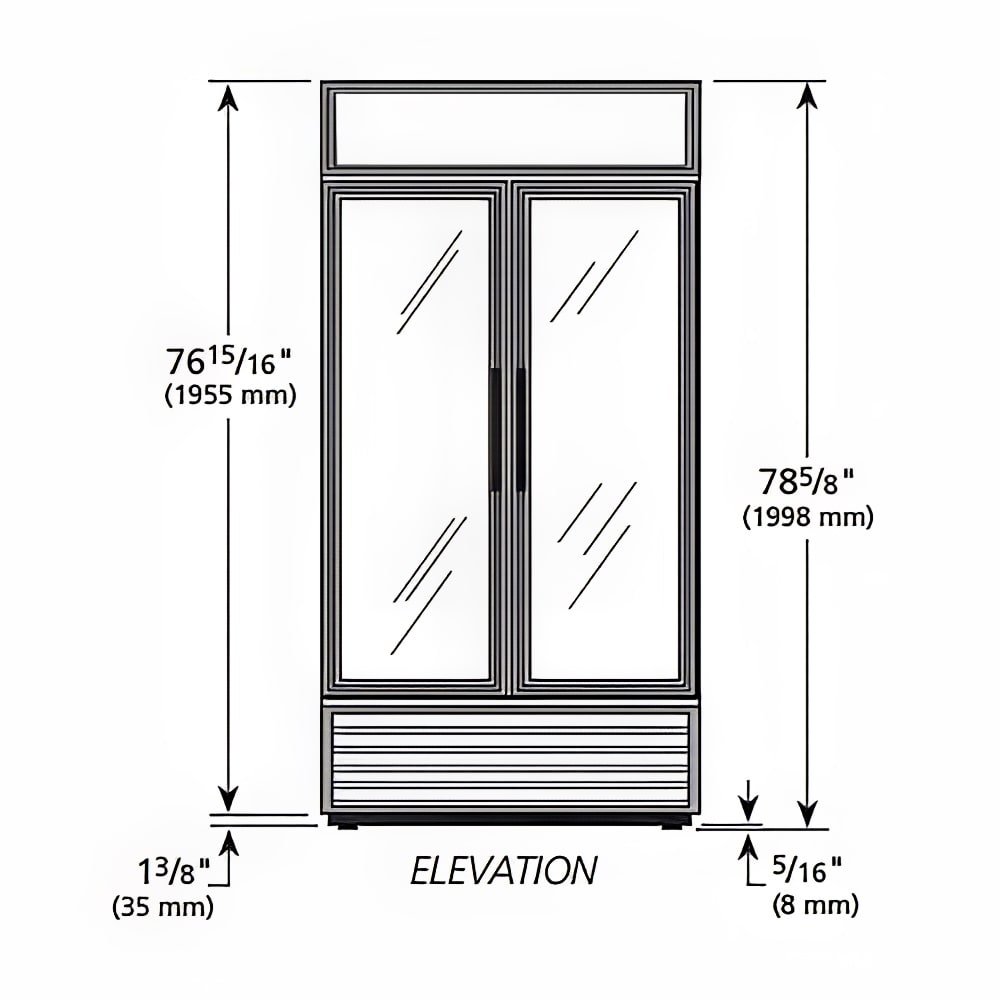

• Overall: 39¹⁄₂ in. W x 31¹⁄₂ in. D x 78⁵⁄₈ in. H
• 6.5 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Product Features

From The Manufacturer

Refrigerated Merchandiser, two-section, True standard look version 01, (8) shelves, (2) Low-E thermal glass hinged door, LED interior lights, powder coated steel exterior, white interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cULus, UL EPH Classified, CE

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

7-year Parts & Labor; 7-year Compressor Parts
