True GDM-23W-HC~TSL01 27" One Section Wine Cooler w/ (1) Zone - 106 Bottle Capacity, White, 115v

This True GDM-23W-HC~TSL01 one-section wine cooler has a bottom-mounted condenser that can be accessed quickly for servicing. Its self-contained capillary tube system controls the flow of R290 hydrocarbon refrigerant, ensuring temperatures stay cool, and its evaporator coils are coated with epoxy to resist corrosion. To move air efficiently, the condenser and evaporator fan motors are electronically commutated.

Each time the compressor cycles on, the condensing fan motor reverses direction for a 20-second period to eliminate buildup from the condensing coil. This helps the condensing coil operate more efficiently, improving performance and providing ideal product temperatures. For best results, preventive maintenance should be carried out on a regular basis.

To display product, this wine cooler includes four adjustable wine racks and one adjustable shelf. An exterior sign panel lights up to grab customers' attention, while LED lighting illuminates the cabinet's interior. This unit has a thermal-insulated door made of low-e, double-pane glass that enables customers to see product without opening the cabinet. A lock on the outside increases security. The door can close on its own and has a magnetic gasket that snaps into the frame to create an airtight seal.

This True GDM-23W-HC~TSL01 wine merchandiser has a cold-rolled steel exterior that is powder coated white to resist peels and chips. Its interior sides and top are made of black aluminum, and its back is mirrored to enhance display presentation. Featuring a built-in drain, its floor is made of stainless steel to facilitate cleaning and resist dents and scratches. To keep temperatures between 33 and 38 degrees Fahrenheit, its walls are insulated by foamed-in-place polyurethane.

Product Details

• White powder-coated, cold-rolled steel exterior construction
• Black aluminum interior sides and top
• Stainless steel floor resists dents
• Mirrored interior back enhances presentation
• Insulated with polyurethane foam to retain temperatures
• Exterior sign panel lights up to attract customers

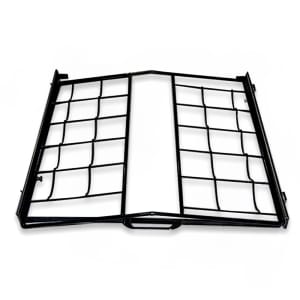

• 4 adjustable wine racks and 1 adjustable PVC-coated wire shelf hold product
• Interior is lit by LED lighting
• Integrated floor drain facilitates cleaning

Self-closing Door

• Made of double-pane, low-e glass for visibility
• Thermal-insulated to keep cold air inside
• Lock minimizes theft and tampering
• Closes on its own
• Magnetic gasket snaps into the frame and is removable without tools

Refrigeration System

• Self-contained capillary tube system holds and releases R290 hydrocarbon refrigerant to cool the cabinet
• Temperature range: 33-38 degrees F
• Electronically commutated condenser and evaporator fan motors move air efficiently
• 20-second reversing fan motor is designed to blow dirt, dust, and debris off condenser coil
• Bottom-mounted condensing unit can be accessed for maintenance
• Epoxy-coated evaporator coils resist corrosion

Dimensions & Utilities

• Racks: 22⁹⁄₁₆ in. L x 21¹⁄₈ in. D
• Shelf: 22⁹⁄₁₆ in. L x 23¹⁄₄ in. D
• Overall: 27 in. W x 31¹⁄₂ in. D x 78⁵⁄₈ in. H
• 5.4 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration GDM-23W-HC~TSL01 within the 48 contiguous states.

From The Manufacturer

Wine Merchandiser, one-section, True standard look version 01, (4) wine racks & (1) shelf, powder coated steel exterior, (1) Low-E thermal glass hinged door with lock, LED interior lighting, black aluminum interior with mirrored back, stainless steel floor, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 5.4 amps, NEMA 5-15P, cULus, ENERGY STAR®

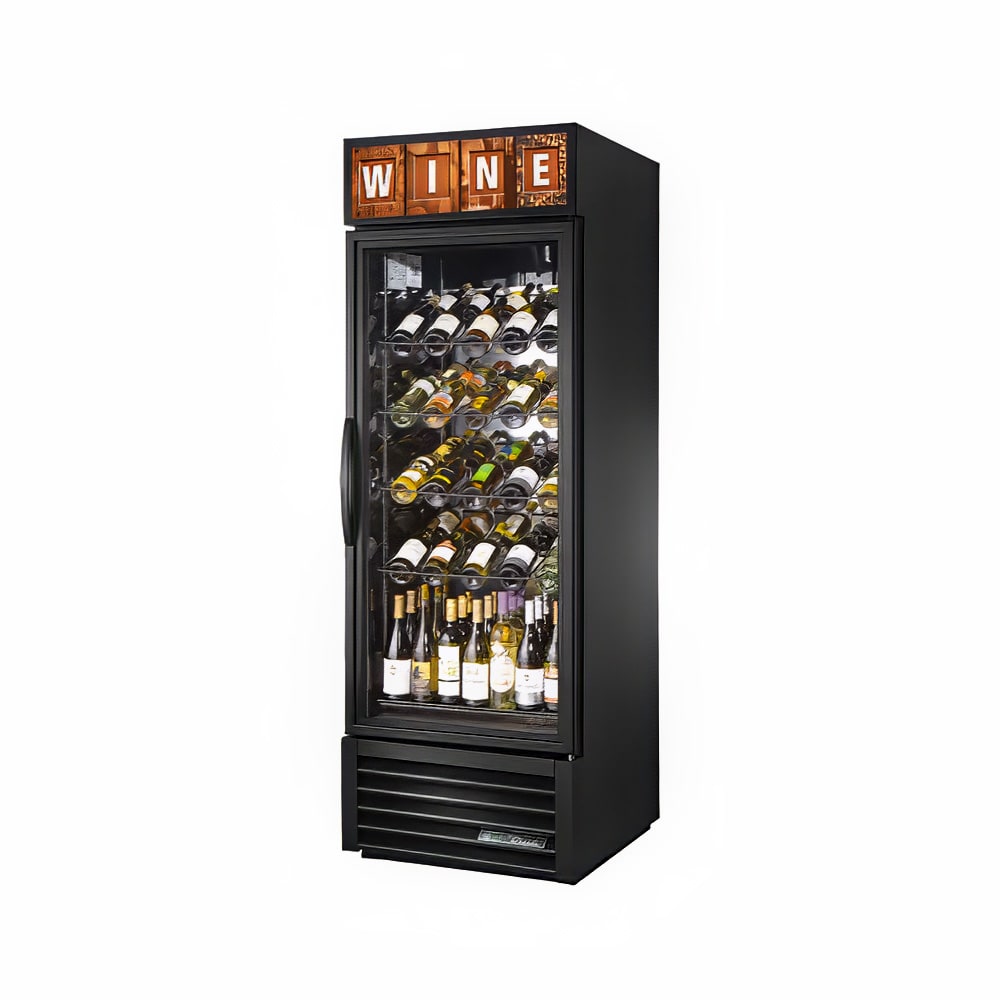

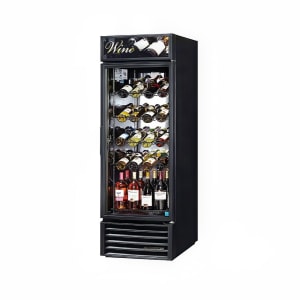

*Not as Shown - White

7-year Parts & Labor; 7-year Compressor

True Refrigeration GDM-23W-HC~TSL01 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.

Documents

Spec Sheet

Warranty

Product Info

Brochure
