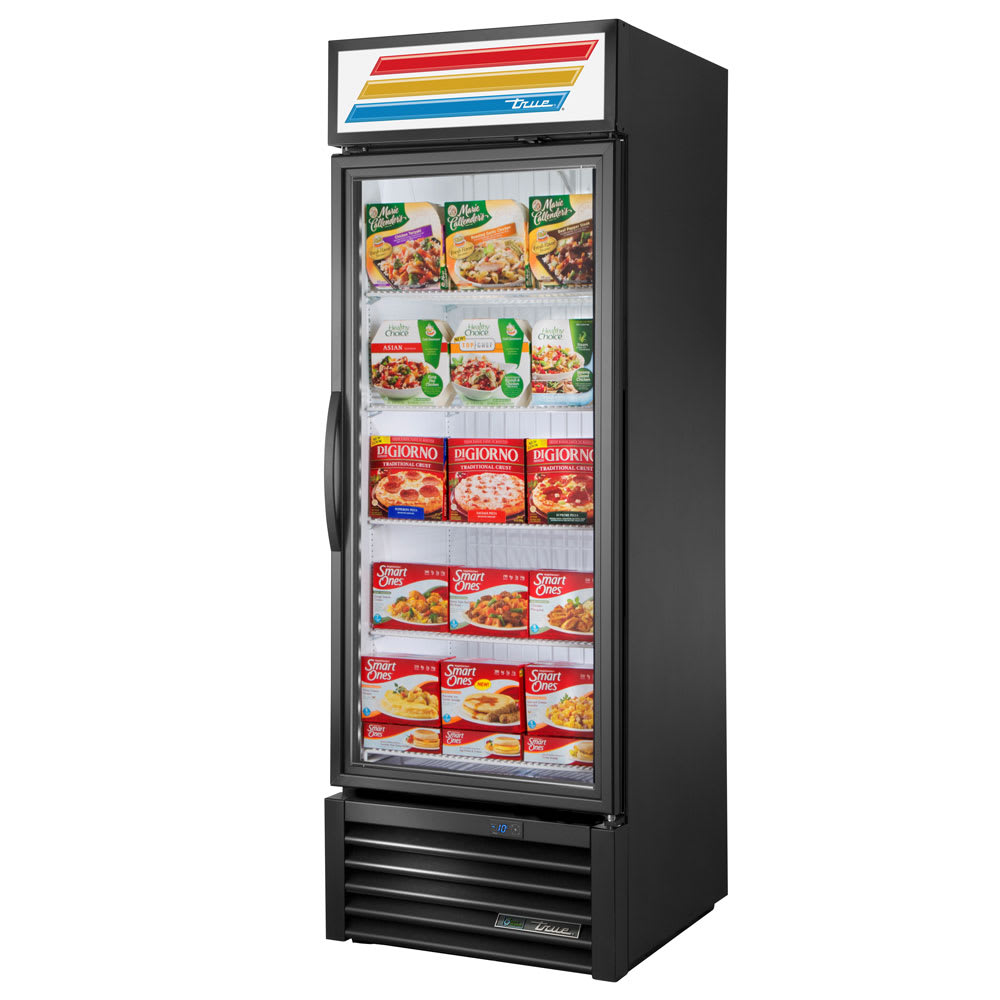

True GDM-23F-HST-HC~TSL01 27" One Section Display Freezer w/ Swing Door - Bottom Mount Compressor, Black, 115v

The True GDM-23F-HST-HC~TSL01 one-section display freezer has a black powder-coated exterior made of cold-rolled steel. Its interior is lined with white aluminum and has a stainless steel floor. To keep temperatures at -10 degrees Fahrenheit, this unit uses R290 hydrocarbon refrigerant and is foamed with polyurethane insulation. Its door is made of triple-pane, thermal-insulated glass and closes by itself. Opening from the left, this door features hinges on its right, opposite a 12-inch-long door handle that supplies a comfortable grip. Magnetic gaskets snap into the door frame for an airtight seal.

This freezer display case has four PVC-coated wire shelves that can be adjusted in ¹⁄₂-inch increments to accommodate most products. LED lighting brightens the interior, and an illuminated exterior sign panel attracts customers. If internal temperatures drop below 0 degrees Fahrenheit for longer than 30 minutes, the door locks and an alarm notifies the staff. A backup battery power supply keeps the door locked if power is cut off from the unit.

Since the True GDM-23F-HST-HC~TSL01 freezer merchandiser has a bottom-mounted condenser, it can be serviced with little difficulty. Its capillary tube system is self-contained, so it does not need extra external tubing, and its condenser and evaporator fan motors are electronically commutated to consistently move air. This unit has an automatic defrost system that starts at a set time and stops when a certain temperature on the evaporator coils is reached. These coils are coated with epoxy to resist corrosion.

Product Details

• Exterior is made of black powder-coated, cold-rolled steel
• Interior is lined with white aluminum to resist corrosion
• Scratch- and stain-resistant stainless steel floor
• Polyurethane foam insulates the cabinet
• Illuminated exterior sign panel provides a space for signage
• Triple-pane, thermal-insulated glass door is self-closing
• Right-hinged door opens on the left
• 12-in.-long handle provides a sturdy grip
• Magnetic gaskets snaps into the door frame to keep the contents cold
• 4 PVC-coated wire shelves can be adjusted in ¹⁄₂-in. increments
• LED lights brighten the interior
• Floor rack and backguard create ideal airflow
• Electronic monitoring system locks the cabinet if temperatures exceed 0 degrees F for more than 30 min.
• Backup battery power supply keeps the door locked if the unit loses power
• Alarm sounds to alert staff when the door is locked

Refrigeration System

• Self-contained capillary tube system
• Uses R290 hydrocarbon refrigerant
• Maintained temperature: -10 degrees F
• Electronically commutated condenser and evaporator fan motors efficiently move air
• Bottom-mounted condensing unit raises merchandise
• Automatic defrost system is time initiated and temperature terminated
• Epoxy-coated evaporator resists corrosion

Dimensions & Utilities

• Shelves: 22⁷⁄₈ in. D x 21¹⁄₄ in. H
• Overall: 27 in. W x 31¹⁄₂ in. D x 78⁵⁄₈ in. H
• 9.3 A, 1 HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration GDM-23F-HST-HC~TSL01 within the 48 contiguous states.

From The Manufacturer

Freezer Merchandiser with Health Safety Timer, one-section, True standard look version 01, -10°F, (4) shelves, (1) triple-pane thermal glass hinged door, LED interior lights, non-peel or chip black powder coated cold rolled steel exterior, white aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1 HP, 115v/60/1-ph, 9.3 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA

*Image may not depict product color, inclusions or accessories.

6-year Parts; 5-year Labor; 7-year Compressor Parts

True Refrigeration GDM-23F-HST-HC~TSL01 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
