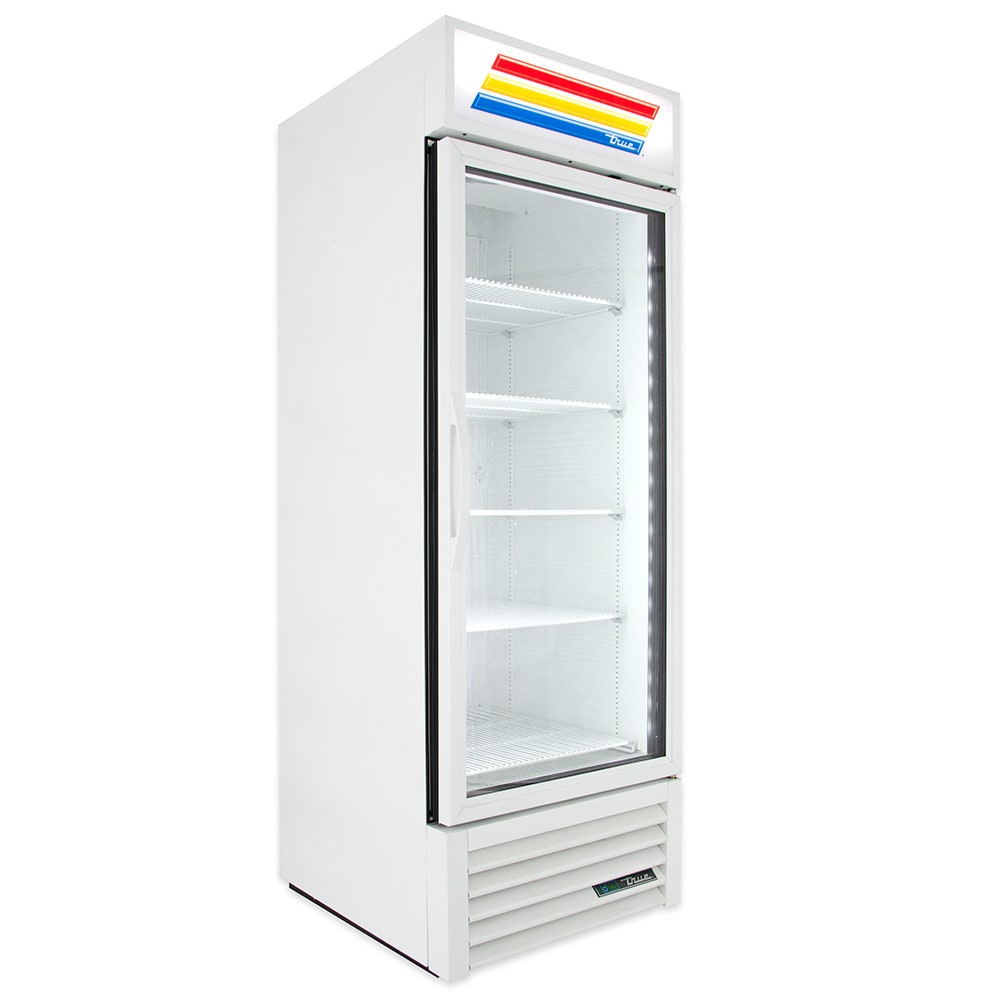

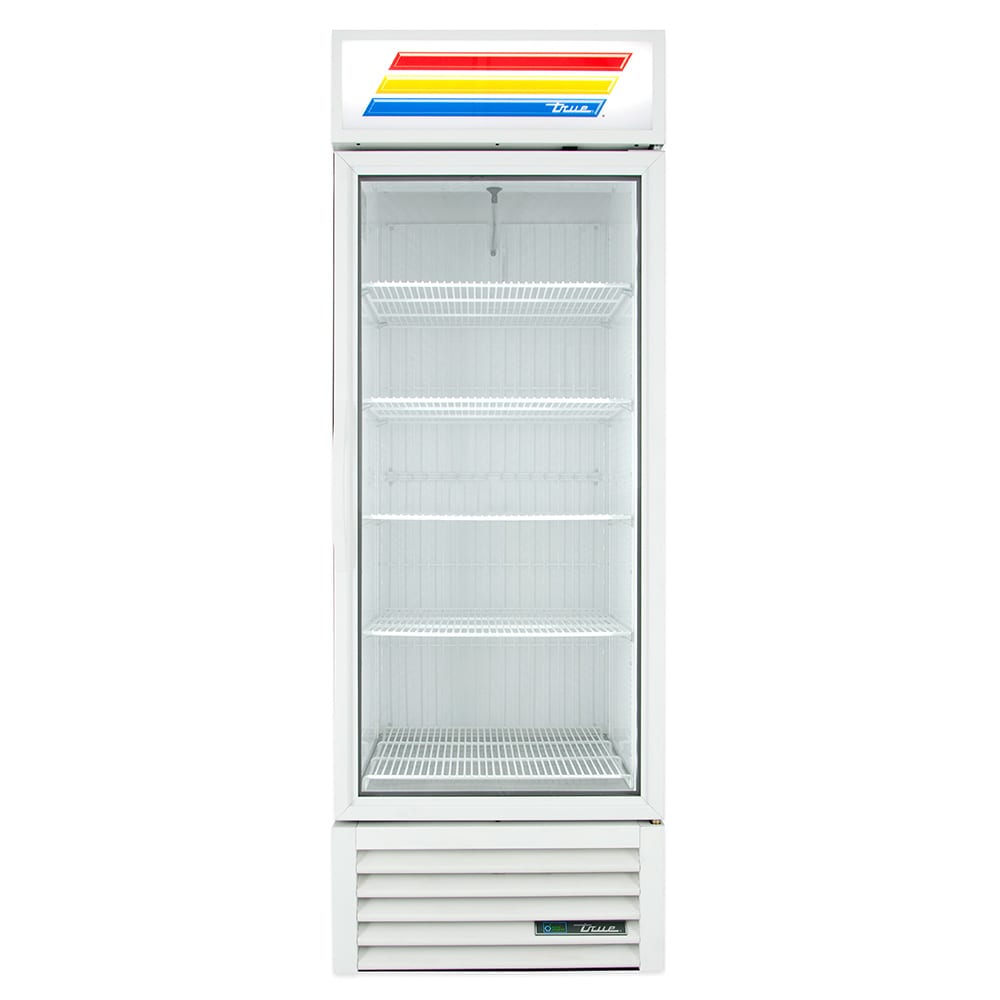

True GDM-23F-HC~TSL01 27" One-Section Display Freezer w/ Swinging Door - Bottom Mount Compressor, 115v

KaTom #: 598-GDM23F • MPN: GDM-23F-HC~TSL01 WHT

Typically ships within 1 - 3 business days

(0 reviews)Write a Review

True Refrigeration GDM-23F-HC~TSL01 Description

The True GDM-23F-LD WHT one-section glass door display freezer is designed using the highest quality materials and components to provide the user with an attractive, point of purchase merchandiser. The white laminated vinyl exterior is durable, permanent, and will not chip or peel. The white aluminum interior liner and stainless steel floor are durable and easy to keep clean. A welded, heavy-duty, steel frame rail is black powder coated to prevent corrosion and has leg levelers for uneven floors. An illuminated exterior sign panel allows for clear merchandising of your products to attract customers’ attention, but graphics are sold separately.

A triple pane, thermal insulated glass door self-closes with a positive seal to keep the cold air in. Opening the door with one hand is simple since it comes equipped with a 12 inch extruded handle. A magnetic gasket on the door keeps cold air from escaping and removes without tools easily for cleaning and replacing. The True GDM-23F-LD WHT one-section glass door display freezer has a backguard and floor rack that guarantee optimum airflow to keep all products cold. Environmentally friendly R-404A refrigerant is used by the capillary tube system for consistent cooling at -10 degrees Fahrenheit.

Product Details

  • Door is on a positive seal, torsion type system that lets it self-close for convenience
  • 12-in. extruded handle on the door makes opening it easy
  • Cold air cannot escape thanks to the magnetic door gasket
  • Magnetic door gasket is removable without tools to facilitate cleaning and servicing

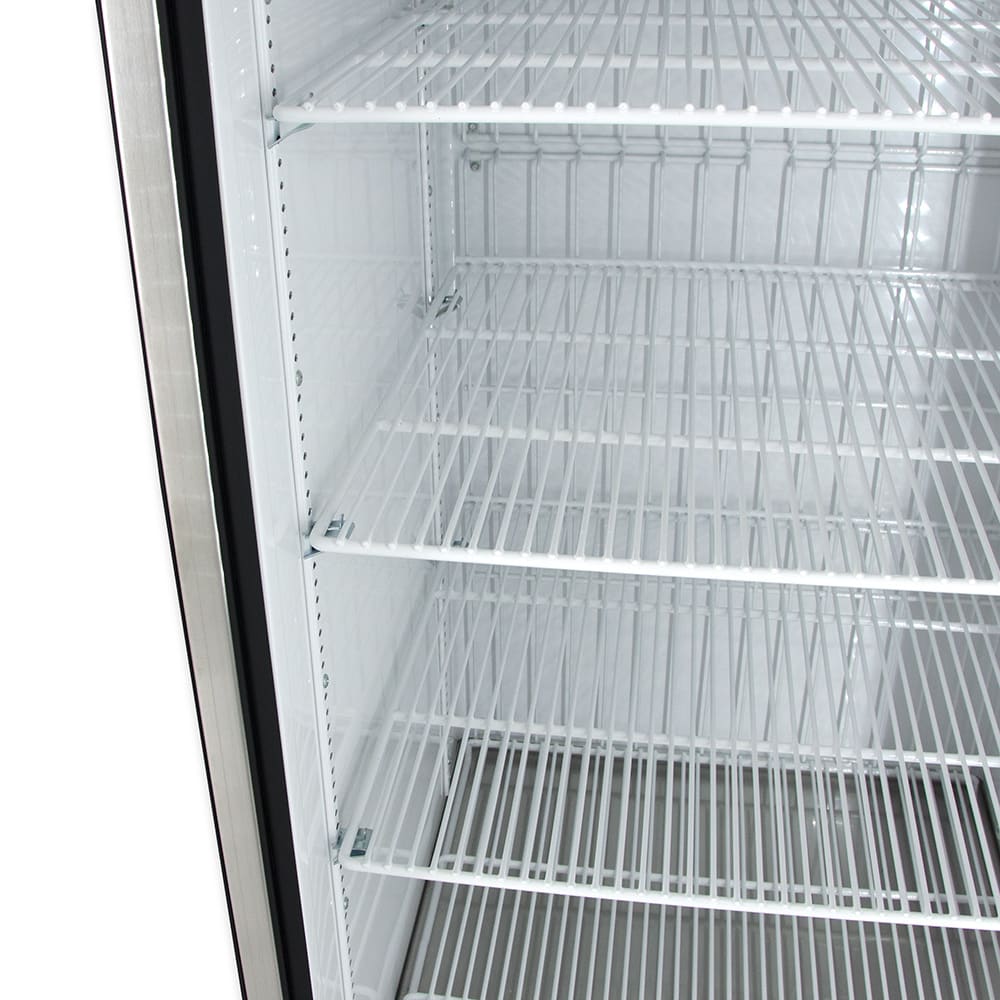

  • 4 heavy-duty, PVC-coated wire shelves are adjustable on 12 in. increments
  • 4 chrome-plated shelf clips per shelf
  • Products are slightly raised for ideal visibility due to the condensing unit

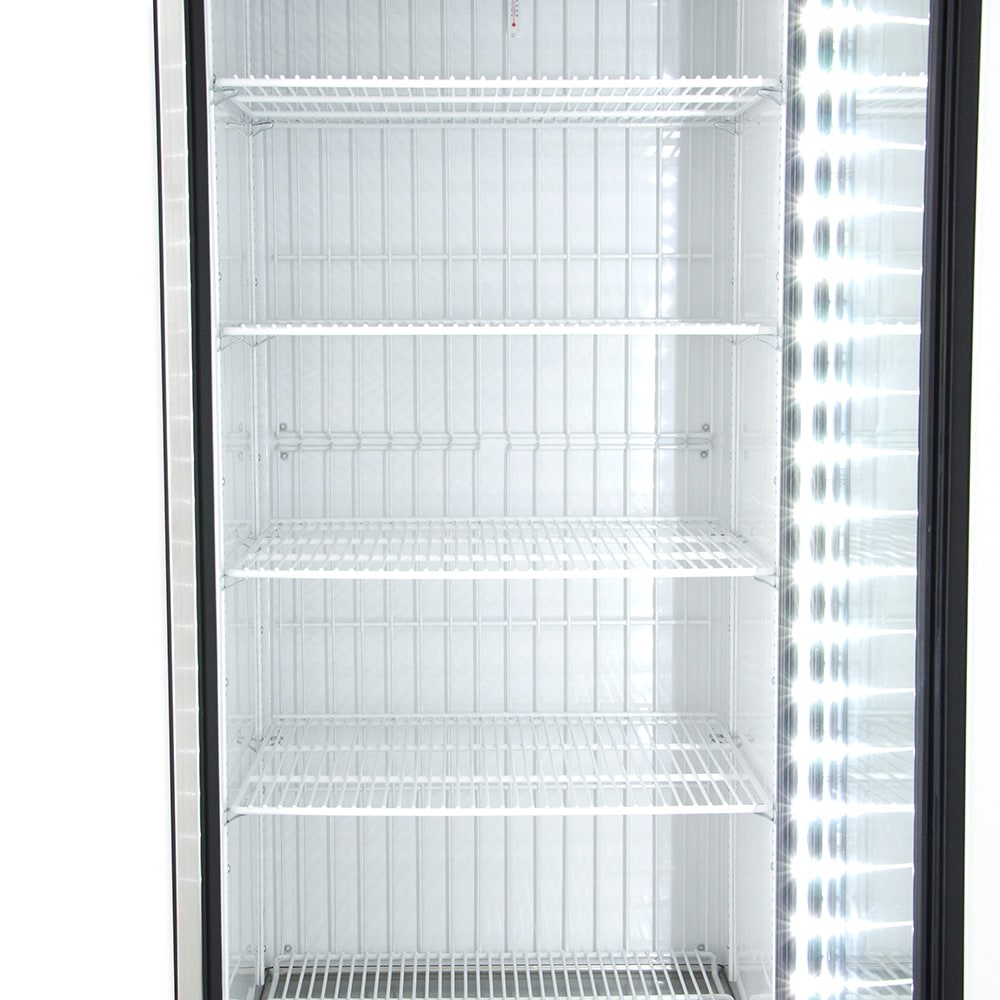

  • LED interior lighting makes products more visible
  • Illuminated exterior sign panel grabs customers’ attention (merchandising graphics are sold separately)

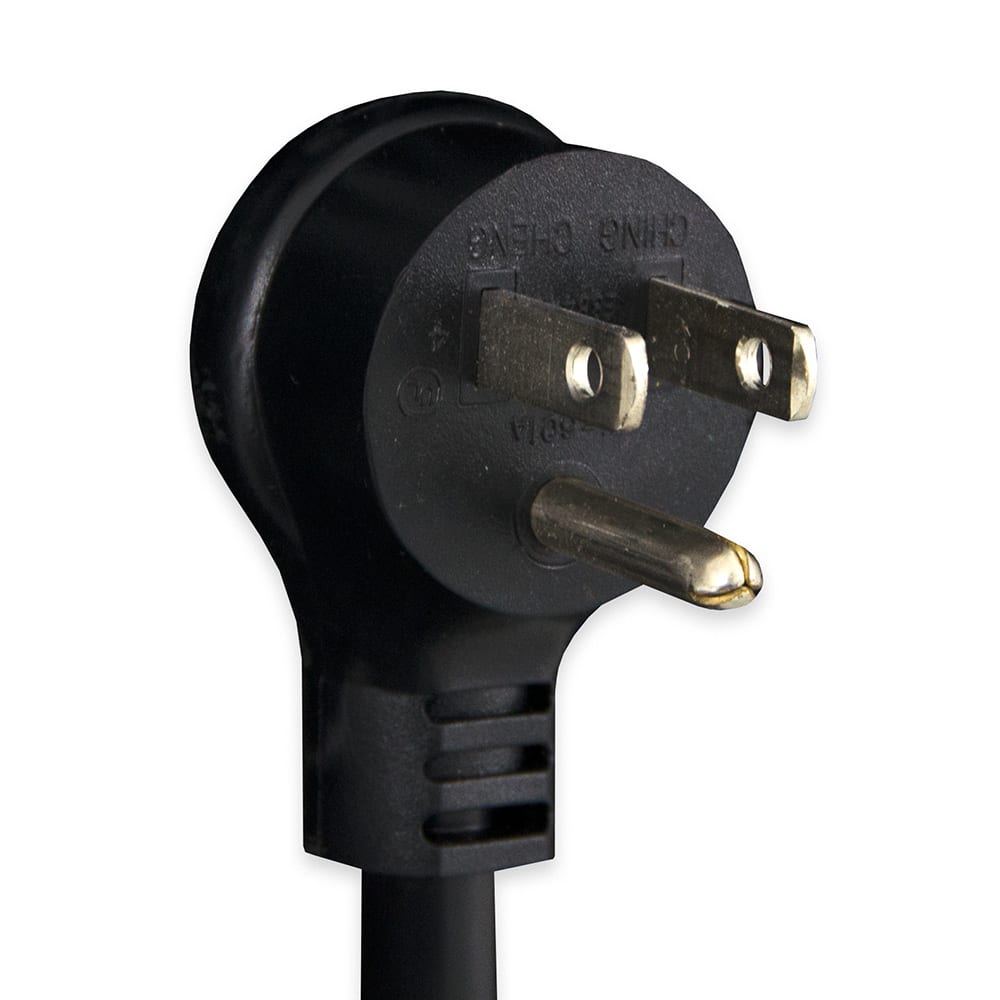

  • 115 V/60 Hz/1 ph, 9.3 A, 1 HP, 9-ft. cord with a NEMA 5-15 plug
  • Overall Dimensions: 27 in. W x 2978 in. D x 7858 in. H
  • NSF-7 compliant for storing and displaying packaged or bottled products
  • cULus and UL-EPH listed; Energy Star certified

Reliable Refrigeration

  • Refrigeration system maintains an even temperature of -10 degrees F
  • Short defrost cycle with the time-initiated, temperature-terminated, automatic defrost system saves consumption of energy
  • Self-contained, capillary tube system uses environmentally friendly R-404A refrigerant to consistently cool
  • Epoxy-coated evaporator prevents corrosion
  • Evaporator fan motor and larger fan blades create a high volume airflow that holds cold temperatures and makes temperature recovery fast
  • Condensing unit is mounted on the bottom of the cabinet for easy maintenance and cleaning

Durable Construction

  • Backguard and floor rack guarantee ideal airflow
  • White laminated vinyl exterior is durable, permanent, and will not peel or chip
  • White aluminum interior liner and stainless steel floor are durable and easy to clean
  • High-density polyurethane insulation keeps cold air in the cabinet while also giving it structure since it is foamed in place
  • Black-powder coated, welded steel frame rail resists corrosion and has leg levelers for uneven flooring
  • Triple pane, thermal insulated, glass door assembly has a black extruded aluminum frame

Freezer Merchandiser, one-section, -10° F, (4) shelves, laminated vinyl exterior, white interior with stainless steel floor, (1) triple-pane thermal glass hinged door, LED interior lights, R290 Hydrocarbon refrigerant, 1 HP, 115v/60/1-ph, 9.3 amps, NEMA 5-15P, 9' cord, cULus, UL EPH Classified, CE, MADE IN USA, ENERGY STAR®

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

True Refrigeration GDM-23F-HC~TSL01 Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Exterior Width 27
Sections 1
Door Design Swing
Voltage 115/60/1
Air Intake Front
Compressor Location Bottom
Warranty 3 year parts & labor/5 year compressor
Cubic Feet 23
Specialty Options LED Lighting
Also Known As GDM-23F, TRUGDM23F, TRUE GDM-23F, 890GDM23F, 675-009, GDM23F
Weight 395.00
True GDM-23F-HC~TSL01 Certifications
  • UL
  • NSF
  • Energy Star
