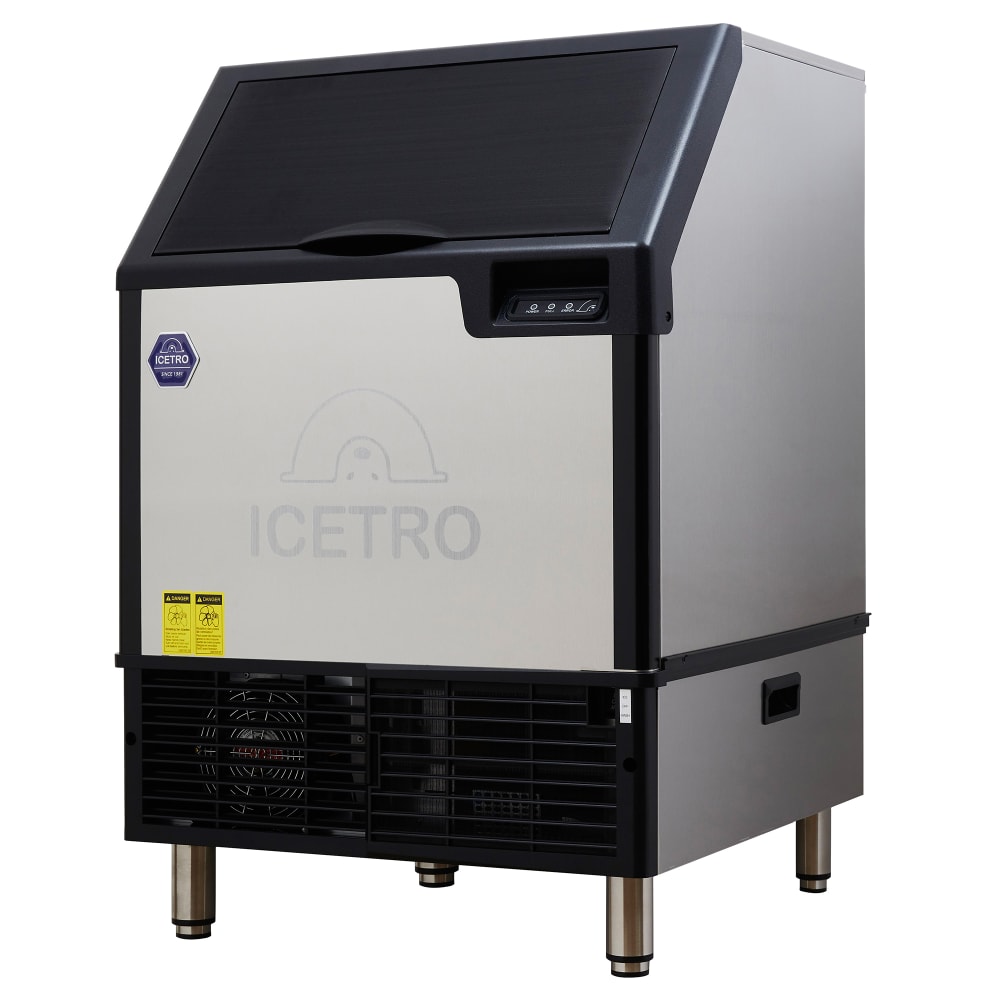

ICETRO IU-0170-AH 26" Half Cube Undercounter Ice Machine - 175 lbs/day, Air Cooled

KaTom #: 457-IU0170AH • MPN: IU-0170-AH
  • 457-IU0170AH Primary Thumbnail Image
  • 457-IU0170AH Multiple Thumbnail Image #1
  • 457-IU0170AH Multiple Thumbnail Image #2
  • 457-IU0170AH Multiple Thumbnail Image #3
  • 457-IU0170AH Multiple Thumbnail Image #4
  • 457-IU0170AH Multiple Thumbnail Image #5
  • 457-IU0170AH Multiple Thumbnail Image #6
  • 457-IU0170AH Multiple Thumbnail Image #7
  • 457-IU0170AH Multiple Thumbnail Image #8
  • 457-IU0170AH Multiple Thumbnail Image #9
  • 457-IU0170AH Multiple Thumbnail Image #10
  • 457-IU0170AH Multiple Thumbnail Image #11
  • 457-IU0170AH Multiple Thumbnail Image #12
  • 457-IU0170AH Multiple Thumbnail Image #13
  • 457-IU0170AH Multiple Thumbnail Image #14
  • 457-IU0170AH Multiple Thumbnail Image #15
  • 457-IU0170AH Multiple Thumbnail Image #16
  • 457-IU0170AH Multiple Thumbnail Image #17
  • 457-IU0170AH Multiple Thumbnail Image #18
Free Shipping Item

Retail Price: $5,756.00

$2,878.00 /Each

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $155.25
  • Edit Remove

Selected Ice Type: Half Cube

Full CubeFull Cube
Cage Ellis User Image
Ask a Foodservice Equipment Specialist

ICETRO IU-0170-AH Description

To eliminate the hassle of purchasing compatible pieces of equipment separately, the ICETRO IU-0170-AH undercounter ice maker is equipped with an ice storage bin. Its self-contained condenser operates with R-404A refrigerant, and for increased production, the improved evaporator freezing surface can increase production. When ambient air is 90 degrees Fahrenheit and incoming water is 70 degrees Fahrenheit, it can produce 150 pounds of half-cube ice in 24 hours. Half-cube ice measures 1 1⁄8 inches by 3⁄8 of an inch by 7⁄8 of an inch and is commonly bagged, dispensed, blended into smoothies or frozen beverages, and served in soft drinks. Because it nests more densely than full-cube ice, it displaces more liquid, which can save operators costs on beverages over time. Staff can monitor ice production and operational status using the control board diagnostics.

Sized to fit beneath a counter, the ICETRO IU-0170-AH ice maker with bin measures 26 inches wide by 28 inches deep by 39 inches tall—a great choice for kitchens with limited space. Its stainless steel exterior provides lasting rust-resistant durability, while the bin's high-density urethane insulation slows ice melting in warm settings. The bin can hold 77 pounds of half-cube ice, and users can access the stored ice by lifting the top-hinged cover. When service or maintenance is required, the forward-sliding bin cover can quickly be removed for access to interior components.

  • Maximum 24-hour production: 175 lbs.
  • Produces half-cube ice
  • Half-cube ice dimensions: 1 1⁄8 in. x 3⁄8 in. x 7⁄8 in.
  • Air-cooled, self-contained condenser
  • R-404A refrigerant
  • Improved evaporator freezing surface increases ice production
  • Control board diagnostics
  • Compatible with the ICETRO ICEPRO400 water filtration system (not included)
  • Operating ambient temperature range: 50-100 degrees F
  • Operating water temperature range: 50-90 degrees F
  • Operating water pressure range: 20-80 PSI

  • 77-lb. ice storage capacity
  • Stainless steel exterior
  • High-density urethane insulation slows ice melting

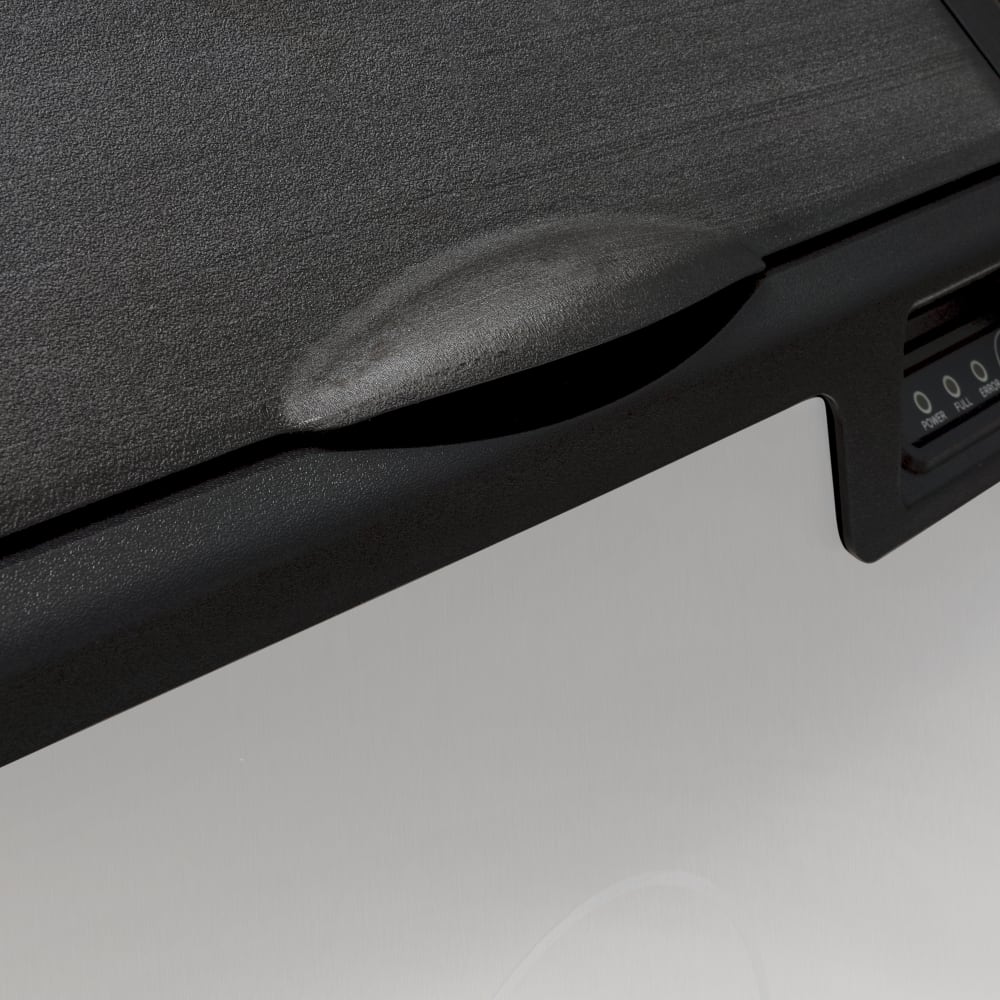

  • Hinged lid
  • Forward-sliding removable bin cover simplifies maintenance

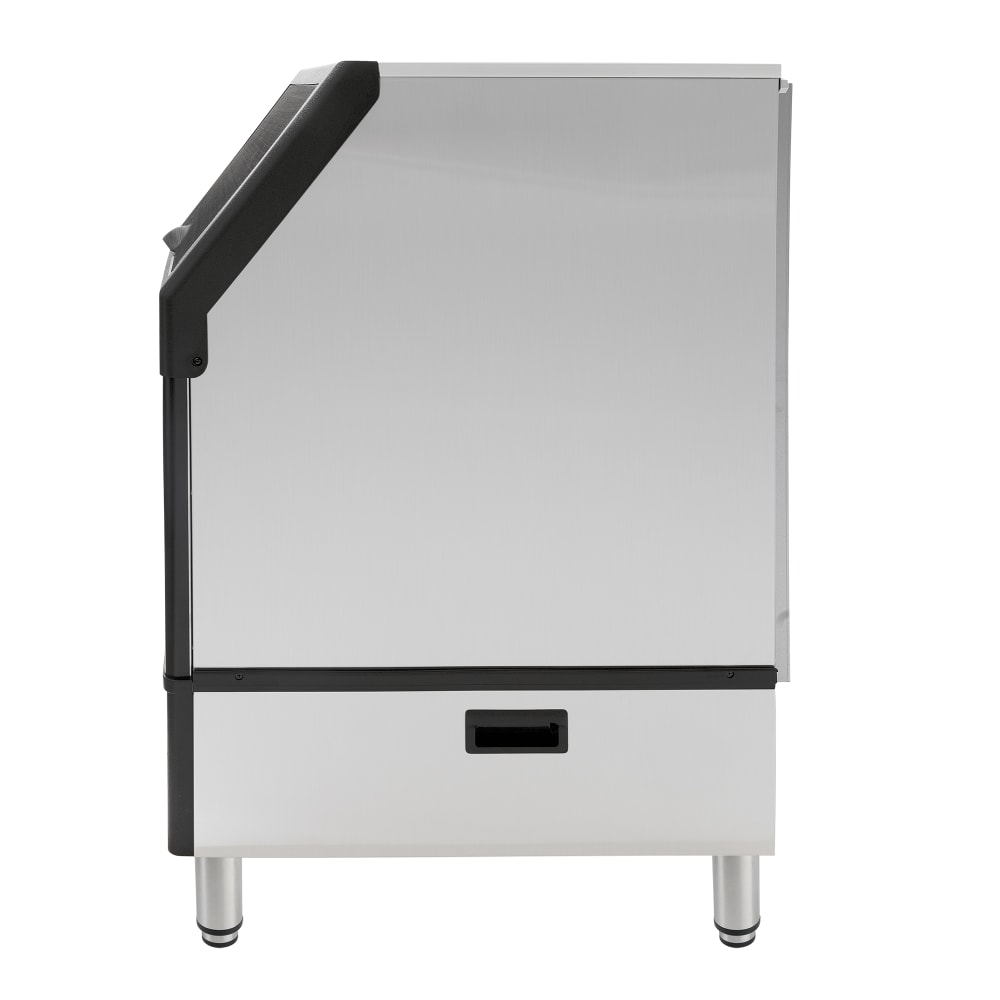

  • 26 in. W x 28 in. D x 39 in. H
  • 15 A, 8.62 kW

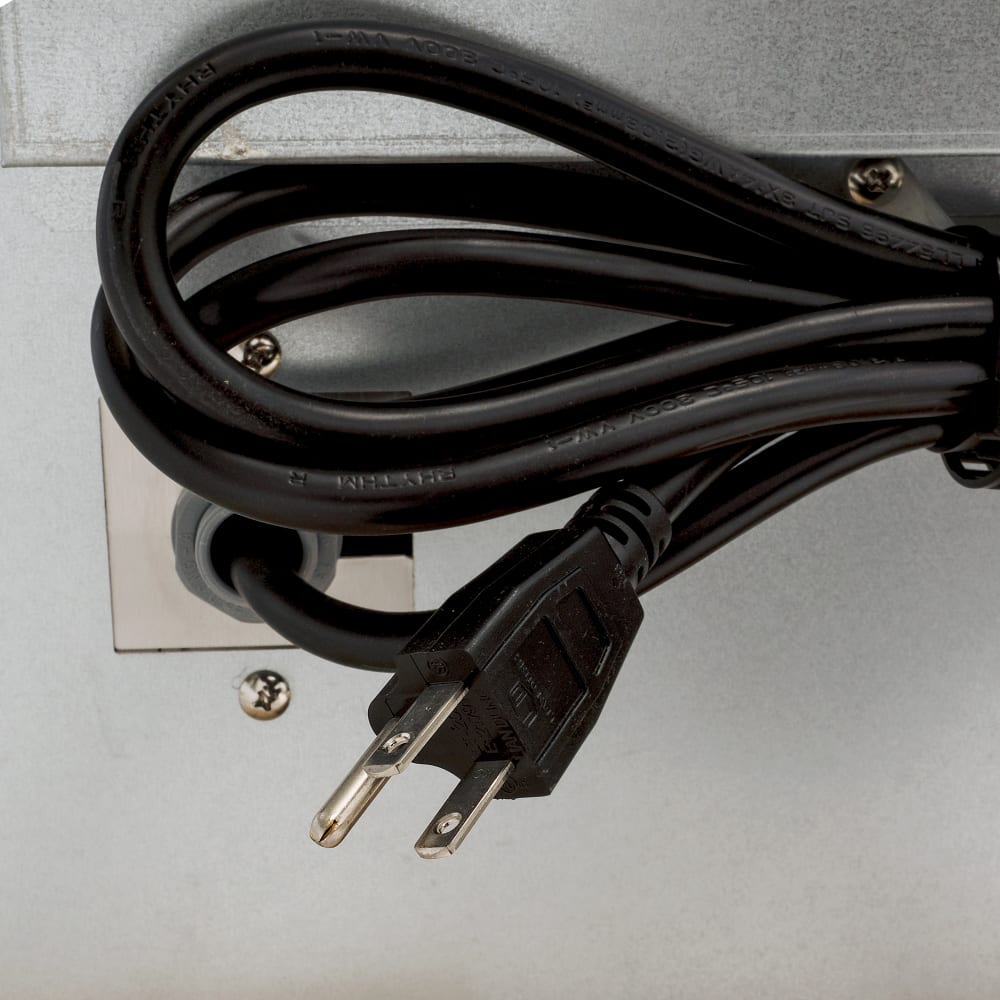

  • 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on ICETRO IU-0170-AH within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Undercounter Ice Maker with Bin, cube-style, air-cooled, self-contained condenser, production capacity up to 175 lbs/24 hr at 70°/50° (150 lbs at 90°/70°), 77 lbs storage capacity, control board diagnostics, stainless steel exterior, half-size cubes, 115v/60/1-ph, cord with NEMA 5-15P, CE, cETLus, ETL-Sanitation

Warranty Icon
3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor Parts
